HDT21

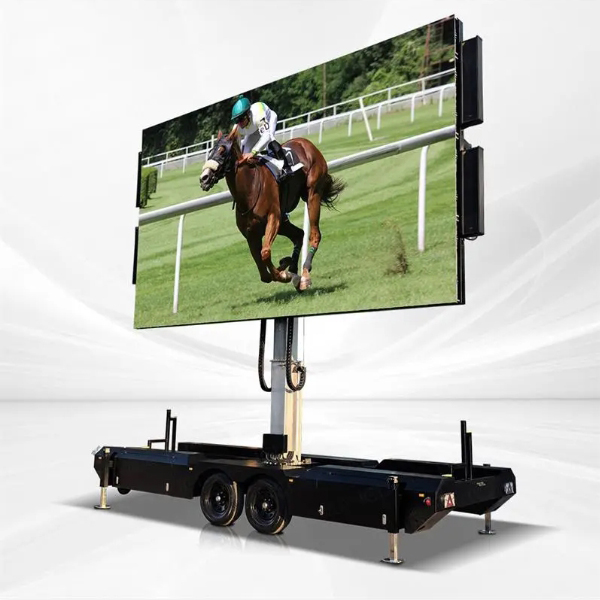

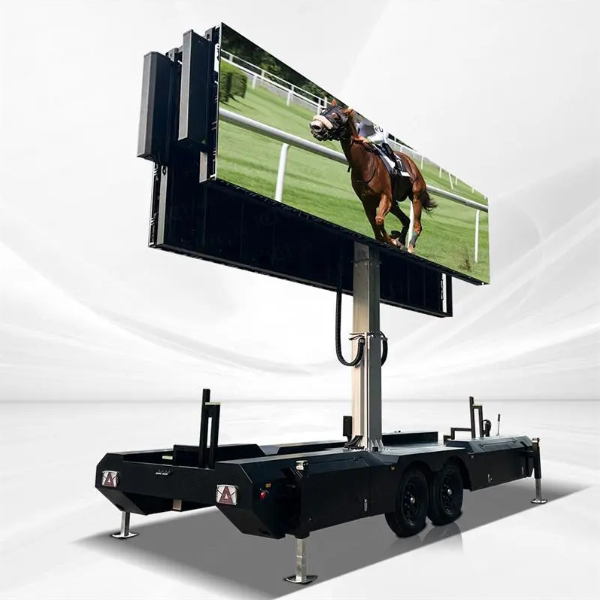

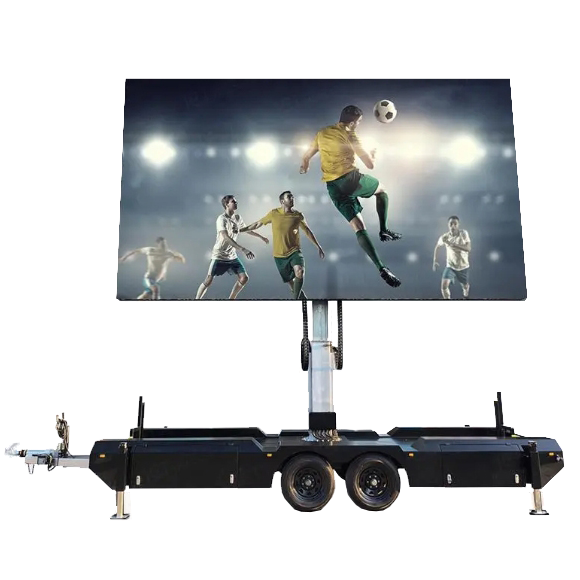

The HDT21 is a self-contained outdoor mobile LED video display. The 21m² display measures approximately 20ft x 11.5 ft in size (6m x 3.5m), and features a bright, high-contrast, color rich display. Hydraulic controls allow a single operator to unfold, raise, rotate, and deploy in minutes. Onboard media player, video processing, and audio system provide a true Plug-&-Play experience. Ideal for advertising, trade shows, sporting events, and other live performance applications.
SPECIFICATIONS AND FEATURES
- Mobile chassis for single operator set-up and removal
- Integrated power distro, video processing, media player, and audio system
- High quality fine-pitch display options for vibrant imagery and close viewing
- Ultra black LED options for superior contrast, deeper black levels, and vibrant colors
- Intuitive user-friendly APP available for PC, Tablet, or Phone (Windows/iOS/Android)
- Suitable for Rental, Advertising, Trade-Shows, Sporting Events, and Live Entertainment
Technical Specifications – TRAILER:
- CHASSIS: German Made AIKO, 2 Axels 3500 kg Load Bearing
- GROSS WEIGHT: 3,000 Kg (6,600 Lbs)
- BRAKING SYSTEM: Electric Brake or Surge-Activated Hydraulic Brakes
- MAXIMUM SPEED: 120 km/h

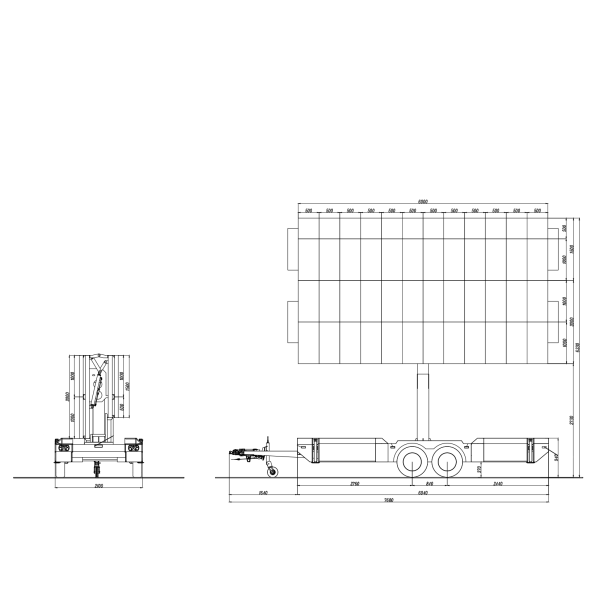

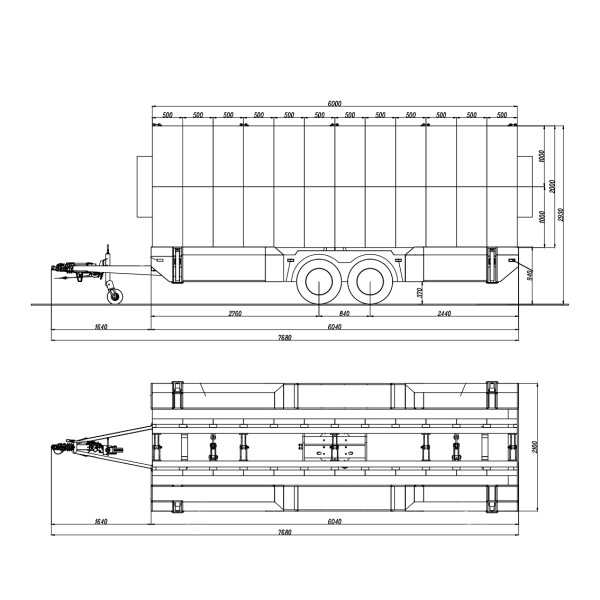

- TRAVEL DIMENSIONS (Metric): 7680 x 2100 x 2930 mm (L x W x H)
- TRAVEL DIMENSIONS (Imperial): 25.20 x 6.89 x 9.60 feet (L x W x H)
Technical Specifications – SCREEN:
- SCREEN SIZE: 21 m² – 6m x 3.5m
- IMPERIAL DIMENSIONS: 19.69ft x 11.48 ft
- LED DISPLAY MODEL: RY Series
- PIXEL PITCH: 3.9 mm Standard
- DISPLAY RESOLUTION: 1536 x 896 pixels
- TYPICAL BRIGHTNESS: ≥4,500 nits
- VIEWING ANGLE: 140° Horizontal x 120° Vertical
- MAINTENANCE: Rear Standard or Front Magnetic Optional
- ENVIRONMENT: -20°C – 50°C
- PROTECTION: IP65
- POWER DRAW: 4,600W Typical, 13,860W Maximum (display only)
Technical Specifications – HYDRAULIC SYSTEM:
- MAST TYPE: Hydraulic Screen Bi-Fold
- MAST LIFTING RANGE: 2000mm
- MAST ROTATION: 360 Degrees either direction
- WIND FORCE RATING: Level 8
- SUPPORTING LEGS: 300mm Outrigger Jacks
- MAST WEIGHT CAPACITY: 3000 Kg
Technical Specifications – POWER:
- POWER INPUT TYPE: Single Phase, 4-Wire Camlock
- INPUT VOLTAGE: 208/220 VAC
- INRUSH CURRENT: 20A Typical
- POWER OUTPUT: Breaker Panel Circuits
- OUTPUT VOLTAGE: 120 or 220 VAC
- AVERAGE DRAW: 5.25 kwh
Technical Specifications – OPTIONAL MEDIA PLAYER:
- MODEL: TU15 Pro
- STORAGE: 4GB + 32BG
- DECODE ABILITY: 4K 60fps
- MAX WIDTH/HEIGHT: 4096px Wide, 1920px High
- LAN: 1000 Mbps (RJ45)
- WIFI: 2.4G Switchable AP&STA
Warranty:
- 2 year limited warranty (parts & labor)
