CLIFF JUMPER

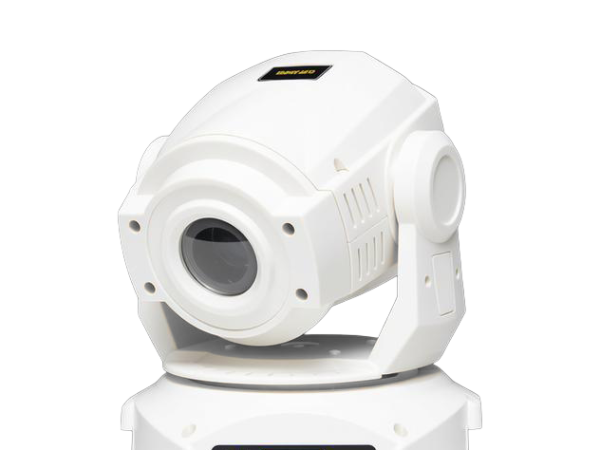

Ultra compact, high-performance 90W LED motorized spot. Featuring smooth movement of all mechanical parts including color wheel, gobo, rotating gobo, and rotating prisms. Ideal for venue installations and small to medium sized stages. Compatible with any DMX-compliant controller, or run in automatic mode, or sound-to-light mode.
Specifications and Features:
Light Source:
- 90W white LED light engine
- 20,000-hour life expectancy
- Color temperature: 6500K
- CRI >75
Optics:
- Adjustable beam angle: 12° to 17°
Gobo Wheels:
- Rotating gobo wheel: 7 rotating, indexable, and replaceable slot-n-lock glass gobos + open
- Static gobo wheel: 7 metal gobos + open
Prism:
- 3/8-facet bidirectional rotating prism
Control and Programming:
- DMX channels: 11, 14, and 16
- Control modes: Standalone, Master/Slave, Auto
Power Specifications:
- Peak power consumption: 100VA
- Voltage: AC 100-240V, 50/60Hz
Physical Dimensions:
- Depth: 240mm
- Width: 240mm
- Height: 360mm
- Weight: 6.5 kg (14.3 lbs)
Construction and Build:
- Housing colors: Black or White
- IP Rating: IP20
- Graphic LCD display for addressing and special function settings
Connections:
- Data in/out: 3-pin XLR female
- Power in/out: 3-pin standard connector
Accessories:
- Mounting brackets included
Additional Features:
- High-grade, smooth mechanical step motors for precise movement
- Coarse and fine control of movement and effects
- Built-in strobe effects and effect macros
- Pan/tilt feedback for precision
Durability and Warranty:
- Designed and engineered in Canada
- 2-year warranty on parts and labor
