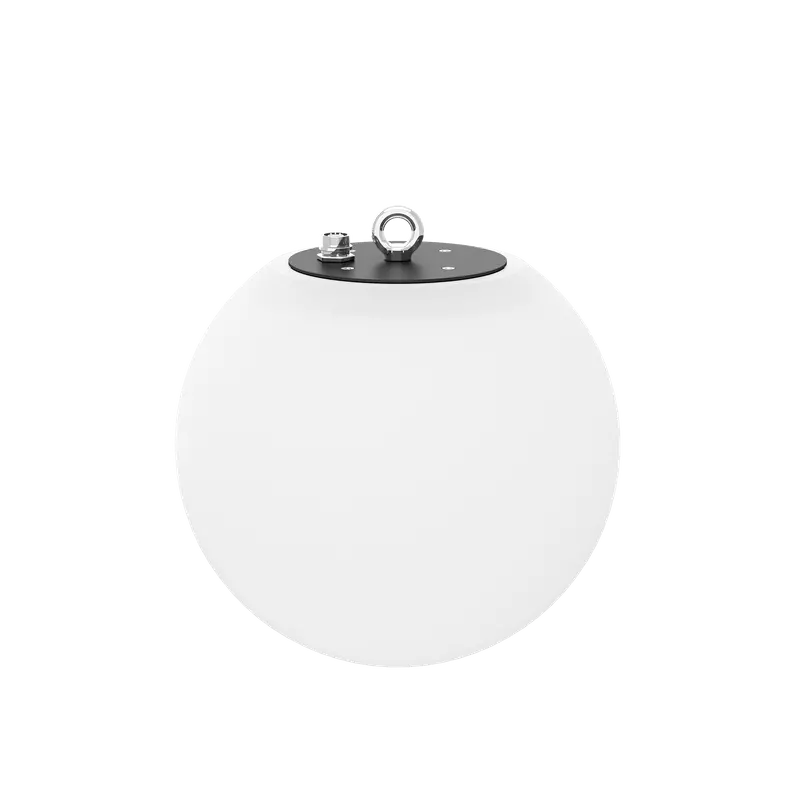

LED Pendants

LED Pendants are a versatile collection of compact, lightweight RGBW color-changing fixtures designed for both static installations and dynamic movement with LumiOS kinetic winch systems. Their flexible form factor makes them ideal for creating engaging visual compositions across architectural, entertainment, and experiential environments.

Key Features

Small Lightweight Shapes and Designs

24VDC Low-Power Consumption

Brignt Uniform Color Distribution (opaque models)

Compatible with LumoOS Winch Systems & Pixel Nodes

Category: LED Fixtures

Request a Quote → Download Spec Sheet ↓

Designed for seamless integration with LumiOS DMX winch systems and ePIXEL nodes, the 24V fixtures are quick to install and simple to operate. For an even more streamlined solution, select LumiOS winch models feature an integrated Pixel Node, providing both the required 24VDC power and DMX-to-SPI pixel conversion within the winch itself.

The result is a clean, efficient installation with simplified setup, integrated control, and the creative flexibility to bring dynamic kinetic lighting concepts to life.

Applications

Theatre & Performing Arts
Concert & Live Music
Corporate Events & Conferences
Broadcast & Film Production
Nightclubs & Entertainment Venues
Trade Shows & Exhibitions
Architectural Lighting
Theme Parks & Attractions
Touring & Festival Production

Light Source	RGBW LEDs - 25pcs Typical
Color Rendering	CRI Ra≥90
Beam Angle	360° (opaque models)
LED Life	20,000 hrs
Input Voltage	24V DC
Maximum Power	7W Typical
IP Rating	IP20
Control Mode	1-point RGBW
Dimming	32bit 0-100% Linear Dimming
Power/Data Connection	1x GX16-4PIN
Operating Temperature	-10°C to 45°C
Cooling	Ambient Convection (no Fan)
Installation	Vertical Hanging
