RETRO 1000C

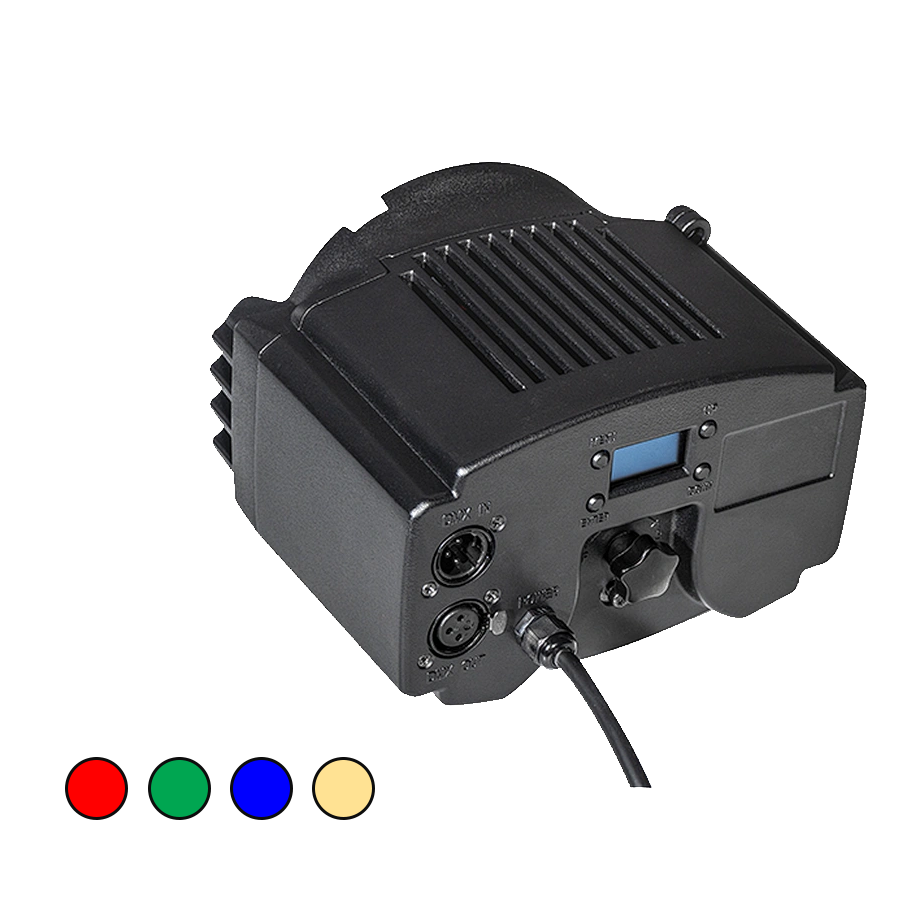

RETRO 1000C is a high-performance full-color RGBW LED retrofit light engine that transforms Source4™-type fixtures into powerful, full-color LED luminaires—without the expense of replacing your existing inventory.
Key Features
4 x 250W LED light source (Red, Green, Blue, Warm White)
Color Temperature:  3200K - 5600K Adjustabe
High CRI & TLCI capable
Predictable RGB+WW color mixing
Studio (silent) mode
Selectable dimmer curves
Adjustable dimmer frequency (1.20 - 24.00 kHz)
Smooth 0-100% Dimming, Flicker Free & Strobe Capable
LCD/Rotary, DMX/RDM control of dimmer
Intelligent temperature control, silent operation
Durable Metal Construction

SKU: RETRO200-T-1 Category: Brand:

Engineered with a 1000W RGBW LED system, each color channel is driven by 250W of dedicated LED power, delivering exceptionally smooth, even color mixing with no hotspots or shadows. Unlike conventional color-mixing fixtures that sacrifice brightness as colors are blended, the RETRO 1000C maintains output equivalent to a traditional 575W incandescent fixture across virtually any color mix, providing vibrant, saturated colors and consistent intensity for demanding stage, studio, and architectural applications.

Installation takes just minutes, providing a fast, cost-effective upgrade that extends the life of your existing profile fixtures while preserving your investment in optics, lenses, and accessories. By retrofitting instead of replacing, venues can significantly reduce capital costs, lower energy consumption, minimize heat output, and decrease ongoing maintenance requirements.

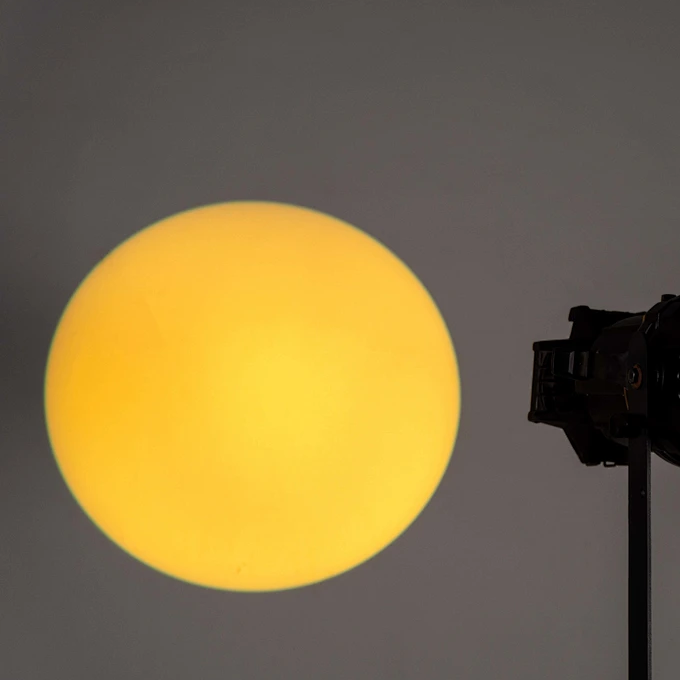

The dedicated Warm White LED enables high-CRI operation for faithful, natural color reproduction when accurate white light is required.  Adding color LEDs enables continuous color temperature adjustment from 3200K to 5600K, delivering everything from warm tungsten tones to crisp daylight whites, for maximum creative flexibility.

Comprehensive control options include RDM, DMX, and standalone manual operation for seamless integration into virtually any lighting system. Selectable dimming curves and adjustable PWM frequency provide smooth, theatrical fades and flicker-free performance for broadcast, film, and video production.

Compatible with virtually any Source4™-type fixture, the RETRO 1000C combines brilliant RGBW color mixing, tunable white flexibility, exceptional efficiency, and professional lighting performance in a single retrofit solution—bringing modern LED technology to your existing fixture inventory without compromise.



Applications

  • Upgrade Existing Fixtures to LED Technology
  • Reduce Energy Costs with Efficient LEDs
  • Reduce Heat Output from Traditional Incandescent Lighting
  • Update fixtures to Full-Color LED Light Output
Control and Programming
DMX Channel Modes 2/4/6/10
Control Modes DMX, RDM, Rotary, LCD/Menu

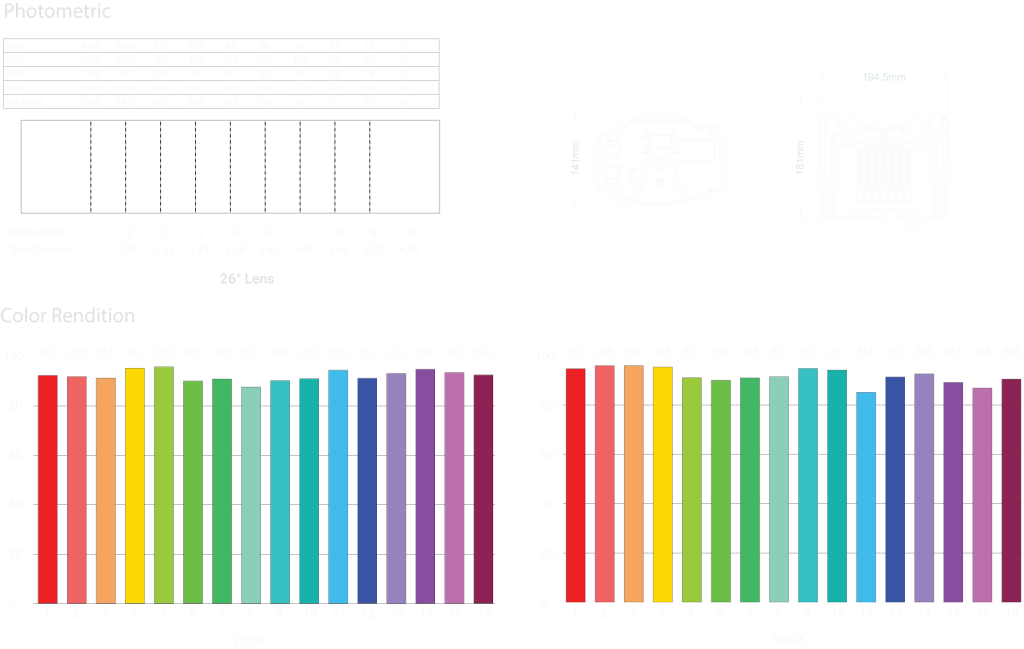

Optics
Light Source 1000W RGB+WW LED
Color Temperature 3200K - 5600K adjustable
Benchmark @ 3200K CRI ≥92 Avg
Benchmark @ 5600K CRI ≥91 Avg
Dimmer Frequency 1.2 kHz to 24 kHz adjustable
Dimmer Curves 6 modes + 1 custom
Physical Dimensions
Dimensions (L x W x H) 195 x 141 x 186mm
Weight 3 kg (6.6 Lbs)
Power Requirements
Peak Power Consumption 300VA
Voltage AC 100-240V, 50/60Hz
Maximum Power Linking 8 Units
Connections
Data In/Out 5-pin XLR M/F
Power In attached cable
Construction
Available Colors Black
Body Material Cast Aluminum
Display & Control Monochrome LCD + Selector Buttons
IP Rating IP20
Other
Accessories Power cable
Attachment bolt
Warranty 2 year limited warranty (parts & labour)
  • Upgrade Existing Fixtures to LED Technology
  • Reduce Energy Costs with Efficient LEDs
  • Reduce Heat Output from Traditional Incandescent Lighting
  • Update fixtures to Full-Color LED Light Output
