STEALTH R2

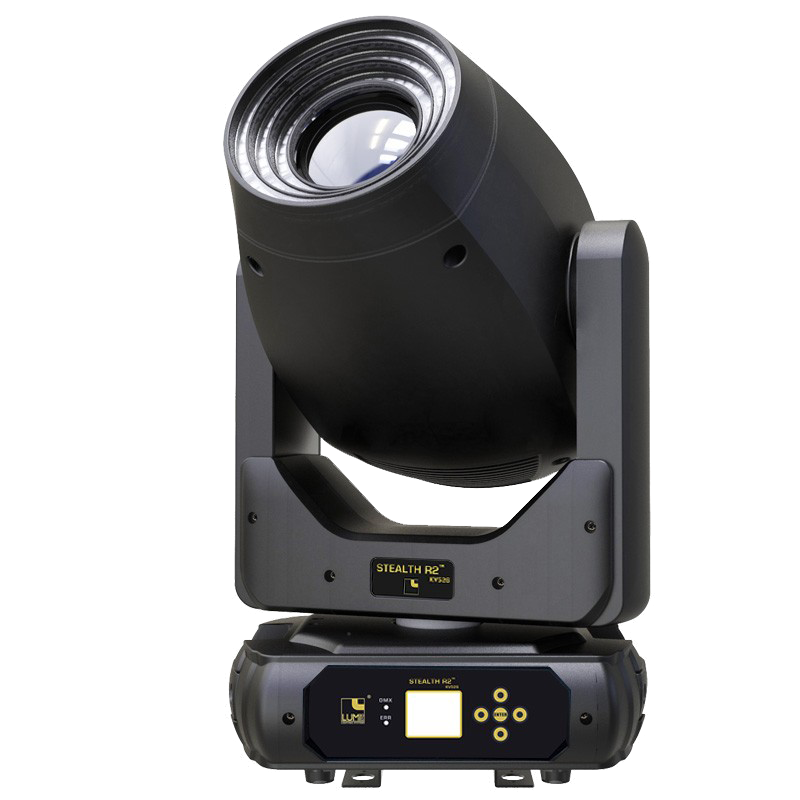

STEALTH R2 is a high-output hybrid Beam/Spot moving fixture engineered to deliver exceptional versatility, powerful projection, and striking visual effects for today's most demanding lighting applications. At its core is a 250W, 8000K white LED engine, producing intense, high-contrast beams and crisp gobo projections with outstanding brightness and optical clarity.
Key Features
Hybrid SPOT / BEAM Functionality
3 LED "Eye Candy" Ring-Light Visual Effects with Built-in Macros
Wide Zoomable 6°-28° Beam Angle + Frost Diffusion Filter
Layer Color, Gobos, and Prisms for spectacular mid-air visuals
3-Phase smooth motors for precise movements

SKU: KV526R2 Category:

STEALTH R2 also features a versatile 6° to 28° motorized zoom enabling seamless transitions from razor-sharp “pencil” beams that cut dramatically through the air to wide, impactful spot projections with exceptional edge definition. Advanced color mixing, layered gobo combinations, and bi-directional rotating prisms combine to create rich textures, dynamic aerial effects, and immersive mid-air visuals that elevate any production.

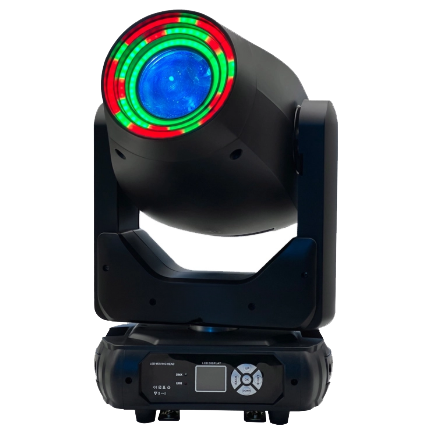

Three integrated eye-candy LED rings add an additional layer of visual excitement, delivering vibrant animated effects that enhance the fixture’s presence both on and off stage. Full DMX and RDM compatibility ensures seamless integration into professional lighting control systems, while comprehensive feature control gives designers the flexibility to create sophisticated, repeatable looks.

From concert touring and live productions to theatres, houses of worship, television studios, and permanent installations, the STEALTH R2 delivers the brightness, precision, and creative versatility that lighting professionals demand in a compact hybrid fixture.

Applications

  • Concert Touring & Festivals
  • Live Performance Venues
  • Nightclubs & Bars
  • Broadcast Studio
  • Theatre Productions
  • Houses of Worship
  • Architectural Projects
  • Corporate Events
  • Rental Production Companies
Movement
Pan 540°
Tilt 270°
Resolution 16-bit
Light Source
Main 250W white LED light engine
Main Color temperature 8000°K
Rings 135 x 0.3W RGB LEDs
Optics
Zoom Range 6° to 28°
Color Wheel 9 Colors + Open
Gobo Wheel 1 9 metal static + Open
Gobo Wheel 2 7 glass rotating, indexable, and replaceable slot-n-lock + open
Prism 6/8-facet bi-directional rotating prism
Dimmer 0-100% Linear Dimmer, 16-bit resolution
Strobe 0-20 FPS
Focus Motorized
Frost Filter Motorized
Control and Programming
DMX channels 26/35
Modes DMX, RMD, Sound, Standalone, Master/Slave
Construction and Build
Housing colors Black
Display & Control Color Graphic LCD display + Selector Buttons
IP Rating IP20

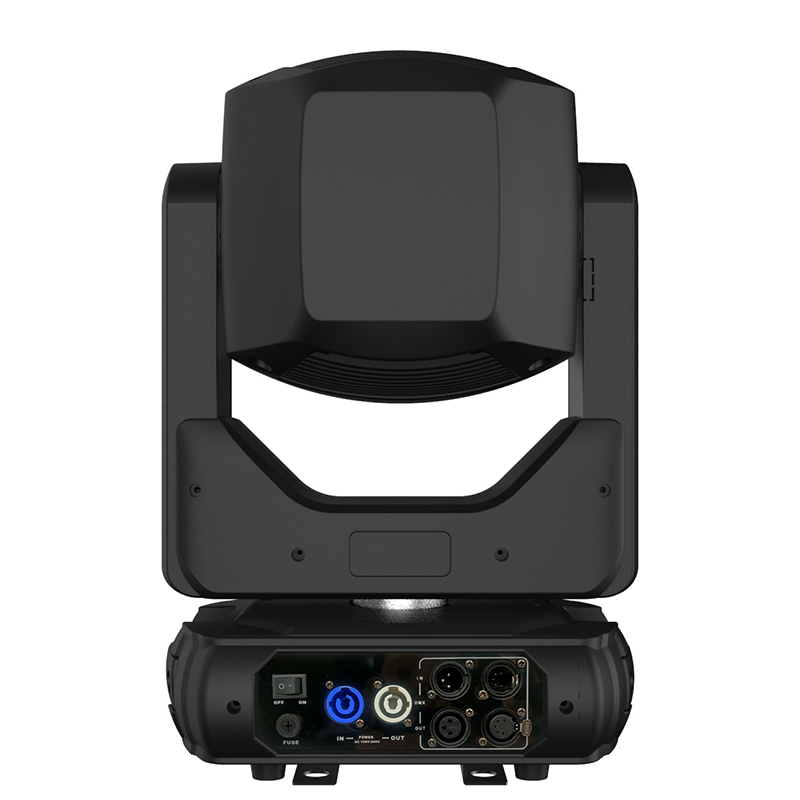

Connections
Data in/out 3 & 5 Pin XLR M/F
Power in/out Seetronic Powercon
Power Specifications
Peak power consumption 380VA
Voltage AC 100-240V, 50/60Hz

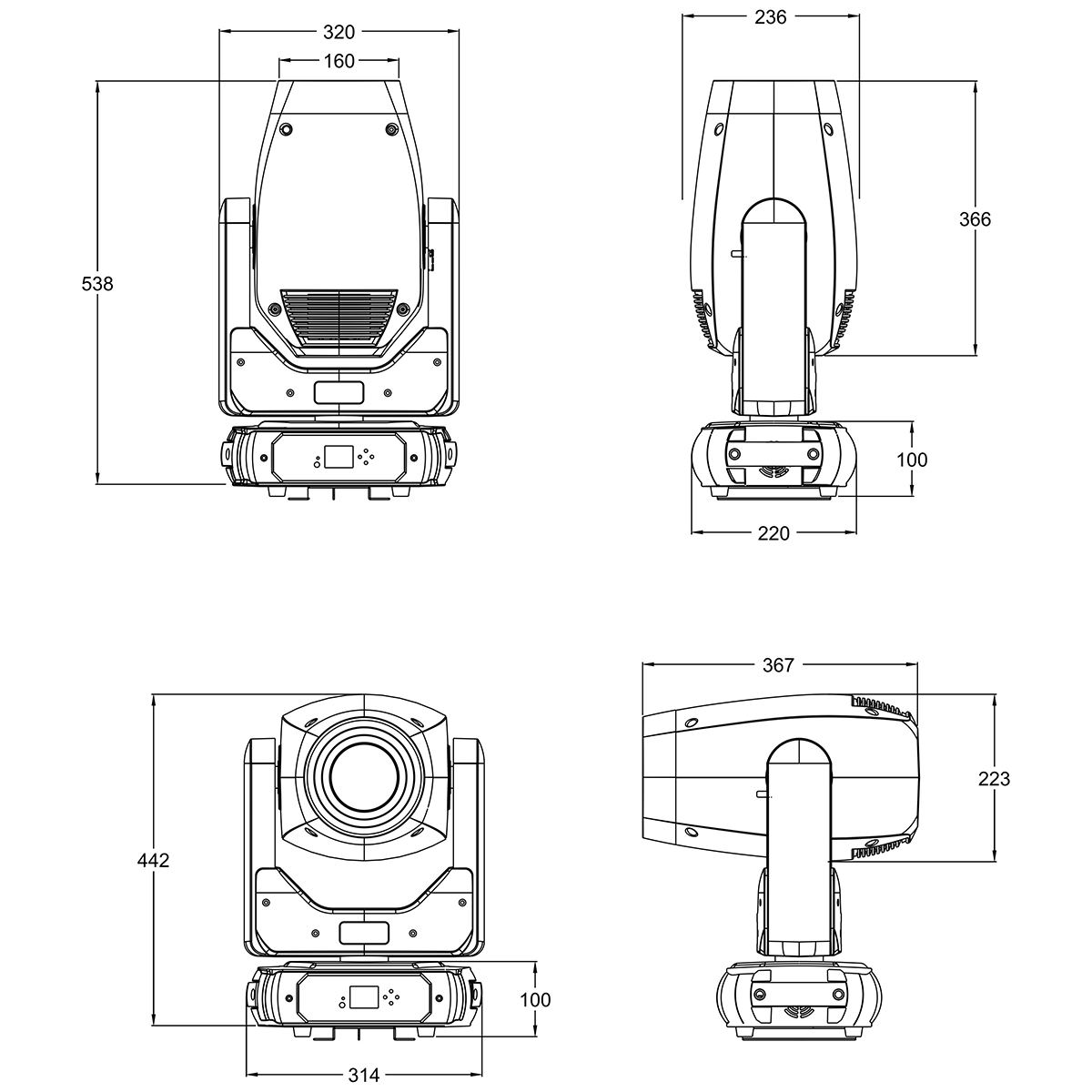

Physical Dimensions
Height 538mm
Width 367mm
Depth 236mm
Weight 10 kg (22 Lbs)
Other
Accessories Mounting brackets included
Warranty 2-year limited warranty on parts and labor
