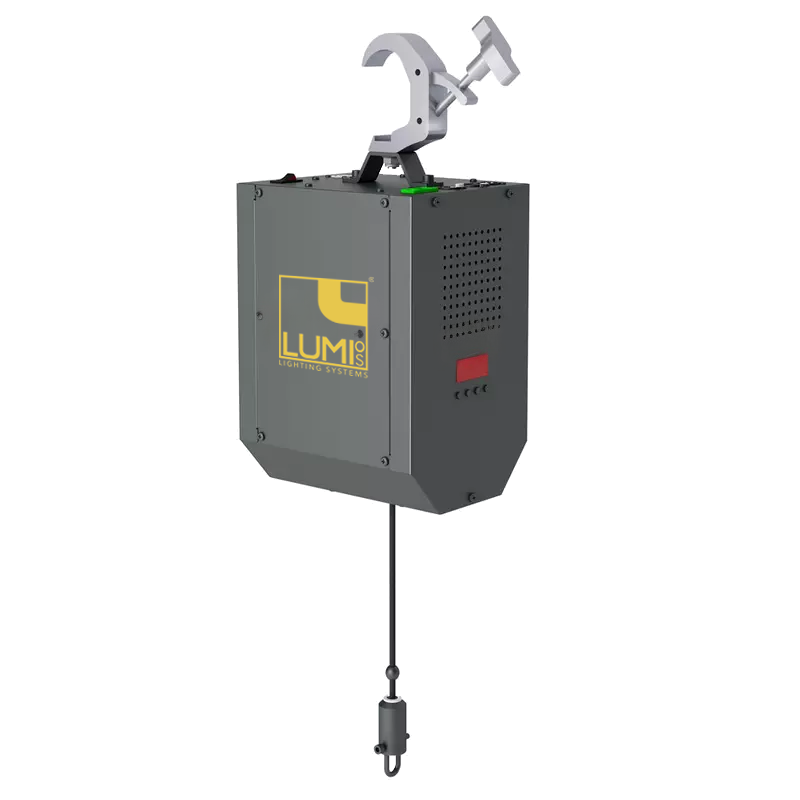

WINCH 5 DMX

The WINCH 5 DMX is a dynamic effect accessory 5kg electric hoist. Controlled via DMX, the high precision servo motor position can be indexed and moved at various speeds. When used in multiples a wide range of kinetic visual effects are possible. Ideal for any creative project.

SKU: WINCH-5-9M-DMX, WINCH-5-9M-SPI Category: Kinetic LED & DMX Winch

Description

Specifications and Features:

Key Features:

5 Kg Verticle Loads
DMX Controlled for High-Precision Positioning
Adjustable Speeds up to 2.5 kph (70 cm/s)
9m Lifting Height, 16-Bit Resolution
Power & Data Pass-Thru

Technical Specifications:

Movement Speed:

4Kg Load: 70 cm/s (2.5 kph), 16-Bit
5Kg Load: 60 cm/s (2.1 kph), 16-Bit

Hoist Details:

Lifting Capacity: 5Kg (11 Lbs)
Cable Length: 9m (standard)
Cable Diameter: 3.6mm (~ 1/8 inches)
Synchronization: <6mm Error
Load Monitoring (Slack Prevention)
Safety: Physical Brake & Electronic Brake
Customizable E-Stop

Control and Programming:

DMX channels: 9, 12, 125
Control modes: DMX, RDM, Manual

Power Specifications:

Winch: 200VA, 90-240VAC, 50/60Hz
4-Pin Pass-Thru: 24V-240V / 6A Max

Physical Dimensions:

Depth: 242mm
Width: 193mm
Height: 477mm
Weight: 8.6 kg (19 lbs)

Construction and Build:

Housing colors: Black
IP Rating: IP20
Numeric display for addressing and control

Connections:

Data in/out: Locking 3-pin XLR
Data Alternate: RJ45
Main Power in/out: Seetronic trueCON IP65
Accessory Power in: 4-Pin GX-16

Accessories:

Omega Mounting Bracket included
Power & Signal Cable

Warranty:

2-year warranty on parts and labor
