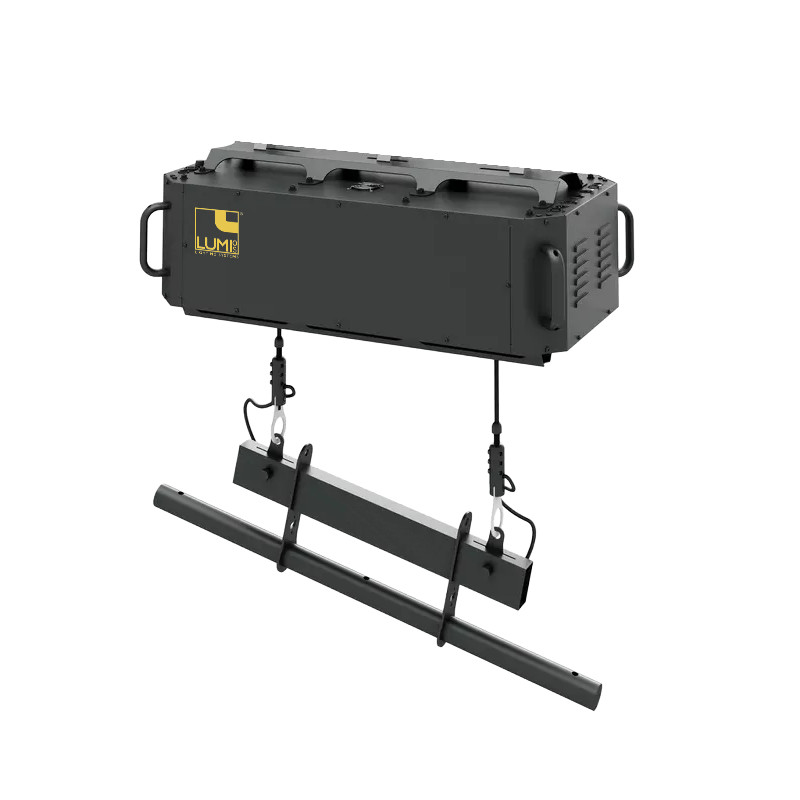

WINCH 82

WINCH 82 can be directly connected to lighting consoles via network DMX (ArtNet, sACN), enabling fast integration into live production environments.  It serves as a powerful core for large sized lighting fixtures, dynamic props, and lifting backdrops.

Key Features:

• 80 Kg Vertical Loads
• Dual-Motors for level, tilt (max 40°), or asymmetric movement
• Network DMX Controlled for High-Precision Positioning
• Adjustable Speeds up to 1.4 kph (40 cm/s)
• 12m Lifting Height, 16-Bit Resolution
• Power & Data Pass-Thru
• Numerous protection systems for single and multiple-winch systems

WINCH 82 also features a host of protection features for safe operation of a single winch or a system of multiple winches working together.  LumiOS provides software for set-up and monitoring of multi-winch systems.

Some of our protection systems include:

• • Cable Slack Protection:  Auto stop when underload is detected
  • Cable Spooling Protection:  Auto stop when mis-spooling is detected
  • Cable Overload Protection:  Auto stop when load limit is exceeded
  • Teamwork Protection:  All-motor stop for one unit failure in multi-linked winch system

Technical Specifications:

Movement Speed:

• Maximum 40 cm/s (1.4 kph), 16-Bit

Hoist Details:

• Lifting Capacity:  80Kg (176 Lbs)
• Cable Length:  12m
• Cable Diameter:  9mm (~ 3/8 inches)
• Synchronization:  <6mm Error
• Load Monitoring (Slack Prevention & Overload Prevention)
• Safety:  Physical Brake & Electronic Brake
• Customizable E-Stop

Control and Programming:

• DMX channels: 6ch (Winch Movement)
• Control modes:  Art-Net/sACN, RDM, Manual

Power Specifications:

• Winch: 1000VA, 90-240VAC, 50/60Hz
• 4-Pin Bypass Power:  24V-240V / 18A Max

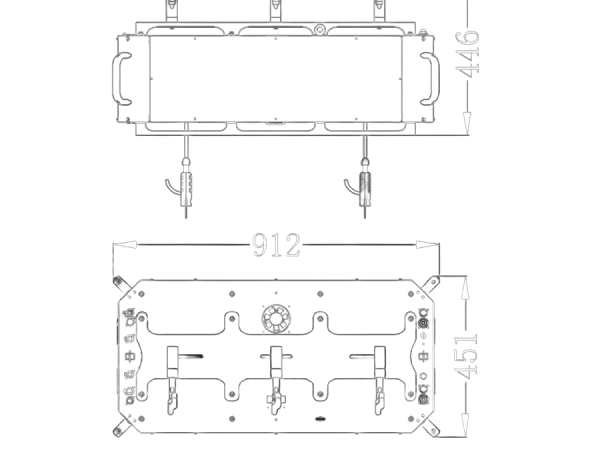

Physical Dimensions:

• Depth: 421mm
• Width: 881mm
• Height: 469mm (with clamps)
• Weight: 40 kg (88 lbs)

Construction and Build:

• Housing colors: Black
• IP Rating: IP20
• Numeric display for addressing and control

Connections:

• Data in/out:  Locking EtherCON
• Data Alternate:  RJ45
• Main Power in/out:  Seetronic trueCON IP65
• Accessory Power in:  4-Pin GX-16

Accessories:

• Balance Bar
• Aluminum Clamps (3)
• Safety Cable
• Power & Signal Cable

Warranty:

• 2-year warranty on parts and labor
