Bar & Batten / Moving Heads / Outdoor IP65

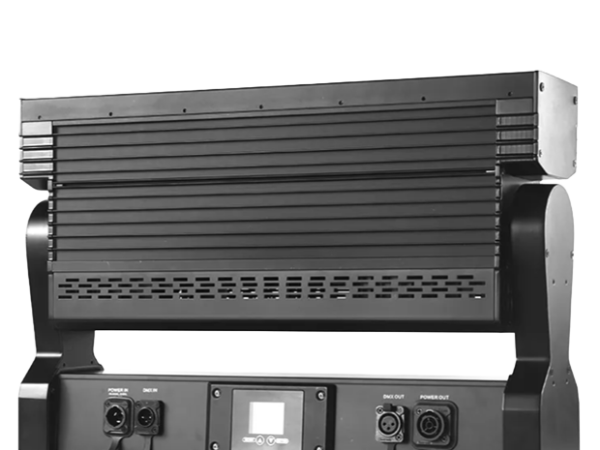

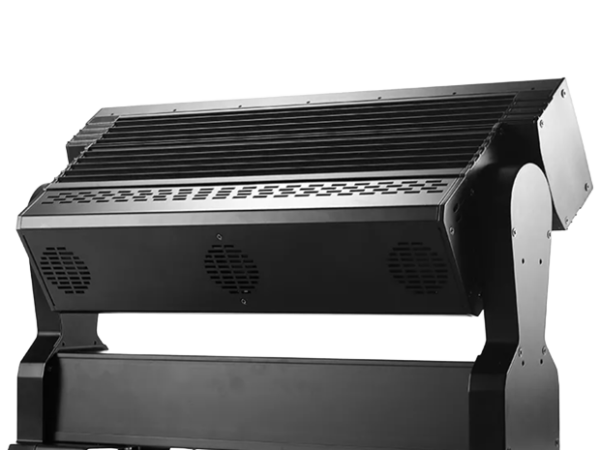

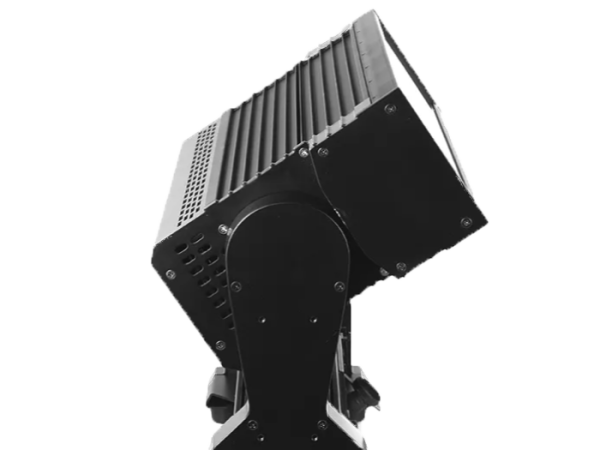

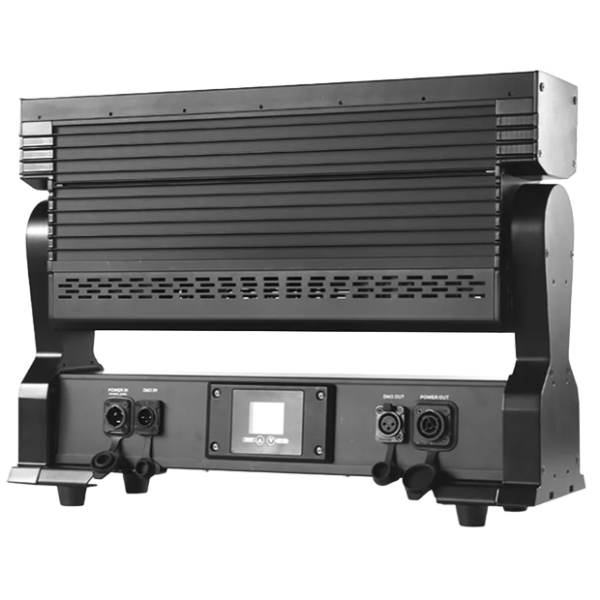

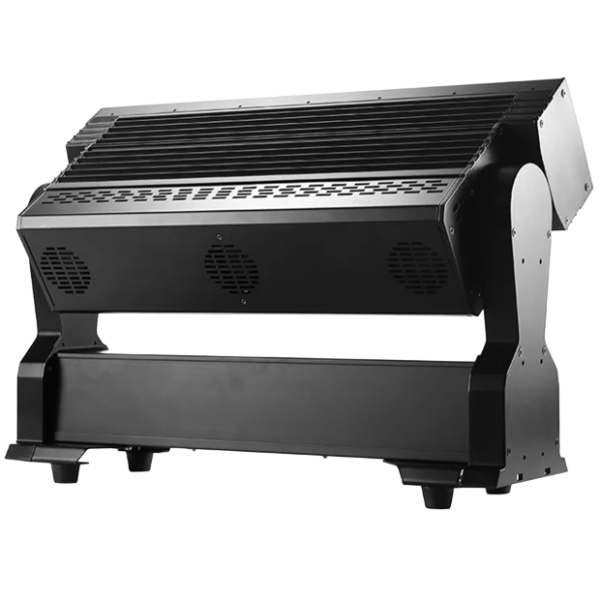

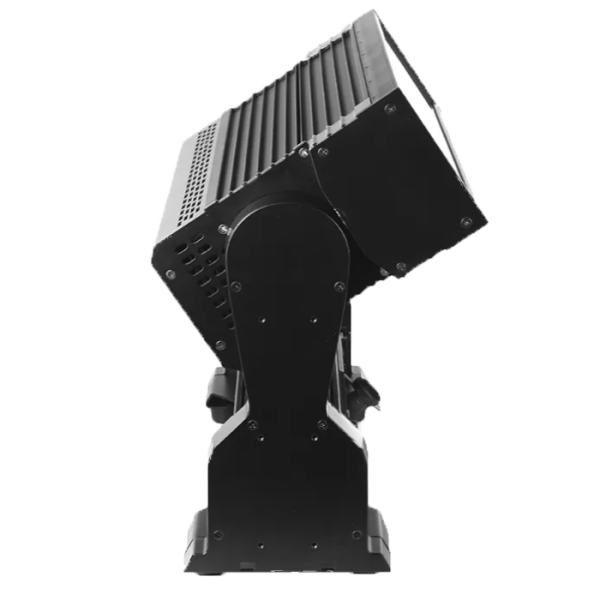

BOLD 1040 IP

BOLD 1040IP is a high-performance IP65-rated motorized LED batten featuring 10 × 40W RGBW LEDs, engineered to deliver exceptional output, reliability, and creative versatility in both indoor and outdoor environments. Its expansive 3°–60° motorized zoom provides seamless transitions from tight, high-intensity beams to broad, even washes, giving lighting designers the flexibility to create dramatic aerial effects, stage washes, and architectural accents with a single fixture.

Key Features

IP65 outdoor rated motorized, tilting batten

Powerful 400W Total RGBW LED for High Output

10-Zone Pixel Control

Beam, Wash, or Strobe

Built-in strobe effects and effect macros

Seemless Edge-to-Edge Mounting

SKU: BOLD1040IP Categories: Bar & Batten, Moving Heads, Outdoor IP65

Request a Quote → Download Spec Sheet ↓

Advanced RGBW color mixing produces vibrant, saturated colors alongside clean, high-quality whites, while color temperature correction enables precise white light adjustment to match cameras, other fixtures, and ambient lighting conditions for consistent, professional results. The IP65-rated housing protects against dust and water ingress, ensuring dependable performance in challenging outdoor conditions while reducing maintenance requirements for permanent and temporary installations alike.

Designed with seamless edge-to-edge mounting, the BOLD 1040IP creates continuous lines of light for striking visual displays, while multiple pixel-mapping modes unlock dynamic chases, gradients, and animated effects. With flicker-free LED technology, the fixture delivers camera-ready performance, making it an ideal solution for concerts, festivals, film and television production, touring, architectural lighting, themed attractions, houses of worship, and permanent indoor or outdoor installations.

Light Source
LED Engine	10 x 40W RGBW 4-in-1 LEDs
LED Life	50,000-hour life expectancy
Color Temperature	Variable White CTT 3200 - 7200K
Optics
Zoom Range	3° to 60°
Zones	10 Pixel Zones, Individual Control or EFX Macros
Dimming	0-100% Linear Dimming
Strobe	0-10 FPS
Control and Programming
DMX channels	19, 28, 29, 33, 34, 48, 49
Control modes	DMX, Auto, Master/Slave, Music, RDM
Power Specifications
Peak power consumption	350VA
Voltage	AC 100-240V, 50/60Hz
Physical Dimensions
Depth	123mm
Width	621mm
Height	348mm
Weight	15.7 kg (34.5 lbs)
Construction and Build
Housing colors	Black
Display & Control	Color LCD display and selector buttons
IP Rating	IP65
Connections
Data in/out	Locking 5-pin XLR IP65
Optional	ArtNet EtherCON In/Out
Power in/out	Seetronic trueCON IP65
Other
Accessories	Omega Mounting Brackets included
	Power & Signal Cable
Warranty	3-year warranty on parts and labor

📁 LumiOS BOLD1040 IP Cutsheet ↓
