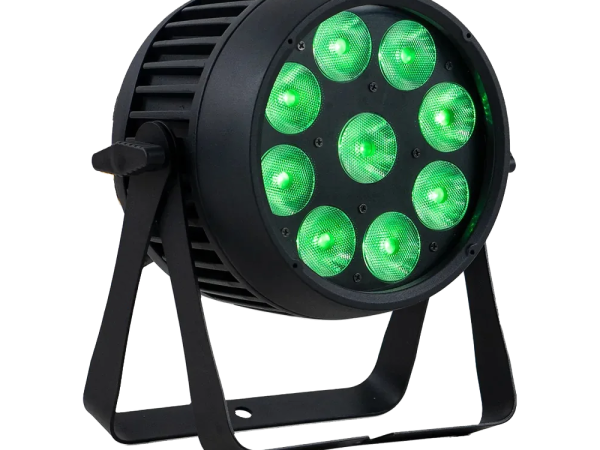

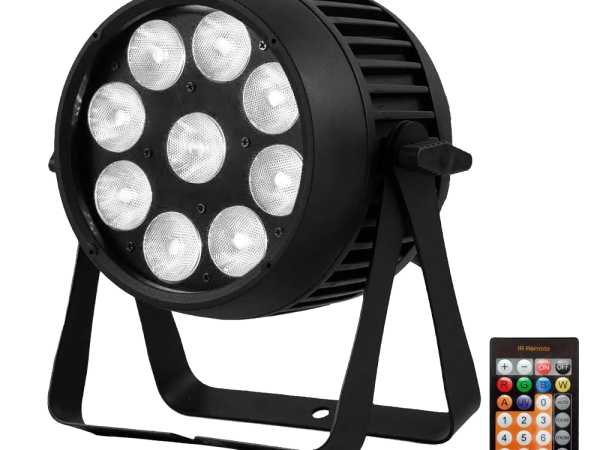

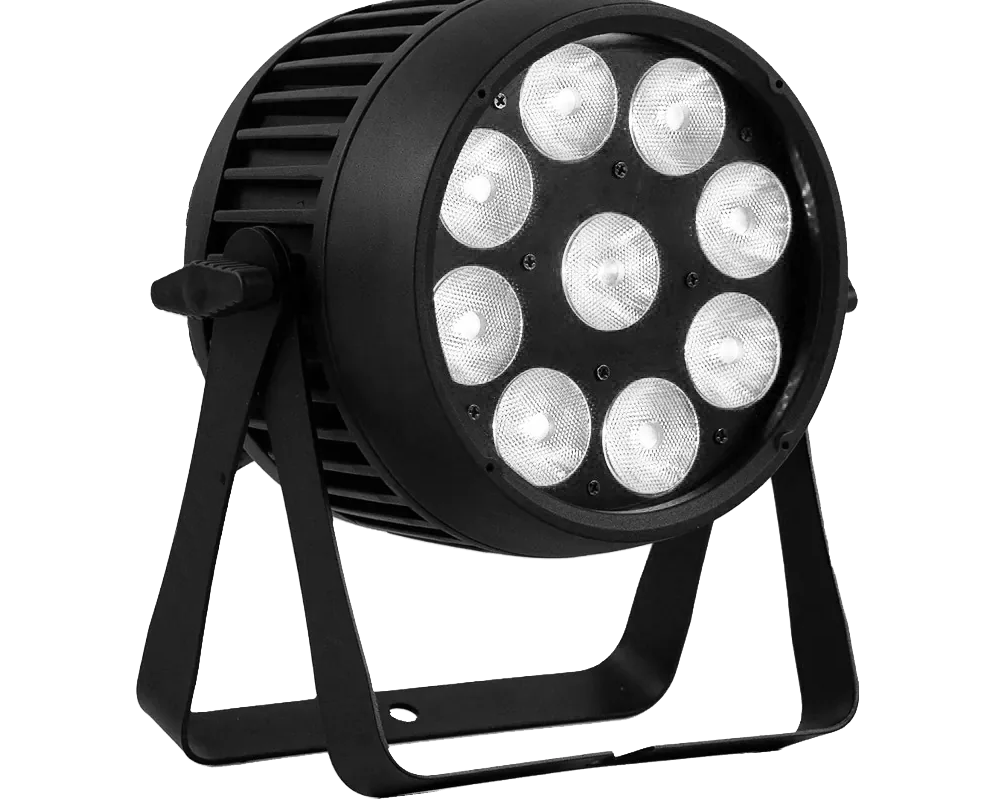

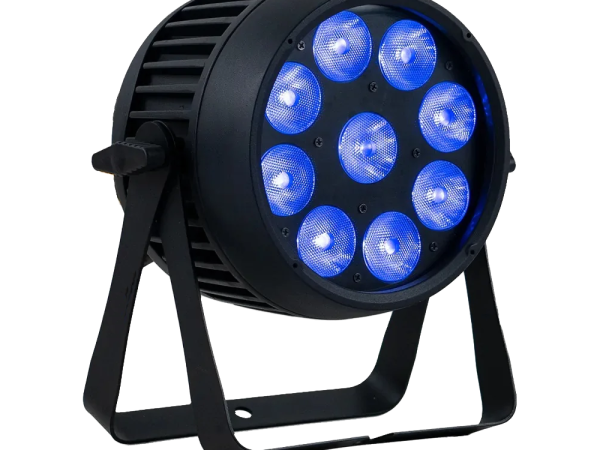

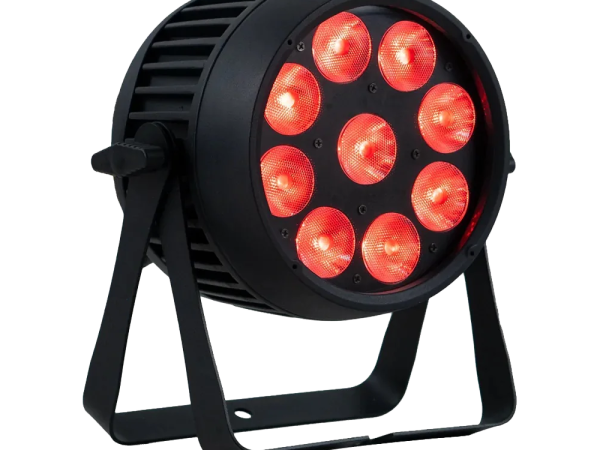

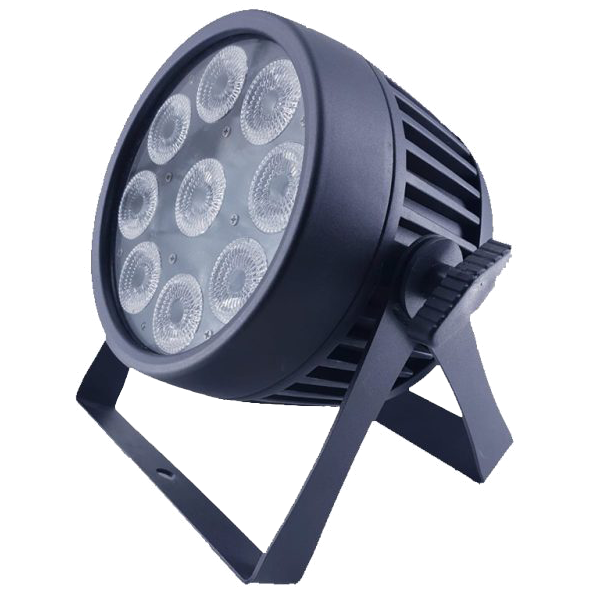

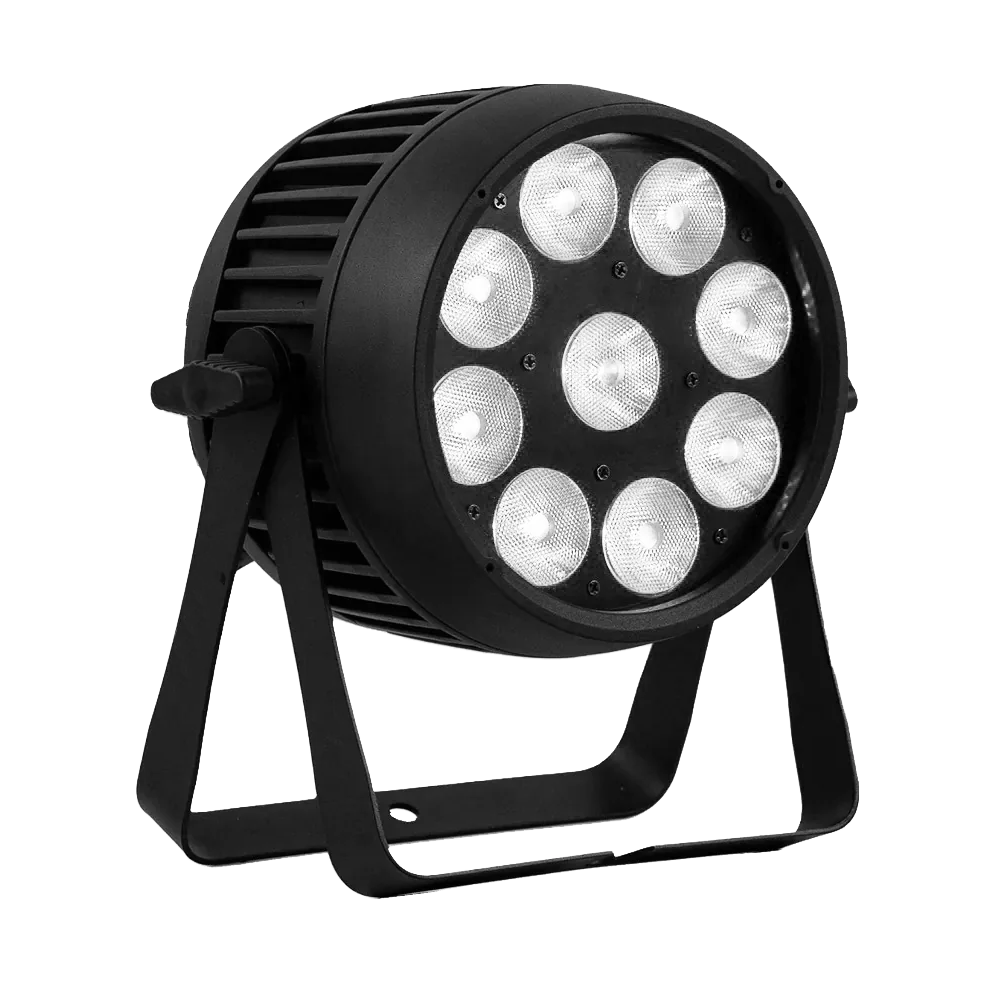

HPAR 90 R2

Specifications and Features:

Key Features:

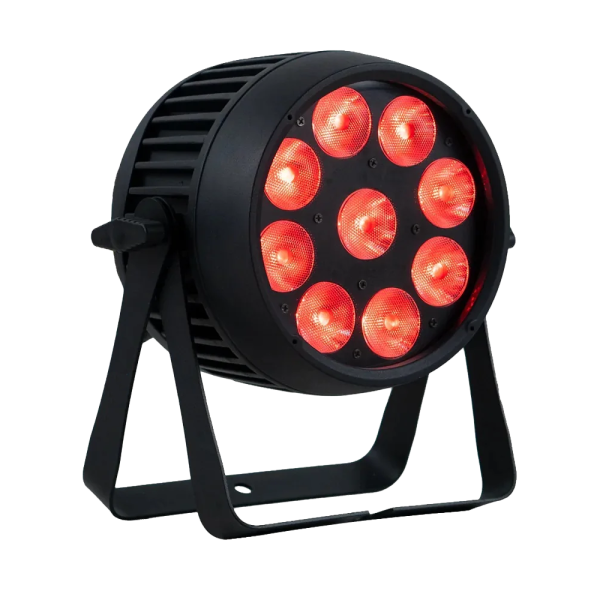

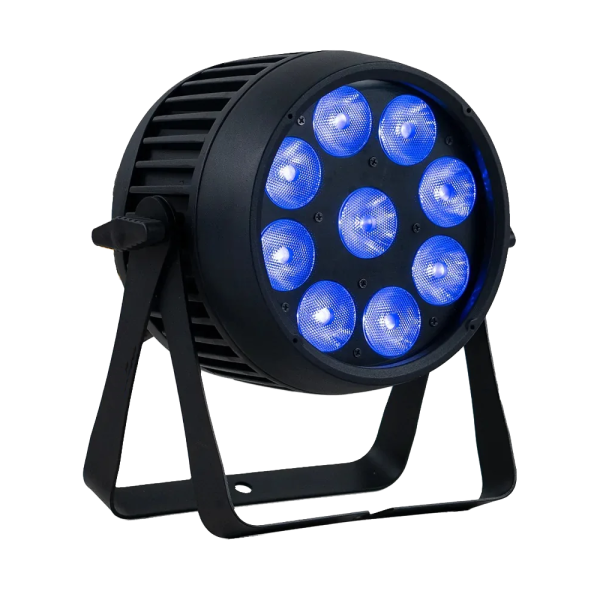

• • • RGBW Color Mixing
    • Weather Resistant IP65 Outdoor Rated Fixture
    • Wireless DMX
    • Up to 12 hours use per charge
    • 3 Power modes (Eco, Medium, High)
    • Durable Construction: strong die-cast aluminum with superior heat dissipation
    • Convection Cooled for silent operation
    • Flicker Free for TV and video recording applications

Technical Specifications:

Control and Programming:

• • • DMX Channel Modes: 5/9

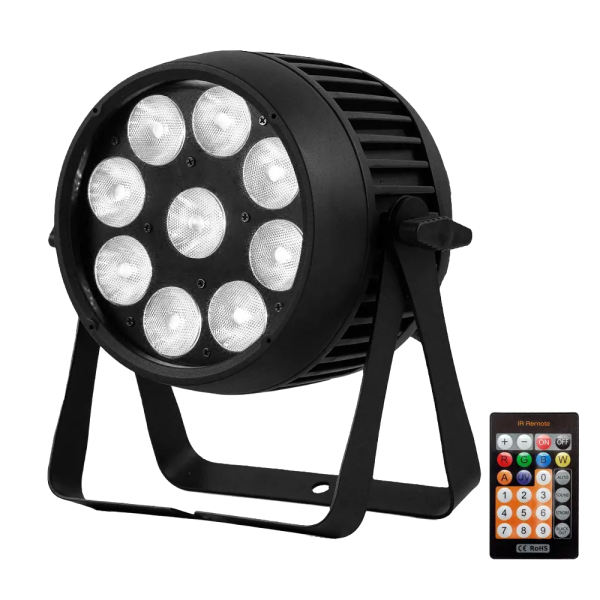

    • Control Modes: DMX, IR, Auto, Master/Slave

Optics:

• • • Beam Angle: 25°
    • Light Source: 9 x 10W RGBW LEDs

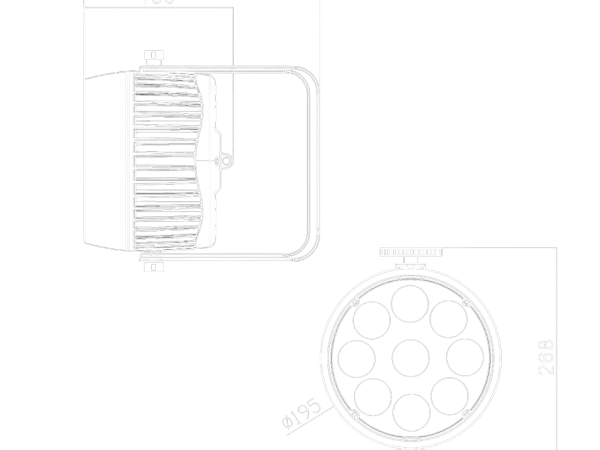

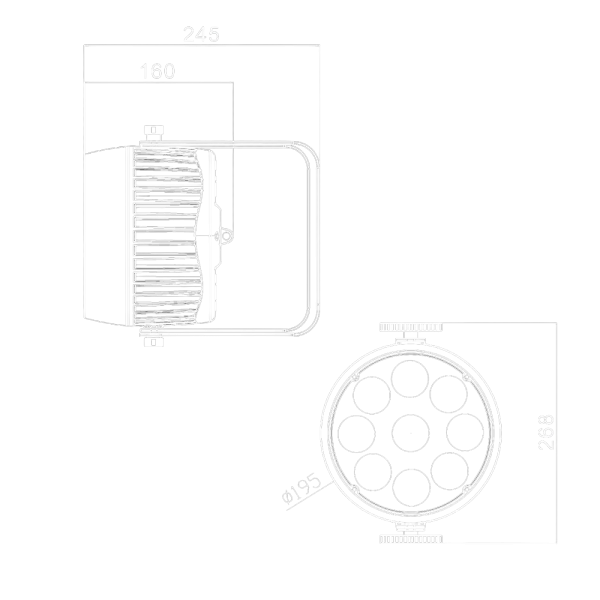

Physical Dimensions:

• • • Dimensions (L x W x H): 210 x 127 x 127 mm  (8.3 x 5.0 x 5.0 in)
    • Weight:  5 kg  (11 Lbs)

Power Requirements:

• • • Peak Power Consumption: 100VA
    • Voltage: AC 100-240V, 50/60Hz

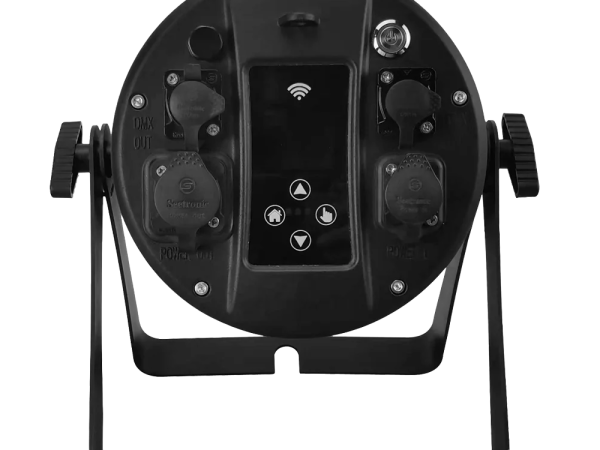

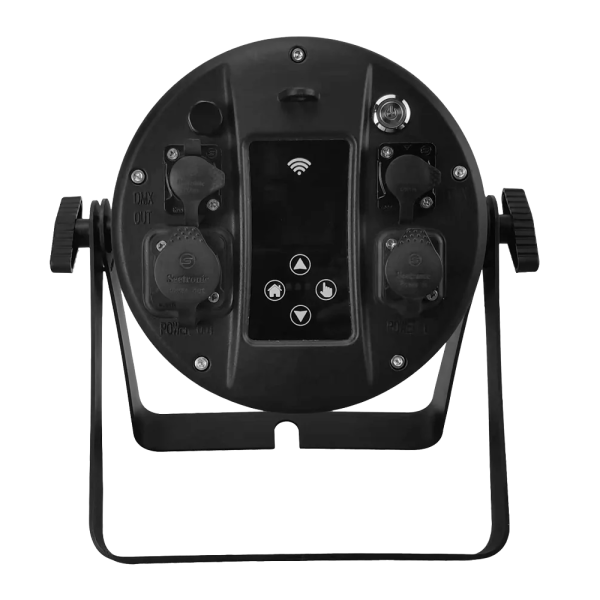

Connections:

• • • Data:  5-pin waterproof XLR Seetronic (In/Out)
    • Power:  Truecon® Seetronic IP65 (In/Out)
    • Wireless Control

Construction:

• • • Available Colors: Black
    • Display: Graphic OLED Display
    • IP Rating: IP65

Accessories:

• • • 6-Way charging case with exterior Truecon connection
    • Edison to SEETRONIC Truecon Female Wire Adapter
    • SEETRONIC Truecon male to female jumper

Warranty:

• • • 3 year limited warranty (parts & labor)
