BOLD 1040

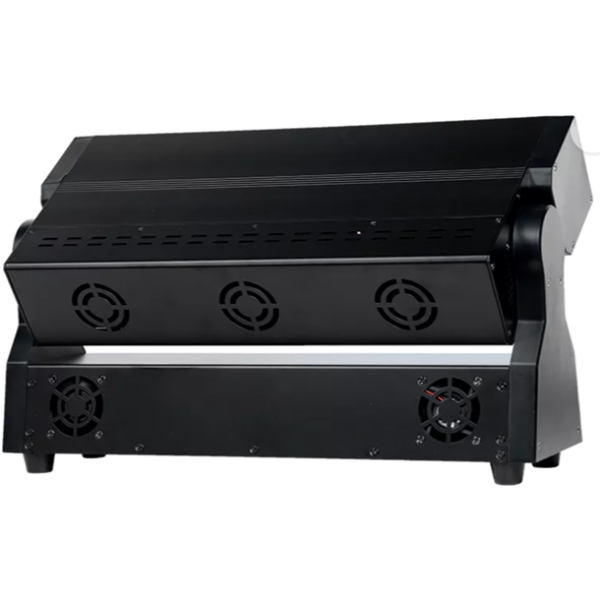

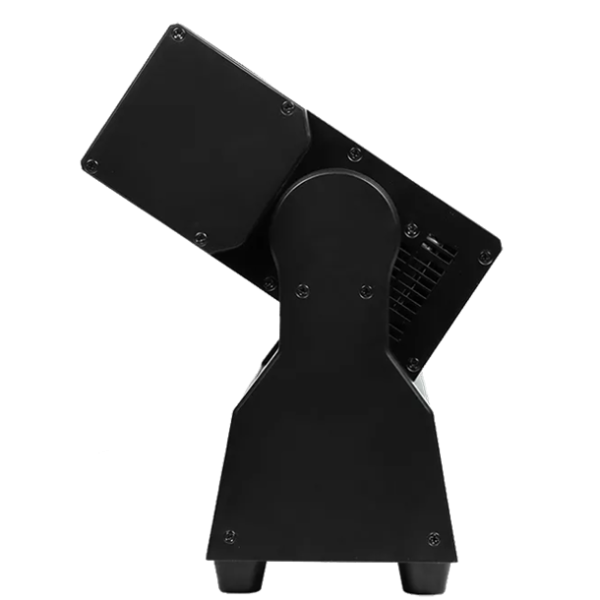

High-performance 10 x 40W RGBW LED motorized, tilting batten. Featuring a wide 3°-60° zoom range, seemless edge-to-edge mounting, and a variety of pixel-mapping modes. Flicker-free LEDs and selectable dimmer curve make it ideal for film, TV, stage productions, and installations.
Specifications and Features
Key Features:
- Powerful 400W Total RGBW LED for High Output
- 10-Zone Pixel Control
- Beam, Wash, or Strobe
- Built-in strobe effects and effect macros
- Seemless Edge-to-Edge Mounting
Technical Specifications:
Light Source:
- 10 x 40W RGBW 4-in-1 LEDs
- 50,000-hour life expectancy
- Variable White CCT: 2700-8000K

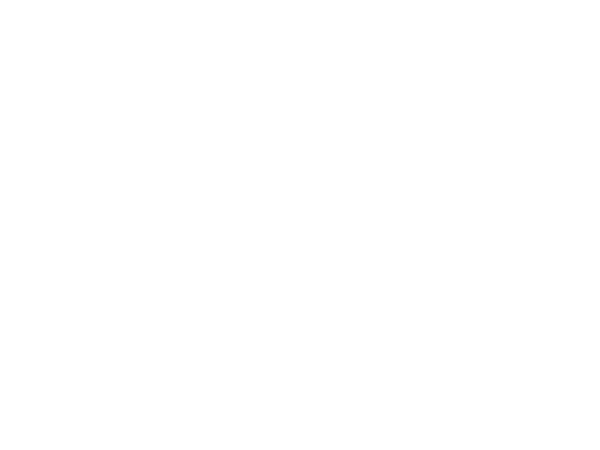

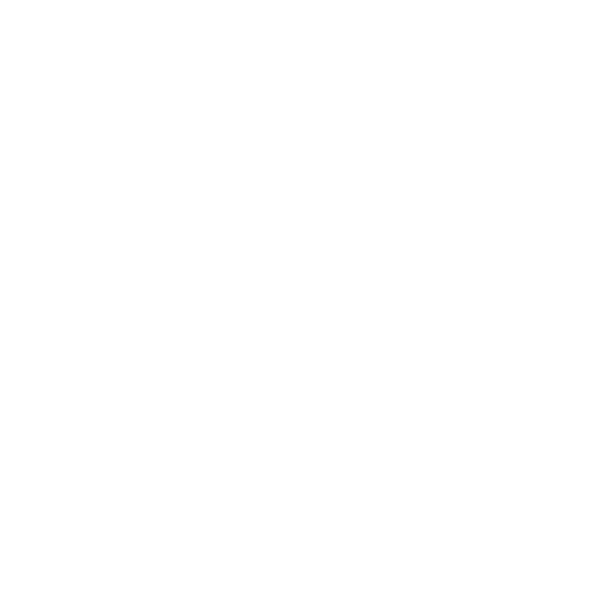

Optics:
- Zoom Range: 3° to 60°
- 10 Pixel Zones, Individual Control or EFX Macros
- 18-bit 0-100% Smooth Linear Dimming with Selectable Curve
- Strobe: 0-20 FPS
Control and Programming:
- DMX channels: 19, 28, 29, 33, 34, 48, 49
- Control modes: DMX, Auto, Master/Slave, Music
Power Specifications:
- Peak power consumption: 350VA
- Voltage: AC 100-240V, 50/60Hz

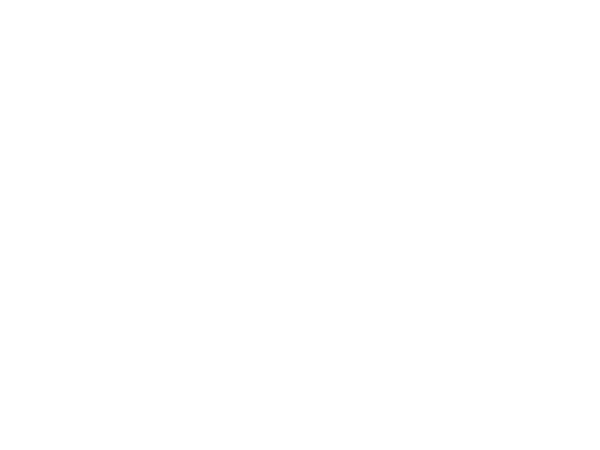

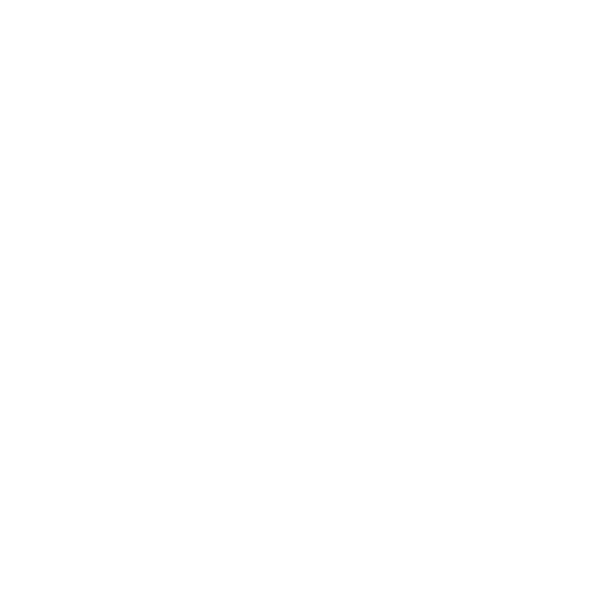

Physical Dimensions:
- Depth: 140mm
- Width: 510mm
- Height: 330mm
- Weight: 9.5 kg (20.9 lbs)
Construction and Build:
- Housing colors: Black
- IP Rating: IP20
- 2-Row LCD display for addressing and special function settings
Connections:
- Data in/out: Locking 3-pin XLR M/F
- Power in/out: Seetronic powerCON
Accessories:
- Omega Mounting Brackets
- Power & Signal Cable
Warranty:
- 2-year warranty on parts and labor
