Fresnel

FRESNEL 200WW

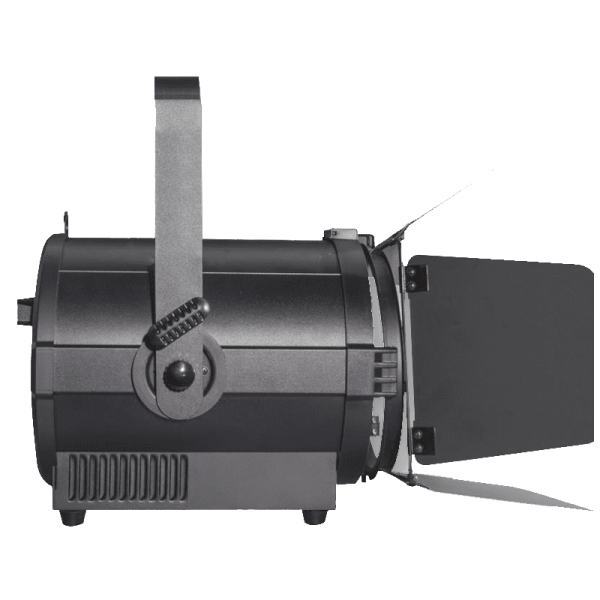

The FRESNEL 200 WW is a 200W Warm White (3200K) LED Fresnel fixture with 15° - 60° motorized zoom. It features a high CRI of 96, multiple dimmer curves, and adjustable LED refresh rate (1.2~25kHz) for flicker-free operation. The FRESNEL 200WW is ideal for film, television, studio, theatre, or any stage application. A removeable barn door attachment allows control of light placement. Metal construction ensures high durability for mobile production use.

Key Features

DMX / RDM Compliant

DMX512-A · ANSI E1.11

High CRI

CRI ≥ 95 · TLCI ≥ 96

Designed in Canada

LumiOS Digital Lighting

SKU: FRESNEL200WW Category: Fresnel

Request a Quote → Download Spec Sheet ↓

Specifications and Features:

Key Features:

- - Bright Warm White LED Light Source
  - Motorized 15°-60° Zoom via panel or DMX
  - Smooth 0-100% Dimming & Strobe Capable
  - Selectable Dimmer Curves & Adjustable LED Frequency
  - Durable Metal Construction

Technical Specifications:

Control and Programming:

- - DMX Channel Modes: 2/3/4/5
  - Control Modes: DMX, Master/Slave, RDM

Optics:

- - Light Source: 200W Warm White COB LED
  - Color Temperature: 3200°K
  - Zoom Range: 15° – 60° (motorized via DMX)
  - CRI 96, R9≥90

Physical Dimensions:

- - Dimensions (L x W x H): 315 x 296 x 330mm (12.4 x 11.65 x 13 in)
  - Weight: 8.2 kg (18 Lbs)

Power Requirements:

- - Peak Power Consumption: 220VA
  - Voltage: AC 100-240V, 50/60Hz
  - Maximum Power Linking: 8 Units

Connections:

- - Data In/Out: 3-pin XLR M/F
  - Power In/Out: Seetronic Powercon

Construction:

- - Available Colors: Black
  - Body Material: Aluminum
  - Display: Numeric LED Display
  - IP Rating: IP20

Accessories:

- - Edison to PowerCON cable

Warranty:

- - 2 year limited warranty (parts & labor)

📁 LumiOS FRESNEL 200WW Cutsheet ↓
