DRAGONFLY IP

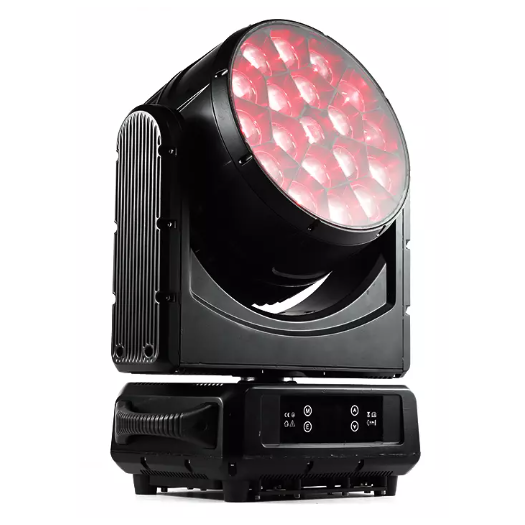

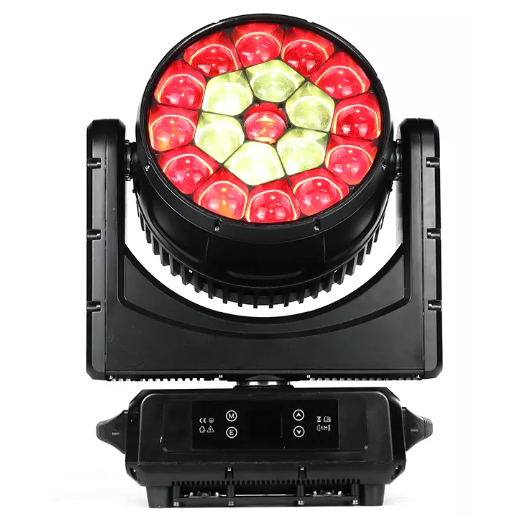

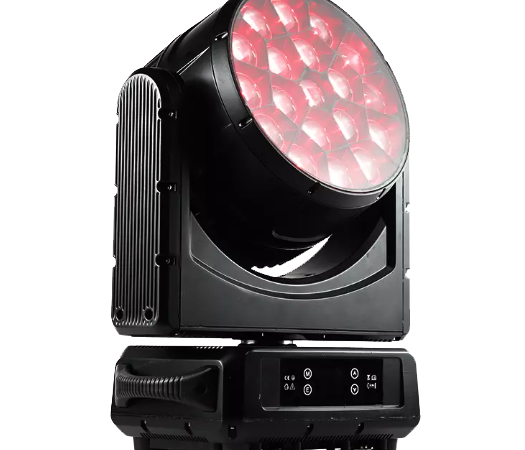

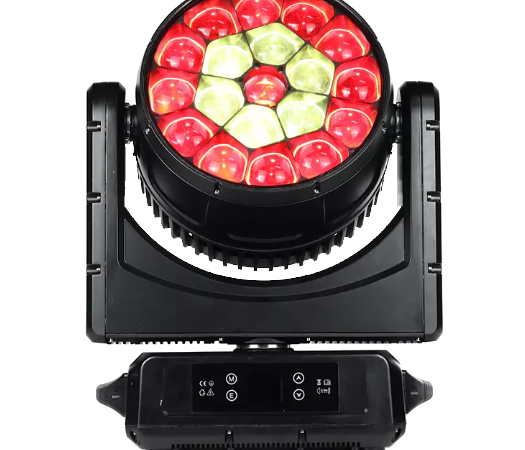

DRAGONFLY IP is an IP65-rated, ultra-high-output 760W LED moving wash fixture engineered to deliver exceptional performance in the most demanding indoor and outdoor environments. Its versatile 5° to 45° motorized zoom provides everything from tight, punchy beam effects to wide, even washes, giving lighting designers maximum creative flexibility from a single fixture.
Key Features
IP65 outdoor rated motorized wash
Powerful 760W Total RGBW LEDs for Ultra-High Output
Wide 5° - 45° Zoom
Built-in effect macros with sophisticated parameter controls
Wide Linear CTO

SKU: DRAGONFLY IP Categories: ,

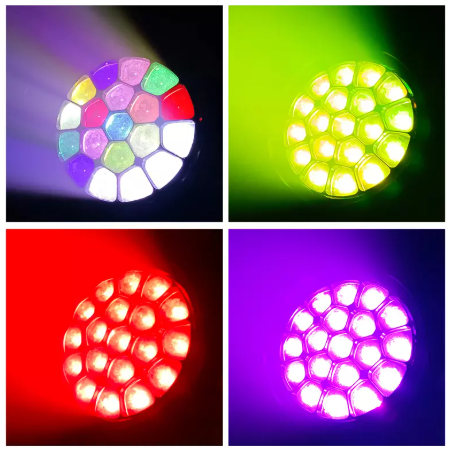

Featuring 19 independently controllable pixel zones, the DRAGONFLY IP opens the door to stunning pixel-mapped effects, dynamic chases, animated graphics, and intricate color patterns that bring lighting designs to life. Combined with its signature Bee-Eye rotating lens, the fixture produces spectacular aerial effects, kaleidoscopic visuals, and immersive beam animations that captivate audiences from every angle.

Variable CTO and an extensive library of customizable effect macros provide virtually limitless creative possibilities, while advanced parameter control allows designers to fine-tune every effect for seamless integration into any production or installation.

Built to withstand the elements without compromising performance, the DRAGONFLY IP is equally at home on concert tours, festivals, theatres, broadcast productions, architectural installations, and permanent outdoor venues. Combining exceptional brightness, advanced pixel-mapping capabilities, robust weather protection, and sophisticated visual effects, the DRAGONFLY IP delivers the versatility, reliability, and creative freedom demanded by today’s lighting professionals.

Applications

  • Concert Touring & Festivals
  • Live Performance Venues
  • Nightclubs & Bars
  • Broadcast Studio
  • Theatre Productions
  • Houses of Worship
  • Architectural Projects
  • Corporate Events
  • Rental Production Companies
Light Source
LED Engine 760W - 19 x 40W RGBW 4-in-1 LEDs
LED Life 50,000-hour life expectancy
Color Temperature Variable CTO, 2500 - 8000K
Optics
Zoom Range 5° to 45°
Pixel Zones 19 Zone Bee-Eye Rotating Lens
Dimming 0-100% Linear Dimming
Strobe 1-25 FPS
Control and Programming
DMX channels 21, 22, 35, 35
Control modes DMX, Master/Slave, Auto, Music
Power Specifications
Peak power consumption 880VA
Voltage AC 90-260V, 50/60Hz

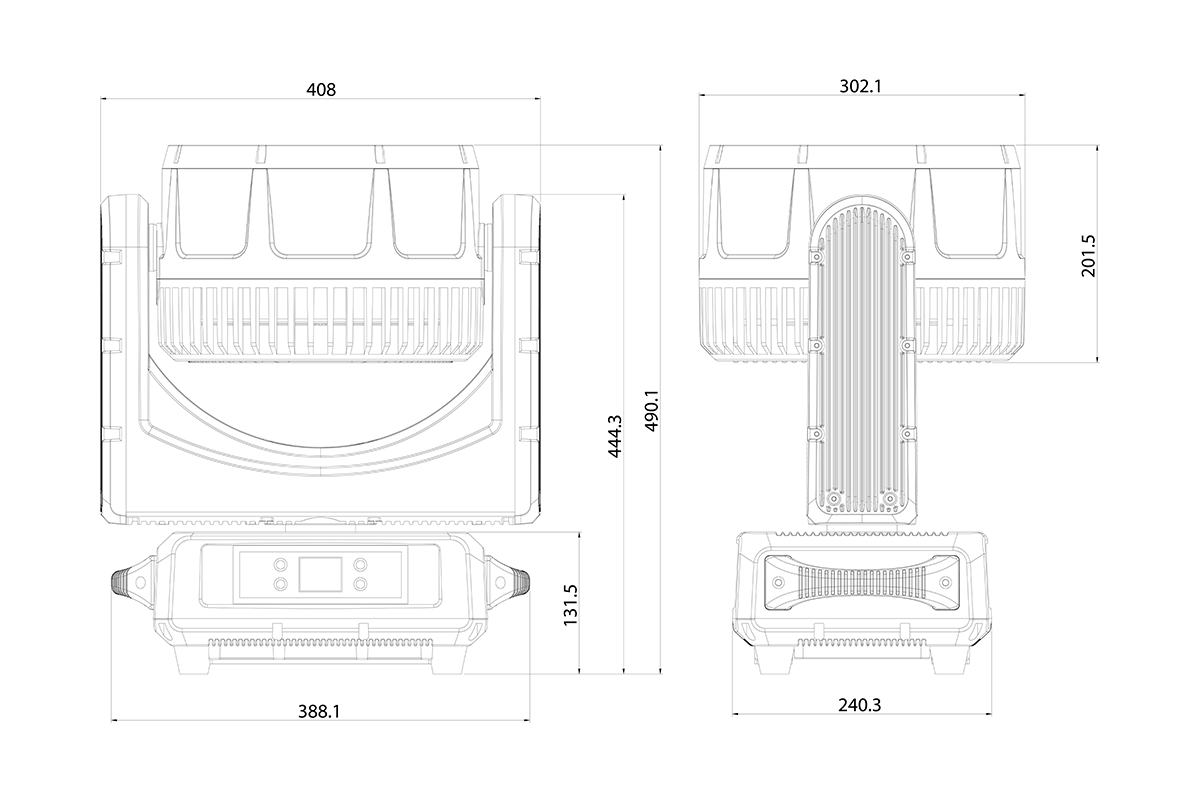

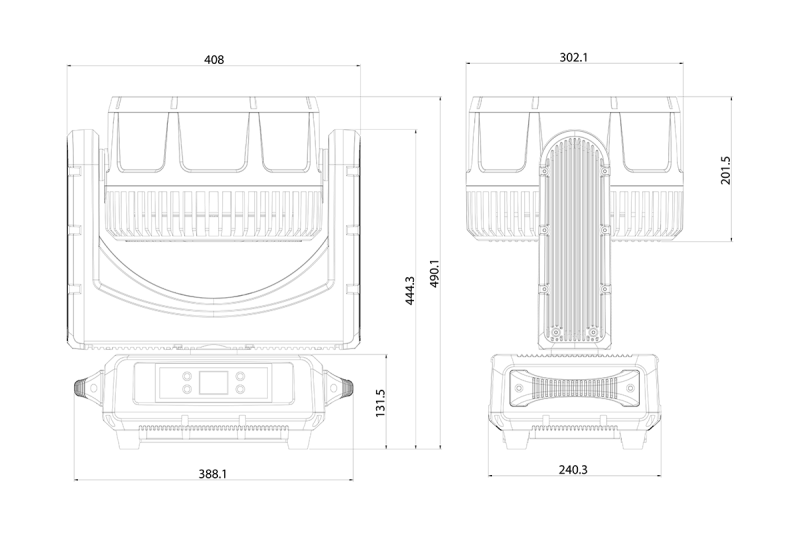

Physical Dimensions
Depth 302mm
Width 408mm
Height 4900mm
Weight 22.6 kg (49.7 lbs)
Construction and Build
Housing colors Black
IP Rating IP65
Display & Control Color LCD display + Selector Buttons

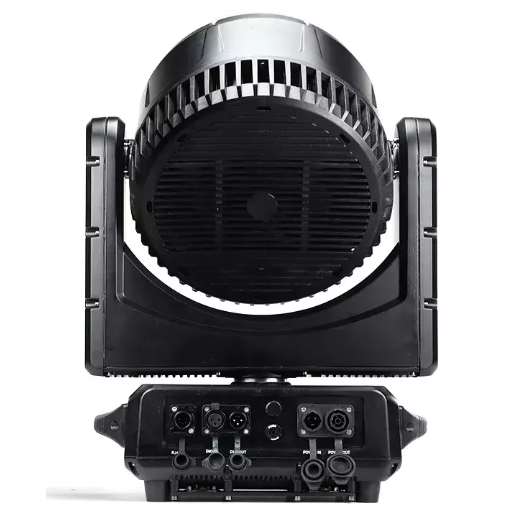

Connections
Data in/out Locking 5-pin XLR IP65
Power in/out Seetronic trueCON IP65
Other
Accessories Omega Mounting Brackets included
Power & Signal Cable
Warranty 3-year warranty on parts and labor
