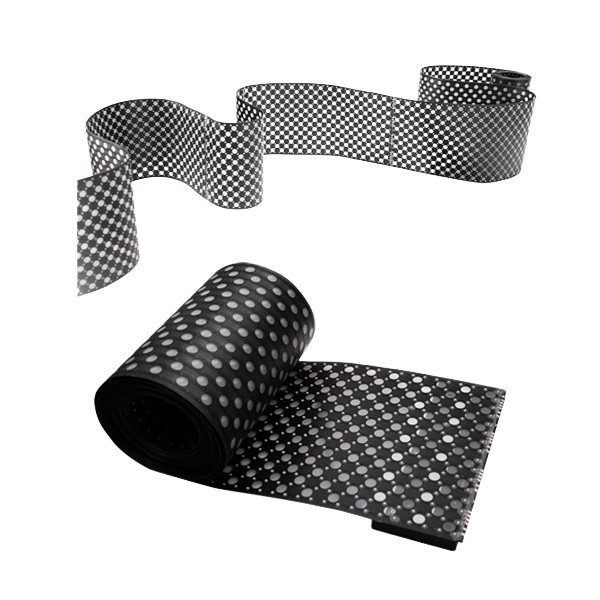

FLEX SCREEN

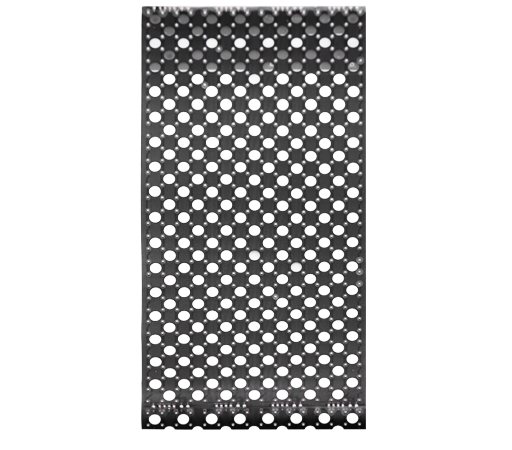

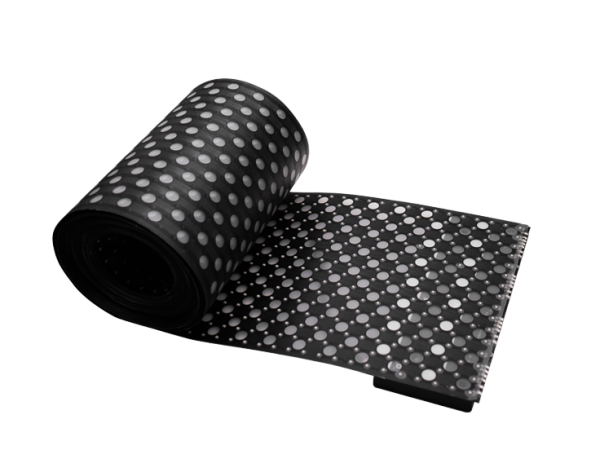

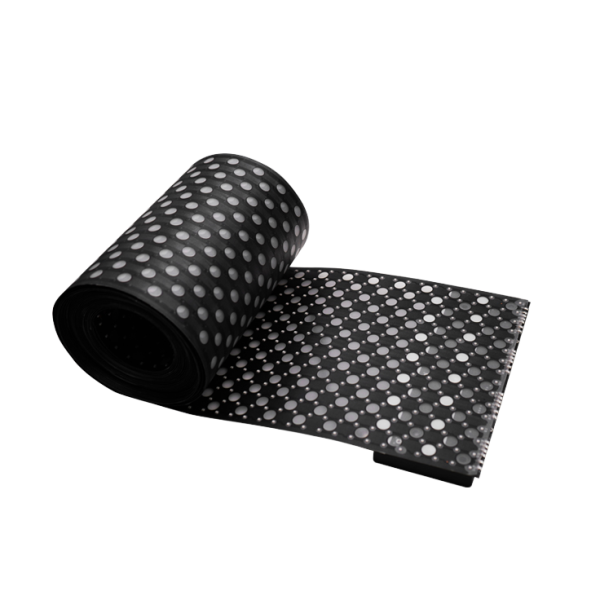

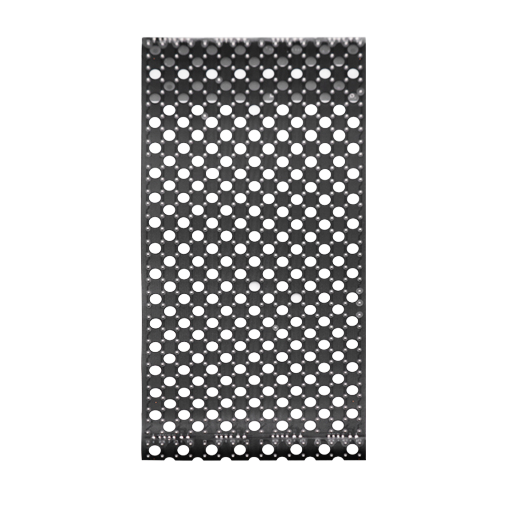

FLEX SCREEN is an ultra-thin, highly flexible RGB LED display solution engineered to bring creative visions to life. Built using advanced flexible printed circuit board (FPCB) technology, it combines exceptional durability with a lightweight, low-profile design that can bend, fold, and roll to seamlessly adapt to virtually any surface. FLEX SCREEN is suitable for architectural projects, enterainment venues, retail displays, and other installations.

Key Features

Flexible Screen - Maximum Creativity

Wide RGB Color Mixing Gamut

Modular Design for Easy Installation

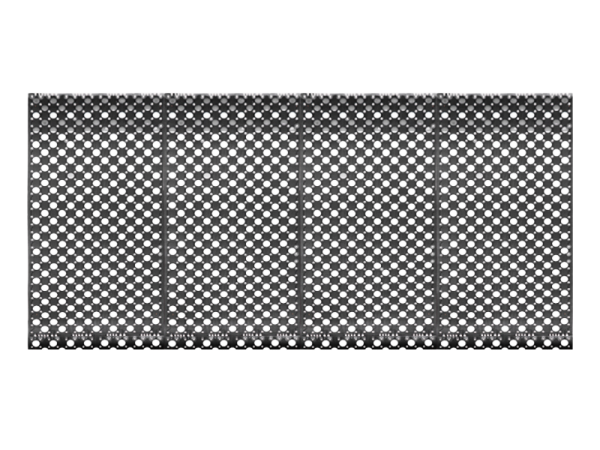

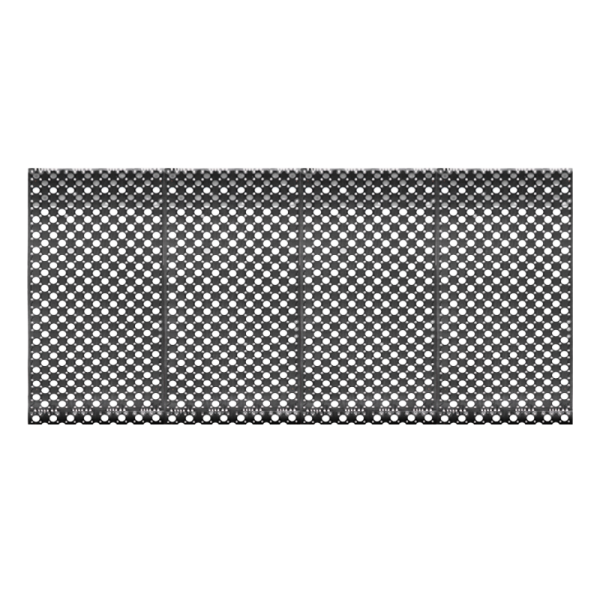

Combine Multiple Strips for Larger Display

Partial Transparency for Layered Effects

SKU: FLEXSCREEN-RGB-10M Category: Flexible Pixel

Request a Quote → Download Spec Sheet ↓

Designed for maximum creative freedom, FLEX SCREEN can be configured into an unlimited range of custom shapes and forms, making it ideal for immersive environments, architectural installations, retail displays, entertainment venues, and other dynamic applications. Its semi-transparent construction enables striking layered visual effects, while the modular design allows multiple panels to integrate seamlessly into large-format displays of virtually any size.

Engineered for efficiency as well as performance, FLEX SCREEN offers fast, straightforward installation and integrates seamlessly with our Pixel Node product family. Front-serviceable access eliminates the need for disassembly during maintenance, reducing downtime, simplifying servicing, and lowering overall maintenance costs.

Applications

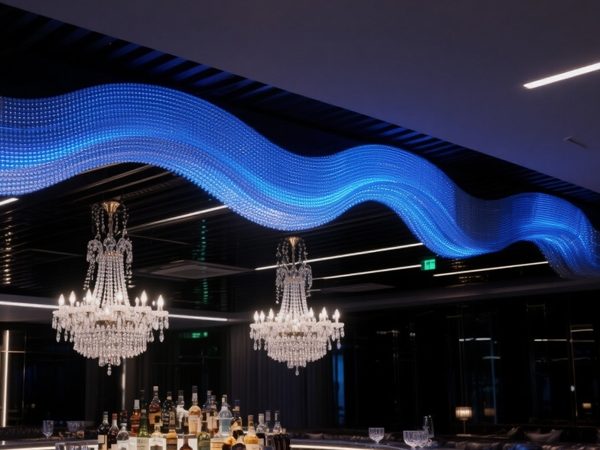

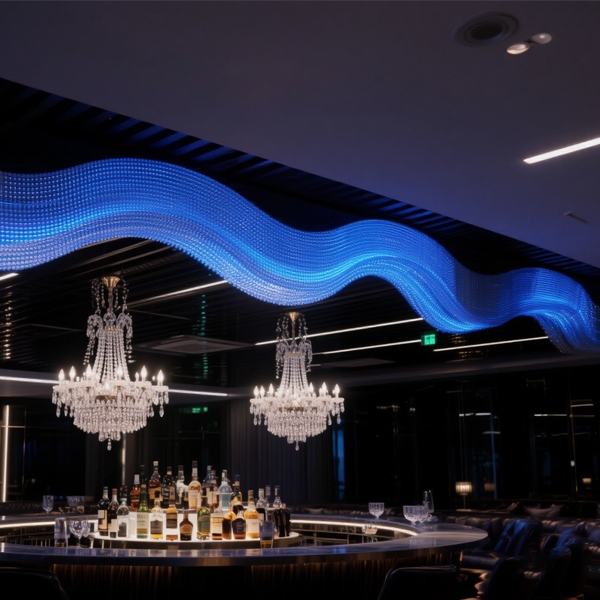

Architectural Projects

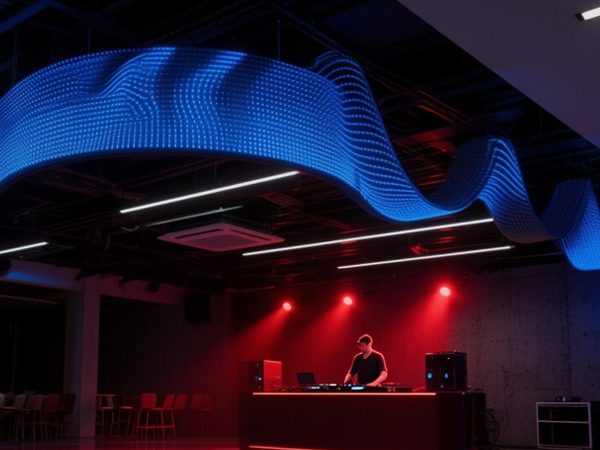

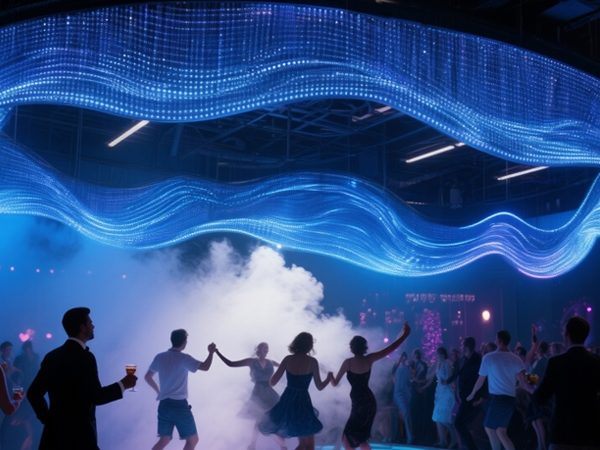

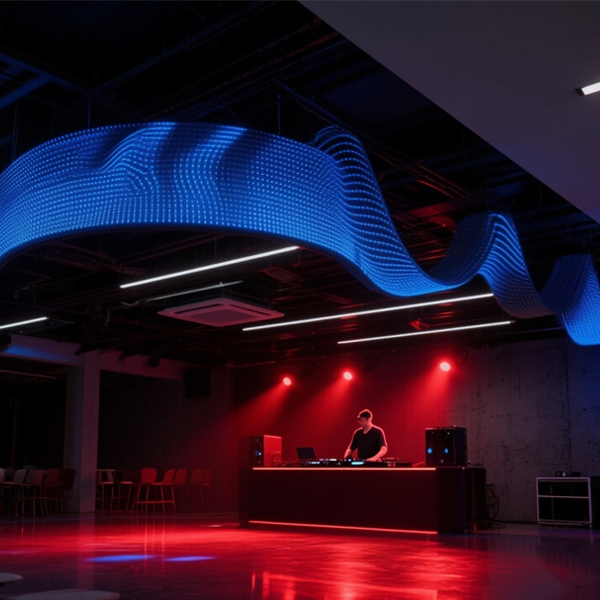

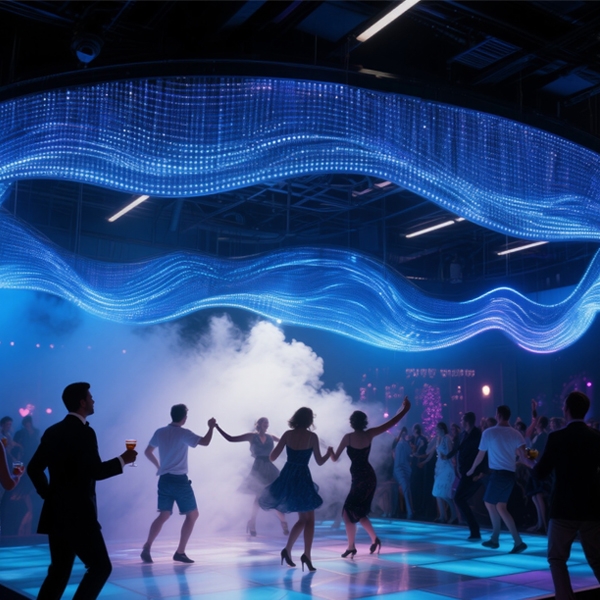

Enterainment Venues
Retail Decoration and Marketing
Public Spaces

Pixel Pitch	15 mm
Working Voltage	24 VDC
Maximum Power	400 W
LED Type	2020RGB
LED Quantity	1024 per M

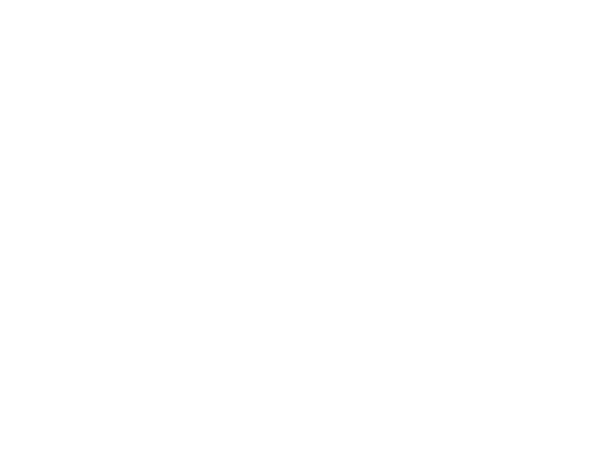

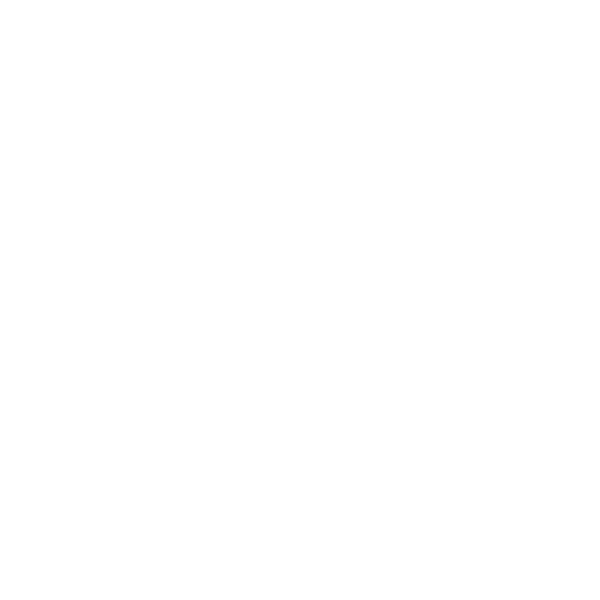

Group Segment Length	500 mm
Grey Scale	256
IP Grade	IP40
Product Color	Black
Length	10 m
Width	240 mm
Weight	0.2 kg per M

Architectural Projects
Enterainment Venues
Retail Decoration and Marketing
Public Spaces
