NEON TUBE
Flexible Pixel

NEON TUBE

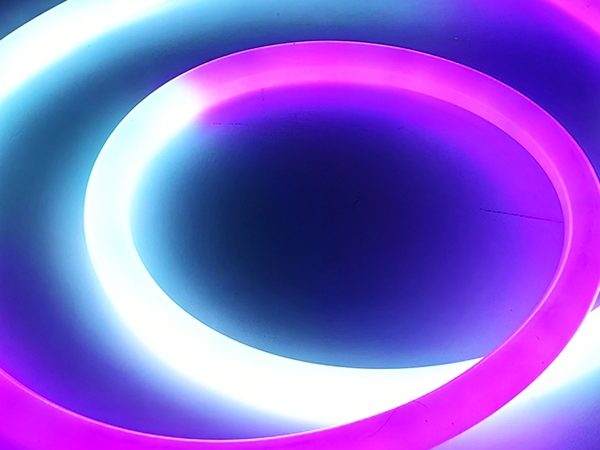

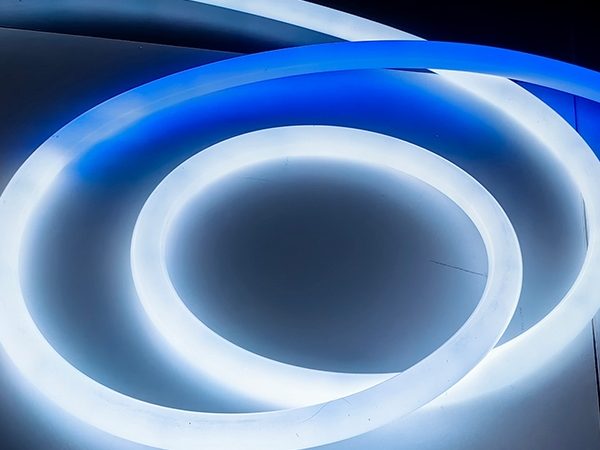

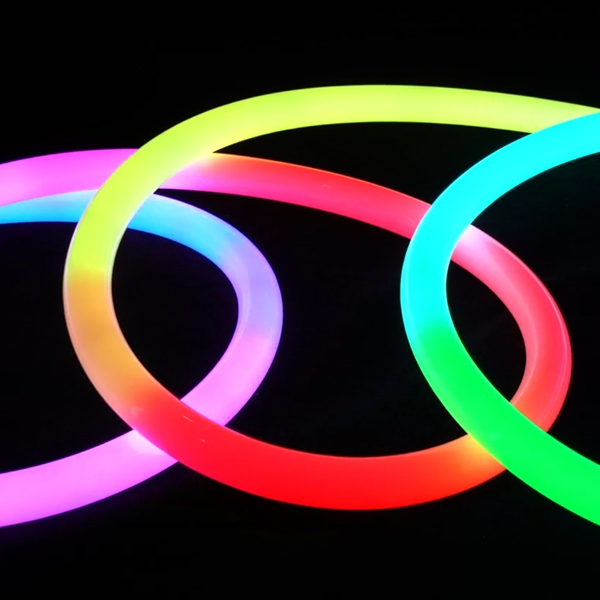

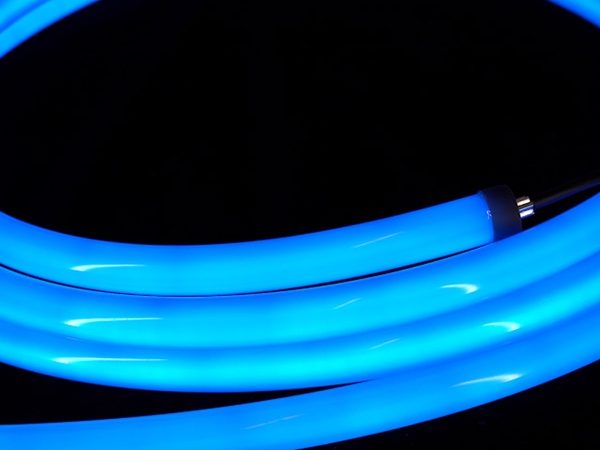

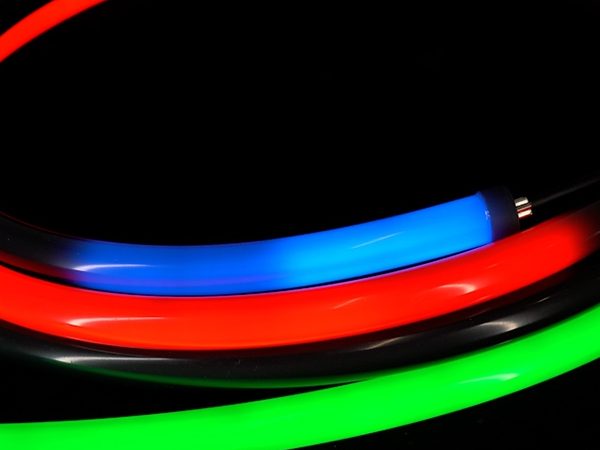

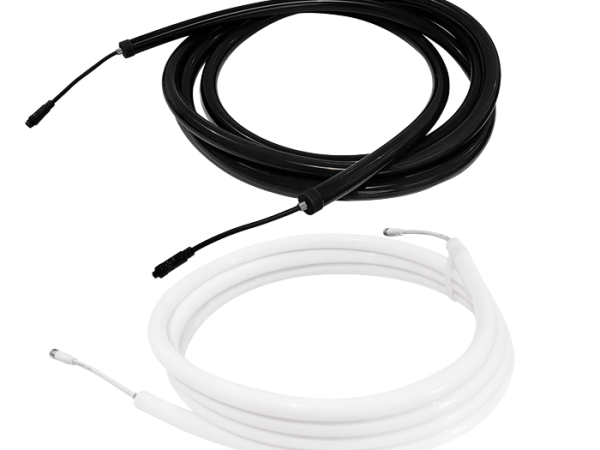

NEON TUBE is a premium, flexible LED tube solution engineered to deliver completely uniform 360° illumination with exceptional color saturation. Available in elegant opaque white or black finishes, it features 10 individually controllable pixel zones per meter and IP65-rated construction, making it ideal for both indoor and outdoor architectural, entertainment, signage, and creative lighting applications.

Key Features
RGBW Color Mixing - 360° Illumination
IP65 Indoor or Outdoor Use
24VDC Working Voltage
10-Pixel Zones per Meter

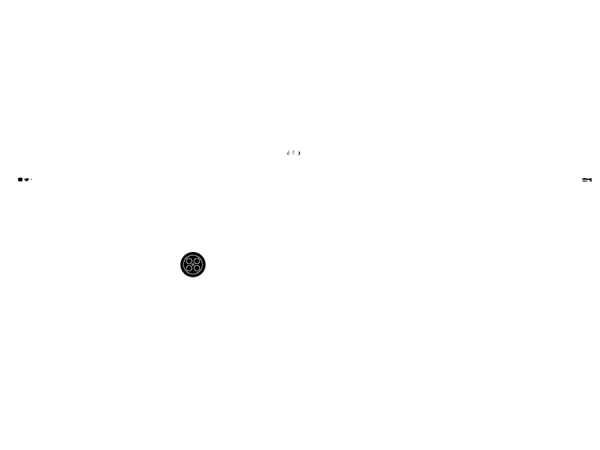

25mm Diameter
50mm Minimum Bend Radius
White or Black Unlit Color

SKU: NEONTUBE-RGBW-5M-BK, NEONTUBE-RGBW-5M-WH Category:
Request a Quote → Download Spec Sheet ↓

Built with high-output LEDs mounted on a double-sided flexible PCB, NEON TUBE can be segmented in 0.5-meter increments and formed into tight curves with a minimum bend radius of just 50 mm, providing outstanding design flexibility for complex installations.

Operating on 24 VDC and consuming only 30 W per meter, NEON TUBE combines energy efficiency with straightforward installation. When paired with LumiOS pixel nodes, network-based DMX protocols are seamlessly converted into high-speed serial data for NEON TUBE, ensuring reliable control and stunning, high-fidelity lighting effects.

Designed for dependable performance in demanding environments, NEON TUBE operates safely across a wide temperature range of -20°C to +50°C, giving installers and designers confidence in virtually any climate.

Applications

  • Architectural Projects
  • Enterainment Venues
  • Retail Decoration and Marketing
  • Public Spaces
Working Voltage 24 VDC
Max Power 30W per Meter
LED Type (RGBW) 4040RGBW
LED Driver IC WS2814F
Control Mode SPI
LED Quantity 240 Pcs
Beam Angle 360°
Bending radius 50 mm
Pixel Zones 10-Pixels per Meter
Grey Scale 256
IP Grade IP65
Operating Temperature -20°C to +50°C
Product Color White or Black
Product Diameter 25 mm
Product Length 5 m
Zone Segments (Cut Length) 500 mm
Product Weight (5m) 3 kg
  • Architectural Projects
  • Enterainment Venues
  • Retail Decoration and Marketing
  • Public Spaces

No downloads available for this product yet.

📋 Request a Spec Sheet
