KINETIC 50-4SQ

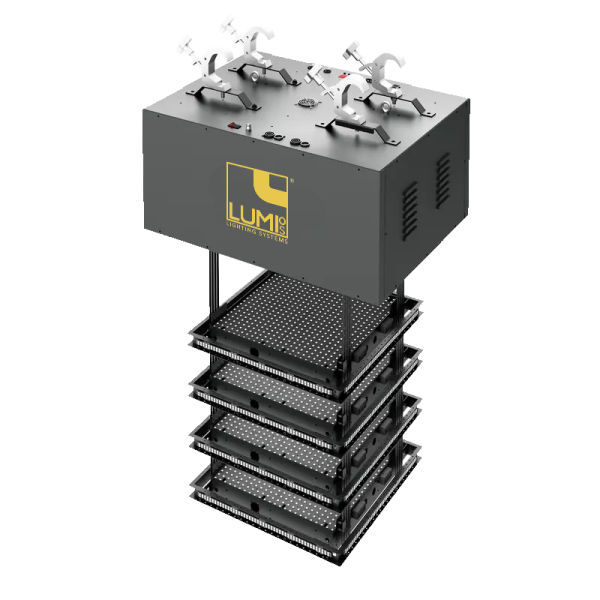

The KINETIC 50-4SQ is a fully integrated kinetic lighting system that combines precision winch technology with stunning pixel-mapped LED illumination. Featuring four square-shaped tiers, each equipped with 256 high-output RGBW pixels, the system delivers a total of 1,024 individually controllable pixels for immersive visual effects and dynamic three-dimensional displays.

Key Features

4 Tiers with 256 RGBW pixels each

50 Kg Vertical Loads

Adjustable Speeds up to 3.6 kph (100 cm/s)

4m Lifting Height

Integrated Pixel Node

Network DMX Controlled for High-Precision Positioning, 16-bit resolution

Numerous protection systems

SKU: KINETIC-50-4SQ Categories: Kinetic LED & DMX Winch, Motion FX Brand: LumiOS

Request a Quote → Download Spec Sheet ↓

Designed as a complete, ready-to-deploy solution, the KINETIC 50-4SQ streamlines installation for live productions, touring applications, nightclub environments, and creative stage designs. An onboard 8-Universe Pixel Node provides seamless control of all RGBW pixels, enabling complex animations, vibrant color effects, and synchronized media playback.

With DMX-controlled movement across a 4-meter vertical travel range, the system delivers extremely fast, smooth, and highly accurate motion, allowing designers to create captivating kinetic effects with exceptional precision, reliability, and creative flexibility.

KINETIC 50 Series can be directly connected to lighting consoles via network DMX (ArtNet, sACN), enabling fast integration into live production environments. It serves as a powerful tool to integrate automated backdrops, projection surfaces, and reveal effects.

KINETIC 50 also features a host of protection features for safe operation and LumiOS provides software for set-up and monitoring of multi-winch systems.

Some of our protection systems include:

- Slack Protection: Auto stop when underload is detected
- Spooling Protection: Auto stop when mis-spooling is detected
- Overload Protection: Auto stop when load limit is exceeded

Pixel Elements
Color Scheme	4-Color RGBW Pixels
Light Panel Layers	4 Layers
Pixel Count Per Layer	256 px each (1024 total)
Light Panel Size	Square 492 x 492 x 104 mm each
Light Panel Max Power	400W per panel (1600W combined)
Movement Speed
Maximum Speed	100 cm/s (3.6 kph), 16-Bit
Hoist Details
Lifting Capacity	50Kg (110 Lbs)
Lift Height	4m
Cable Diameter	8 x 3mm Flat Cables
Synchronization	<10mm Error
Load Monitoring	Slack Prevention & Overload Prevention
User Limit	Customizable E-Stop
Safety	Physical Brake & Electronic Brake
Control and Programming
DMX channels	4ch (Winch Movement) + 8-Universe (Pixel Control)
Control modes	Art-Net/sACN, RDM, Manual
Power Specifications
Winch Size	1300VA, 90-240VAC, 50/60Hz
External Power Requirement (LEDs)	24V 1600W
Physical Dimensions & Weight

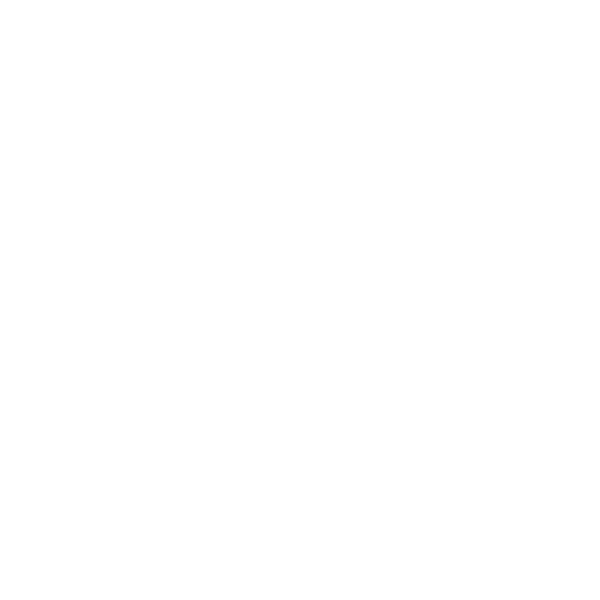

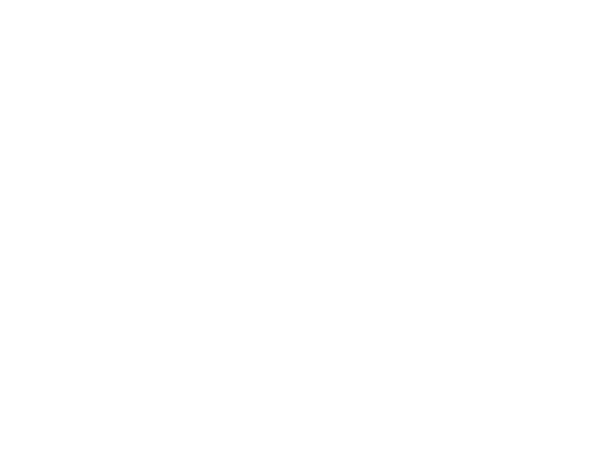

Winch	819 x 544 x 548 mm / 100 kg/set (220 lbs) w/clamps attached
Light Panel Size	Square 492 x 492 x 104 mm each
Construction and Build
Housing colors	Black
IP Rating	IP20
Display & Control	4-Digit 7-Segment display + 4 push-buttons
Connections
Data in/out	Locking EtherCON
Data Alternate	RJ45
Main Power in/out	Seetronic trueCON IP65
Other
Included Accessories	Aluminum Clamps (4)
	Safety Cable
	Power & Signal Cable
Warranty	2-year warranty on parts and labor

No downloads available for this product yet.

📋 Request a Spec Sheet
