Motion FX

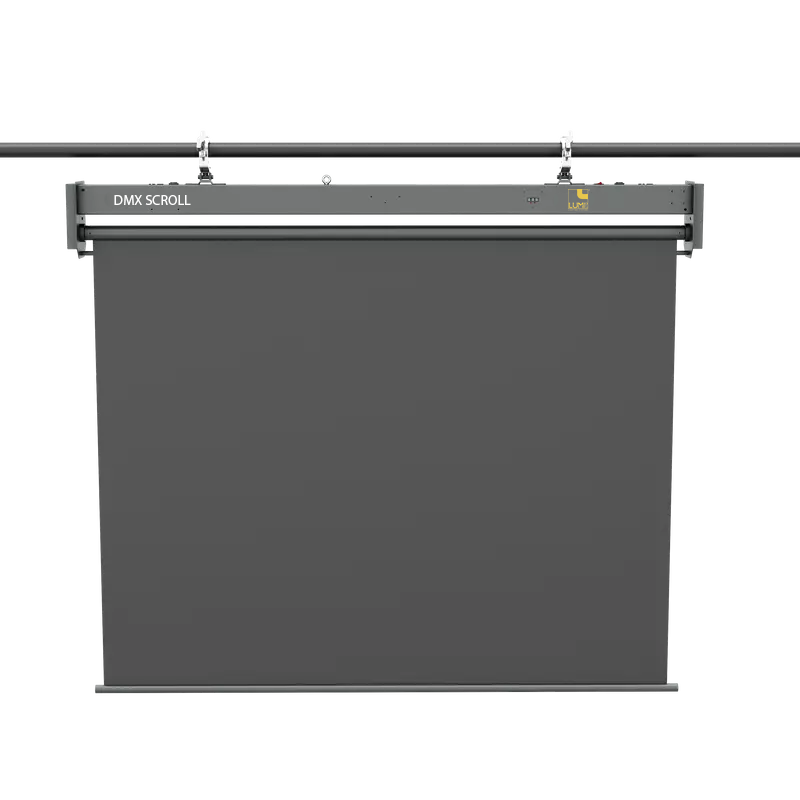

SCROLL S2

Designed for seamless integration into demanding live production and stage environments, the S2 Series DMX controllable scroll screens deliver high-speed, precision-controlled motion with exceptional reliability. This professional-grade solution enables the rapid and automated deployment of scenic backdrops, projection surfaces, and visual elements, ensuring smooth, perfectly synchronized operation every time.

Key Features

5 Kg Vertical Loads

Adjustable Speeds up to 3.6 kph (100 cm/s)

1m - 15m Lifting Height

1m, 2m & 3m Models

Network DMX Controlled for High-Precision Positioning, 16-bit resolution

Numerous protection systems

SKU: SCROLL S2-1M, SCROLL S2-2M, SCROLL S2-3M Category: Motion FX Brand: LumiOS

Request a Quote → Download Spec Sheet ↓

Featuring a fully customizable travel range from 1 to 15 meters, and models ranging from 1-3 meters wide, the system can be tailored to accommodate virtually any venue configuration or architectural requirement. DMX/RDM protocol compatibility allow lighting and production designers to integrate automated drops, transitions, and reveal effects directly into their show control workflow, enabling effortless programming and flawless execution of complex productions.

SCROLL S2 Series can be directly connected to lighting consoles via network DMX (ArtNet, sACN), enabling fast integration into live production environments. It serves as a powerful tool to integrate automated backdrops, projection surfaces, and reveal effects.

SCROLL S2 also features a host of protection features for safe operation and LumiOS provides software for set-up and monitoring of multi-winch systems.

Some of our protection systems include:

- Slack Protection: Auto stop when underload is detected
- Spooling Protection: Auto stop when mis-spooling is detected
- Overload Protection: Auto stop when load limit is exceeded

Movement Speed
Maximum Speed	100 cm/s (3.6 kph), 16-Bit
Hoist Details
Lifting Capacity	5Kg (11 Lbs)
Scroll Length	1-15m
Reel Diameter	85mm Aluminum Tube
Synchronization	<30mm Error
Load Monitoring	Slack Prevention & Overload Prevention
User Limit	Customizable E-Stop
Safety	Physical Brake & Electronic Brake
Control and Programming
DMX channels	4ch (Winch Movement)
Control modes	Art-Net/sACN, RDM, Manual
Power Specifications
Winch	240VA, 90-240VAC, 50/60Hz

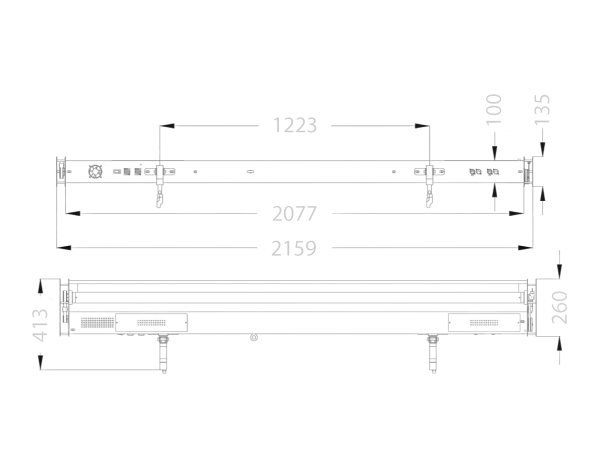

Physical Dimensions & Weight
S2-1M (1m wide)	1100 x 150 x 430 mm / 15 kg (33.0 lbs) w/clamps
S2-2M (2m wide)	2100 x 150 x 430 mm / 22 kg (48.4 lbs) w/clamps
S2-3M (3m wide)	3100 x 150 x 430 mm / 27 kg (59.4 lbs) w/clamps
Construction and Build
Housing colors	Black
IP Rating	IP20
Display & Control	4-Digit 7-Segment display + 4 push-buttons
Connections
Data in/out	Locking EtherCON
Data Alternate	RJ45
Main Power in/out	Seetronic trueCON IP65
Other
Included Accessories	Aluminum Clamps (2)
	Safety Cable
	Power & Signal Cable
Warranty	2-year warranty on parts and labor

No downloads available for this product yet.

📋 Request a Spec Sheet
