POSTER SERIES

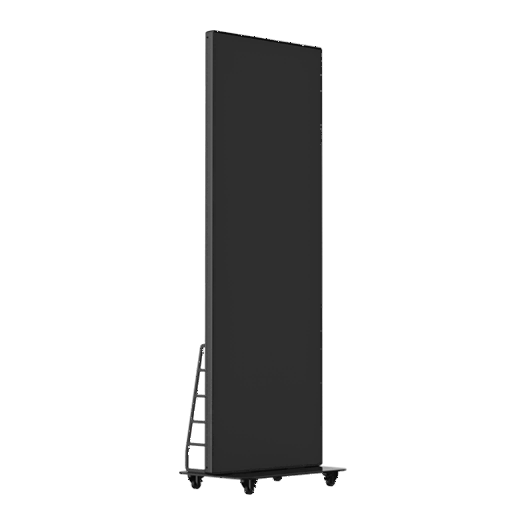

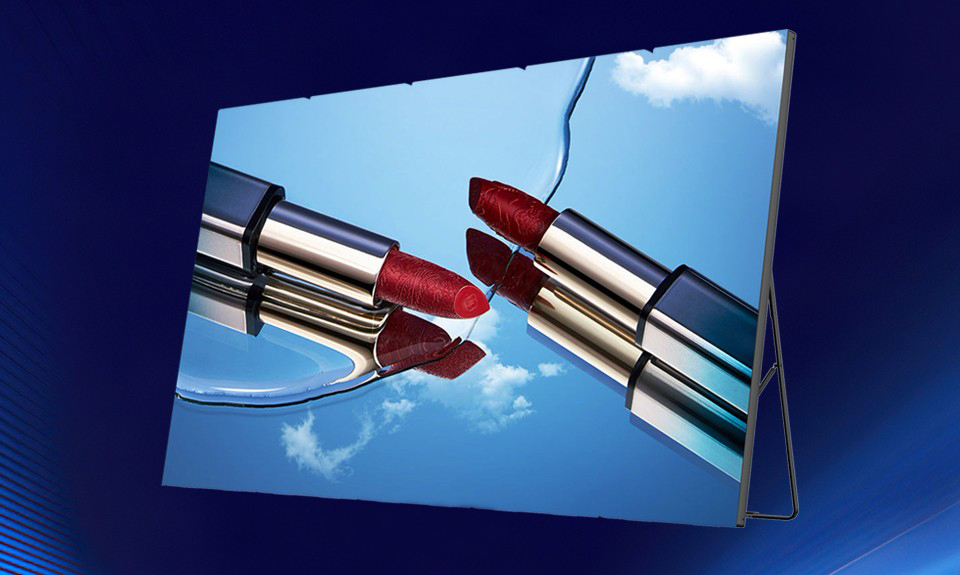

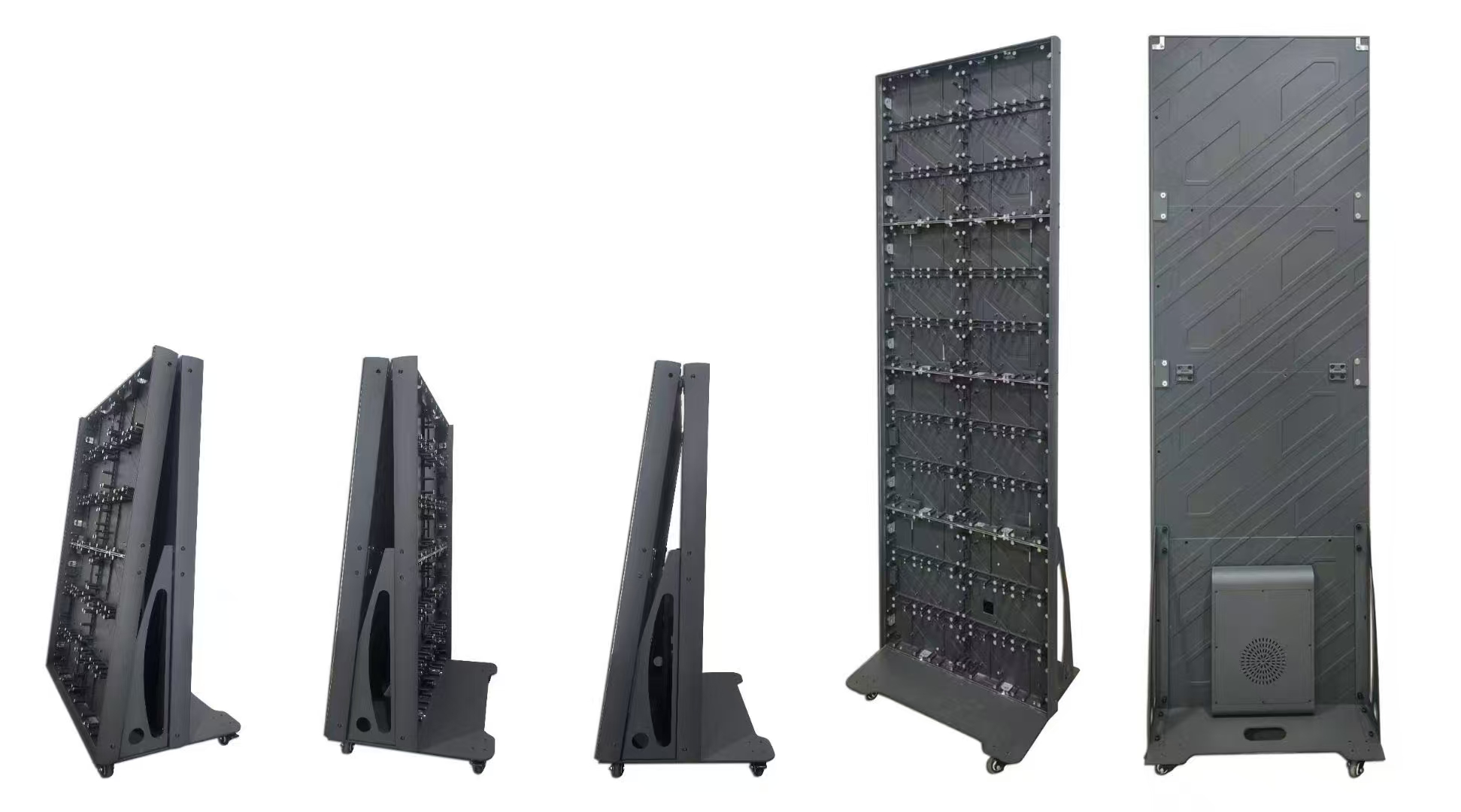

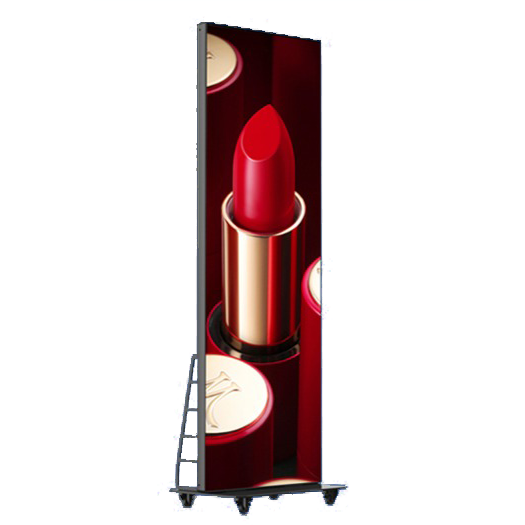

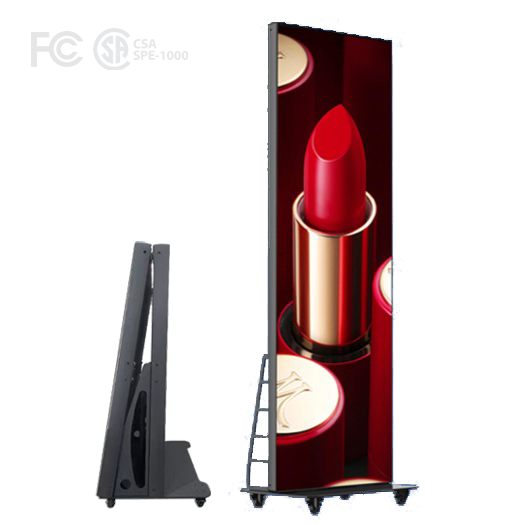

The POSTER Series is an all-in-one stand-alone portable display with integrated media player. Unfold and set-up is Plug-&-Play easy. Link multiple units together to make a larger display. Features an intuitive user App for PC, tablet, or phone control, uploading content, and scheduling controls allow your POSTER display to be up and running in minutes with minimal technical knowledge. Ideal for POS, trade shows, meetings, and more.
Specifications and Features:
Key Features:
- High quality fine-pitch display for vibrant imagery and close viewing
- Quick and easy to set-up, link multiple units, and to operate (Plugin-Play)
- Intuitive user-friendly APP available for PC, Tablet, or Phone (Windows/iOS/Android)
- Integrated Media Player with 32GB onboard storage, expandable via USB
- Integrated WIFI gateway for local or remote connection + network cable port

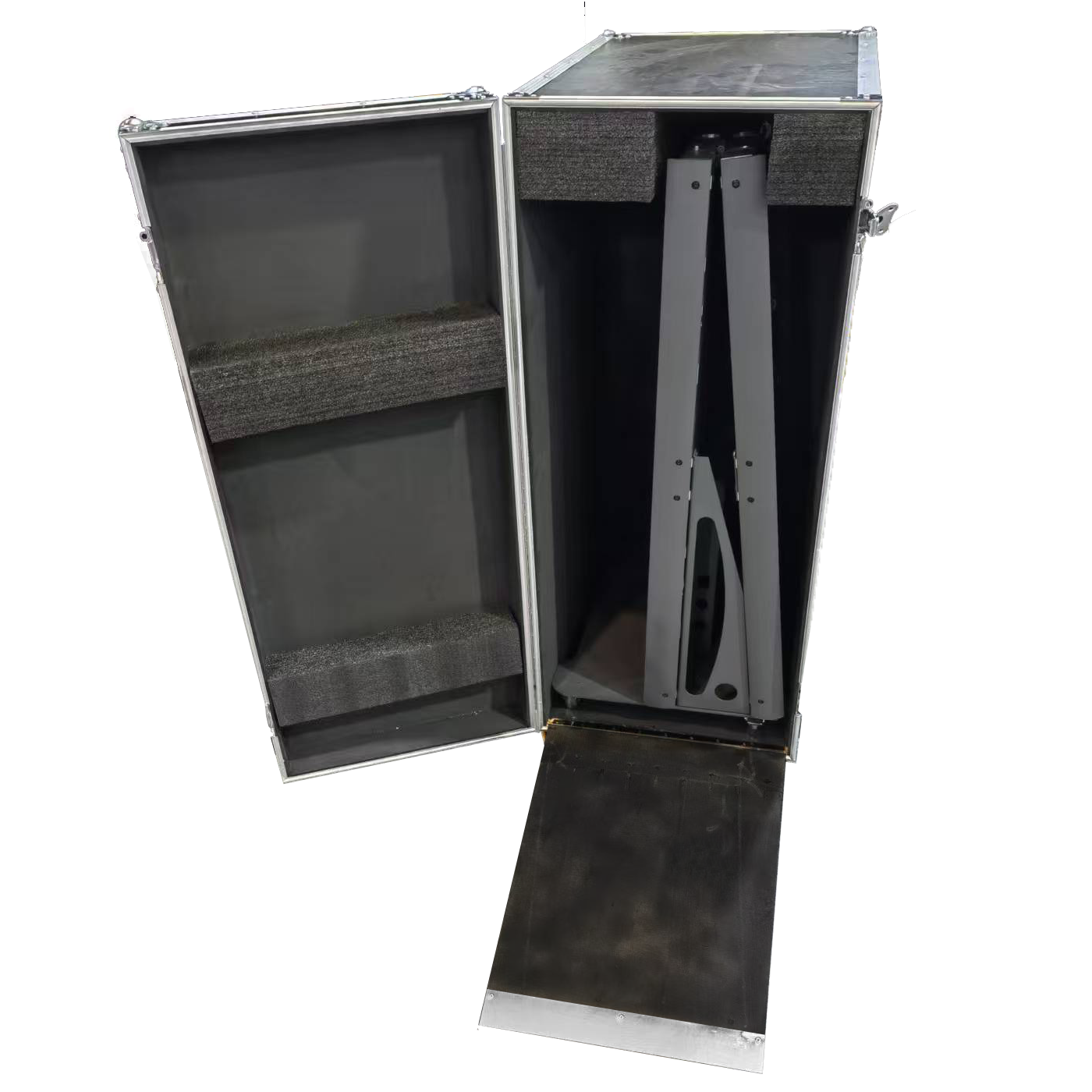

- Protective road case available
- Suitable for Rental, Meetings, Trade-Shows, and End-User applications
Technical Specifications – DISPLAY:
- OPERATION: Plug & Play
- PIXEL PITCH: 1.53 mm
- DISPLAY SIZE: 640 mm x 1920 mm
- DISPLAY RESOLUTION: 416 x 1248 pixels (single unit)
- TYPICAL BRIGHTNESS: 600 nits
- GRAYSCALE: 14 to 16 bit
- VIEWING ANGLE: 160° Horizontal & Vertical
- FRAME REFRESH: 50/60 Hz
- DATA REFRESH: ≥3840 Hz
- MAINTENANCE: Front Magnetic
- ENVIRONMENT: -20°C – 55°C
- PROTECTION: IP65 Front, IP30 Rear
- POWER INPUT: 110-220VAC ±10%, 50/60Hz
- POWER DRAW: 200W/set Typical, 620W/set Maximum
- CONSTRUCTION: Cast Aluminum Frame, Steel Base

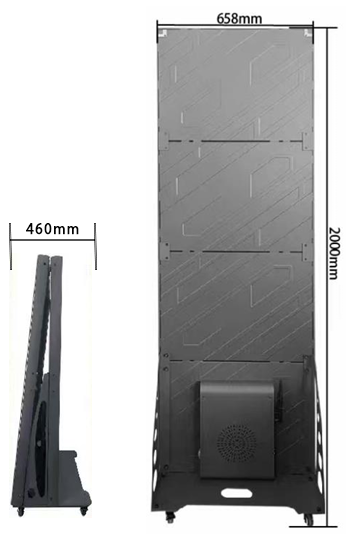

- CABINET SIZE: 658 mm x 2000 mm x 460 mm (w x h x d – with castors)
- CABINET WEIGHT: ~53kg (117 Lbs)
Technical Specifications – MEDIA PLAYER:
- STORAGE: 1GB + 32BG
- DECODE ABILITY: 4K 60fps
- LOADING CAPACITY: 1.3 million pixels
- MAX WIDTH/HEIGHT: 4096px Wide, 4096px High
- SYNC MODE: NTP or GPS
- DUAL MODE SWITCH: Support
- REMOTE CONTROL POWER: Optional Multifunction Card Required
- SENSOR SUPPORT: 2 Ports
- LED OUTPUT PORTS: 2 Main
- LAN: 1000 Mbps (RJ45)
- WIFI: 2.4G Switchable AP&STA
- 4G: Optional Card Required
- CPU: A Core A55 Processor, 1.8GHz
- OPERATING SYSTEM: Android 11
- CONSTRUCTION: Metal Case
- POWER INPUT: 100-240VAC
Warranty:
- 2 year limited warranty (parts & labor)
