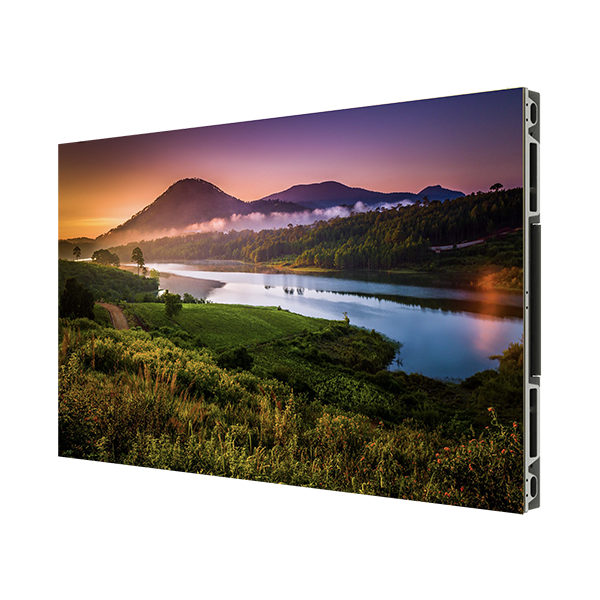

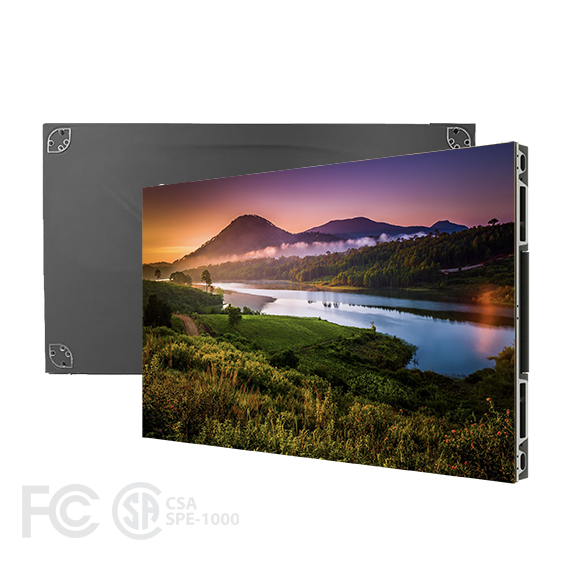

R SERIES

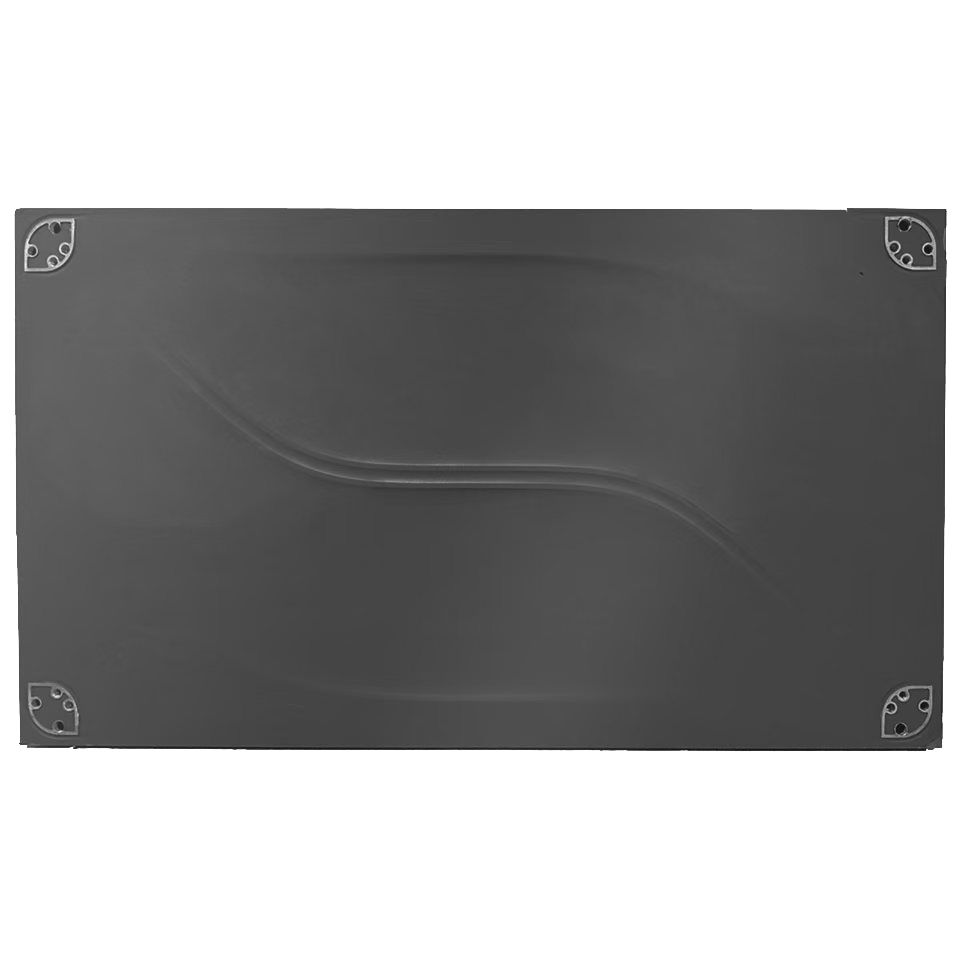

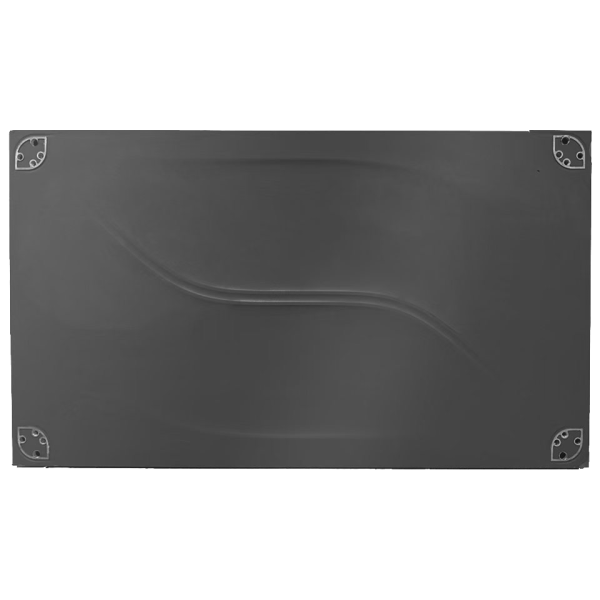

R SERIES - Image 2
R SERIES - Image 3

R SERIES

R Series is our thinnest ultra-fine pitch LED display.  Featuring a 16:9 ratio cabinet to easily create 2K/4K/8K displays in native HD resolutions.  Flip-Chip LED technology improves image quality, brightness, and lowers power consumption. Designed for control rooms, corporate, hospitality, retail, and entertainment applications, R Series delivers.

SKU: R09, R12, R15 Categories: Fixed Installation, LED Video
Share
0
Description

Fine Pixel Performance

Premium technology in fine pixel pitch from 0.9mm to 1.5mm.

The 16:9 cabinet ratio allows easy construction of 2K, 4K and 8K displays.





Specifications and Features:

Key Features:

  • Available in 1.5mm pitch down to 0.9mm pitch for high-definition and close viewing
  • 16:9 ratio cabinet, 27″ Diagonal die-cast aluminum construction (600 x 337.5 mm)
  • Easily create native HD formats with accurate pixels for 2K/4K/8K displays, at various sizes
  • Ultra-thin profile (29.9mm) depth ensures a sleek space-saving design
  • Wide horizontal and vertical viewing angles up to 170-degress
  • Flip-Chip LEDs improve image quality, increase brightness, and lower power consumption
  • Wide color range that supports color temperatures between 3000K and 10,000°K
  • High greyscale (≥16+bit or opt 22+bit) for outstanding low-brightness image performance
  • High Refresh Rate: ≥ 3840 Hz for smooth motion and crisp image quality
  • Excellent durability and superior heat dissipation for longer LED life
  • Front service accessible for easy maintenance

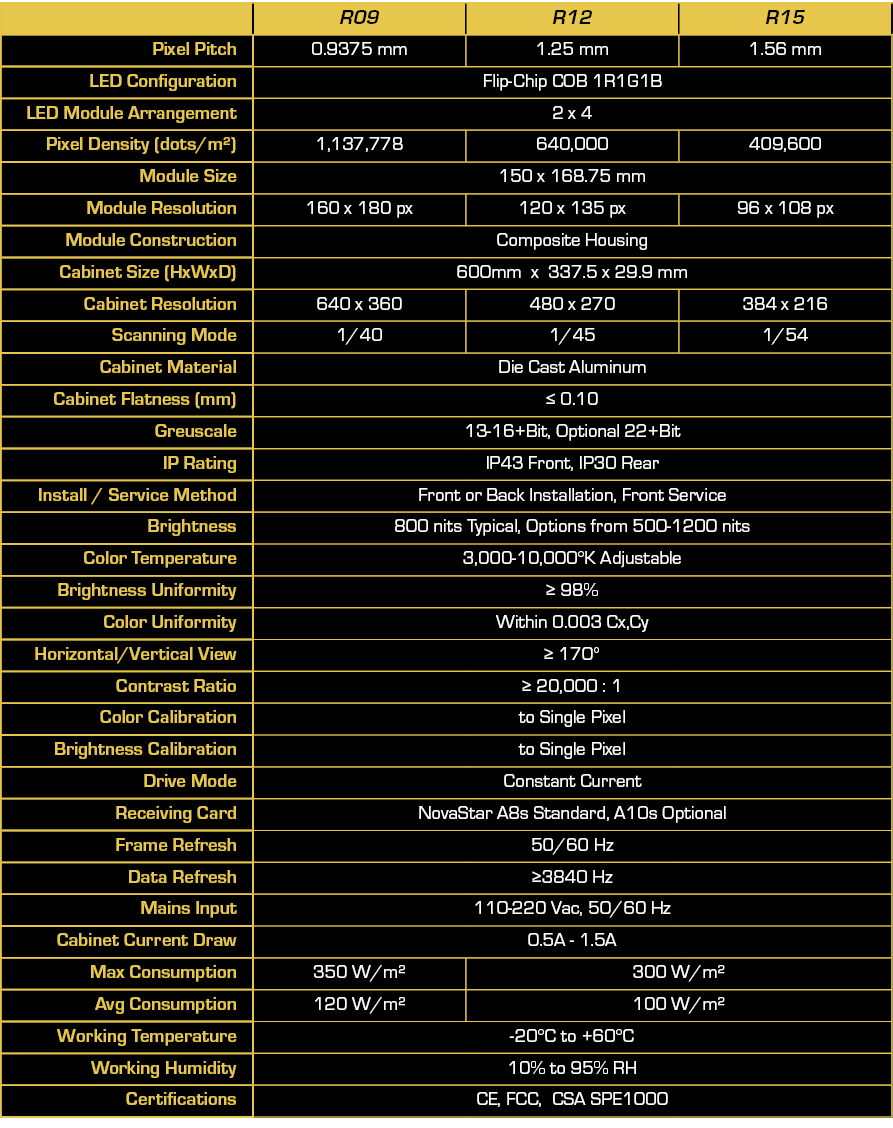

Technical Specifications:

Warranty:

2 year limited warranty (parts & labor)
