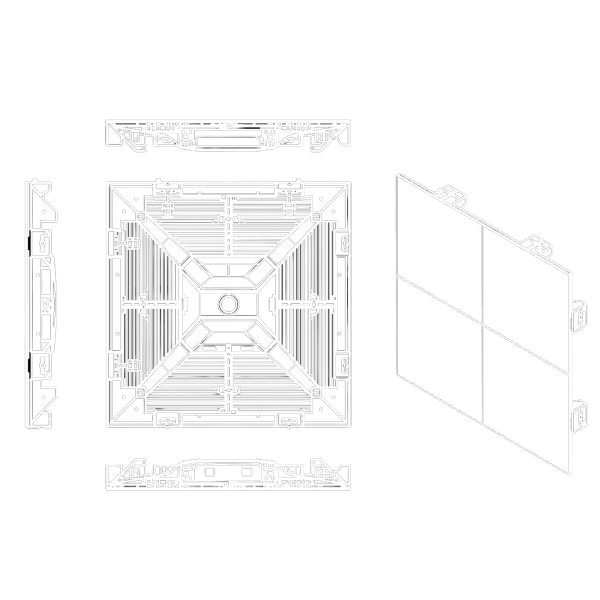

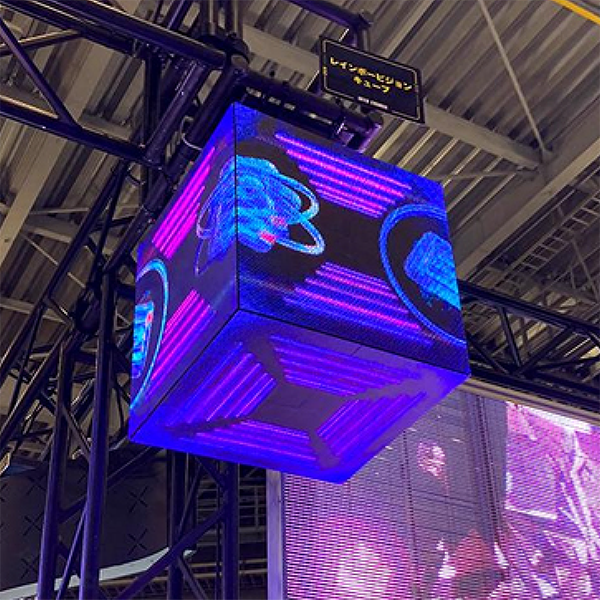

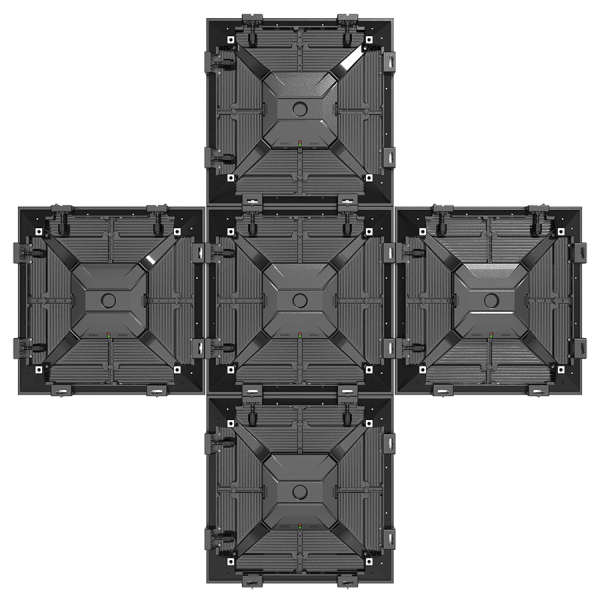

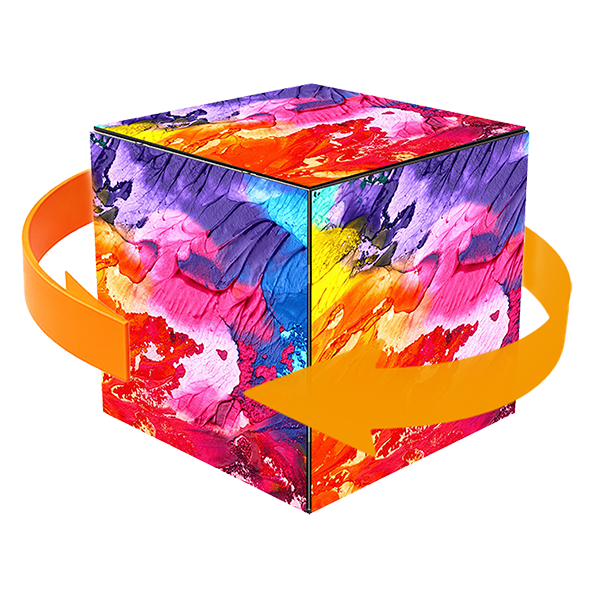

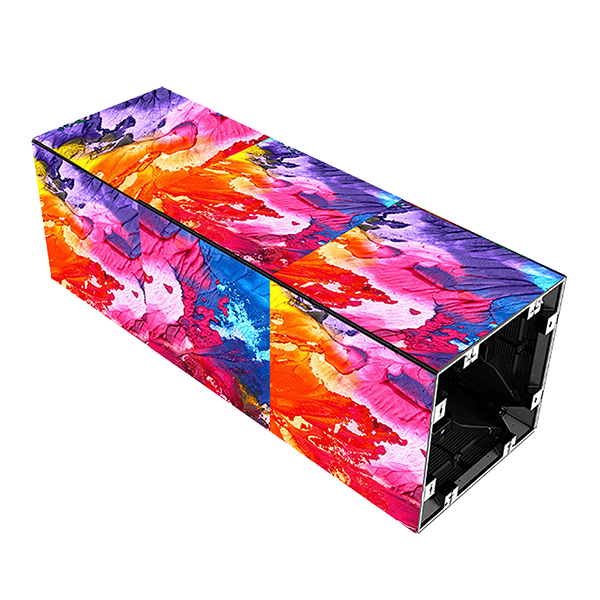

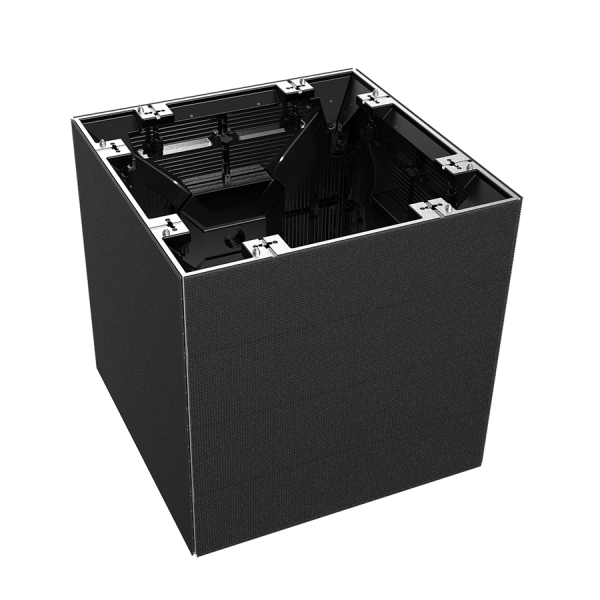

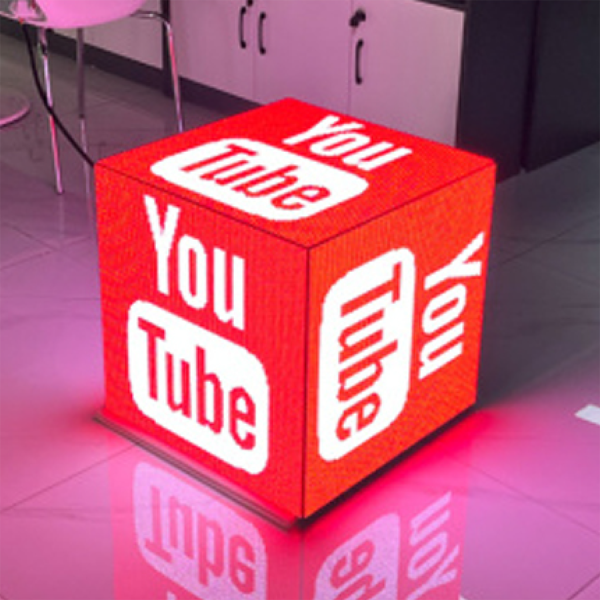

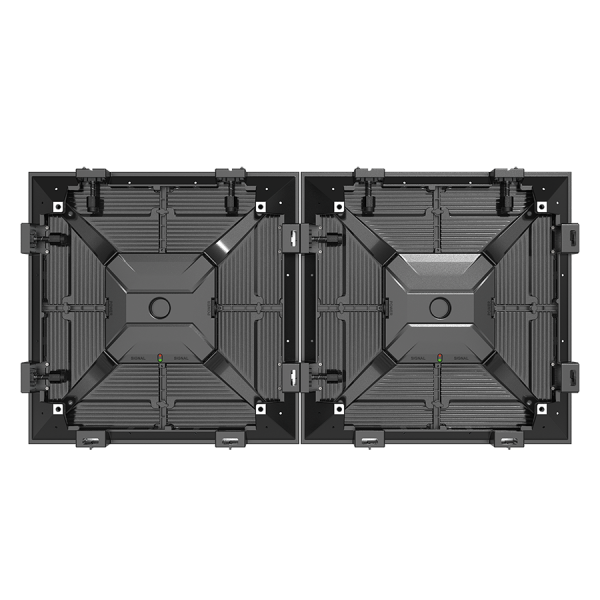

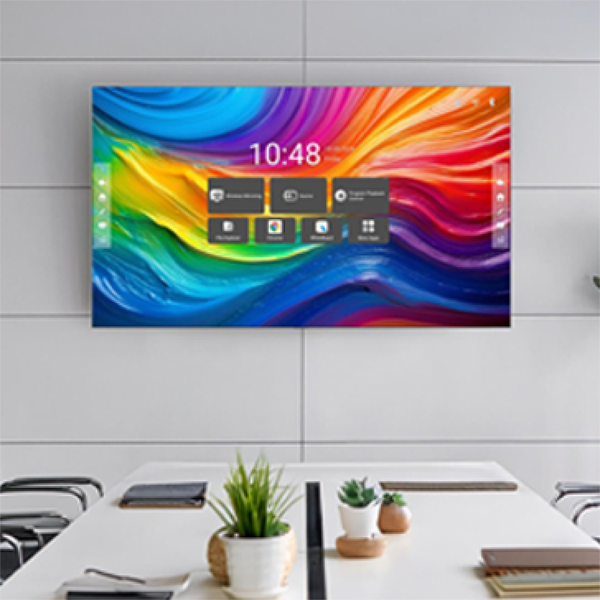

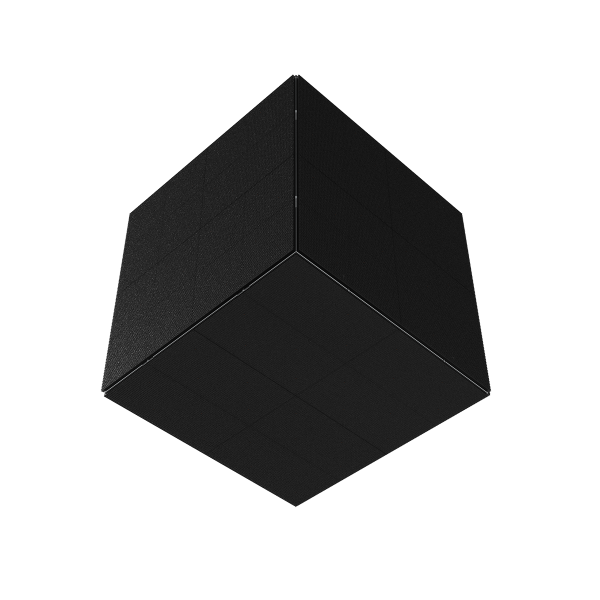

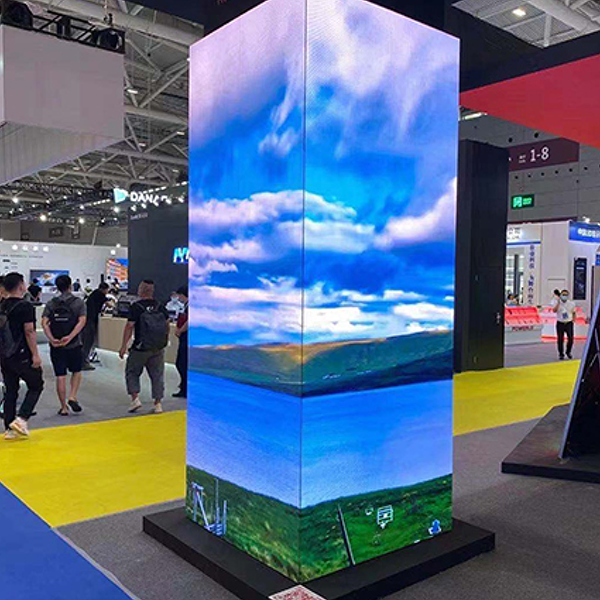

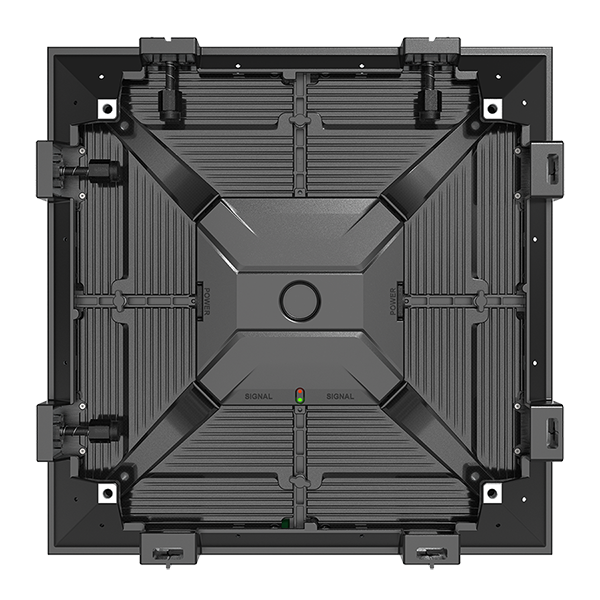

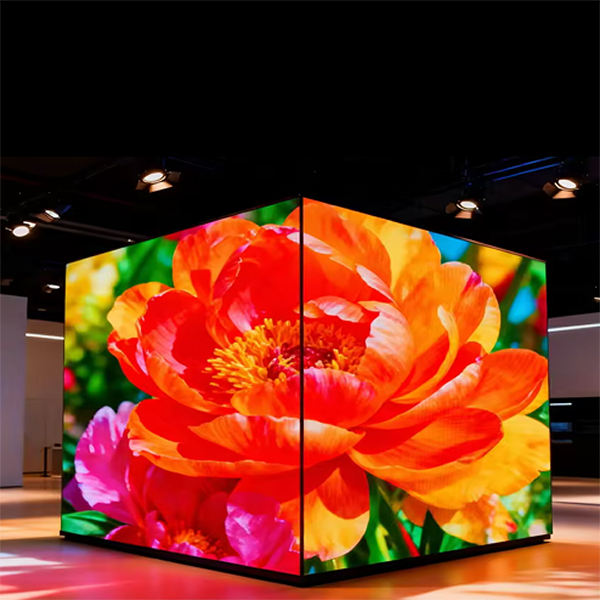

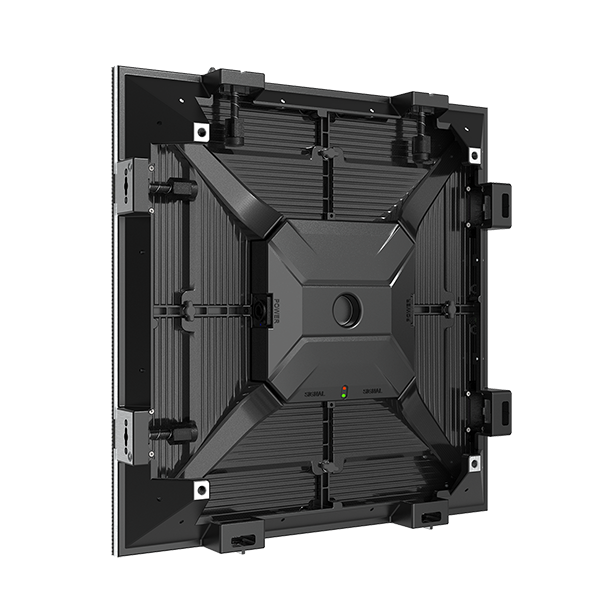

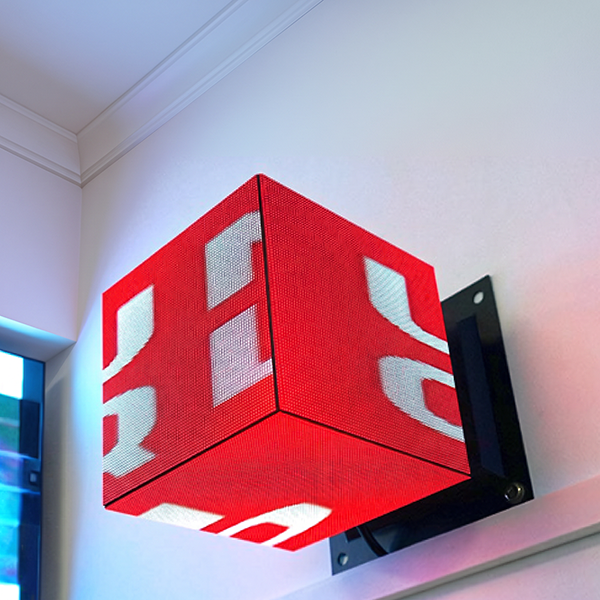

LumiOS engineers have reimagined the installation cabinet to deliver greater versatility, improved efficiency, and enhanced performance. The result is a cabinet system designed to accommodate a wide range of display configurations—including flat, corner, column-wrap, and cube displays—in varying sizes, all using a single cabinet model. Focus on weight optimization allowed a 30% weight difference vs its predecessor, significantly reducing overall display weight and helping minimize structural load requirements for larger installations. Additional features include an integrated 3-in-1 power, hub, and receiving card module, convenient front and rear servicing, and improved module alignment precision for seamless installation and a refined display finish. Combining modular versatility, lightweight construction, and streamlined serviceability, RUBIK sets a new benchmark as LumiOS’s versatile, general-purpose indoor LED display solution.
Innovation doesn’t stop there as RUBIK is engineered for demanding visual applications, GOB LED technology is used, a transparent protective resin applied over the LEDs, offering superior protection against impacts, moisture, and dust. Key advantages include high-traffic durability, excellent waterproofing, anti-glare properties for reduced eye strain, and consistent image quality without traditional mask deformation issues. Maintenance is also improved since the smooth seamless surface is completely waterproof and can be wiped down or cleaned directly without risking damage to LED cells.
RUBIK Series also features a high refresh rate for flicker-free performance for camera and video, ensuring seamless compatibility with content creation environments. Available in pixel pitches as fine as 1.5 mm, remarkable image fidelity and consistent viewing quality at virtually any viewing distance is possible.
The integrated mounting system is designed to work with standard industry hardware, simplifying installation and significantly reducing deployment time. Whether wall-mounted, suspended, or ground-stacked, a fully assembled RUBIK display offers flexible integration options that streamline project execution while maintaining a clean, professional appearance.
