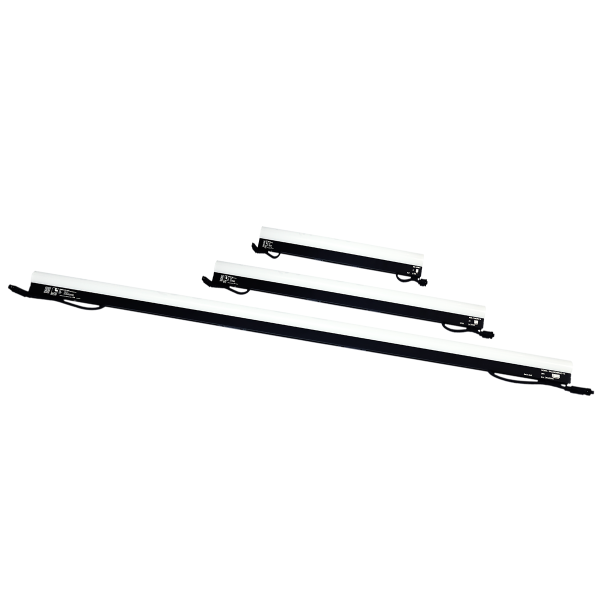

RIGIDBAR RGBW
IP65 outdoor rated 64-Pixel Video Bar. RIGIDBAR RGBW offers precise color accuracy perfect for video reproduction, creative visual projects, and ambient lighting applications. End-to-end connectors enable custom 2D geometric shape creation. The lightweight waterproof design is perfect for indoor and outdoor installations. Truss mounts and floor stands enable mobile, rental, and production use.
Specifications and Features:
Key Features:
- IP65 Waterproof Outdoor Rated
- 64 Pixels per Meter for Video or Ambient Lighting Applications
- High CRI>90 RGB+WW LEDs for Faithful Color Reproduction
- Solid Lightweight Construction
- Floorstand, Wall Mount, and Truss Mount Options
- Variety of end-to-end Connectors to create 2D Geometric Shapes
- 1m Standard Length, 0.5m & 0.3m Optional
Technical Specifications:
Light Source:
- 1.0m: 64 x 0.3W RGB+WW 4-in-1 LEDs
- 0.5m: 32 x 0.3W RGB+WW 4-in-1 LEDs
- 0.3m: 19 x 0.3W RGB+WW 4-in-1 LEDs
- White Color Temperature: 3200K

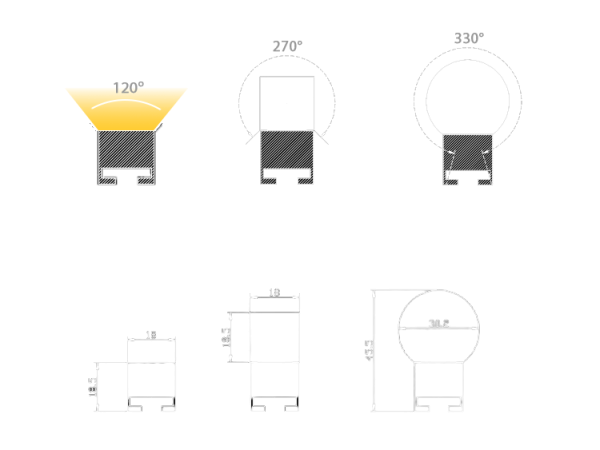

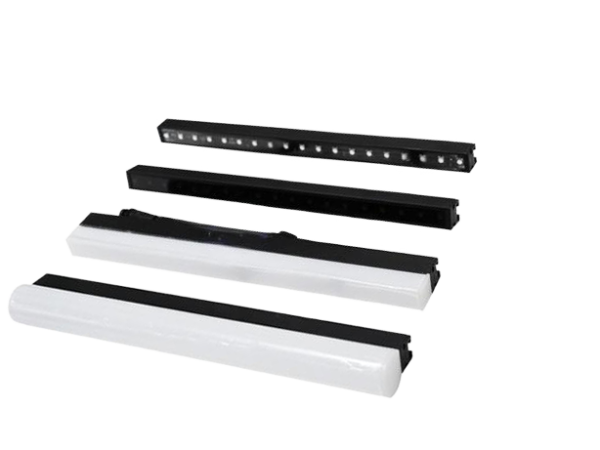

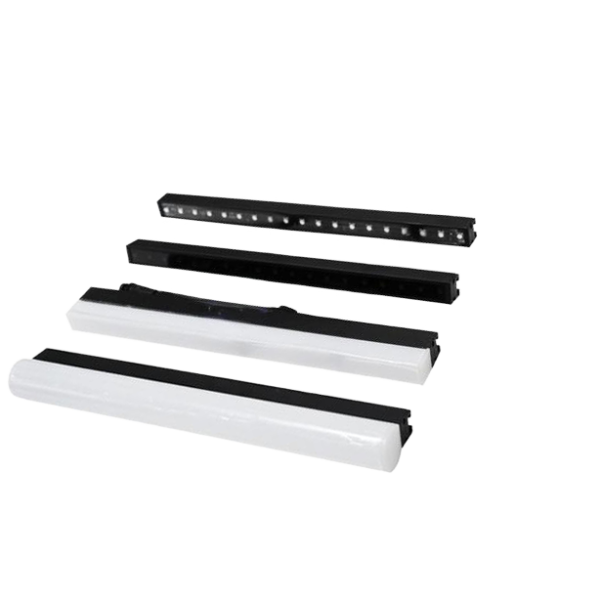

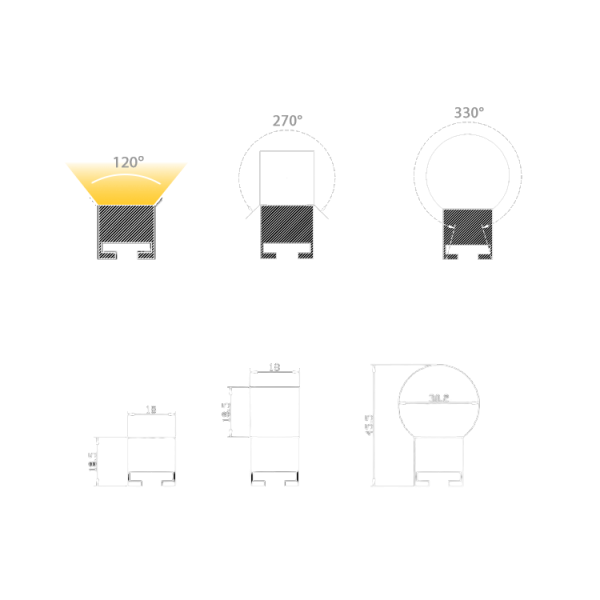

Optics:
- Round Diffuser: 330° Beam Angle
- Square Diffuser: 270° Beam Angle
- Flat or No Diffuser: 120° Beam Angle
- Scan Rate: 1500Hz
- CRI >90
Control and Programming:
- SPI / SK6812
- LumiOS AURA Protocol
- 64-Zone RGBW Pixel Mapping
Power Specifications:
- Power consumption: 20VA/m
- Operating Voltage: DC 24V
- Operating Current: 1.2A /m
Physical Dimensions:
- Width: 1m (0.5m and 0.3m Optional)
- Depth: 8cm
- Height: 6cm
- 1.0m Weight: 0.56 kg (1.23 lbs)
- 0.5m Weight: 0.32 kg (0.70 lbs)
- 0.3m Weight: 0.22 kg (0.48 lbs)
Construction and Build:
- Housing colors: Black
- IP Rating: IP65
Connections:
- Data & Power in/out: 4-Pin IP65 Canon Connectors
Accessories:

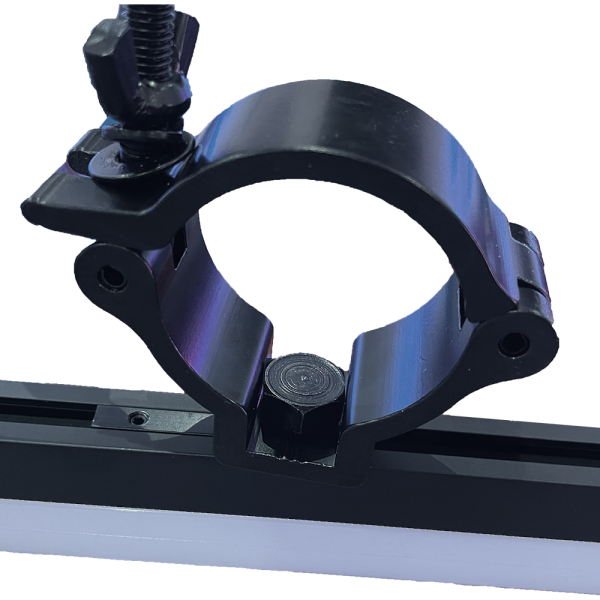

- Various Mounting Brackets

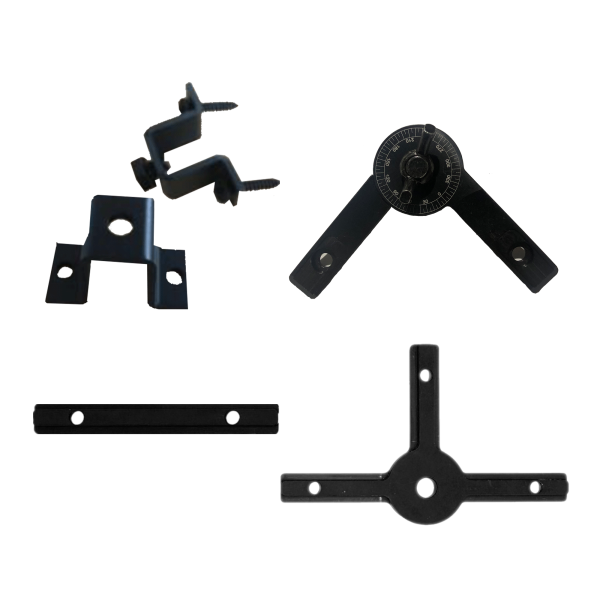

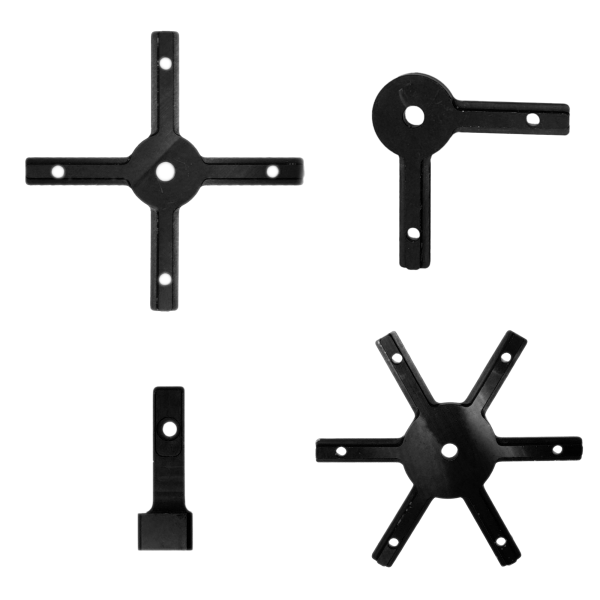

- Various Connecting Joints
- Various Diffuser Options
Warranty:
- 2-year warranty on parts and labor
Related products
-

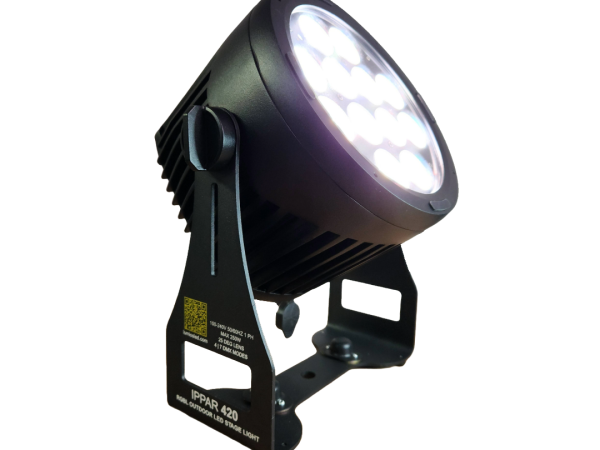

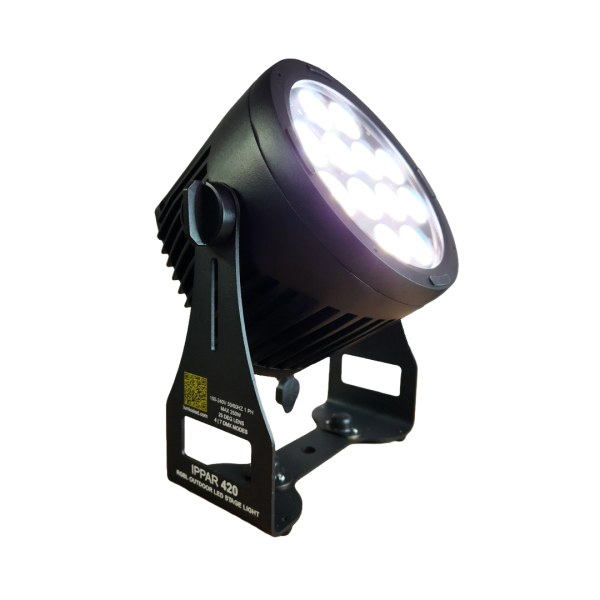

IPPAR 420
The IPPAR 420 is a flexible 240W IP rated LED wash fixture that delivers full-spectrum color with RGB+Lime LEDs. The optical system allows 25° or 40° beam angle operation by using an optional quick-mount magnetic diffuser lens. Ideal for indoor or outdoor professional lighting.
-

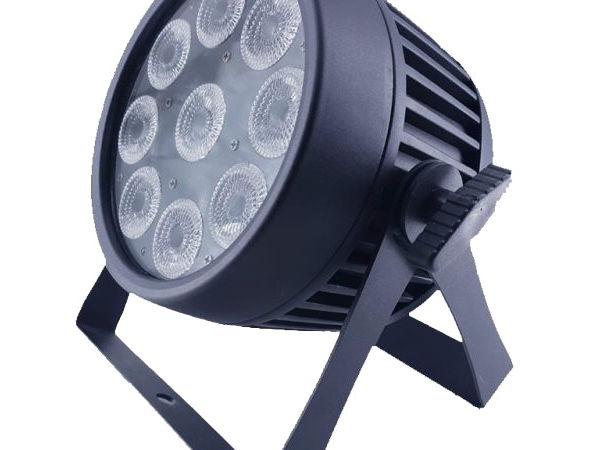

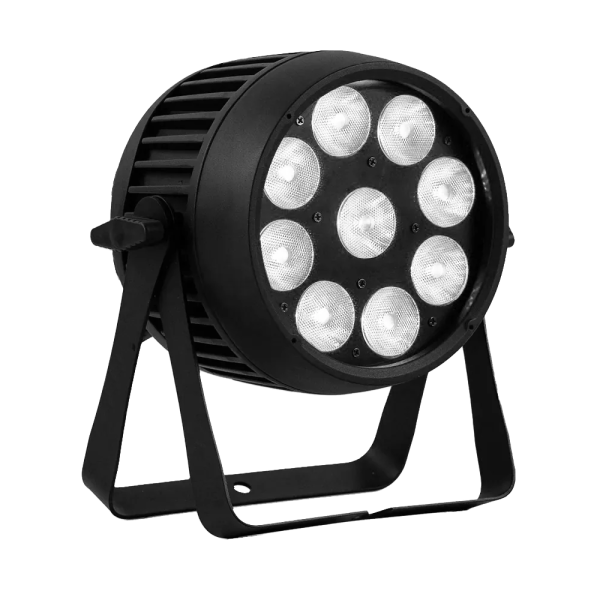

HPAR 90 R2
The HPAR90 R2 is a hybrid high-performance battery powered 9 X10W RGBW 4-IN-1 LED par. The compact design, battery powered feature, and IP65 construction, make it versatile for indoor and outdoor applications. It can be freely moved around with no concern for accessible power or cabling, and can also be used as a wired par if desired. RGBW Color Mixing, Wireless DMX, Up to 12 hours per charge, 3 power modes (Eco, Medium, High), IP65 rating.
-

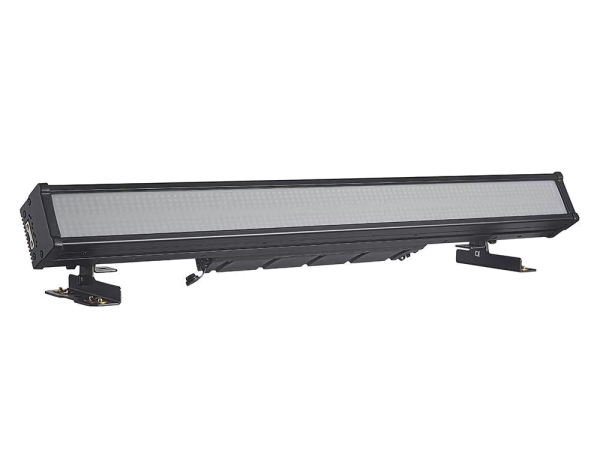

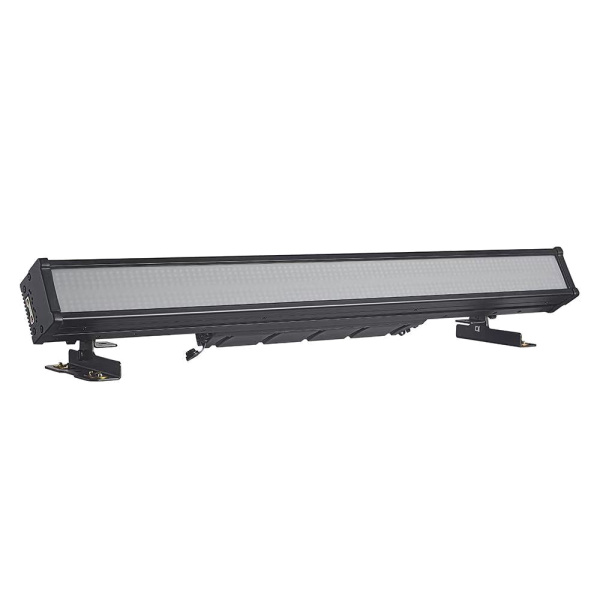

IPPIXBAR 960
