NUKE 480
Bar & Batten / Pixel FX & Mapping / Strobe & Blinder

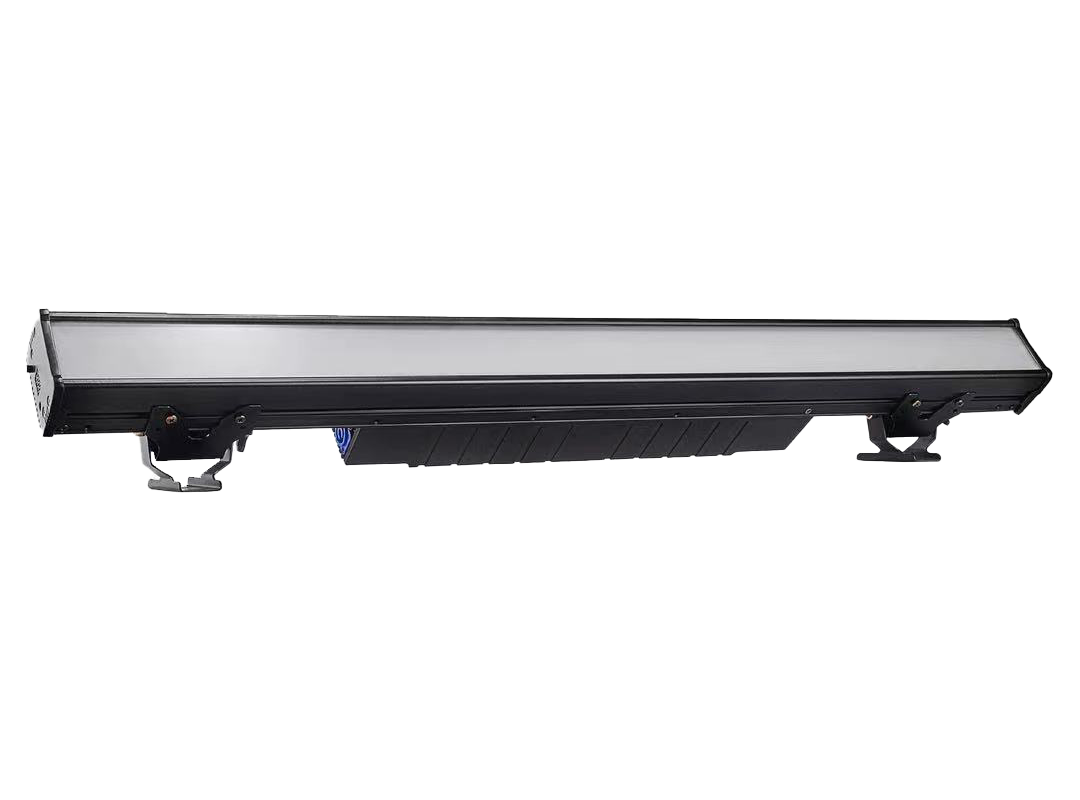

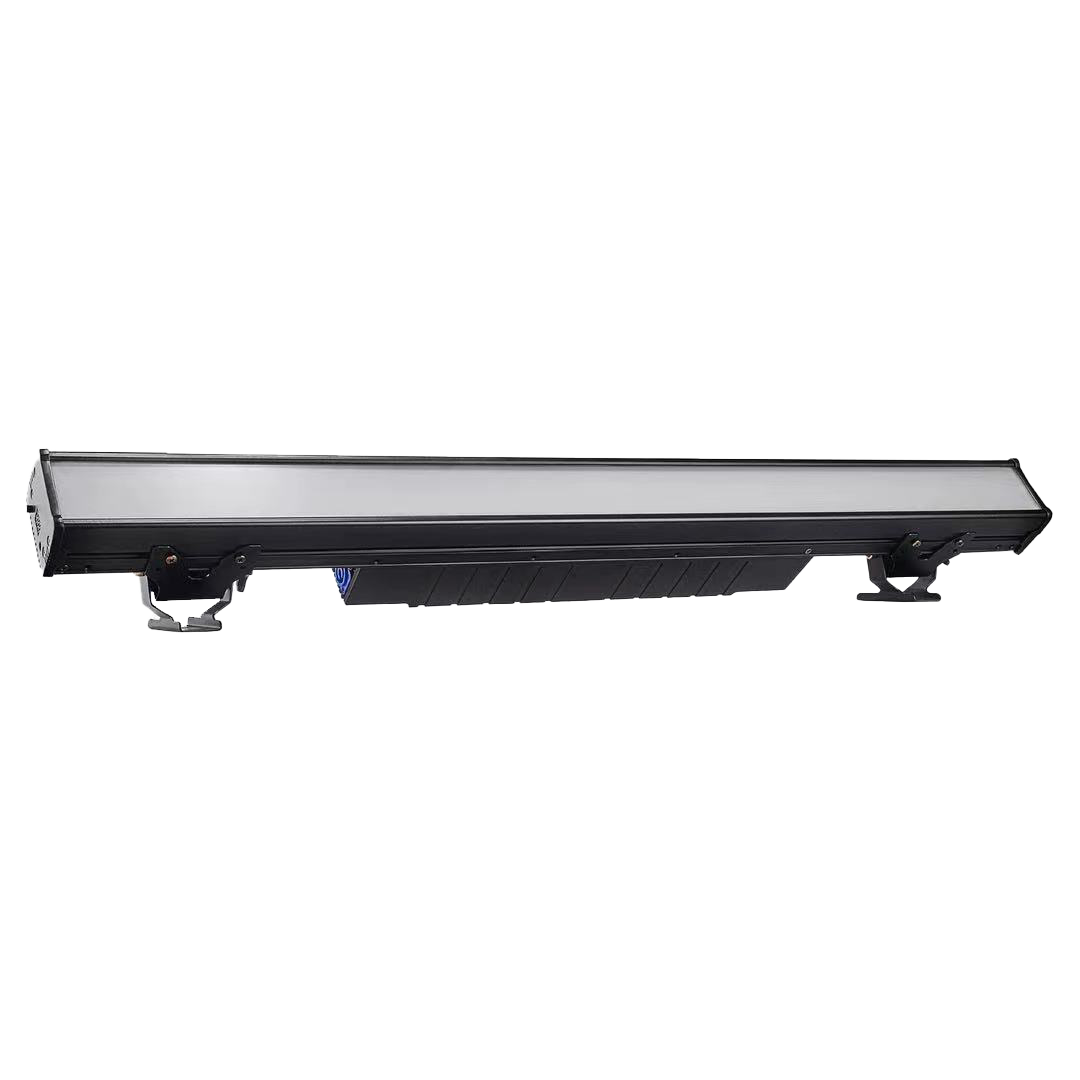

NUKE 480

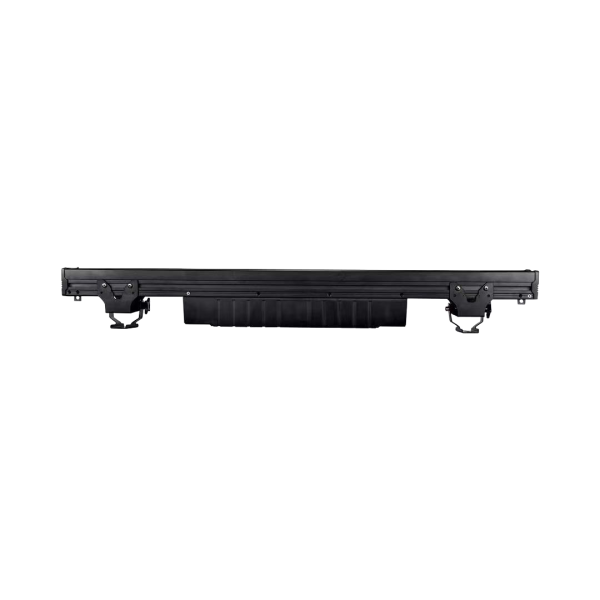

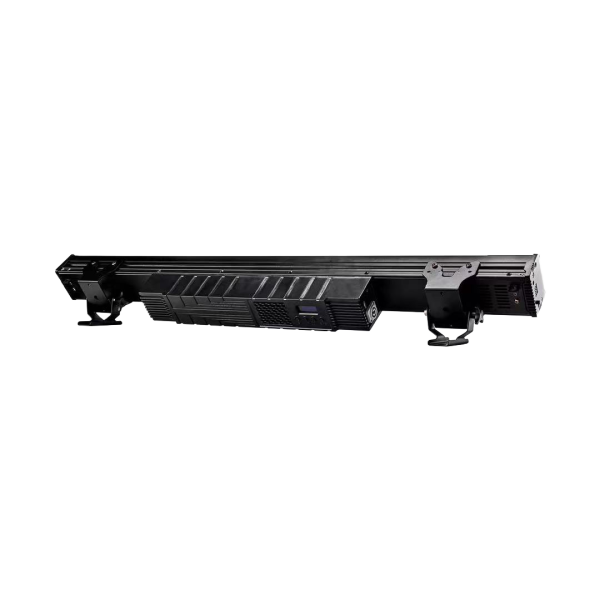

NUKE 480 is a high-performance 500W linear LED pixel bar engineered to deliver exceptional brightness, versatility, and creative impact for professional entertainment lighting. Combining flood, blinder, and strobe functionality across 64 RGBW+CW zones in a single fixture, it offers lighting designers the flexibility to produce vibrant color washes, intense audience blinders, and powerful strobe effects from one compact solution.
Key Features
Pixel Control (64 RGB+CW Zones) for precision lighting effects
Active Smart Glass Frost Filter
Video Friendly 10KHz PWM Rating
Effects & Color Macros Built-In
Bright 500W Peak Output
Rugged Durable Metal Construction

SKU: NUKE480 Categories: , ,

Featuring 64 individually controllable RGB+CW pixel zones, the NUKE 480 delivers vivid color mixing, brilliant whites, and highly detailed pixel-mapped chases, gradients, and animated effects. Dedicated cool white LEDs provide authentic, high-intensity strobe and blinder performance, ensuring maximum punch and visual impact for concerts, live events, theatres, and broadcast productions. Its innovative Active Smart Glass Frost technology allows the output to transition instantly from sharp, clearly defined pixel effects to smooth, homogeneous washes, greatly expanding creative possibilities.

With its high-output LED engine, 3-in-1 functionality, and support for both DMX and MS-Auto operating modes, the NUKE 480 integrates seamlessly into professional lighting systems while remaining simple to deploy for standalone applications. Whether installed permanently or used in touring, rental, and mobile productions, the NUKE 480 delivers the performance, flexibility, and visual impact demanded by today’s lighting professionals.

Control and Programming
DMX Channels 7/18/21/22/256/269CH
Modes DMX, Master/Slave, Auto-Run, Manual
Power and Consumption
Maximum Draw 450VA power consumption
Mains AC 100-240V, 50/60Hz power supply
Dimensions and Weight
Width 1m
Depth 135mm
Height 145mm
Weight 6.8kg (15 lbs)
Optics
Beam Angle 80°
Dimming 0-100% Smooth Linear
Frost Active Smart Glass Frost Filter
Flash Rate 1-30 Hz
Light Source
Color Zones 384 RGB LEDs
White Zones 384 Cool White LEDs
Connections

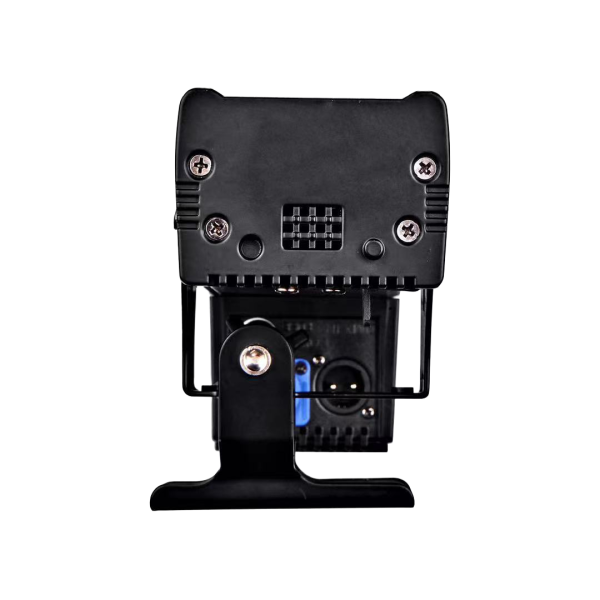

Data In/Out 3-pin XLR M/F
Power In/Out Seetronic Powercon
Construction

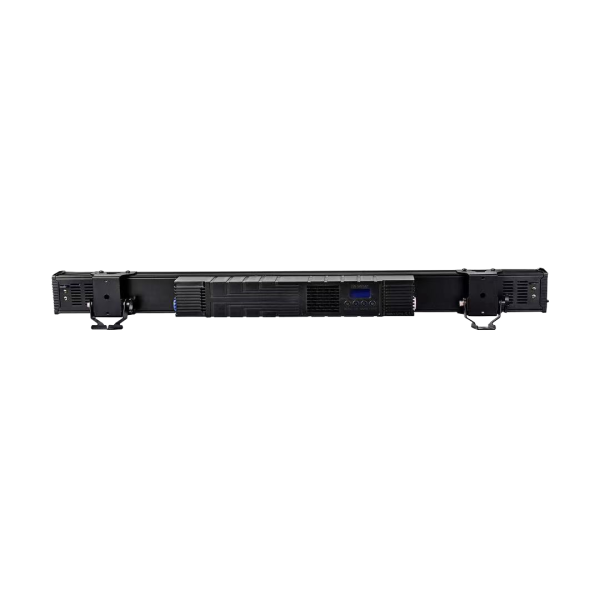

Display & Control Graphic LCD display and selector buttons
IP Rating IP20 indoor rated housing
Other
Accessories Mounting brackets included
Warranty 2 years (parts and labor)
