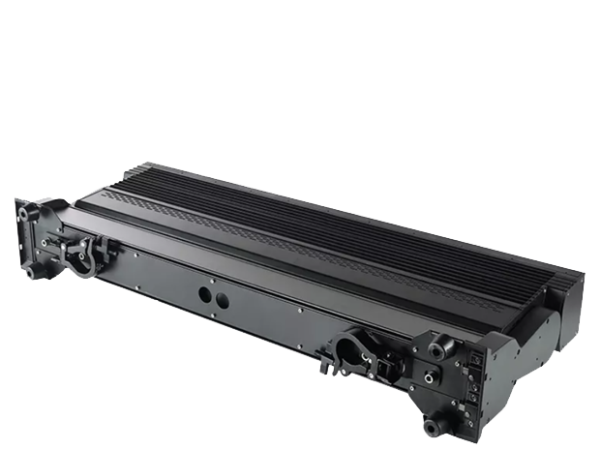

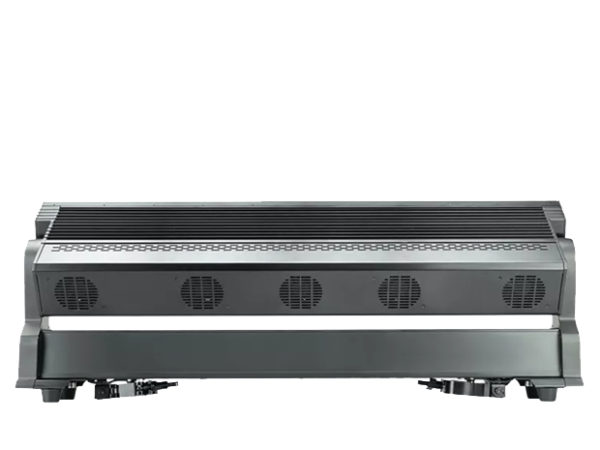

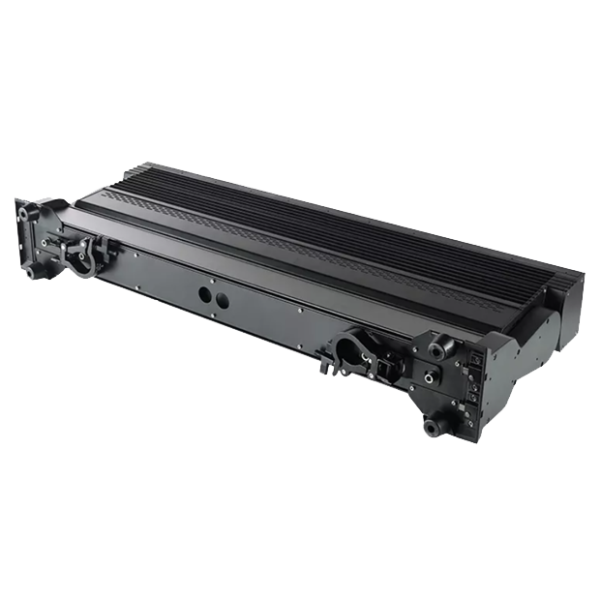

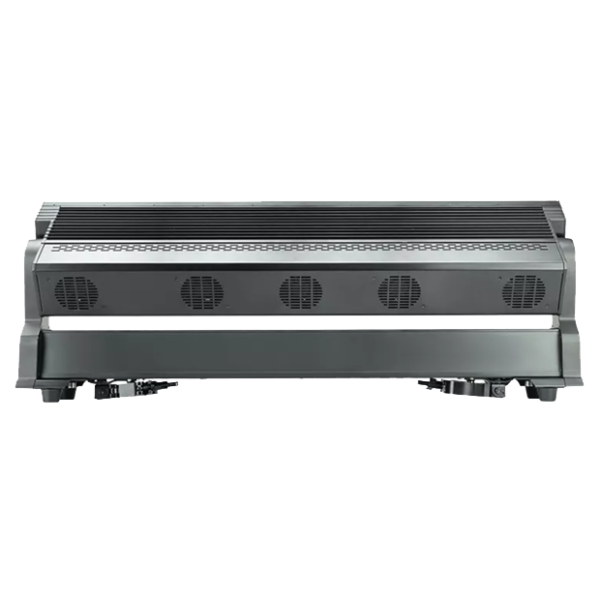

BOLD 1060 IP

IP65 outdoor rated ultra-high-performance 10 x 60W LED motorized, tilting batten, with bright 24-zone Dual Strip LEDs.  Featuring motorized zoom, edge-to-edge mounting, and a variety of pixel-mapping modes, allows the creation of a staggering number of visual effects.  LED frequency adjustment for video-friendly usage.

SKU: BOLD1060IP Categories: Bar & Batten, Moving Heads, Outdoor IP65
Share
0
Description

Specifications and Features:

Key Features:

  • IP65 outdoor rated motorized, tilting batten
  • Powerful 1224W Total RGB/WW/CW LEDs for Ultra-High Output
  • Pixel Control:  10-Zone Main + 24-Zone Dual Strip
  • Beam, Wash, or Strobe
  • Built-in strobe effects and effect macros
  • Seemless Edge-to-Edge Mounting

Technical Specifications:

Light Source:

  • MAIN:  600W – 10 x 60W RGBW 4-in-1 LEDs
  • STRIP:  624W – 96 x 3W CW LEDs + 96 x 3W WW LEDs + 96 x 0.5W RGB LEDs
  • 50,000-hour life expectancy
  • Variable White CTT:  2500 – 8200K

Optics:

  • Zoom Range: 5° to 17°
  • Pixel Zones:  10 Main + 24 Strip
  • 0-100% Linear Dimming w/Curve Selection
  • Strobe:  0-25 FPS

Control and Programming:

  • DMX channels: 17, 27, 99, 108, 168, 170
  • Control modes:  DMX, Master/Slave, Auto, Music, RDM

Power Specifications:

  • Peak power consumption: 1100VA
  • Voltage: AC 100-240V, 50/60Hz

Physical Dimensions:

  • Depth: 122mm
  • Width: 1100mm
  • Height: 350mm
  • Weight: 32 kg (70.4 lbs)

Construction and Build:

  • Housing colors: Black
  • IP Rating: IP65
  • Color LCD display for addressing and special function settings

Connections:

  • Data in/out:  Locking 5-pin XLR IP65
  • Power in/out:  Seetronic trueCON IP65

Accessories:

  • Omega Mounting Brackets included
  • Power & Signal Cable

Warranty:

  • 3-year warranty on parts and labor
