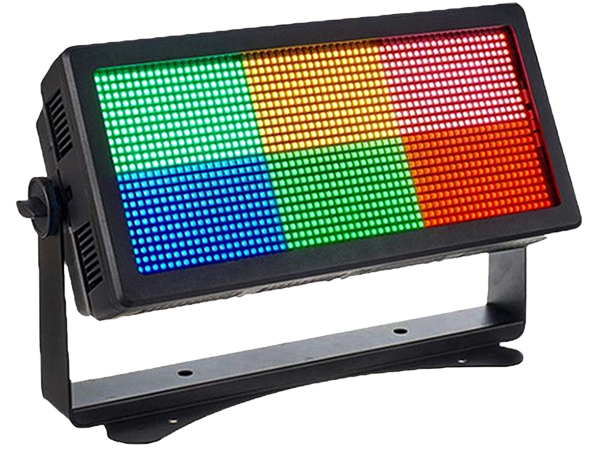

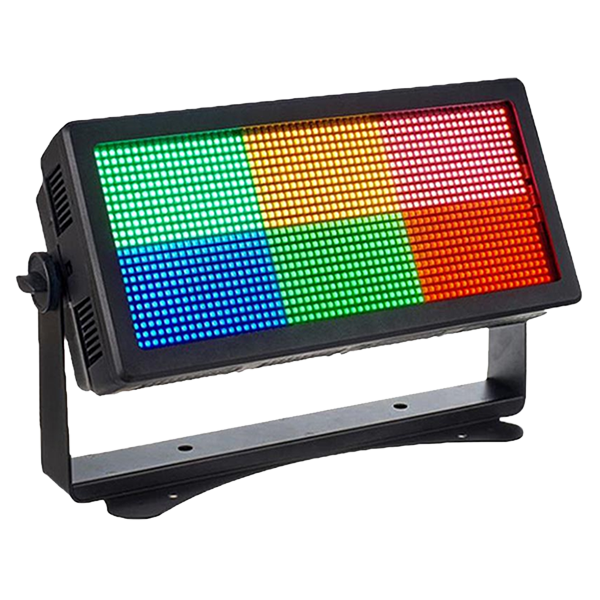

With six independently controlled pixel block zones and a peak output of 1000W, the NUKE 9 R2™ delivers everything from smooth color washes and architectural illumination to intense strobe effects and powerful audience-facing blinder moments. Its integrated pixel effects provide advanced creative control, enabling animated chases, dynamic patterns, and eye-catching visual effects for demanding productions.
Designed as a true 3-in-1 lighting solution, the NUKE 9 R2™ functions as a high-output flood, blinder, and strobe fixture, reducing the need for multiple fixture types while maximizing creative flexibility. Its durable IP65-rated construction makes it ideal for both indoor and outdoor applications, including concerts, festivals, touring productions, architectural installations, and large-scale events.
Combining extreme output, pixel control, weather-resistant reliability, and professional-grade performance, the NUKE 9 R2™ is built to create unforgettable lighting experiences in any environment.
| Control and Programming | |
| DMX Channels | 7/8/13/15/31CH |
| Modes | DMX, Auto, Sound, Master/Slave |
| Optics | |
| Beam Angle | 120° |
| Light Source | 1320 x 0.6W RGBW LEDs |
| Power and Consumption | |
| Power Draw | 1000VA peak power consumption |
| Mains | AC 100-240V, 50/60Hz power supply |

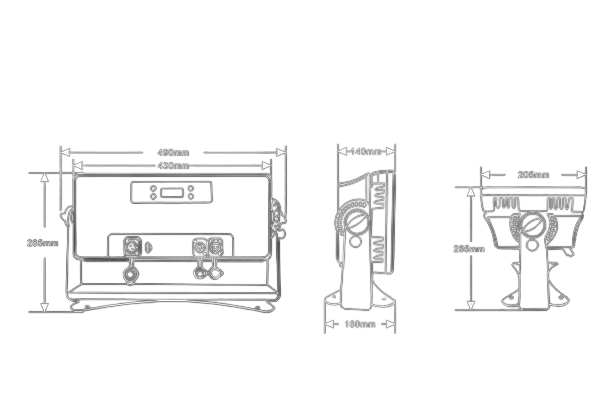

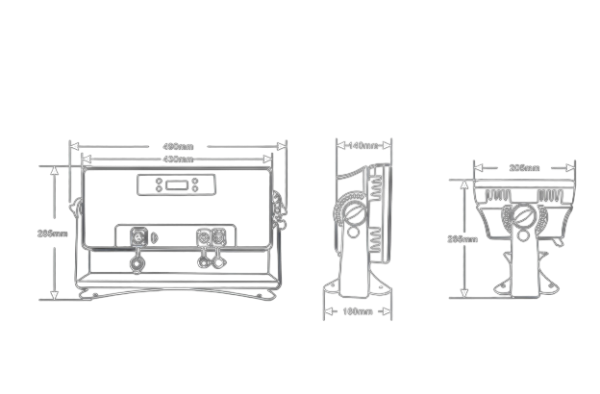

| Dimensions and Weight | |
| Length | 490mm |
| Depth | 160mm |
| Height | 285mm |
| Weight | 12.5kg (27.5 lbs) |

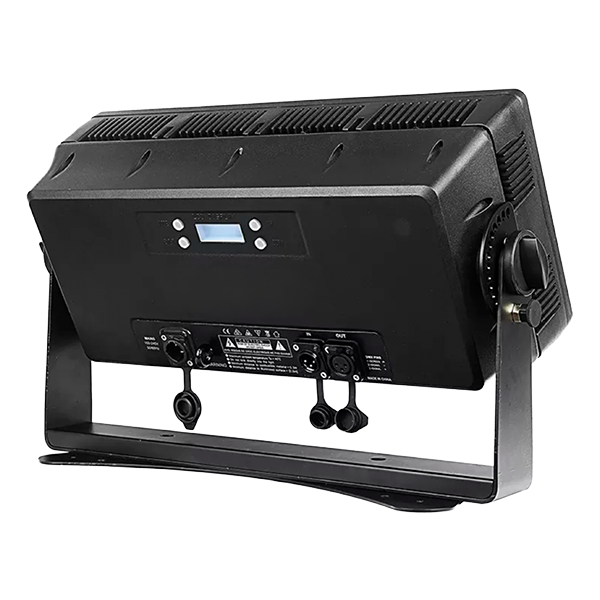

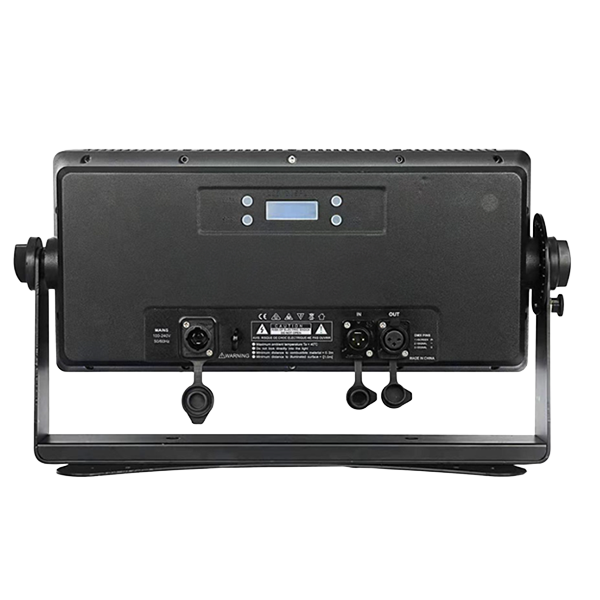

| Connections | |

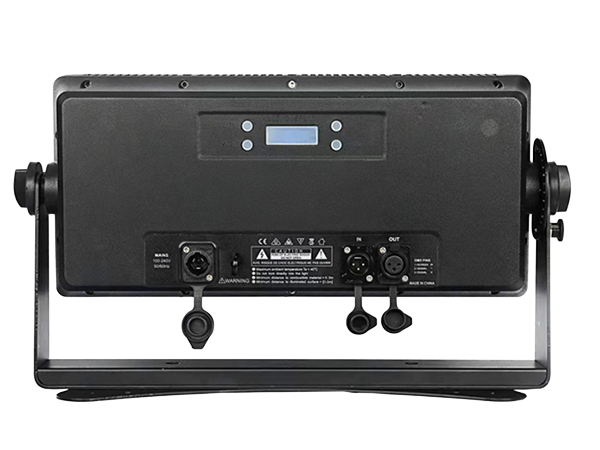

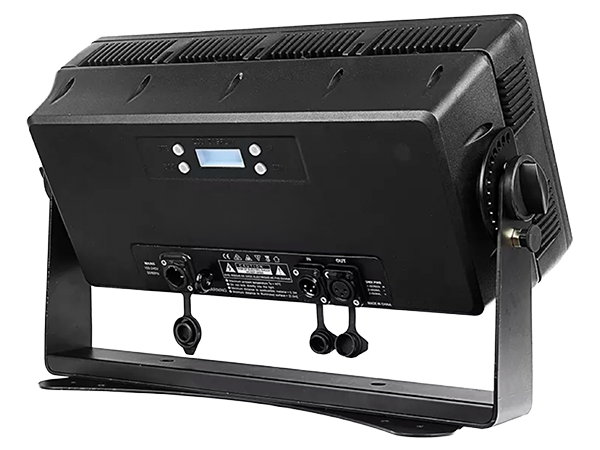

| Data In/Out | 5-Pin waterproof XLR |
| Power In | Seetronic trueCON Waterproof IP65 |
| Construction | |
| Color | Black |
| Display & Control | Graphic LCD Display + Selector Buttons |
| IP Rating | IP65-rated waterproof housing |
| Other | |

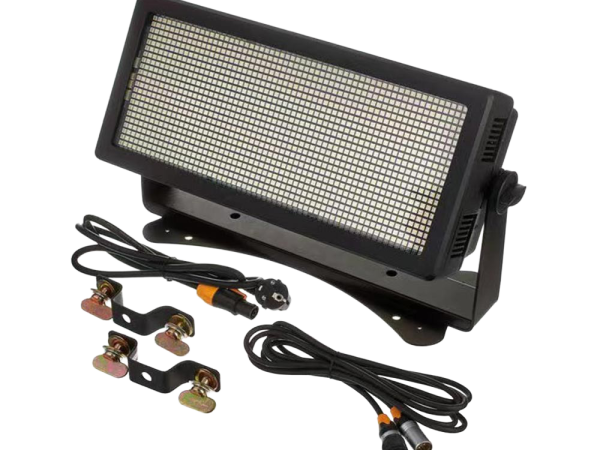

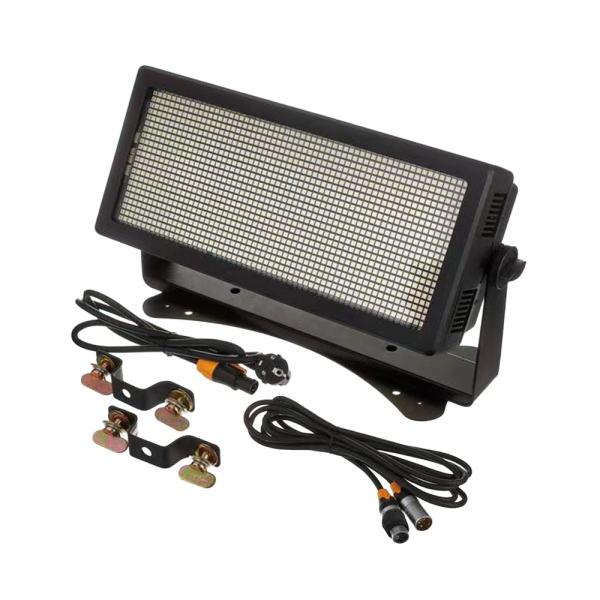

| Accessories | Mounting brackets included |
| Waterproof Truecon power cable | |
| Waterproof DMX cable | |
| Warranty | 3 year limited parts and labor |
