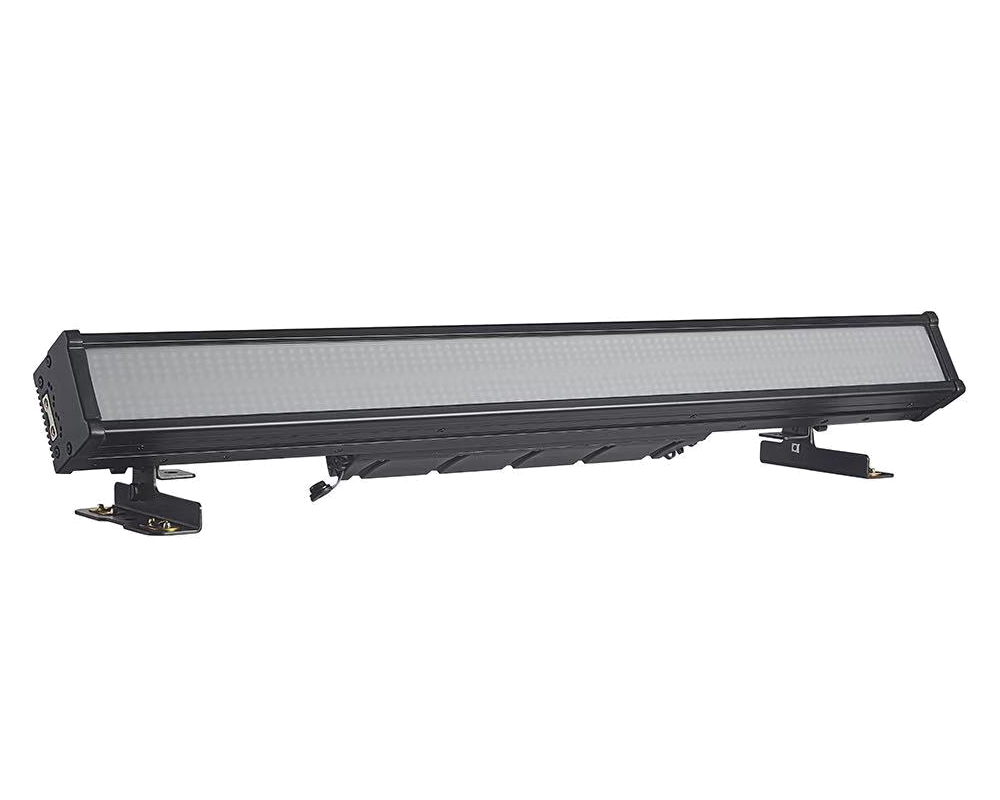

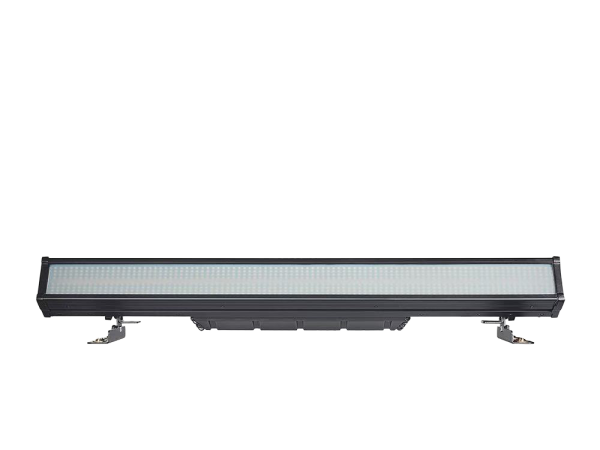

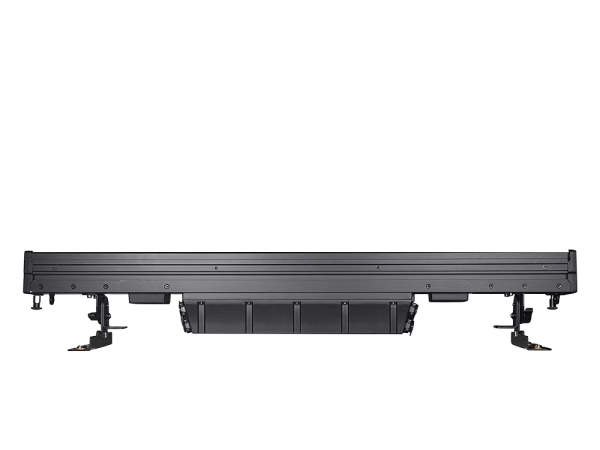

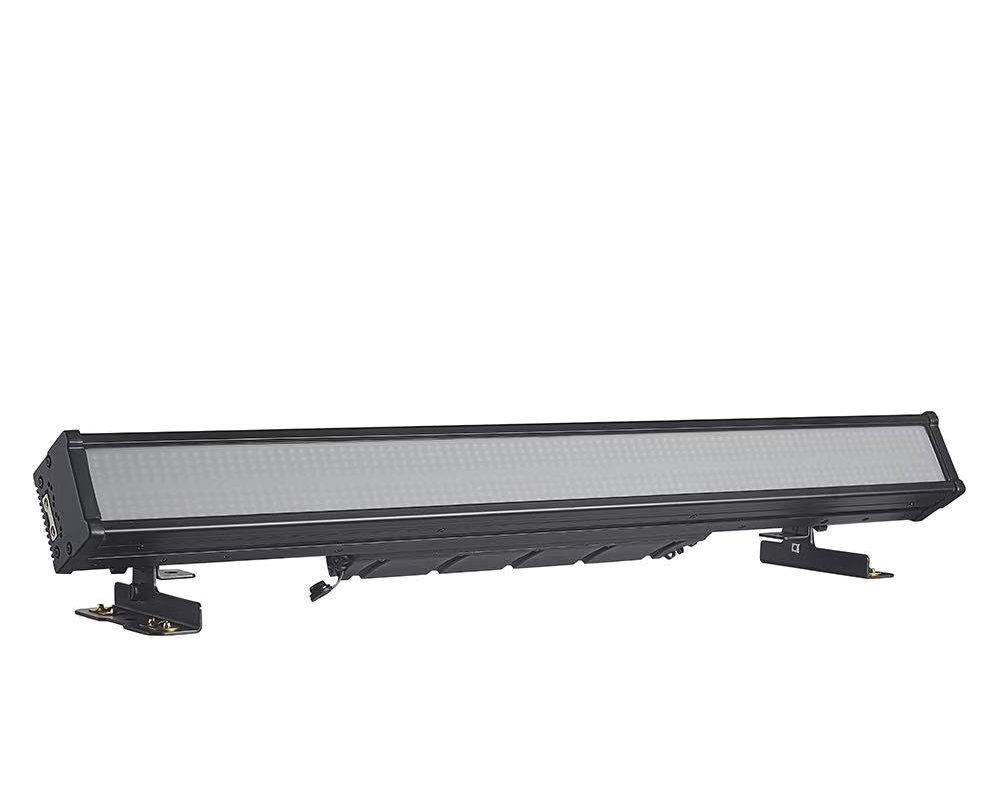

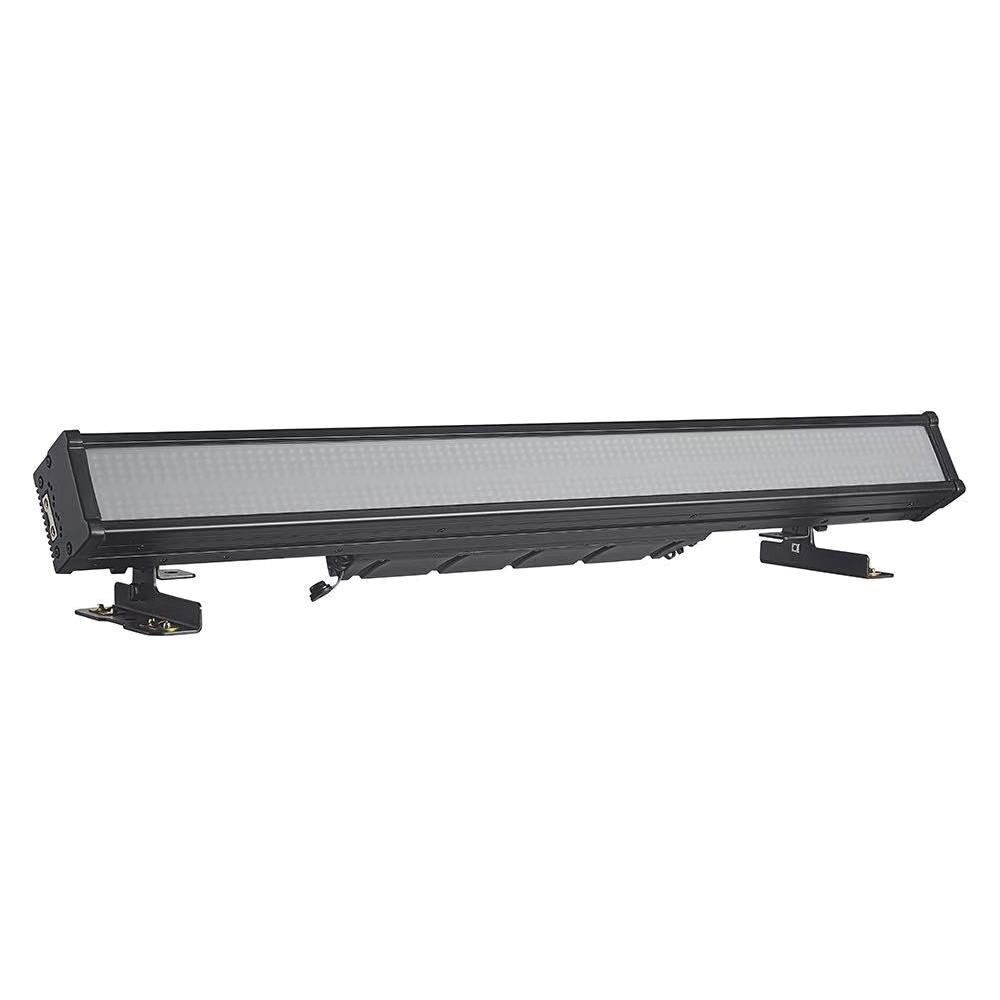

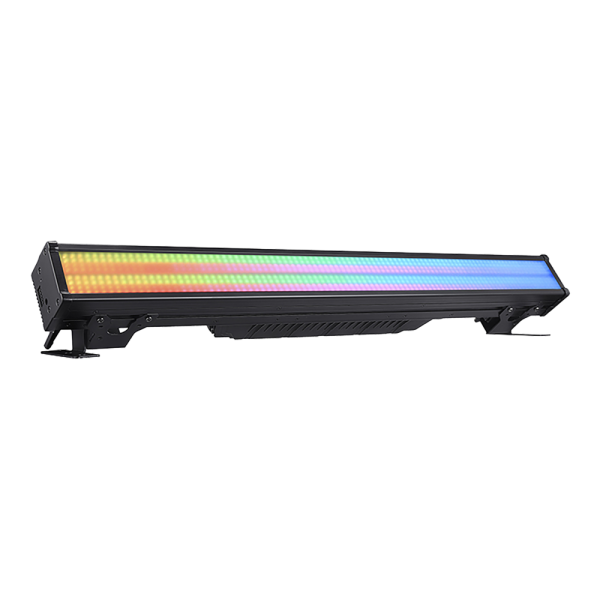

IPPIXBAR 960

IPPIXBAR 960 is a high-performance IP65-rated linear LED pixel bar engineered to deliver exceptional brightness, versatility, and dynamic visual effects for professional entertainment and architectural lighting applications. Combining flood, blinder, and strobe functionality in a single fixture, it provides lighting designers with the flexibility to create everything from rich color washes and intense audience blinders to high-impact strobe effects.

Key Features

Pixel Control for precision lighting effects

Explosive 1000W peak output with durable rugged construction

Waterproof (IP65 Rated) for outdoor and stage use

96 RGB zones with Smart Glass Frost Control

Integrated Ether DMX and RDM support for seamless programming

SKU: IPPIXBAR960 Categories: Bar & Batten, Outdoor IP65, Pixel FX & Mapping, Strobe & Blinder

Request a Quote → Download Spec Sheet ↓

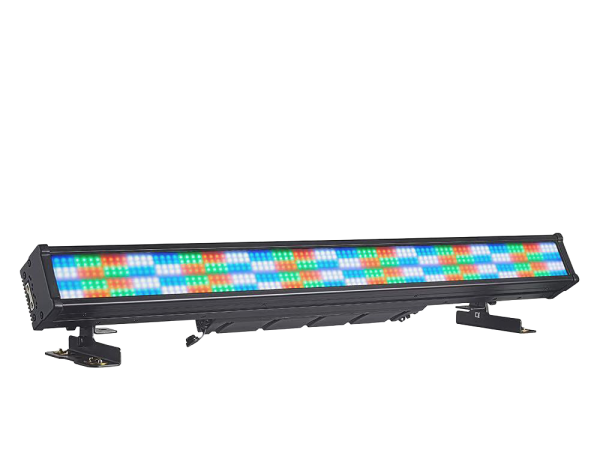

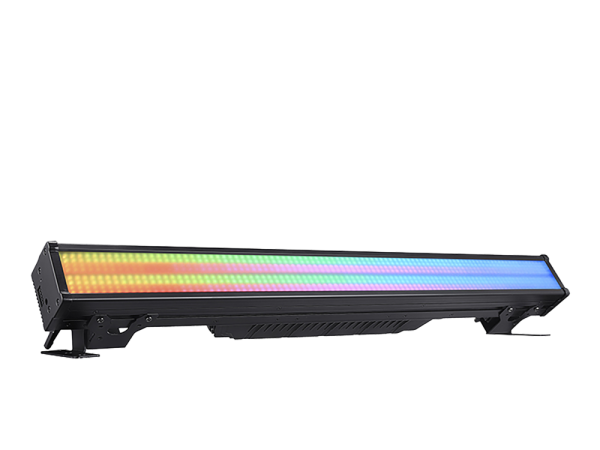

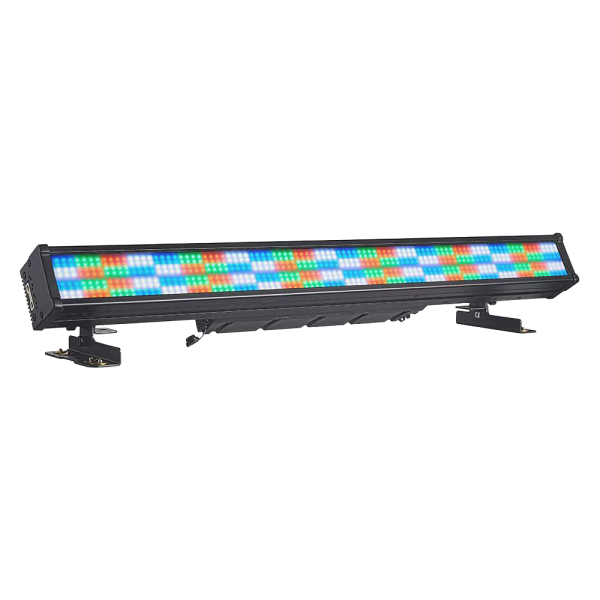

Featuring 96 individually controllable RGB pixel zones, the IPPIXBAR 960 enables intricate pixel-mapped chases, animated graphics, gradients, and immersive visual effects with exceptional precision. Its innovative Active Smart Glass Frost technology allows the beam to transition instantly from crisp, defined pixel effects to smooth, homogeneous color washes, expanding creative possibilities without the need for additional diffusion accessories.

Built for demanding indoor and outdoor environments, the IP65-rated housing provides reliable protection against dust and water, ensuring dependable performance for concerts, festivals, broadcast productions, themed attractions, architectural installations, and permanent outdoor applications. Fully DMX compatible, the IPPIXBAR 960 integrates seamlessly into professional lighting systems, delivering powerful output, advanced effects capabilities, and rugged all-weather reliability for the most demanding productions.

Applications

Concert Touring & Festivals
Live Performance Venues
Nightclubs & Bars
Broadcast Studio
Theatre Productions
Houses of Worship
Architectural Projects
Corporate Events
Rental Production Companies

Control and Programming
DMX Channels	10/11/13/23/27/32/36/61/64/65/85/88/89/301/304/305CH
Modes	DMX, Master/Slave, Auto-Run, Artnet, RDM
Power and Consumption
Maximum Draw	1000VA peak consumption
Mains	AC 100-240V, 50/60Hz power supply
Dimensions and Weight
Width	1m
Depth	135mm
Height	145mm
Weight	11kg (24 lbs)
Optics
Strobe Effect	65° Beam
Ambient Light	50° Beam
Dimming	0-100% Smooth Linear
Frost	Active Smart Glass Frost Filter
Flash Rate	1-30 Hz
Light Source
LED Engine (Wash)	768 x 0.5W RGB LEDs
LED Engine (Blinder)	168 x 3W Cool White LEDs
Connections
Data In/Out	5-pin waterproof XLR
Power In/Out	Seetronic Truecon IP65
Construction

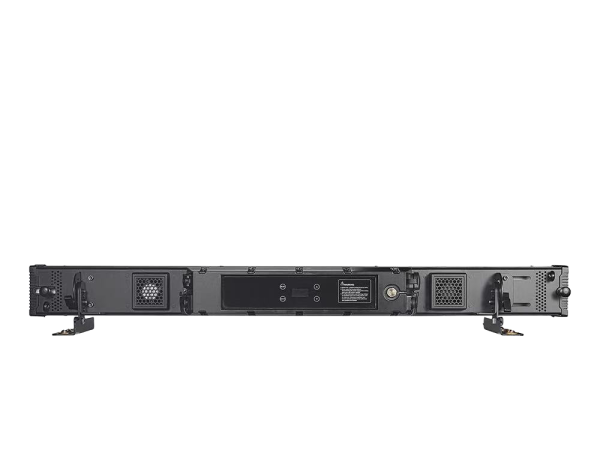

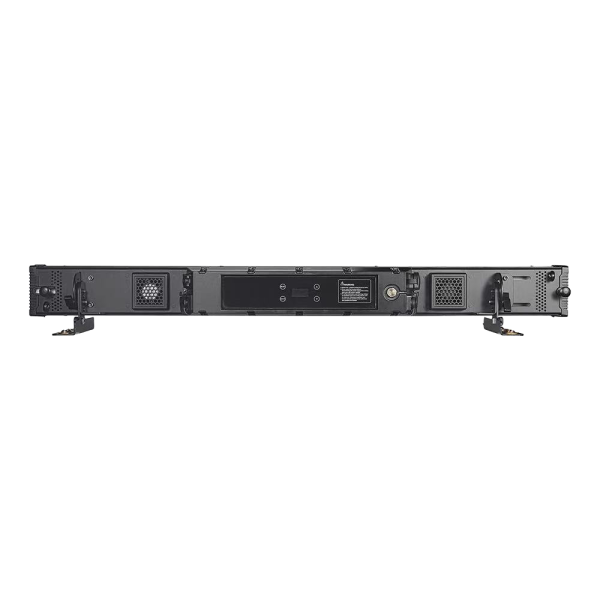

Display & Control	Graphic LCD display and selector buttons
IP Rating	IP65 waterproof housing
Other

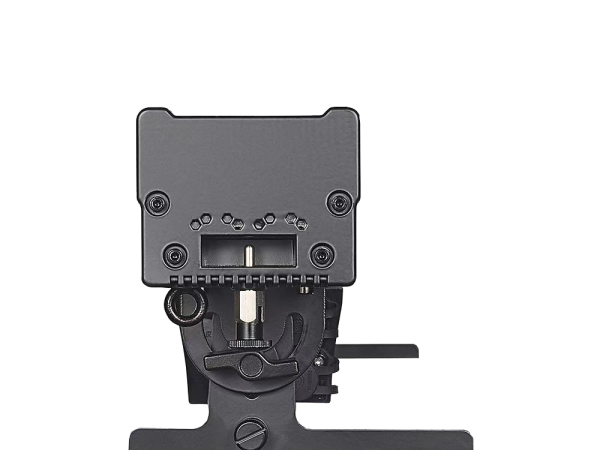

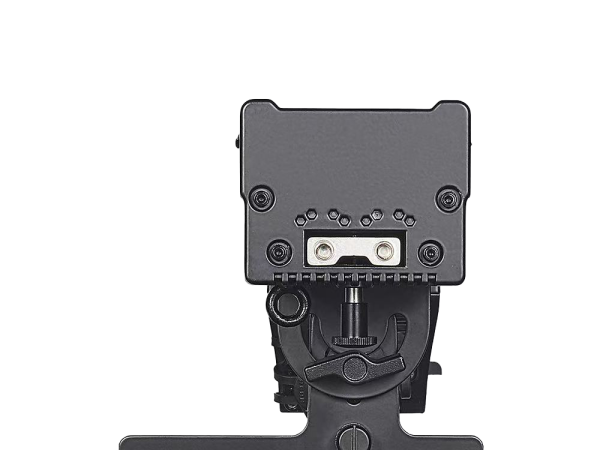

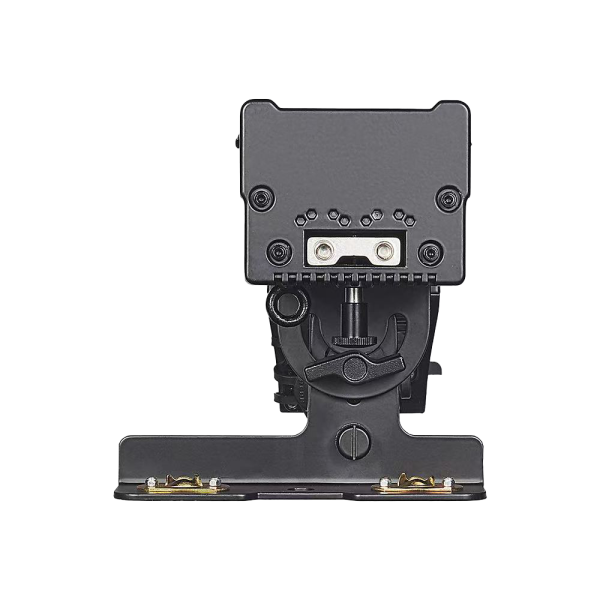

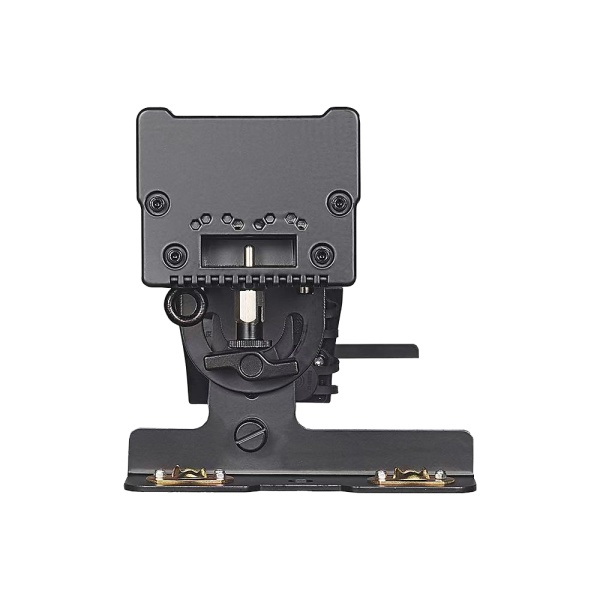

Accessories	Mounting brackets included
Warranty	3 years (parts and labor)
