Strobe & Blinder

NUKE 62

The NUKE62™ is a bright multi-purpose LED flood / blinder / strobe. Featuring 672 RGB LEDs and 140 high-power cool white LEDs, it boasts a high power output as a strobe or wash fixture. Stepless color blending, 3-IN-1 functionality, and 96-zone RGB pixel effects makes the NUKE 62 perfect for installations and rugged enough for production use.

Key Features

DMX / RDM Compliant

DMX512-A · ANSI E1.11

High CRI

CRI ≥ 95 · TLCI ≥ 96

Designed in Canada

LumiOS Digital Lighting

SKU: NUKE62 Category: Strobe & Blinder

Request a Quote → Download Spec Sheet ↓

Specifications and Features:

Key Features:

- - RGBW Color Mixing
  - 96-zone RGB Pixels, 10-zone White Pixels
  - Includes 37 built-in programs & Motion Macro EFX
  - 3-IN-1 : Flood / Blinder / Strobe
  - Selectable dimmer curves
  - Flicker Free for Video Applications

Technical Specifications:

Control and Programming:

DMX Channels: 6/17/20/21/298/310CH
Modes: DMX, Master/Slave, Auto

Power and Consumption:

400VA peak power consumption
AC 100-240V, 50/60Hz power supply

Dimensions and Weight:

Width: 500mm
Depth: 145mm
Height: 25mm
Weight: 7.1kg (15.6 Lbs)

Optics:

120° Beam Angle

Light Source:

672 High Power 0.2W RGB LEDs
140 High Power 3.0W CW LEDs

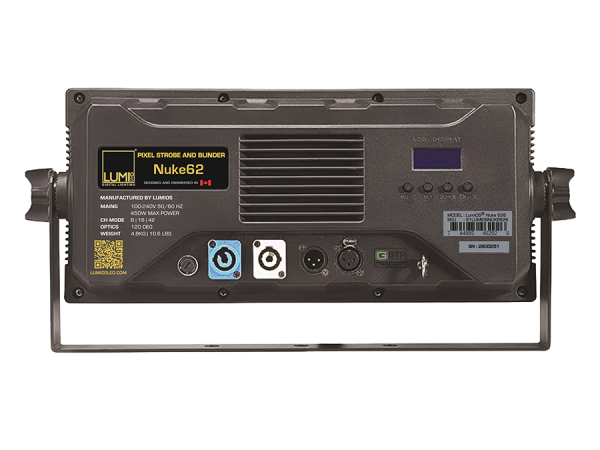

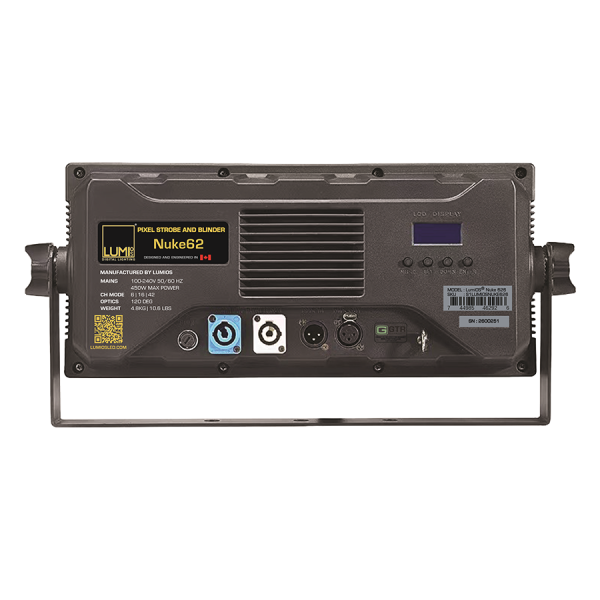

Connections:

Data In/Out: 3-pin Locking XLR Sockets
Power In/Out: Powercon® Seetronic

Construction:

Color: Black
Graphic LCD display for control
IP20

Accessories:

Mounting brackets included
Powercon power cable & DMX cable

Warranty:

2 years (parts and labor)

📁 LumiOS NUKE62 Cutsheet ↓
