PROFILE 350 6C
Ellipsoidal

PROFILE 350 6C

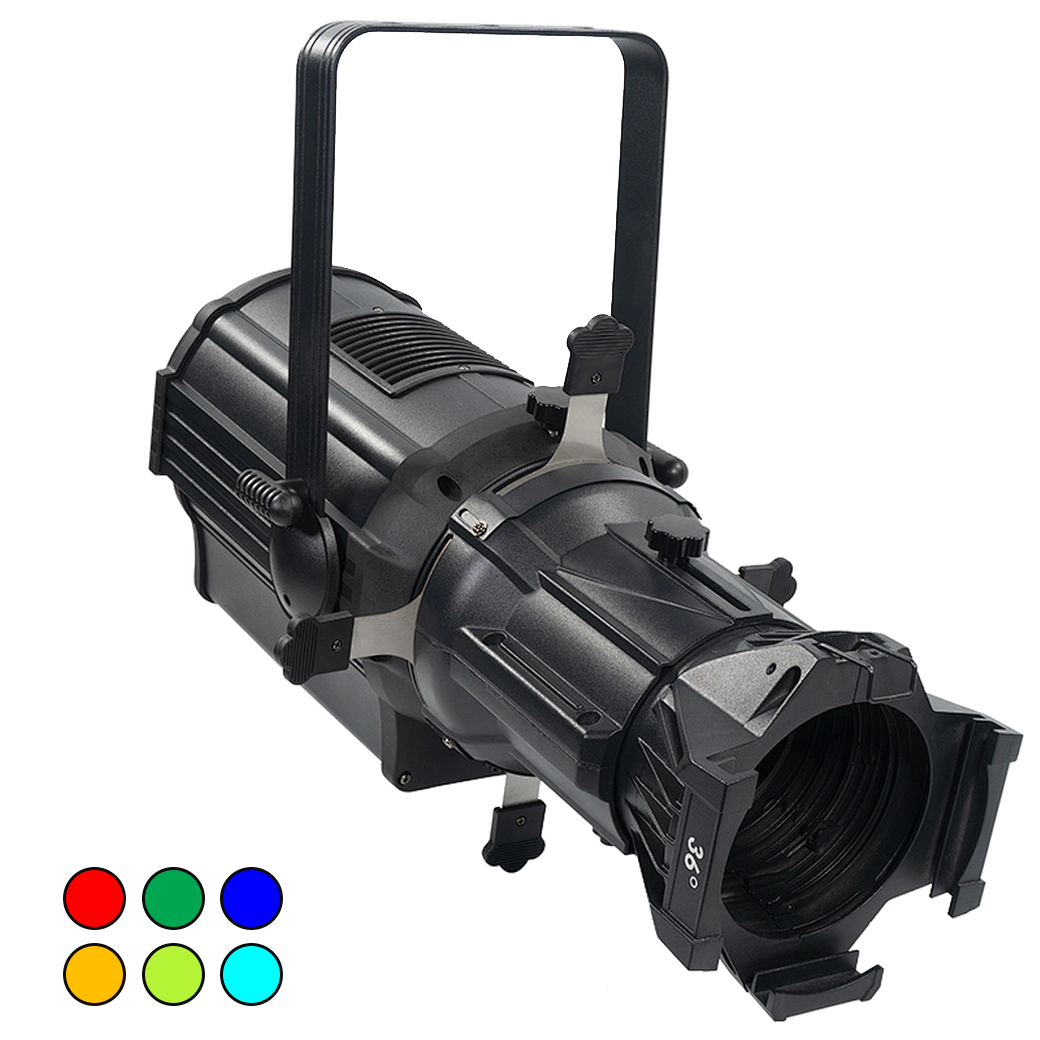

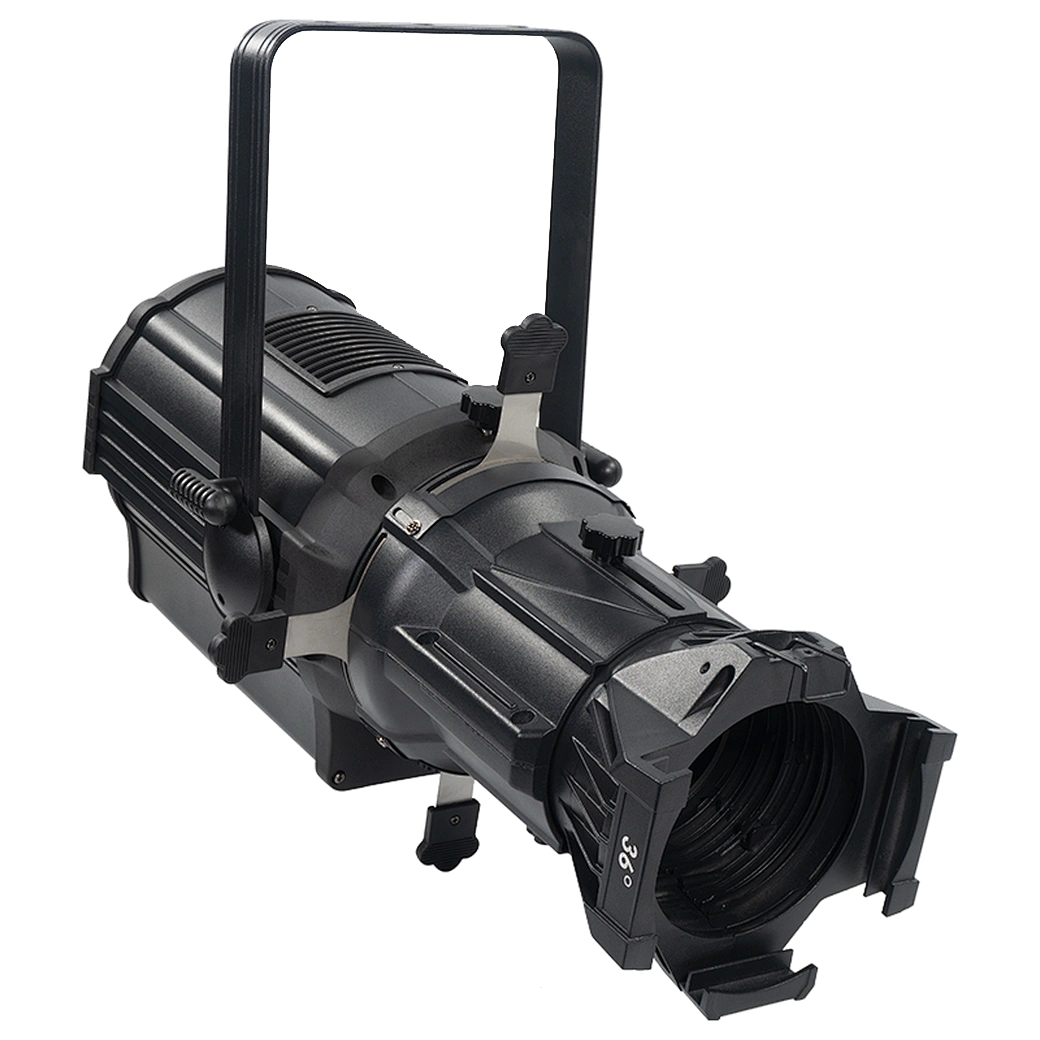

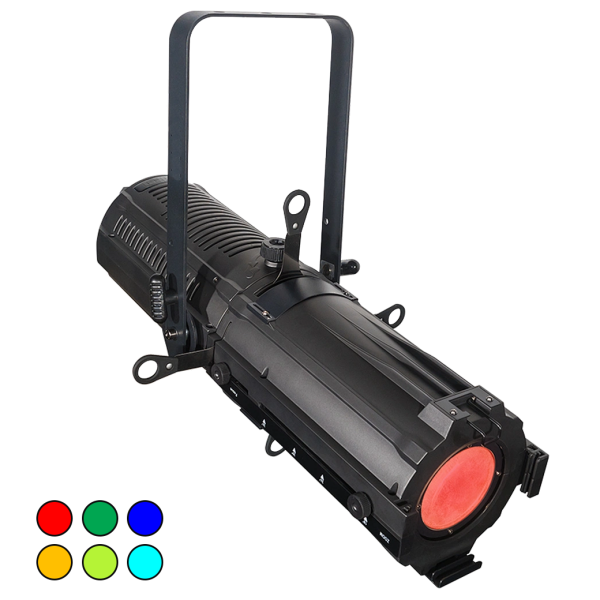

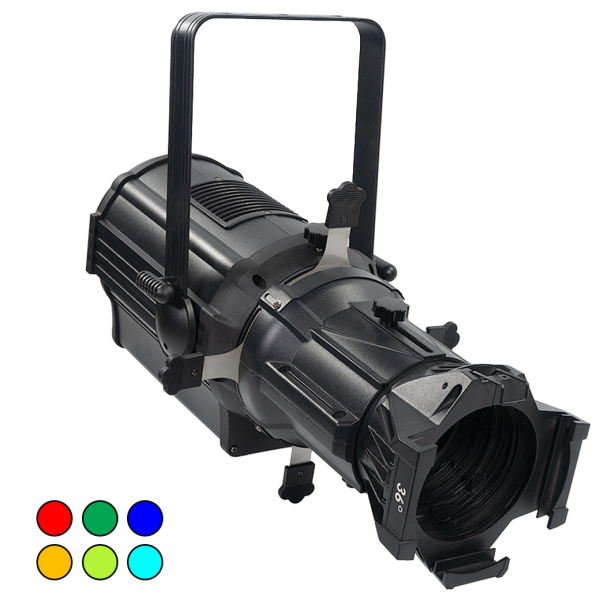

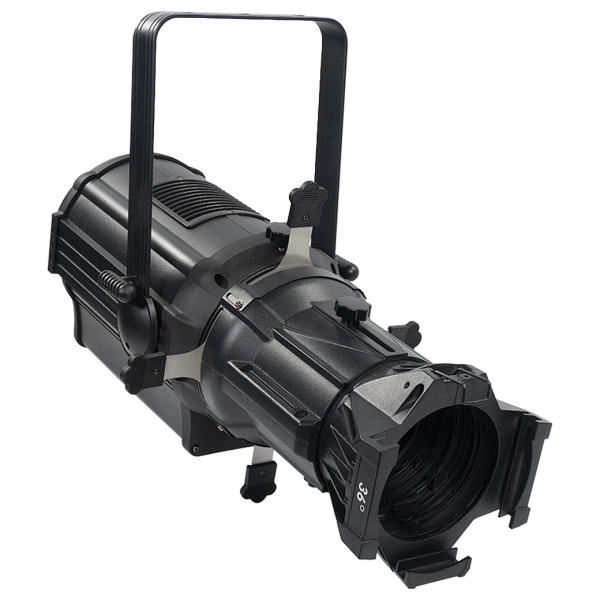

PROFILE 350 6C is a premium, all-metal framing profile fixture that combines the familiar form factor of the industry-standard profile with the advanced performance of a high-CRI 6-color LED engine. Powered by a 350W RGBALC (Red, Green, Blue, Amber, Lime, Cyan) LED source with a variable color temperature range of 3000K to 8000K, it delivers exceptional brightness, precise color reproduction, and rich, high-fidelity color mixing across the spectrum. The result is a smooth, flat field of illumination with outstanding consistency and accuracy for the most demanding lighting applications.

Key Features
350W RGBALC COB LED Light Source

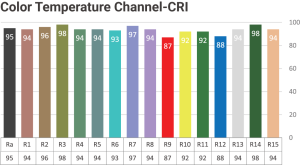

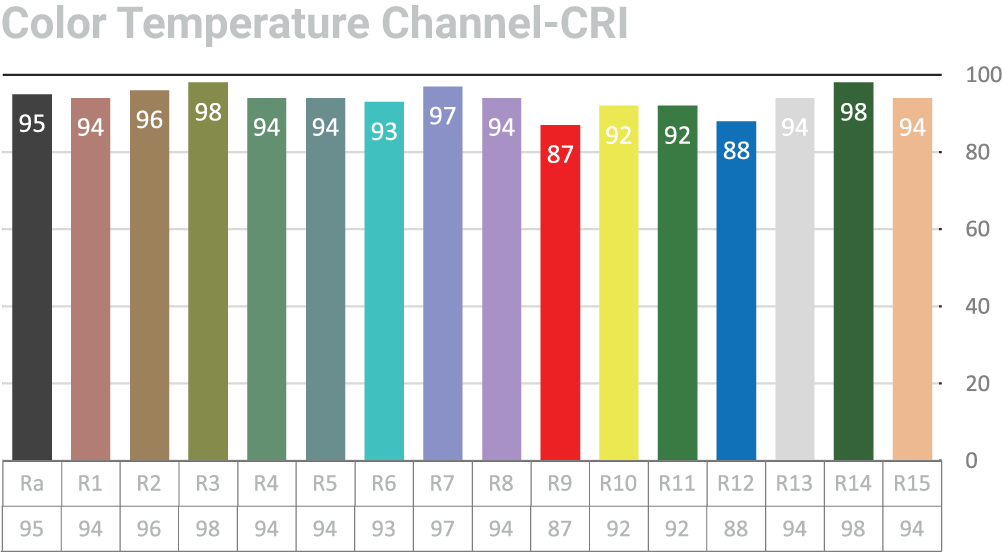

High CRI≥95, TLCI 95 (CT Channel)
3000°K - 8000°K Color Temperature
Extended Spectrum color mixing with RGB + Amber/Lime/Cyan

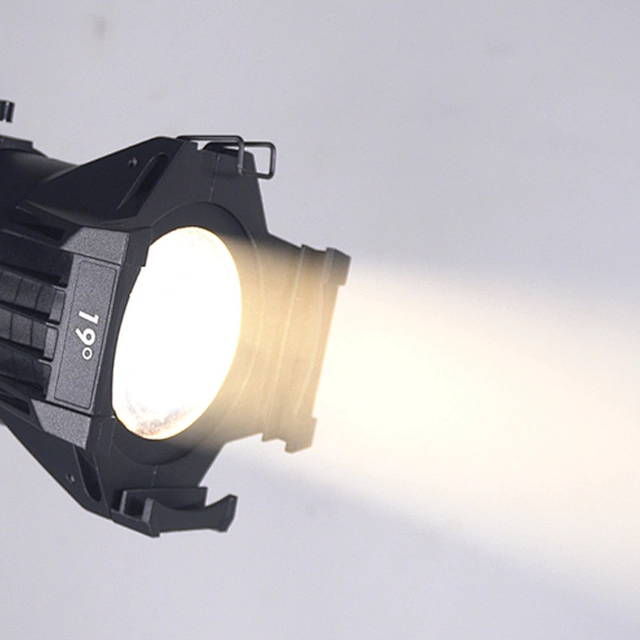

HD optical system for clean shutter cuts

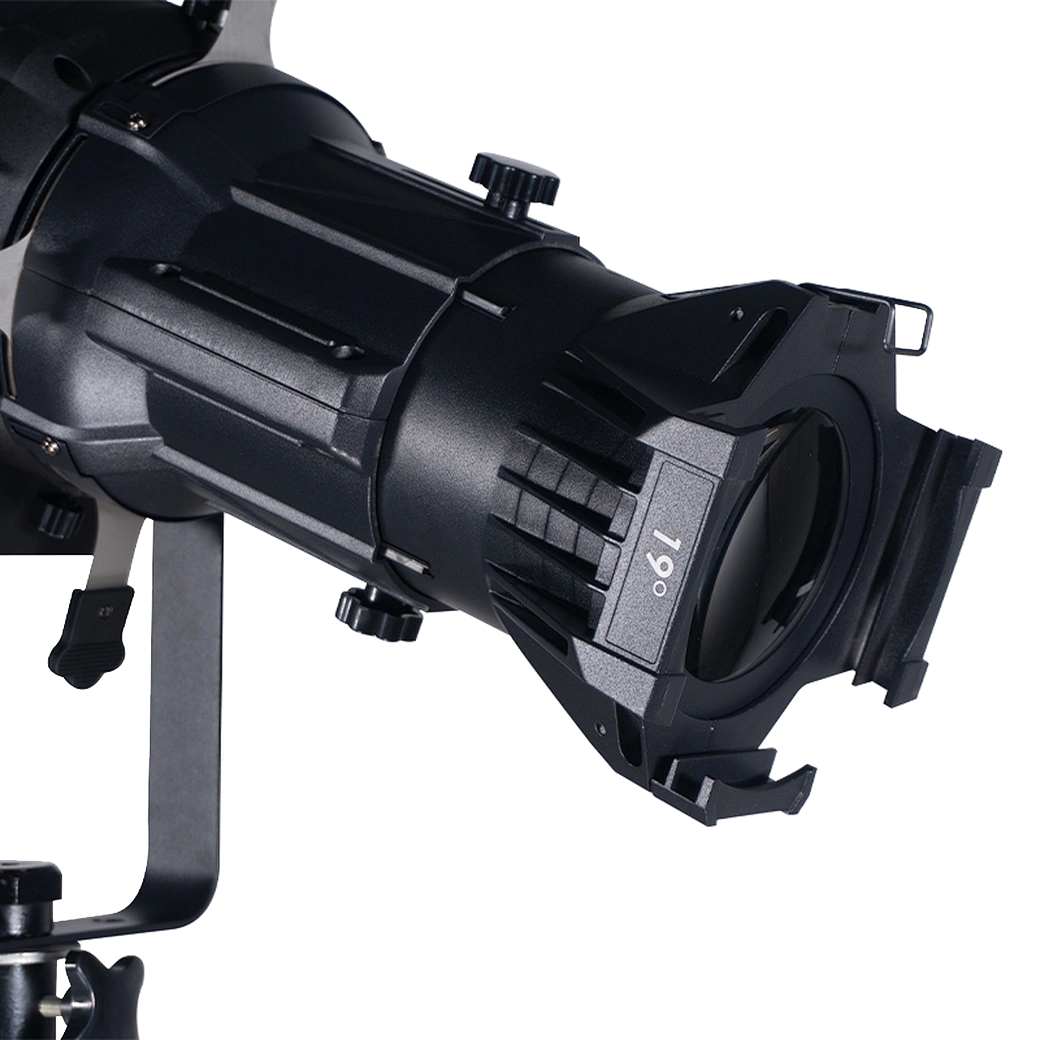

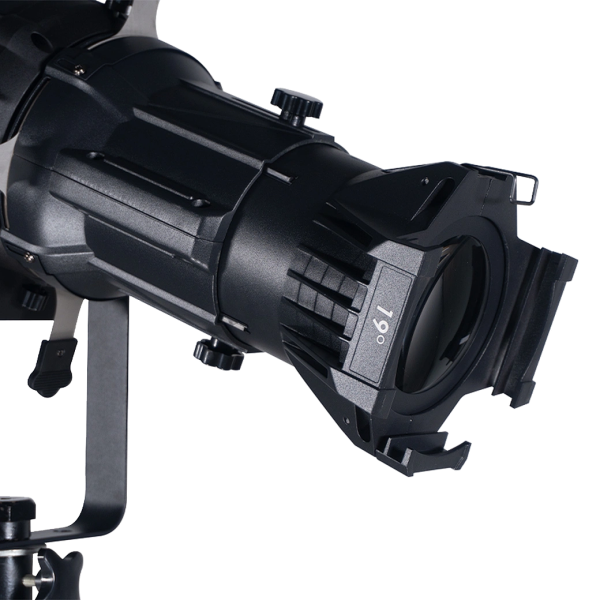

19°, 26°, 36°, 50° lens options
Smooth 0-100% Dimming & Strobe Capable
Selectable Dimmer Curves & Custom Dimmer Curve
Adjustable Frequency for Flicker Free operation
Rotary, key, DMX control
Silent operation for studio & theatre use
Durable lightweight Cast Aluminum Construction

SKU: PROFILE350-6C Category:

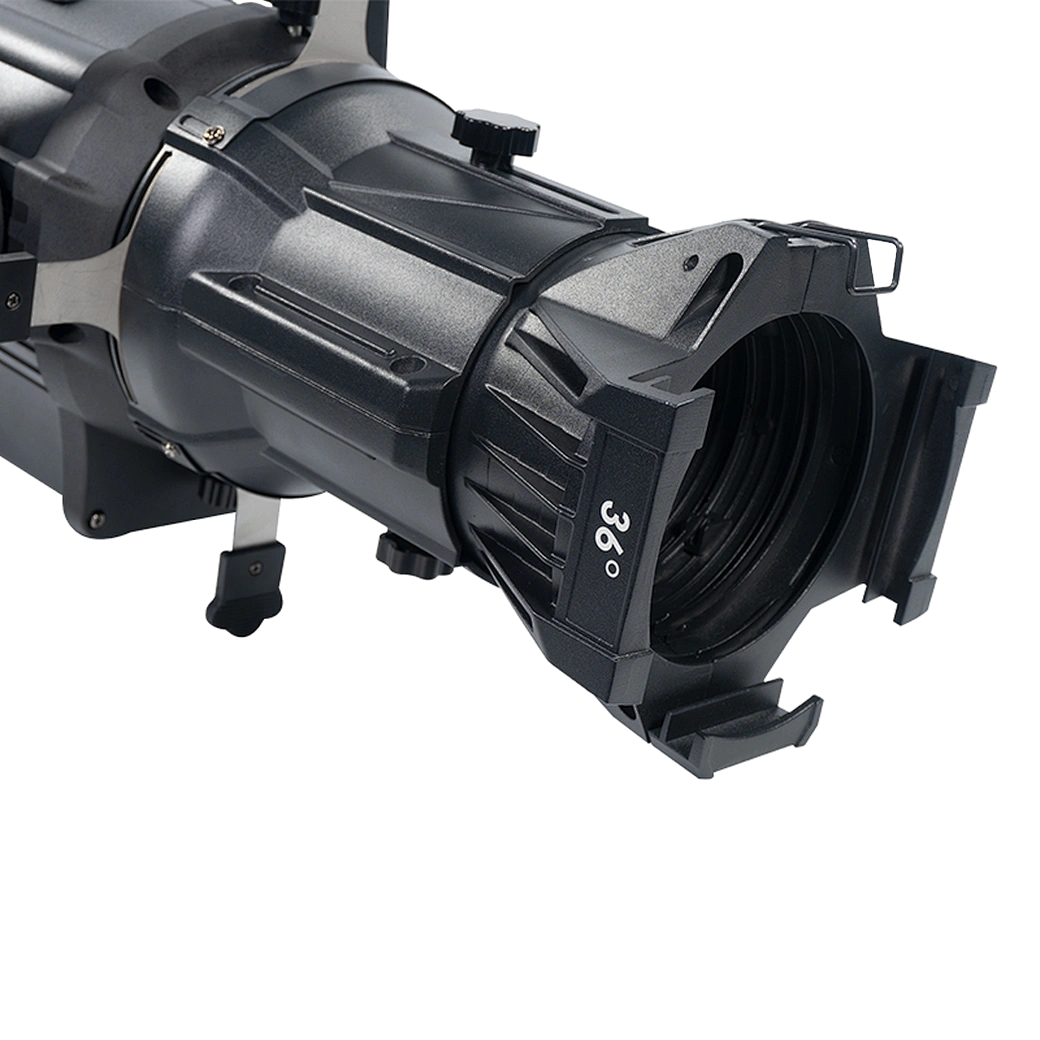

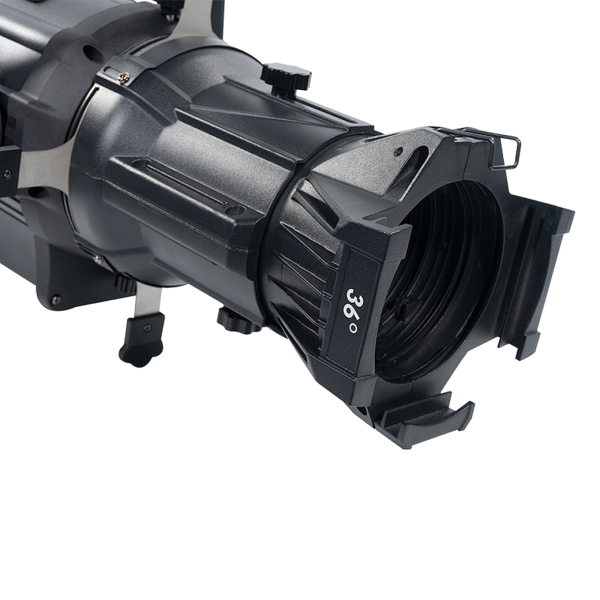

Designed for professional theatre, broadcast, live event, and architectural environments, the fixture features power input and output connections that enable multiple units to be linked together, reducing cabling requirements and eliminating the need for traditional dimmer infrastructure. Four lens options are available to accommodate a wide range of throw distances and beam angles, while premium HD glass optics ensure superior image quality, sharp focus, and excellent projection performance. For added flexibility, the interchangeable barrel design is compatible with most major framing profile systems, allowing seamless integration into existing lighting inventories.



Applications

  • Broadcast Studio
  • Theatrical Venues
  • Architectural Projects
  • Houses of Worship
  • Convention Rooms & Trade Shows
  • Retail Promotions
  • Corporate Logo Projection
  • Gala and Event Lighting
  • Concert and Stage
Control and Programming
DMX Channel Modes 2/8/12
Control Modes DMX, RDM, Auto, Manual
Optics
Light Source 350W RGBALC COB LED
Color Temperature 3000°K - 8000°K adjustable
Included Lens choice of one 19°, 26°, or 36° standard lens
Optional Lens 50° Premium Lens (separate option)
Physical Dimensions

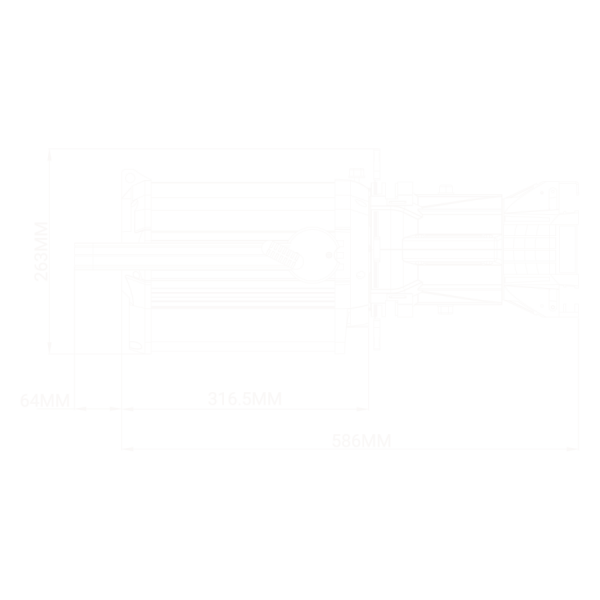

Dimensions (L x W x H) 650 x 270 x 263mm (27.56 x 10.63 x 10.35 in)
Weight 9.2 kg (20.25 Lbs)
Power Requirements
Peak Power Consumption 440VA
Voltage AC 100-240V, 50/60Hz, auto ranging
Maximum Power Linking 4 Unit on 15A line, 5 Units on 20A line

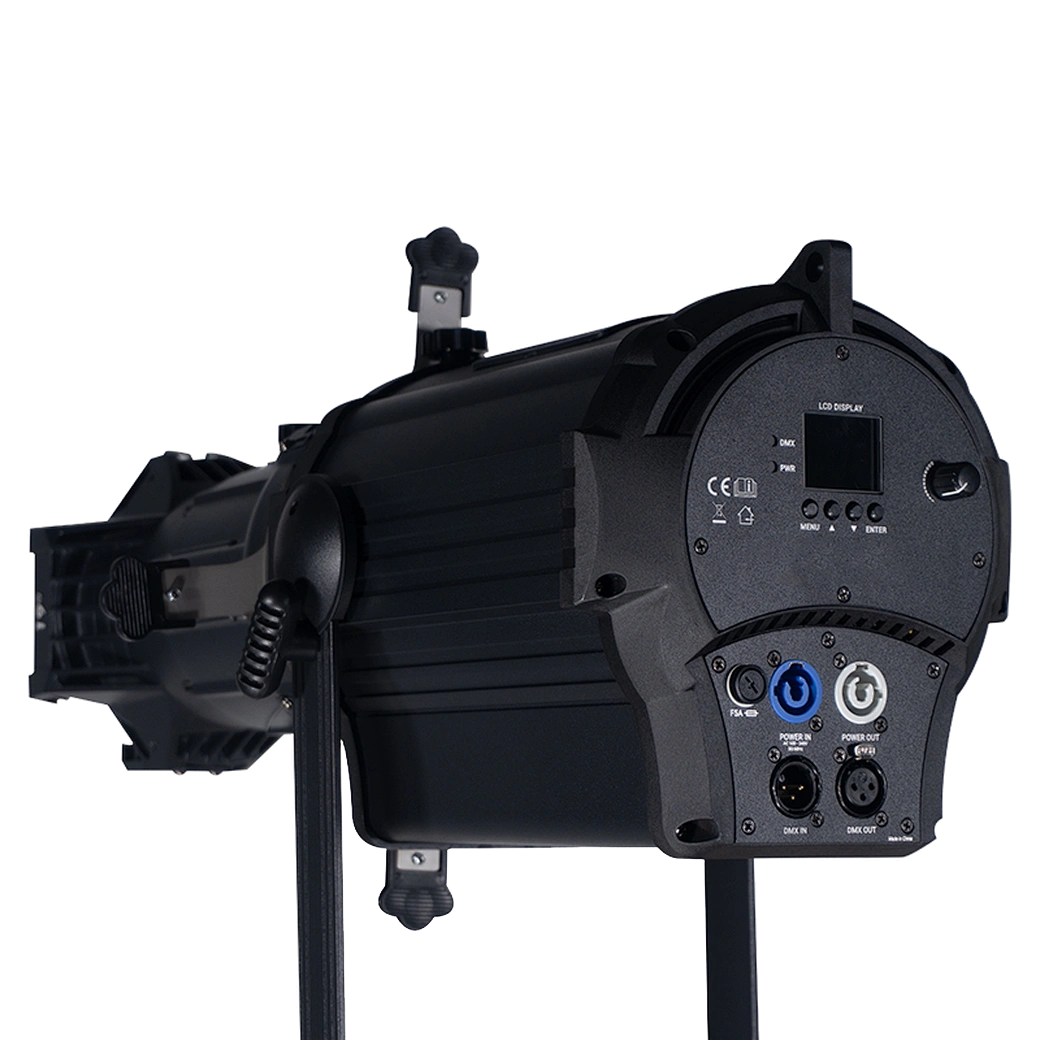

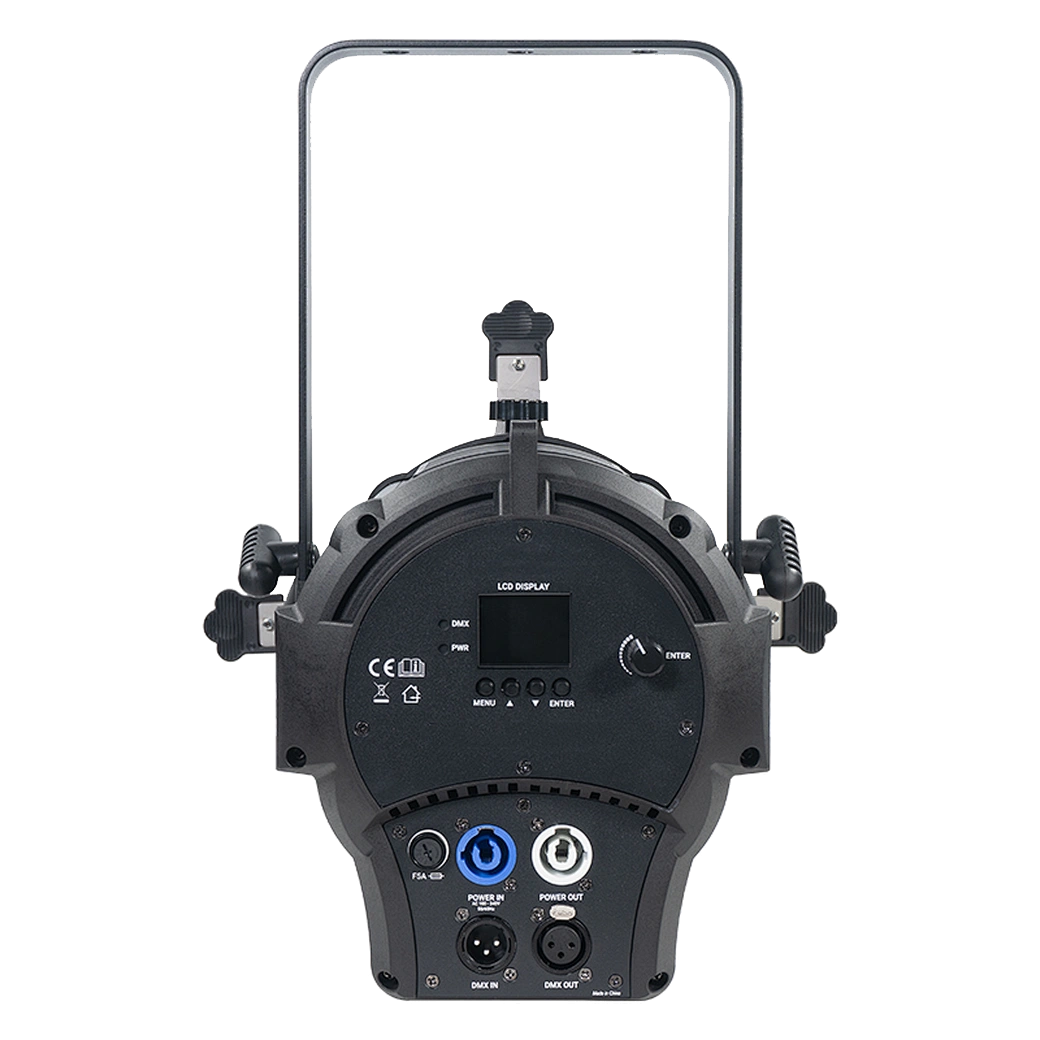

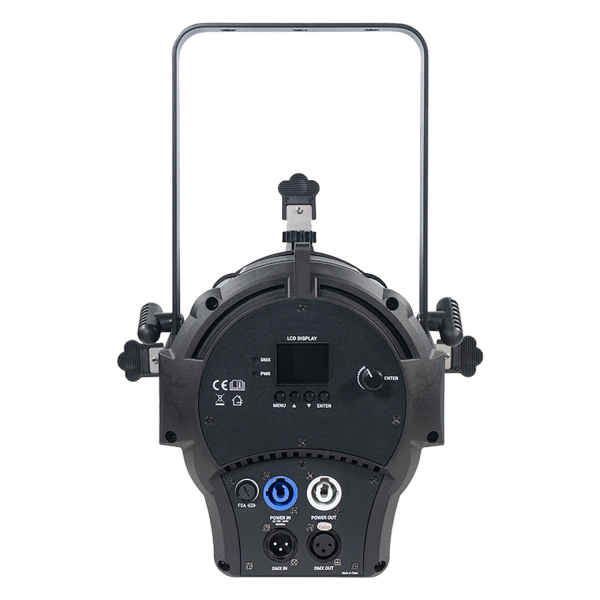

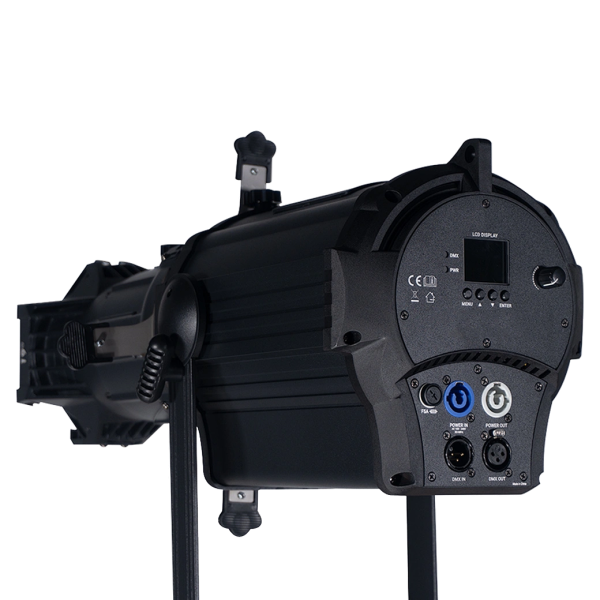

Connections
Data In/Out 5-pin XLR M/F
Power In/Out Seetronic IP65 TrueCON
Thermal
Cooling Forced ventilation with intelligent controlled fans (silent operation)
Ambient Operating Temperature -10°C - 40°C
Construction
Available Colors Black
Body Material Aluminum
Display & Control Graphic LED Display and selector buttons
IP Rating IP20
Other
Included Accessories Power Cable
Safety Cable
Gel Frame
Optional Accessories Gobo Holder
Iris
Warranty 2 year limited warranty (parts & labor)
  • Broadcast Studio
  • Theatrical Venues
  • Architectural Projects
  • Houses of Worship
  • Convention Rooms & Trade Shows
  • Retail Promotions
  • Corporate Logo Projection
  • Gala and Event Lighting
  • Concert and Stage

No downloads available for this product yet.

📋 Request a Spec Sheet
