PROFILE ZOOM 350 6C
Ellipsoidal

PROFILE ZOOM 350 6C

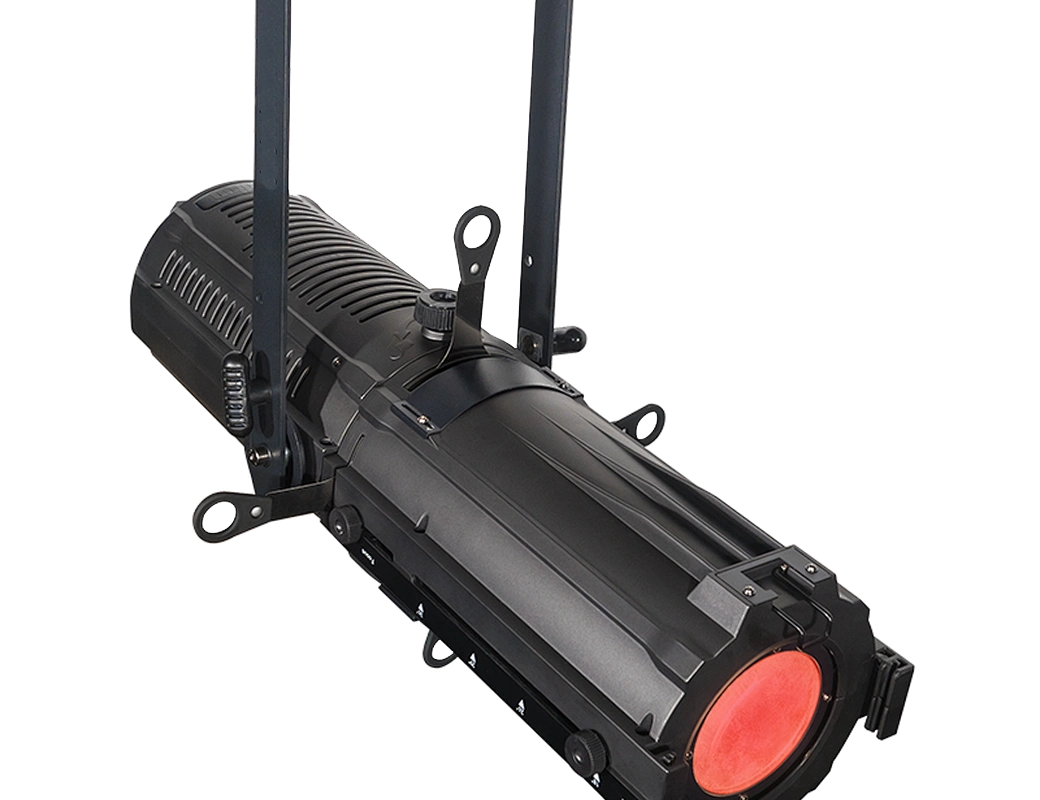

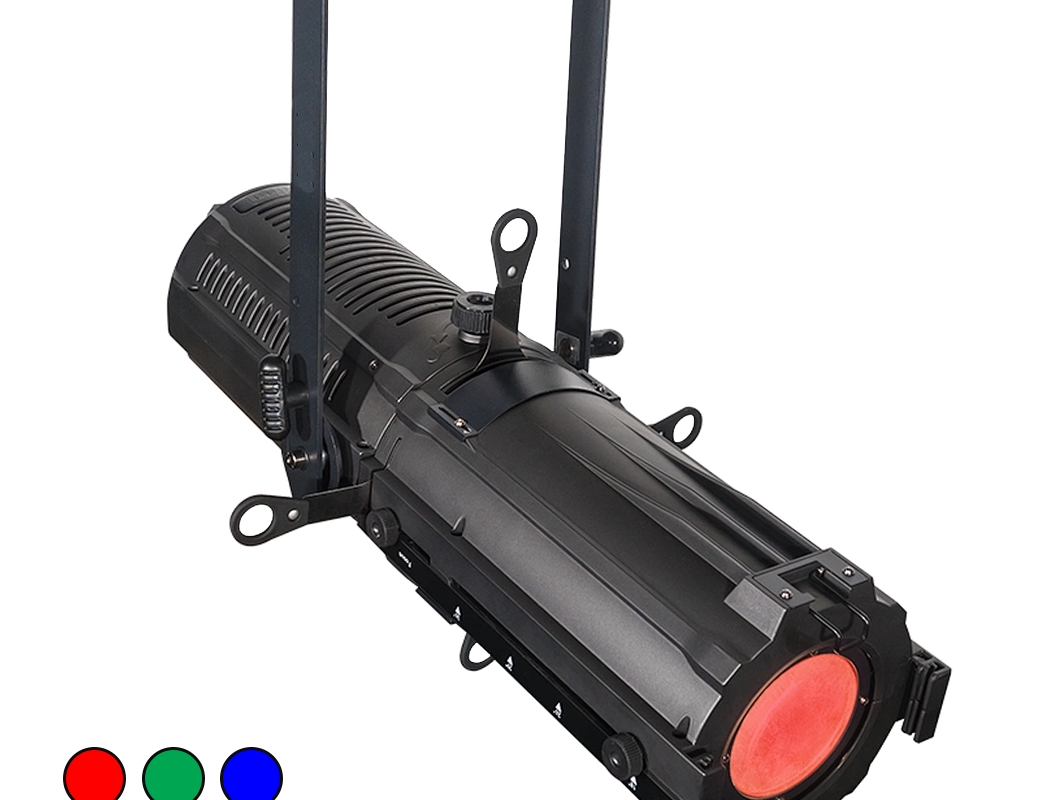

The PROFILE ZOOM 350 6C is a premium, lightweight zoom profile fixture that combines the versatility of an integrated zoom optical system with the advanced performance of a high-CRI 6-color LED engine. Featuring an 18°–38° zoom range and powered by a 350W RGBALC (Red, Green, Blue, Amber, Lime, Cyan) LED source with a variable color temperature range of 3000K to 8000K, it delivers exceptional brightness, outstanding color accuracy, and rich, full-spectrum color mixing. The result is a smooth, uniform field of illumination with excellent consistency, making it ideal for theatre, broadcast, live event, and architectural lighting applications.

Designed for maximum flexibility and efficient deployment, the fixture incorporates power input and output connections that allow multiple units to be linked together, reducing cable runs and eliminating the need for traditional dimmer infrastructure. Premium HD glass optics provide superior image quality, crisp projection, and reliable performance throughout the entire zoom range. Engineered for seamless integration into professional lighting inventories, the interchangeable barrel architecture is compatible with most major framing profile systems, offering exceptional versatility for venues, production companies, and rental applications.
Key Features
DMX / RDM Compliant
DMX512-A · ANSI E1.11
High CRI
CRI ≥ 95 · TLCI ≥ 96
Designed in Canada
LumiOS Digital Lighting

SKU: PROFILE-ZOOM-350-6C Category: Brand:
Certified
32i23;fioh2`
lwkwelhk
.kjhv;wekvh
w
qklf;lkwefh

Key Features:

      • 350W RGBALC COB LED Light Source
      • 18-38° Zoom Range, Unilateral Focusing
      • High CRI≥95, TLCI 95 (CT Channel)
      • 3000°K – 8000°K Color Temperature
      • Extended Spectrum color mixing with RGB + Amber/Lime/Cyan
      • HD optical system for clean shutter cuts
      • Smooth 0-100% Dimming & Strobe Capable
      • Selectable Dimmer Curves & Custom Dimmer Curve
      • Adjustable Frequency for Flicker Free operation
      • Rotary, key, DMX control
      • Silent operation for studio & theatre use
      • Durable lightweight Thermo-Polymer Construction





Technical Specifications:

Control and Programming:

      • DMX Channel Modes:  2/8/12
      • Control Modes: DMX, RDM, Auto, Manual
      • Dimmer Frequency:  1.2 – 24.0 kHz

Optics:

      • Light Source:  350W RGBALC COB LED
      • Color Temperature:  3000°K – 8000°K adjustable
      • LED Lifetime:  50,000 hours
      • Integral Zoom Lens:  18° – 38° range
      • Gobo Size:  supports D size gobos, 53mm OD, 40mm image area

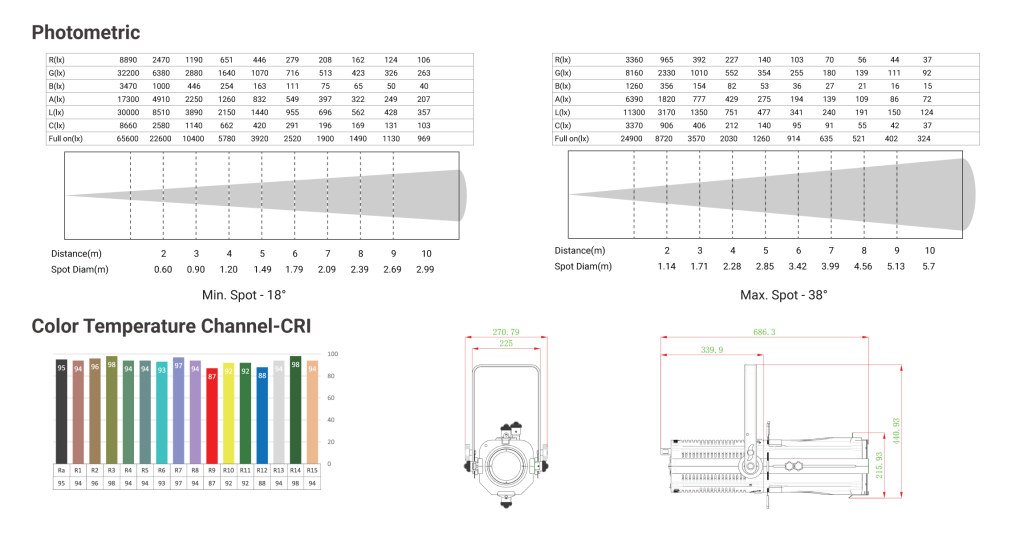

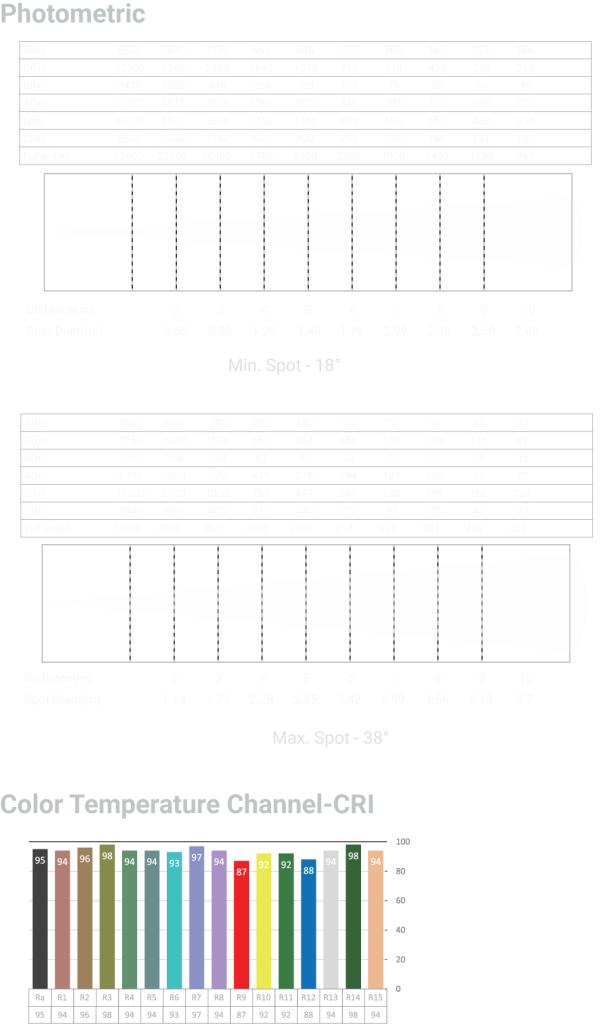

Photometrics:

      • CRI (Color Rendering Index):  >95
      • TLCI  (Television Lighting Consistency Index):  >95
      • Full On  (All 6-colors – no CT setting):  CRI 85

Physical Dimensions:

      • Dimensions (L x W x H): 745 x 294 x 294mm  (29.17 x 11.57 x 11.57 in)
      • Weight:  8.7 kg  (19.1 lbs)

Power Requirements:

      • Peak Power Consumption: 440VA
      • Voltage: AC 100-240V, 50/60Hz, auto ranging
      • Maximum Power Linking:  4 Unit on 15A line, 5 Units on 20A line

Connections:

      • Data In/Out: 5-pin XLR M/F
      • Power In/Out: Seetronic IP65 TrueCON

Thermal:

      • Heat Sink  (silent operation)
      • Ambient Operating Temperature:  -5°C – 45°C

Construction:

      • Available Colors: Black
      • Body Material:  Engineered Polymer
      • Display: Graphic LED Display
      • IP Rating: IP20

Included Accessories:

      • Power Cable
      • Safety Cable
      • Gel Frame

Optional Accessories:

      • Gobo Holder
      • Iris

Warranty:

      • 2 year limited warranty (parts & labor)

Applications

  • Theatre
  • Shows
  • HOTEL
  • MAREF
  • FJOEF
Control and Programming:
DMX Channel Modes:  2/8/12
Control Modes: DMX, RDM, Auto, Manual
Dimmer Frequency:  1.2 - 24.0 kHz
Optics:
Light Source:  350W RGBALC COB LED
Color Temperature:  3000°K - 8000°K adjustable
LED Lifetime:  50,000 hours
Integral Zoom Lens:  18° - 38° range
Gobo Size:  supports D size gobos, 53mm OD, 40mm image area
Photometrics:
CRI (Color Rendering Index):  >95
TLCI  (Television Lighting Consistency Index):  >95
Full On  (All 6-colors - no CT setting):  CRI 85
Physical Dimensions:
Dimensions (L x W x H): 745 x 294 x 294mm  (29.17 x 11.57 x 11.57 in)
Weight:  8.7 kg  (19.1 lbs)
Power Requirements:
Peak Power Consumption: 440VA
Voltage: AC 100-240V, 50/60Hz, auto ranging
Maximum Power Linking:  4 Unit on 15A line, 5 Units on 20A line
Connections:
Data In/Out: 5-pin XLR M/F
Power In/Out: Seetronic IP65 TrueCON
Thermal:
Heat Sink  (silent operation)
Ambient Operating Temperature:  -5°C - 45°C
Construction:
Available Colors: Black
Body Material:  Engineered Polymer
Display: Graphic LED Display
IP Rating: IP20
Included Accessories:
Power Cable
Safety Cable
Gel Frame
Optional Accessories:
Gobo Holder
Iris
Warranty:
2 year limited warranty (parts & labor)
  • Theatre
  • Shows
  • HOTEL
  • MAREF
  • FJOEF

No downloads available for this product yet.

📋 Request a Spec Sheet
