PROFILE ZOOM 250 FS
Ellipsoidal

PROFILE ZOOM 250 FS

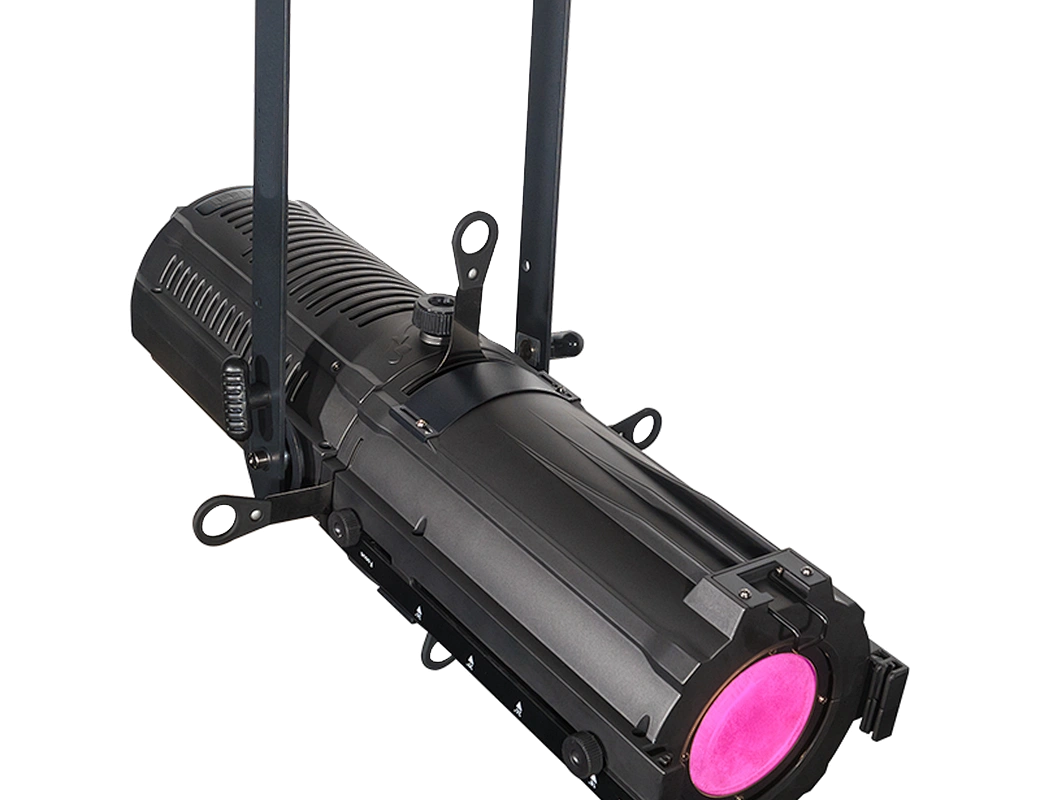

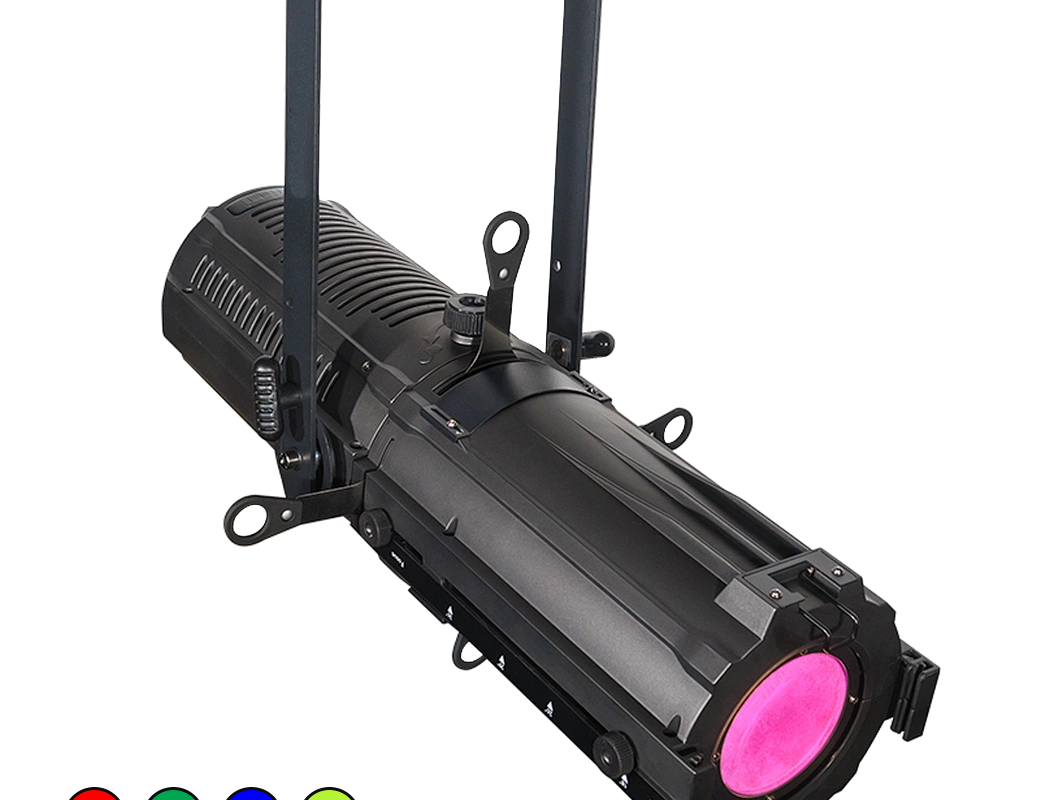

The PROFILE ZOOM 250 FS is a premium, lightweight zoom profile fixture that combines exceptional versatility with advanced Full-Spectrum 4-Color LED technology. Featuring an integrated 18°–38° zoom range and powered by a high-output 250W RGB+Lime LED engine with a variable color temperature range of 3000K to 8000K, it delivers outstanding brightness, vibrant color mixing, and a smooth, uniform field of illumination. From rich saturated colors to accurate whites and subtle pastels, the PROFILE ZOOM 250 FS provides the flexibility required for theatrical, broadcast, and architectural lighting applications.

Engineered for streamlined installation and professional performance, the fixture includes power input and output connections that allow multiple units to be linked together, reducing cabling requirements and eliminating the need for traditional dimmer systems. Precision-engineered HD glass optics ensure excellent image quality, sharp projection, and consistent performance throughout the zoom range. Designed to integrate seamlessly into existing lighting inventories, the interchangeable barrel architecture is compatible with most major framing profile systems, providing maximum flexibility for rental, production, and venue applications.
Key Features
DMX / RDM Compliant
DMX512-A · ANSI E1.11
High CRI
CRI ≥ 95 · TLCI ≥ 96
Designed in Canada
LumiOS Digital Lighting

SKU: PROFILE-ZOOM-250-FS Category: Brand:

Key Features:

      • 250W RGBL COB LED Light Source
      • 18-38° Zoom Range, Unilateral Focusing
      • 3000°K – 8000°K Color Temperature
      • Extended Spectrum color mixing
      • HD optical system for clean shutter cuts
      • Smooth 0-100% Dimming & Strobe Capable
      • Selectable Dimmer Curves & Custom Dimmer Curve
      • Adjustable Frequency for Flicker Free operation
      • Rotary, key, DMX control
      • Silent operation for studio & theatre use
      • Lightweight Thermo-Polymer Construction



Technical Specifications:

Control and Programming:

      • DMX Channel Modes: 1/4/6/10
      • Control Modes: DMX, RDM, Auto, Manual
      • Dimmer Frequency: 1.2 – 24.0 kHz

Optics:

      • Light Source:  250W RGBL COB LED
      • Color Temperature:  3000°K – 8000°K adjustable
      • LED Lifetime: 50,000 hours
      • Integral Zoom Lens:  18° – 38° range
      • Gobo Size: supports D size gobos, 53mm OD, 40mm image area

Physical Dimensions:

      • Dimensions (L x W x H): 745 x 294 x 294mm  (29.17 x 11.57 x 11.57 in)
      • Weight:  8.7 kg  (19.1 lbs)

Power Requirements:

      • Peak Power Consumption: 320VA
      • Voltage: AC 100-240V, 50/60Hz, auto ranging
      • Maximum Power Linking:  5 Unit on 15A line, 6 Units on 20A line

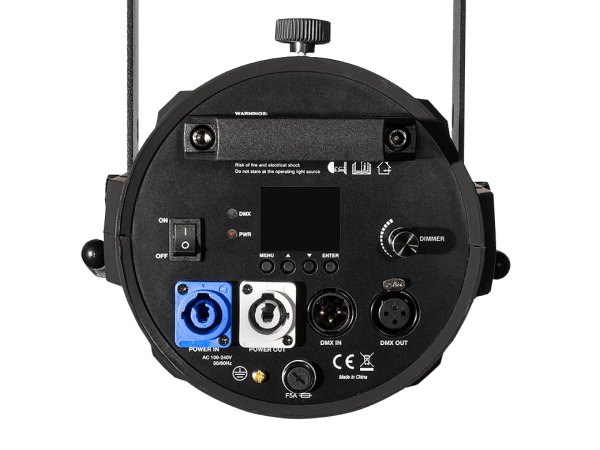

Connections:

      • Data In/Out: 5-pin XLR M/F
      • Power In/Out: Seetronic IP65 TrueCON

Thermal:

      • Heat Sink (silent operation)
      • Ambient Operating Temperature:  -5°C – 45°C

Construction:

      • Available Colors: Black
      • Body Material:  Engineered Polymer
      • Display: Graphic LED Display
      • IP Rating: IP20

Included Accessories:

      • Power Cable
      • Safety Cable
      • Gel Frame

Optional Accessories:

      • Gobo Holder
      • Iris

Warranty:

      • 2 year limited warranty (parts & labor)

No downloads available for this product yet.

📋 Request a Spec Sheet
