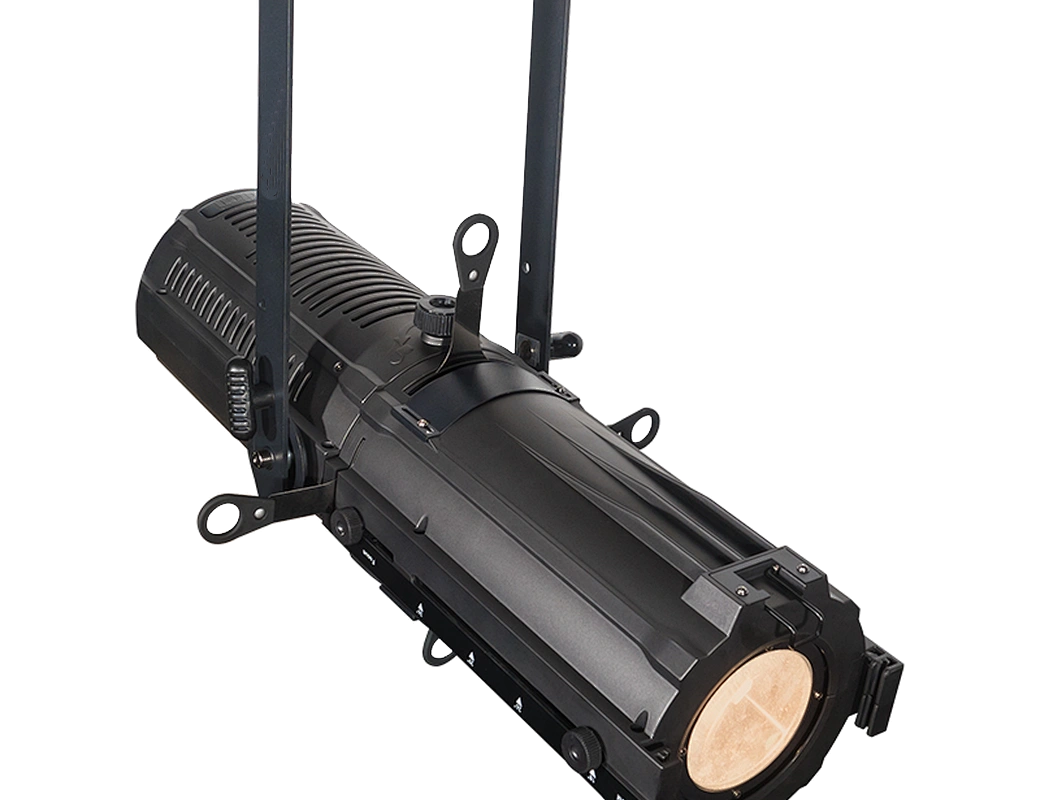

PROFILE ZOOM 300 WW
Ellipsoidal

PROFILE ZOOM 300 WW

PROFILE ZOOM 300 WW is a professional-grade, lightweight zoom profile fixture that combines the trusted performance of a traditional framing profile with the flexibility and efficiency of advanced LED technology. Featuring an integrated 18°–38° zoom range and powered by a high-CRI 300W warm white LED source at 3200K, it delivers bright, accurate illumination with exceptional color rendering and a smooth, even field. Its versatile optical system makes it ideally suited for theatre, broadcast, worship, and architectural lighting applications where precision and consistency are essential.

Key Features
300W Warm White (3200°K) COB LED Light Source
18-38° Zoom Range, Unilateral Focusing
CRI≥97, R9≥90, TLCI 98, CQS 94
HD optical system for clean shutter cuts
Smooth 0-100% Dimming & Strobe Capable
Selectable Dimmer Curves & Custom Dimmer Curve
Adjustable Frequency for Flicker Free operation
Rotary, key, DMX control
Silent operation for studio & theatre use
Durable Lightweight Thermo-Polymer Construction

SKU: PROFILE-ZOOM-300-WW Category:

Engineered for streamlined installation and professional performance, the fixture features power input and output connections that enable multiple units to be linked together, minimizing cabling requirements and eliminating the need for traditional dimmer systems. Precision-engineered HD glass optics deliver exceptional image clarity, sharp projection, and consistent performance across the entire zoom range. An integrated 18°–38° manual zoom function provides smooth, precise beam adjustment, allowing designers to quickly adapt to a wide range of throw distances and application requirements while maintaining outstanding optical performance.



Applications

  • Broadcast Studio
  • Theatrical Venues
  • Architectural Projects
  • Houses of Worship
  • Convention Rooms & Trade Shows
  • Retail Promotions
  • Corporate Logo Projection
  • Gala and Event Lighting
  • Concert and Stage
Control and Programming
DMX Channel Modes 1/2/3
Control Modes DMX, RDM, Auto, Manual
Dimmer Frequency 1.2 - 24.0 kHz
Optics
Light Source 300W Warm White COB LED
Color Temperature 3200°K
LED Lifetime 50,000 hours
Integral Zoom Lens 18° - 38° range
Gobo Size supports D size gobos, 53mm OD, 40mm image area
Benchmarks CRI≥97, R9≥90, TLCI 98, CQS 94

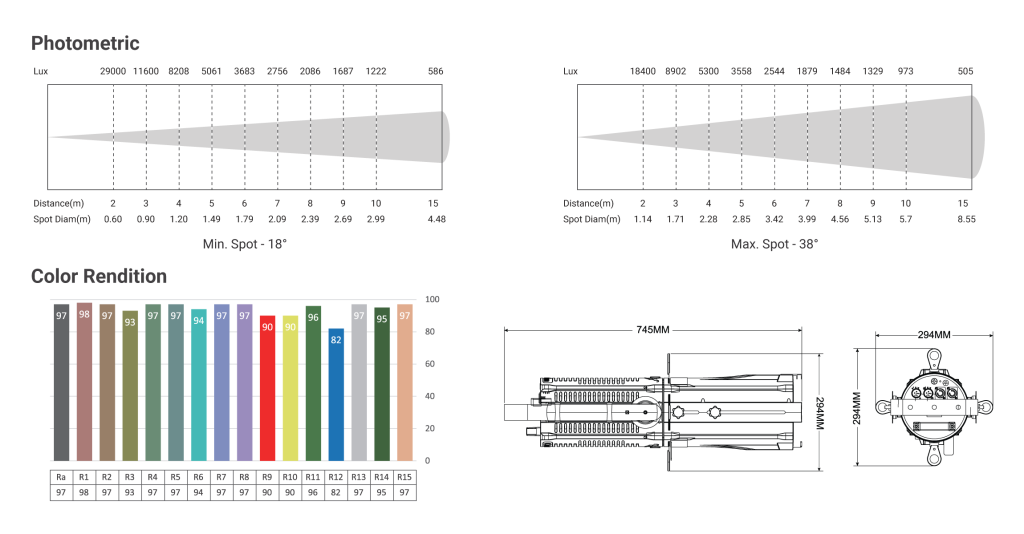

Photometrics
CRI (Color Rendering Index) >97
CQS (Color Quality Scale) >94
TM30 Rf (IES TM-30-15 Fidelity Index) >91
TM30 Rg (IES TM-30-15 Gamut Index) >100
TLCI (Television Lighting Consistency Index) >98
Physical Dimensions
Dimensions (L x W x H) 745 x 294 x 294mm (29.17 x 11.57 x 11.57 in)
Weight 8.7 kg (19.1 lbs)
Power Requirements
Peak Power Consumption 320VA
Voltage AC 100-240V, 50/60Hz, auto ranging
Maximum Power Linking 5 Unit on 15A line, 6 Units on 20A line
Connections
Data In/Out 5-pin XLR M/F
Power In/Out Seetronic IP65 TrueCON
Thermal
Cooling Convection Heat Sink (silent operation)
Ambient Operating Temperature -5°C - 45°C
Construction
Available Colors Black
Body Material Engineered Polymer
Display & Control Graphic LED Display and selector buttons
IP Rating IP20
Other
Included Accessories Power Cable
Safety Cable
Gel Frame
Optional Accessories Gobo Holder
Iris
Warranty 2 year limited warranty (parts & labor)
