Ellipsoidal

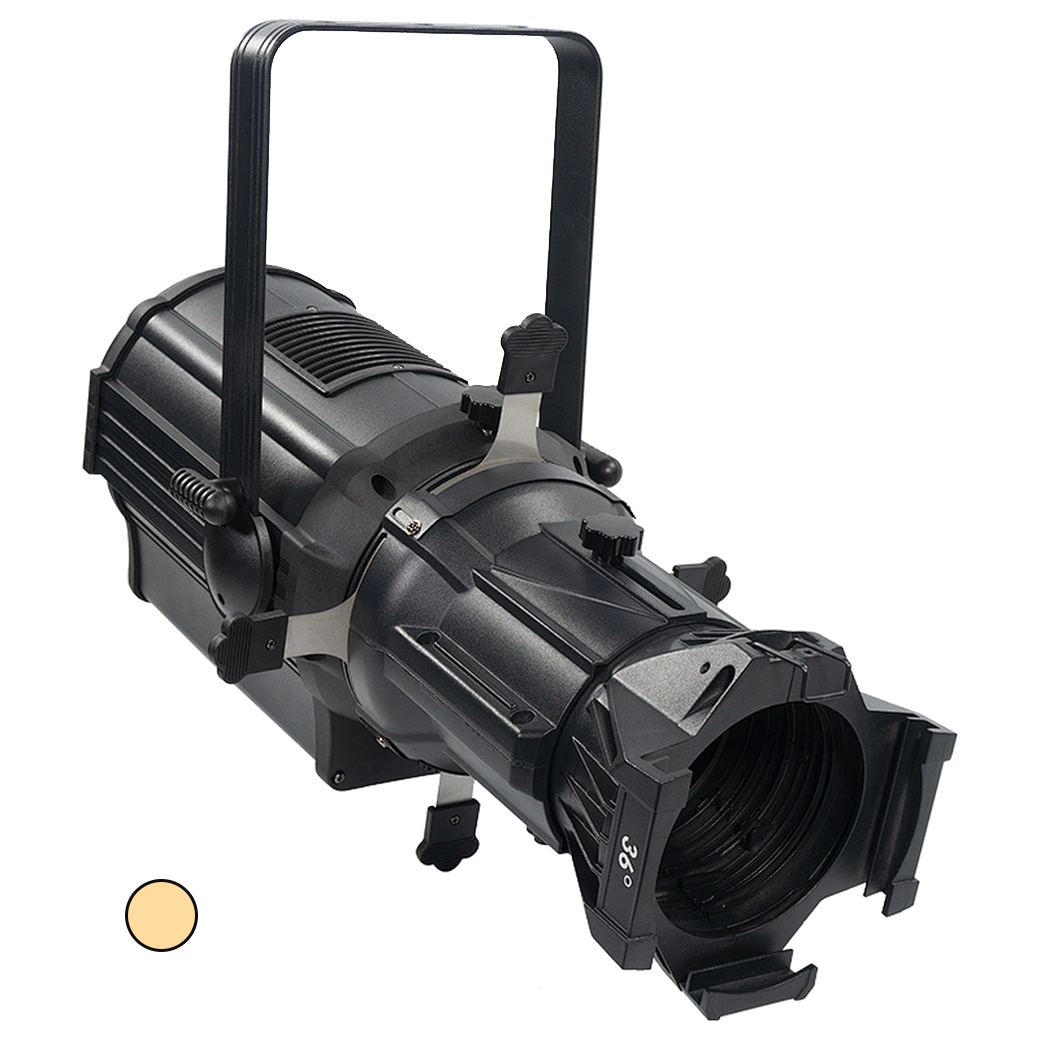

PROFILE 300 WW

PROFILE 300 WW is a professional-grade, all-metal framing profile fixture that delivers the familiar performance of the industry-standard profile with the efficiency and reliability of modern LED technology. Powered by a high-CRI 300W warm white LED source at 3200K, it produces bright, accurate illumination with excellent color rendering and a smooth, even field, making it ideal for theatre, broadcast, and architectural applications.

Key Features

300W Warm White (3200°K) COB LED Light Source

CRI≥97, R9≥90, TLCI 98, CQS 94

HD optical system for clean shutter cuts

19°, 26°, 36°, 50° lens options

Smooth 0-100% Dimming & Strobe Capable

Selectable Dimmer Curves & Custom Dimmer Curve

Adjustable Frequency for Flicker Free operation

Rotary, key, DMX control

Silent operation for studio & theatre use

Durable lightweight Cast Aluminum Construction

SKU: PROFILE300-WW Category: Ellipsoidal

Request a Quote → Download Spec Sheet ↓

Engineered for streamlined installation and operation, the fixture features power input and output connections that enable multiple units to be linked together, reducing cabling requirements and eliminating the need for traditional dimmer systems. Four lens options are available to suit a variety of throw distances and beam requirements, while premium HD glass optics ensure exceptional image clarity and precision. For maximum versatility, the interchangeable barrel design is compatible with most major framing profile systems, allowing seamless integration into existing lighting inventories.

Applications

Broadcast Studio
Theatrical Venues
Architectural Projects
Houses of Worship
Convention Rooms & Trade Shows
Retail Promotions
Corporate Logo Projection
Gala and Event Lighting
Concert and Stage

Control and Programming
DMX Channel Modes	1/2/3
Control Modes	DMX, RDM, Auto, Manual
Optics
Light Source	300W Warm White COB LED
Color Temperature	3200°K
Included Lens	choice of one 19°, 26°, or 36° standard lens
Optional Lens	50° Premium Lens (separate option)
Benchmarks	CRI≥97, R9≥90, TLCI 98, CQS 94
Physical Dimensions
Dimensions (L x W x H)	650 x 270 x 263mm (27.56 x 10.63 x 10.35 in)
Weight	9.2 kg (20.25 Lbs)
Power Requirements
Peak Power Consumption	320VA
Voltage	AC 100-240V, 50/60Hz, auto ranging
Maximum Power Linking	5 Unit on 15A line, 6 Units on 20A line
Connections
Data In/Out	5-pin XLR M/F
Power In/Out	Seetronic IP65 TrueCON
Thermal
Cooling	Forced ventilation with intelligent controlled fans (silent operation)
Ambient Operating Temperature	-10°C - 40°C
Construction
Available Colors	Black
Body Material	Aluminum
Display	Graphic LED Display
IP Rating	IP20
Other
Included Accessories	Power Cable
	Safety Cable
	Gel Frame
Optional Accessories	Gobo Holder
	Iris
Warranty	2 year limited warranty (parts & labor)

Broadcast Studio
Theatrical Venues
Architectural Projects
Houses of Worship
Convention Rooms & Trade Shows
Retail Promotions
Corporate Logo Projection
Gala and Event Lighting
Concert and Stage

📁 LumiOS PROFILE 300WW Cutsheet ↓
