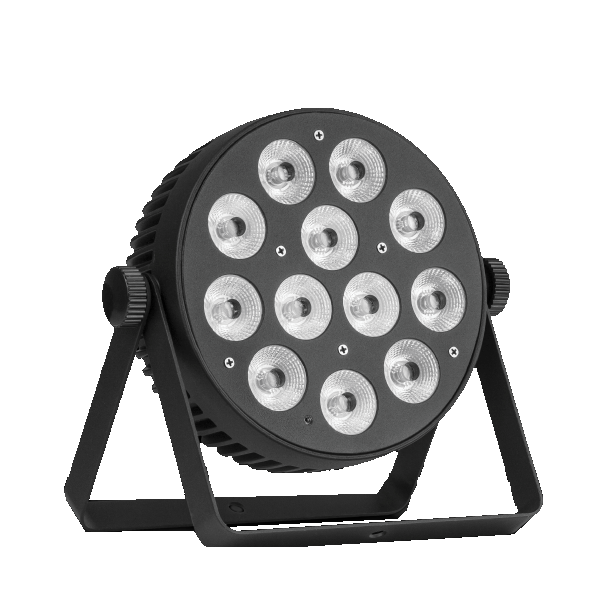

SMART 80

Specifications and Features:

Key Features:

• • • RGBW 16-Bit Color Mixing
    • Durable Construction and Convection Cooled for silent operation
    • Smooth 0-100% Dimming
    • Strobe 1-20 FPS

Technical Specifications:

Control and Programming:

• • • DMX Channel Modes: 4/9
    • Control Modes: DMX, IR, Auto, Sound, Master/Slave

Optics:

• • • Beam Angle: 40°
    • Light Source: 12 x 8W RGBW LEDs

Physical Dimensions:

• • • Dimensions (L x W x H): 212 x 220 x 52 mm  (8.35 x 8.7 x 2.0 in)
    • Weight:  1.85 kg  (4 Lbs)

Power Requirements:

• • • Peak Power Consumption: 110VA
    • Voltage: AC 100-240V, 50/60Hz

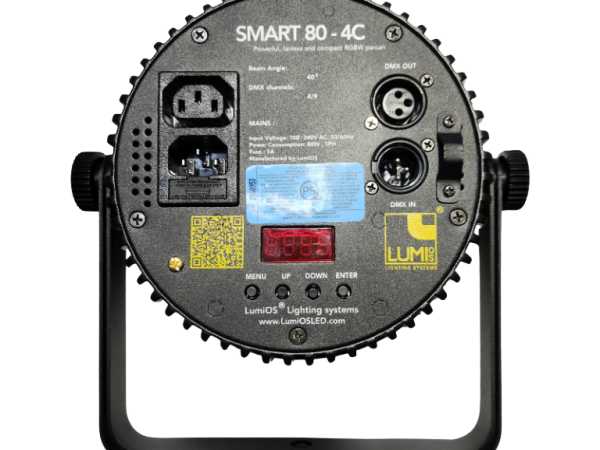

Connections:

• • • Data: 3-pin XLR Seetronic (In/Out)
    • Power: IEC (In/Out)

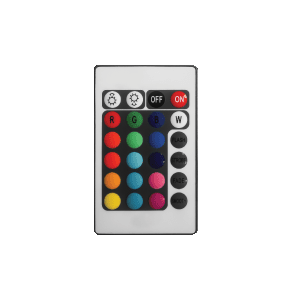

    • Wireless IR Control

Construction:

• • • Available Colors: Black
    • Convection Cooled
    • Display: Numeric LED Display
    • IP Rating: IP20

Accessories:

• • • Edison to IEC power cable

Warranty:

• • • 2 year limited warranty (parts & labor)
