Outdoor IP65 / Static Wash

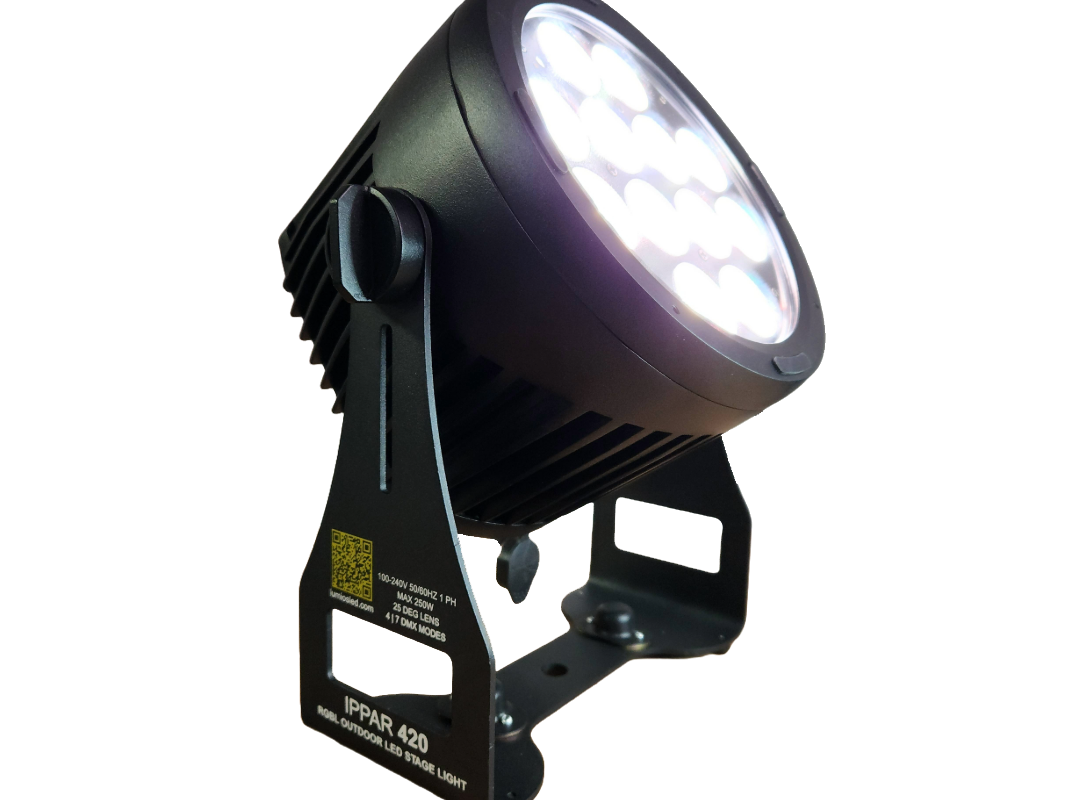

IPPAR 420

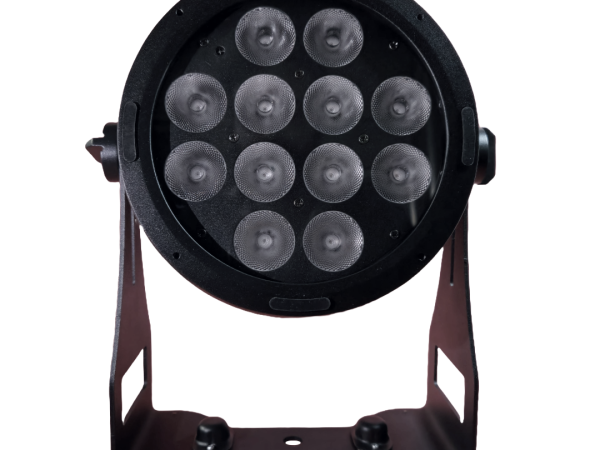

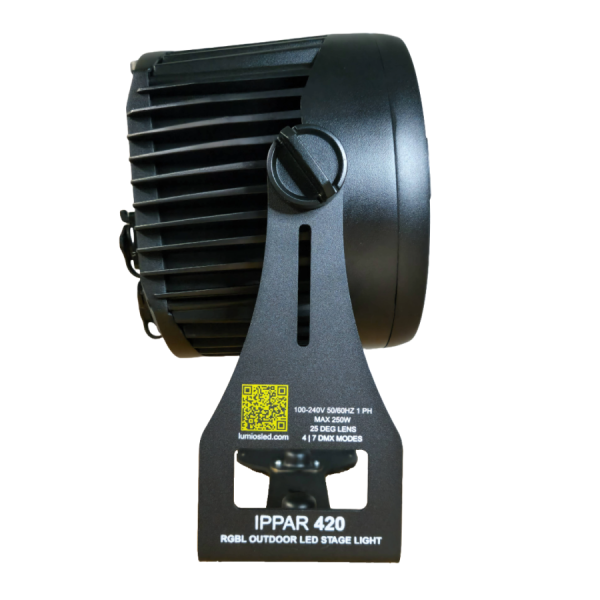

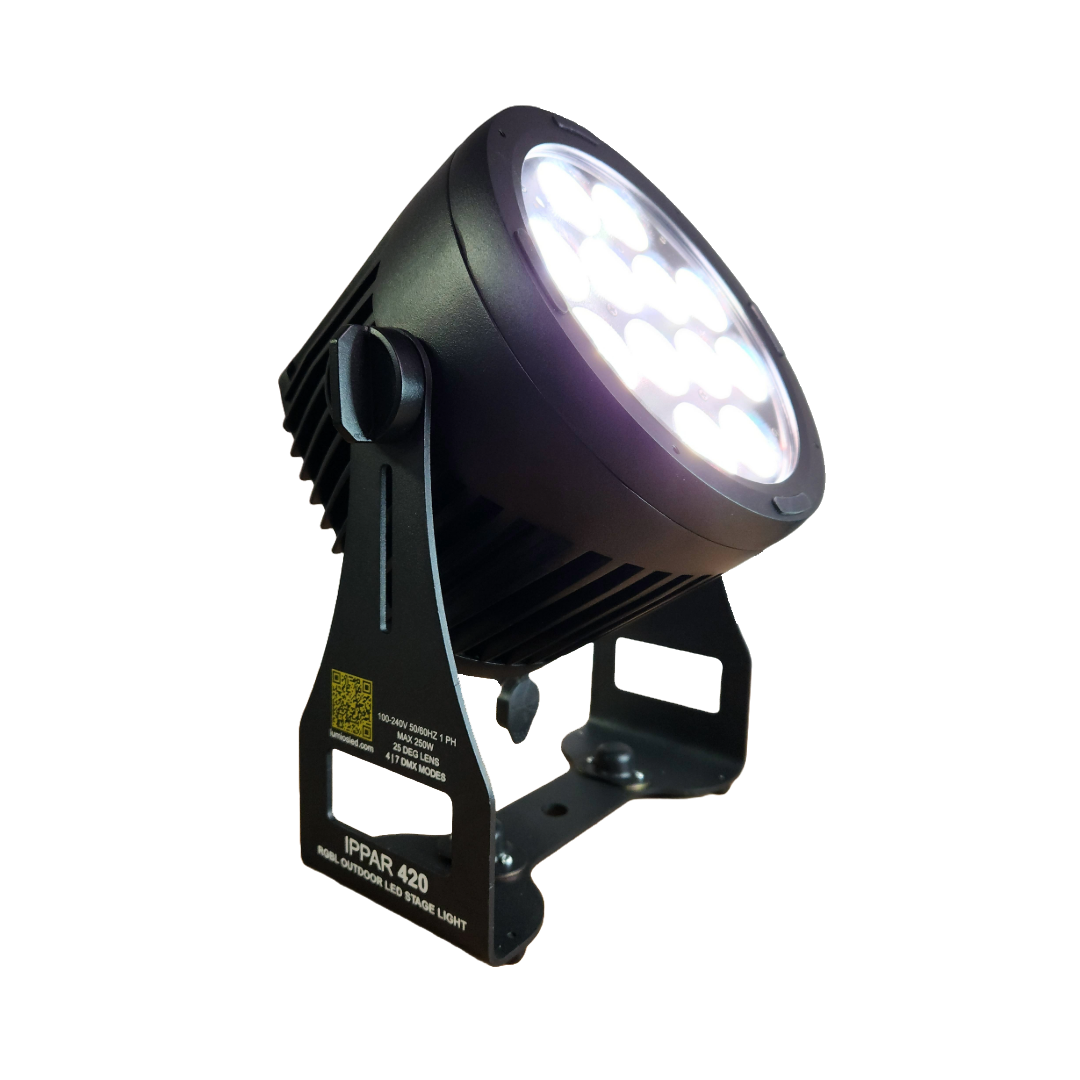

IPPAR 420 is a versatile 240W, IP65-rated LED wash fixture engineered to deliver exceptional performance in both indoor and outdoor environments. Powered by a 4-color 12 × 20W RGB+Lime LED engine, it produces rich, full-spectrum color with outstanding color mixing, high output, silent operation, and smooth flicker-free linear dimming.

Key Features

Weather Resistant IP65 Outdoor Rated Fixture

High power RGBL full spectrum LED color wash

240W (12 x 20W High brightness RGBL LEDs)

0-100% Linear Dimming

Variable Strobe Rate: 1-20 FPS

Durable Construction: strong die-cast aluminum with superior heat dissipation

Convection Cooled for silent operation

Versatile mounting and programming options

SKU: IPPAR420 Categories: Outdoor IP65, Static Wash

Request a Quote → Download Spec Sheet ↓

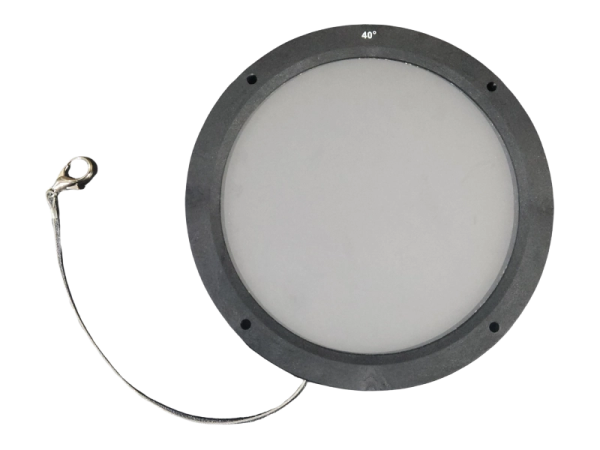

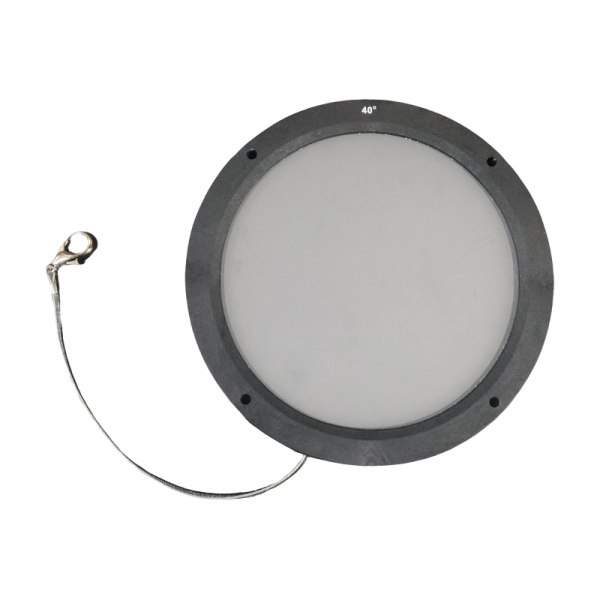

IPPAR 420 is designed for maximum flexibility, the optical system supports either a 25° or 40° beam angle through the use of an optional quick-mount magnetic diffuser, allowing the fixture to adapt easily to a wider range of lighting applications.

Built for professional use, the IPPAR 420 features a rugged die-cast aluminum housing and an efficient convection-cooled design that provides completely silent operation without the need for internal fans. Combining durable weather-resistant construction with premium optical performance, the IPPAR 420 is an ideal solution for live events, architectural lighting, touring productions, broadcast, and permanent installations where reliability, versatility, and superior color quality are essential.

Applications

Stage and Theatrical Lighting
Live Event Productions
Corporate events and conferences
Houses of Worship
Museums and Galleries
Hotel and Hospitality Venues
Retail and Showroom Lighting
Exhibition and Trade Shows
Nightclubs and Entertainment Venues

Control and Programming
DMX Channel Modes	4/7
Control Modes	CRMX, DMX, Master/Slave, Wireless Master/Slave
Optics
Wash Angle	25° (Optional 40° with added lens)

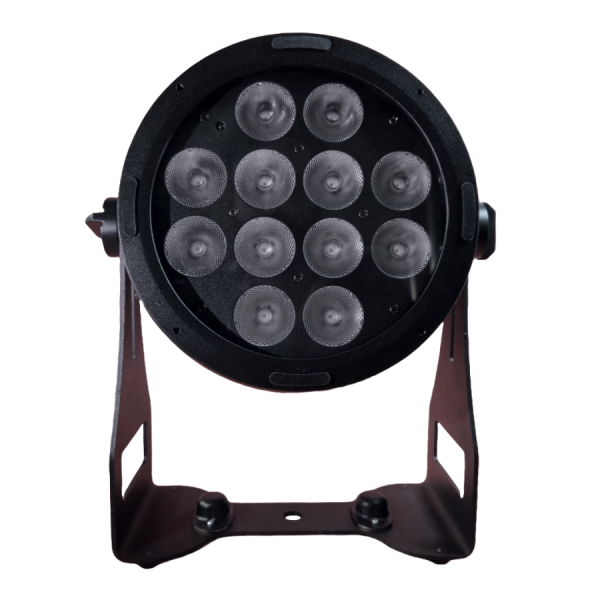

Light Source	12 x 20W RGBL LEDs
Physical Dimensions
Dimensions (L x W x H)	10.2 x 10.1 x 11.7 in (259 x 257 x 296 mm).
Weight	4.8 kb (10.6 Lbs)
Power Requirements
Peak Power Consumption	250VA
Voltage	AC 100-240V, 50/60Hz

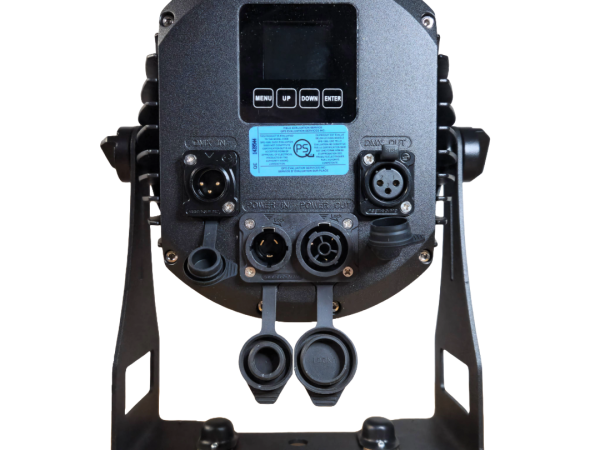

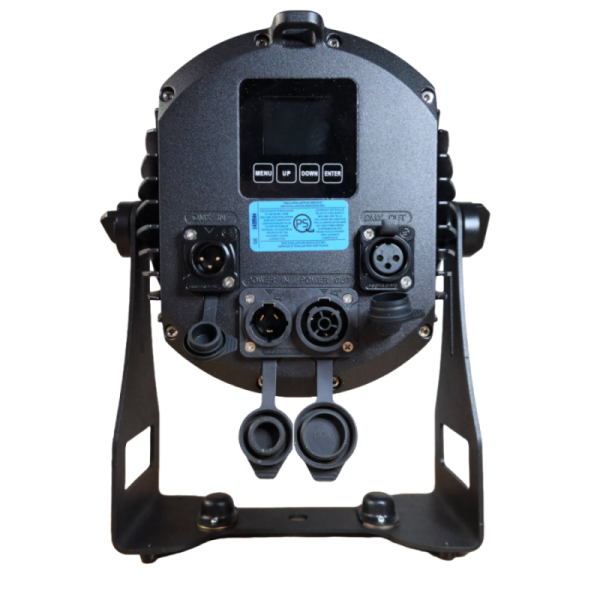

Connections
Data	5-pin waterproof XLR Seetronic (In/Out)
Power	Seetronic Truecon IP65 (In/Out)
Wireless	Lumenradio Timo Two Fx
Construction
Available Colors	Black
Display & Control	Graphic LCD Display + Selector Buttons
IP Rating	IP65

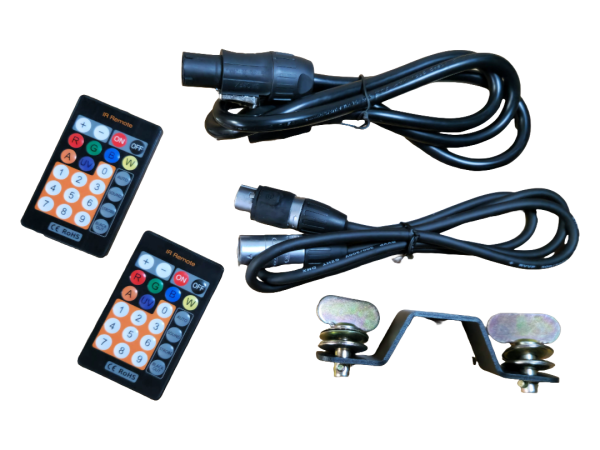

Other

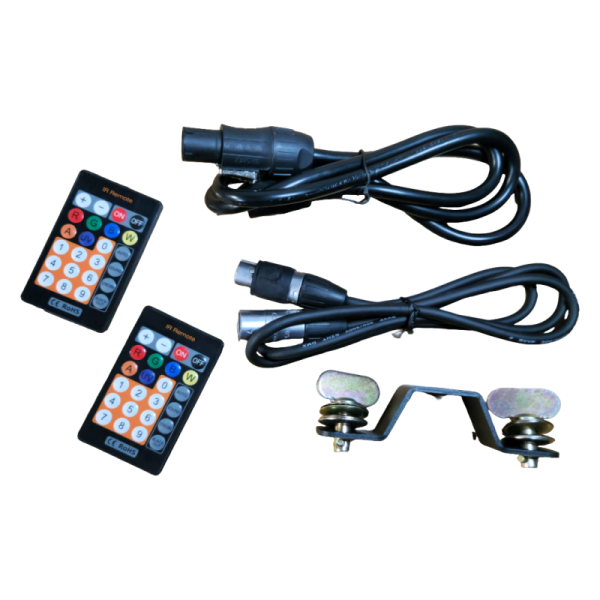

Accessories	Edison to SEETRONIC Truecon Female Wire Adapter
	Mounting Bracket
	40° Diffuser (Optional)
Warranty	3 year limited on parts and labour

Stage and Theatrical Lighting
Live Event Productions
Corporate events and conferences
Houses of Worship
Museums and Galleries
Hotel and Hospitality Venues
Retail and Showroom Lighting
Exhibition and Trade Shows
Nightclubs and Entertainment Venues

📁 LumiOS IPPAR 420 Cutsheet ↓
