Static Wash

SMART 80

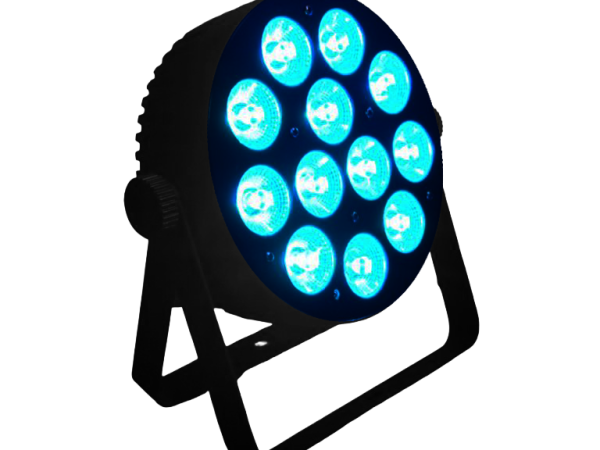

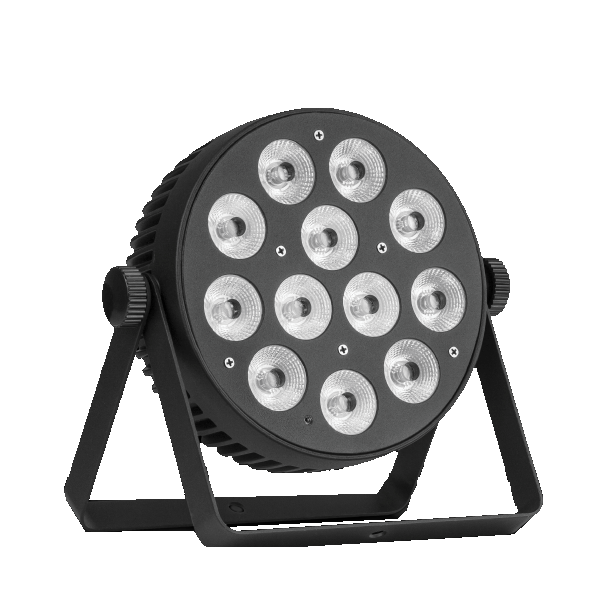

The SMART 80™ is a high-performance 96W RGBW 4-IN-1 LED par. The compact design is made to last. Constructed from cast metal alloy, featuring a slim design, and silent convection cooling. The SMART 80™ is a very versatile light for any application.

Key Features

DMX / RDM Compliant

DMX512-A · ANSI E1.11

High CRI

CRI ≥ 95 · TLCI ≥ 96

Designed in Canada

LumiOS Digital Lighting

SKU: SMART80 Category: Static Wash

Request a Quote → Download Spec Sheet ↓

Specifications and Features:

Key Features:

- - RGBW 16-Bit Color Mixing
  - Durable Construction and Convection Cooled for silent operation
  - Smooth 0-100% Dimming
  - Strobe 1-20 FPS

Technical Specifications:

Control and Programming:

- - DMX Channel Modes: 4/9
  - Control Modes: DMX, IR, Auto, Sound, Master/Slave

Optics:

- - Beam Angle: 40°
  - Light Source: 12 x 8W RGBW LEDs

Physical Dimensions:

- - Dimensions (L x W x H): 212 x 220 x 52 mm (8.35 x 8.7 x 2.0 in)
  - Weight: 1.85 kg (4 Lbs)

Power Requirements:

- - Peak Power Consumption: 110VA
  - Voltage: AC 100-240V, 50/60Hz

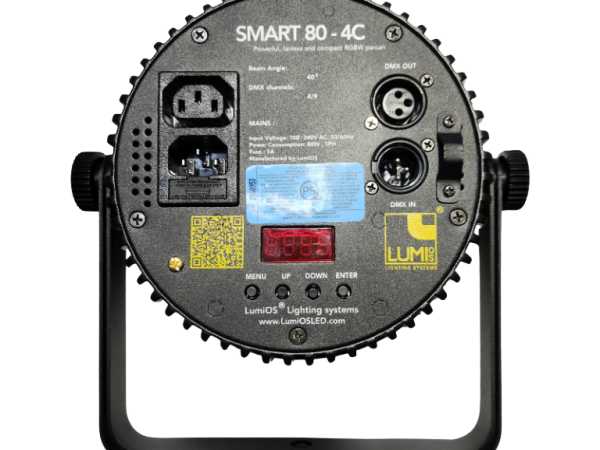

Connections:

- - Data: 3-pin XLR Seetronic (In/Out)
  - Power: IEC (In/Out)

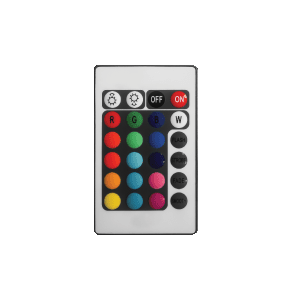

  - Wireless IR Control

Construction:

- - Available Colors: Black
  - Convection Cooled
  - Display: Numeric LED Display
  - IP Rating: IP20

Accessories:

- - Edison to IEC power cable

Warranty:

- - 2 year limited warranty (parts & labor)

📁 LumiOS SMART80 Cutsheet ↓
