WINCH 10
Motion Series

WINCH 10

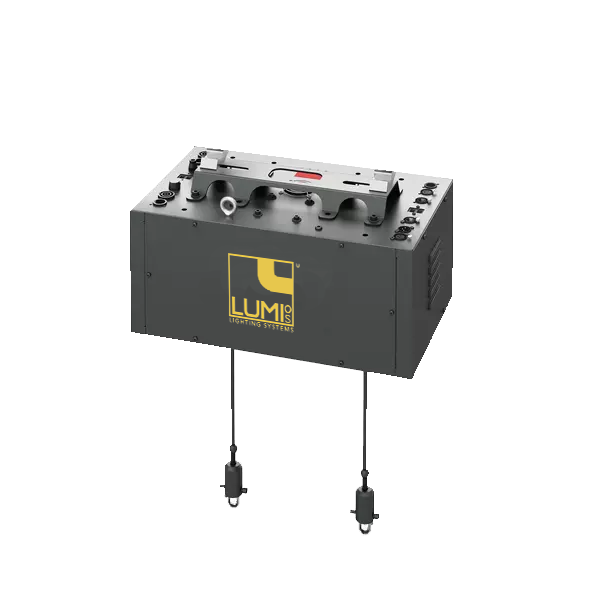

The WINCH 10 is a compact, high-precision 10 kg DMX winch engineered for live entertainment, permanent installations, and public art projects. Equipped with 5 m (16.4 ft) of lift cable and integrated pass-through power and data, it offers a streamlined solution for suspended scenic, lighting, and media elements. An optional 100W, 24V, 8-universe Pixel Node provides onboard control for connected LED fixtures and illuminated objects, simplifying system design while expanding creative possibilities.

Key Features
10 Kg Vertical Loads
Network DMX Controlled for High-Precision Positioning
Adjustable Speeds up to 1.4 kph (40 cm/s)
5m Lifting Height, 16-Bit Resolution
Power & Data Pass-Thru
Available with or without an 8-universe Pixel Node
Numerous protection systems for single and multiple-winch systems

SKU: WINCH-10-5M, WINCH-10P-5M Category: Brand:
Request a Quote → Download Spec Sheet ↓
CSA SPE1000
Canadian Compliant
10kg Load 5m Lifting 40cm/s
Moderate Size Objects
Layered Protection System
Safety Focused Design
8-Universe 4096 Pixels Option
Pixel Node Option

Designed for smooth, responsive motion control, the WINCH 10 delivers precise positioning across a broad range of movement speeds. When multiple units are synchronized through a DMX lighting console, designers can create dynamic kinetic displays, immersive visual experiences, and complex choreographed motion effects that bring spaces and performances to life.

WINCH 10 can be directly connected to lighting consoles via network DMX (ArtNet, sACN), enabling fast integration into live production environments.  It serves as a powerful core for medium sized lighting fixtures, dynamic props, and lifting backdrops.

WINCH 10 also features a host of protection features for safe operation of a single winch or a system of multiple winches working together.  LumiOS provides software for set-up and monitoring of multi-winch systems.

Some of our protection systems include:

    • Cable Slack Protection:  Auto stop when underload is detected
    • Cable Spooling Protection:  Auto stop when mis-spooling is detected
    • Cable Overload Protection:  Auto stop when load limit is exceeded
    • Teamwork Protection:  All-motor stop for one unit failure in multi-linked winch system
Movement Speed
Maximum Speed 40 cm/s (1.4 km/h), 16-Bit
Hoist Details
Lifting Capacity 10Kg (22 Lbs)
Cable Length 5m
Cable Diameter 7mm (~ 1/4 inches)
Synchronization <6mm Error
Load Monitoring Slack Prevention & Overload Prevention
User Limit Customizable E-Stop
Safety Physical Brake & Electronic Brake
Control and Programming
DMX channels 4 (Winch Movement) + 8 Universe for Pixels (if Pixel Node present)
Control modes Art-Net/sACN, RDM, Manual
Power Specifications
Winch 300VA, 90-240VAC, 50/60Hz
Node & Pixel PSU (internal) 150VA, 90-240VAC, 50/60Hz
4-Pin Bypass (user supplied power) 24V-240V / 6A Max

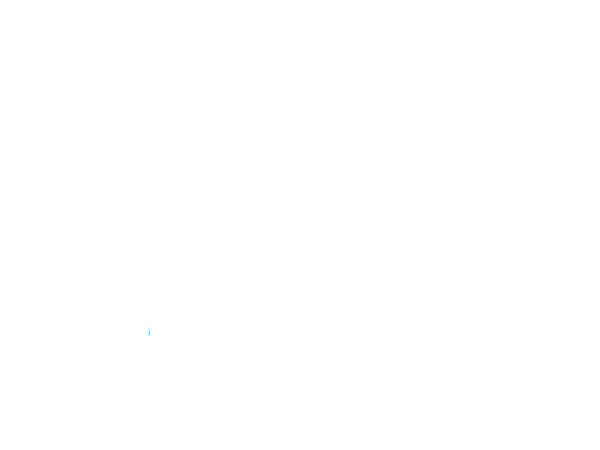

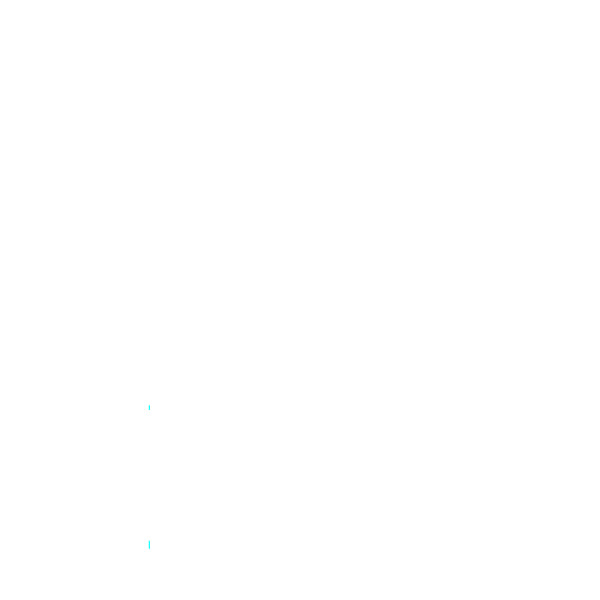

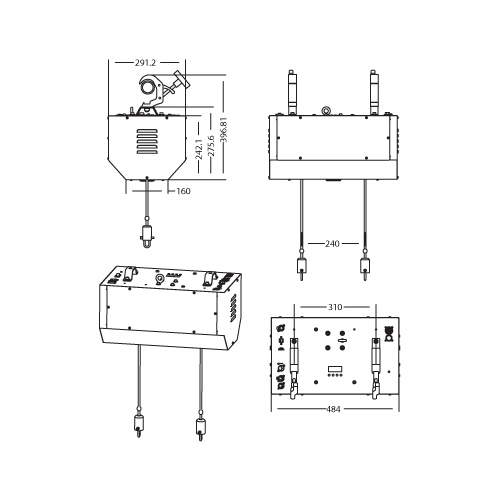

Physical Dimensions
Depth 297mm
Width 490mm
Height 397mm
Weight 16.7 kg (37 lbs)
Construction and Build
Housing colors Black
IP Rating IP20
Display & Control 4-Digit 7-Segment display + 4 push-buttons
Connections
Data in/out Locking EtherCON
Data Alternate RJ45
Main Power in/out Seetronic trueCON IP65
Accessory Power in 4-Pin GX-16
Other
Accessories Omega Bracket & Aluminum Clamp (2)
Safety Cable
Power & Signal Cable
Warranty 2-year warranty on parts and labor
