Precision-engineered for motion control delivers positioning accuracy to within 0.6 mm across a wide range of operating speeds. When deployed in synchronized arrays and controlled via a DMX lighting console, multiple units can create captivating kinetic movement, dynamic spatial compositions, and virtually limitless visual effects, transforming any environment into an immersive experience.

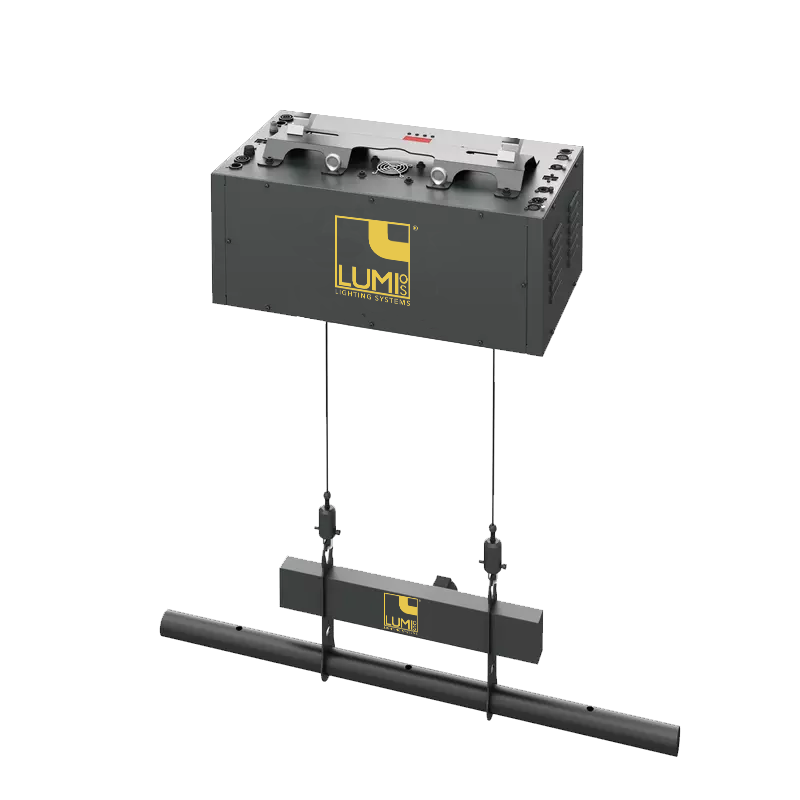

WINCH 80 can be directly connected to lighting consoles via network DMX (ArtNet, sACN), enabling fast integration into live production environments. It serves as a powerful core for large sized lighting fixtures, dynamic props, and lifting backdrops.
WINCH 80 also features a host of protection features for safe operation of a single winch or a system of multiple winches working together. LumiOS provides software for set-up and monitoring of multi-winch systems.
Some of our protection systems include:
-
- Cable Slack Protection: Auto stop when underload is detected
- Cable Spooling Protection: Auto stop when mis-spooling is detected
- Cable Overload Protection: Auto stop when load limit is exceeded
- Teamwork Protection: All-motor stop for one unit failure in multi-linked winch system
Technical Specifications:
Movement Speed:
- Maximum 40 cm/s (1.4 kph), 16-Bit
Hoist Details:
- Lifting Capacity: 80Kg (176 Lbs)
- Cable Length: 12m
- Cable Diameter: 9mm (~ 3/8 inches)
- Synchronization: <6mm Error
- Load Monitoring (Slack Prevention & Overload Prevention)
- Safety: Physical Brake & Electronic Brake
- Customizable E-Stop
Control and Programming:
- DMX channels: 4ch (Winch Movement)
- Control modes: Art-Net/sACN, RDM, Manual
Power Specifications:
- Winch: 1200VA, 90-240VAC, 50/60Hz
- 4-Pin Bypass Power: 24V-240V / 12A Max
Physical Dimensions:
- Depth: 332mm
- Width: 752mm
- Height: 414mm (with clamps)
- Weight: 44 kg (96.8 lbs)
Construction and Build:
- Housing colors: Black
- IP Rating: IP20
- 4-Digit 7-Segment numeric display for addressing and control
Connections:
- Data in/out: Locking EtherCON
- Data Alternate: RJ45
- Main Power in/out: Seetronic trueCON IP65
- Accessory Power in: 4-Pin GX-16
Accessories:
- Balance Bar (1 x 1m)
- Aluminum Clamps (2)
- Safety Cable
- Power & Signal Cable
Warranty:
- 2-year warranty on parts and labor
