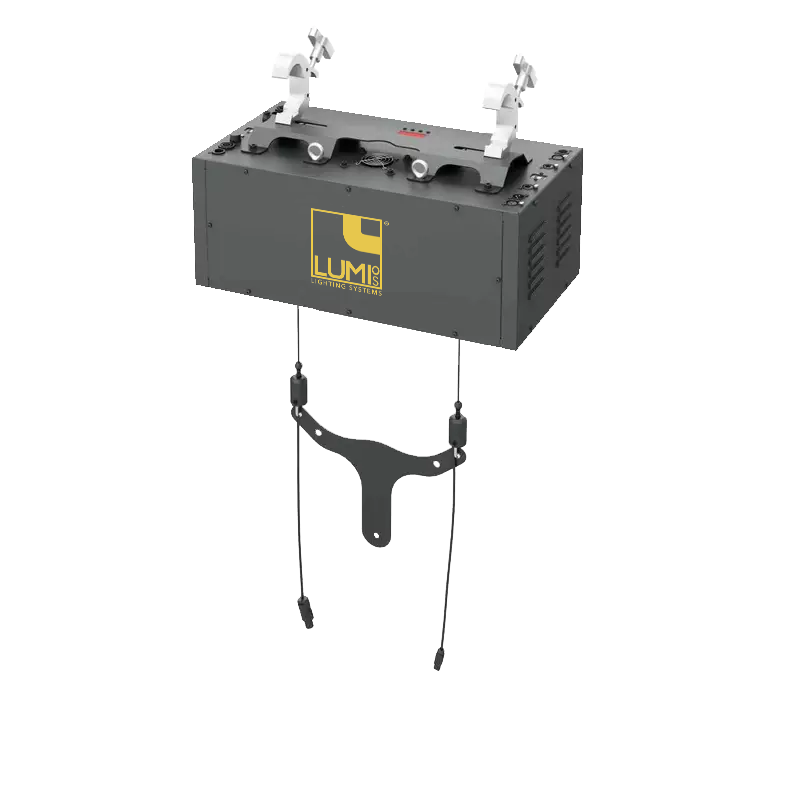

WINCH 60L

WINCH 60L can be directly connected to lighting consoles via network DMX (ArtNet, sACN), enabling fast integration into live production environments.  It serves as a powerful core for large sized lighting fixtures, dynamic props, and lifting backdrops.

Key Features:

• 60 Kg Vertical Loads
• Network DMX Controlled for High-Precision Positioning
• Adjustable Speeds up to 1.4 kph (40 cm/s)
• 15m Lifting Height, 16-Bit Resolution, 0.5mm Accuracy
• Power & Data Pass-Thru
• Numerous protection systems for single and multiple-winch systems

WINCH 60L also features a host of protection features for safe operation of a single winch or a system of multiple winches working together.  LumiOS provides software for set-up and monitoring of multi-winch systems.

Some of our protection systems include:

• • Cable Slack Protection:  Auto stop when underload is detected
  • Cable Spooling Protection:  Auto stop when mis-spooling is detected
  • Cable Overload Protection:  Auto stop when load limit is exceeded
  • Teamwork Protection:  All-motor stop for one unit failure in multi-linked winch system

Technical Specifications:

Movement Speed:

• Maximum 40 cm/s (1.4 kph), 16-Bit

Hoist Details:

• Lifting Capacity:  60Kg (132 Lbs)
• Cable Length:  15m
• Cable Diameter:  7mm (~ 1/4 inches)
• Synchronization:  <6mm Error
• Load Monitoring (Slack Prevention & Overload Prevention)
• Safety:  Physical Brake & Electronic Brake
• Customizable E-Stop

Control and Programming:

• DMX channels: 4ch (Winch Movement)
• Control modes:  Art-Net/sACN, RDM, Manual

Power Specifications:

• Winch: 1000VA, 90-240VAC, 50/60Hz
• 4-Pin Bypass Power:  24V-240V / 6A Max

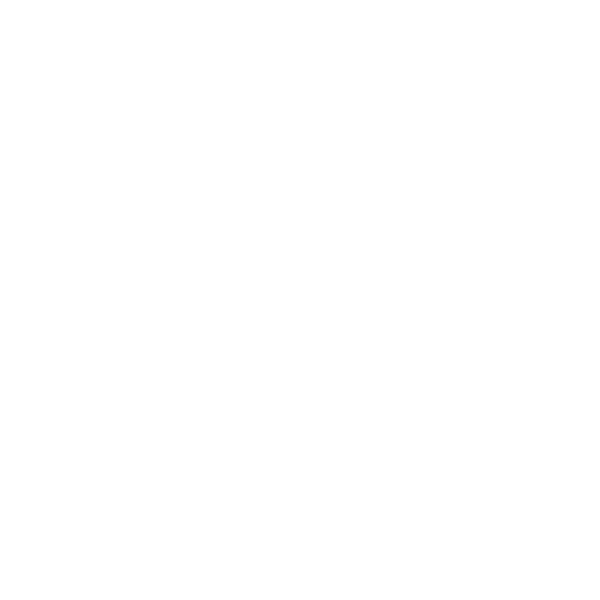

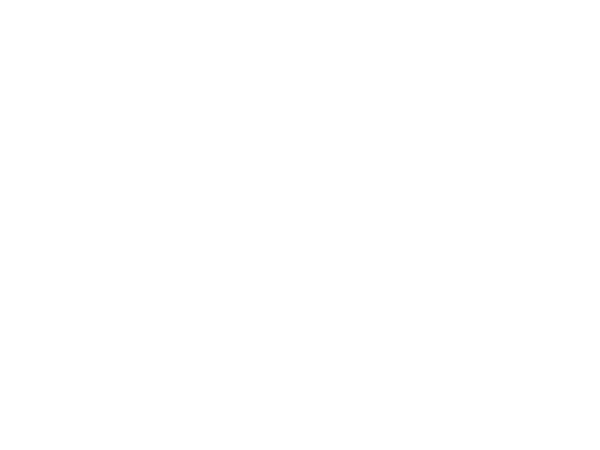

Physical Dimensions:

• Depth: 433mm
• Width: 628mm
• Height: 477mm (with clamps)
• Weight: 42 kg (92.4 lbs)

Construction and Build:

• Housing colors: Black
• IP Rating: IP20
• 4-Digit 7-Segment numeric display for addressing and control

Connections:

• Data in/out:  Locking EtherCON
• Data Alternate:  RJ45
• Main Power in/out:  Seetronic trueCON IP65
• Accessory Power in:  4-Pin GX-16

Accessories:

• Balance Bar (1 x 1m)
• Aluminum Clamps (2)
• Safety Cable
• Power & Signal Cable

Warranty:

• 2-year warranty on parts and labor
