WINCH 15

The WINCH 15 is a 15kg hoist for live stage, permanent installation, and public art projects. It features 9m (29.5ft) of lift cable with pass-thru power and data. A 100W 8-universe Pixel Node processes 4096 pixels (1024 RGBW) for connected LED elements. Position can be indexed with slow to quick movement, and when used in multiples connected to a DMX lighting console, an endless range of kinetic visual effects are possible.

Key Features

15 Kg Vertical Loads

Network DMX Controlled for High-Precision Positioning

Adjustable Speeds up to 2.5 kph (70 cm/s)

9m Lifting Height, 16-Bit Resolution

Power & Pixel Data Pass-Thru

Numerous protection systems for single and multiple-winch systems

SKU: WINCH-15-9M Category: Lift Series Brand: LumiOS

Request a Quote → Download Spec Sheet ↓

WINCH 15 can be directly connected to lighting consoles via network DMX (ArtNet, sACN), enabling fast integration into live production environments. It serves as a powerful core for medium sized lighting fixtures, dynamic props, and lifting backdrops.

WINCH 15 also features a host of protection features for safe operation of a single winch or a system of multiple winches working together. LumiOS provides software for set-up and monitoring of multi-winch systems.

Some of our protection systems include:

- Cable Slack Protection: Auto stop when underload is detected
- Cable Spooling Protection: Auto stop when mis-spooling is detected
- Cable Overload Protection: Auto stop when load limit is exceeded
- Teamwork Protection: All-motor stop for one unit failure in multi-linked winch system

Movement Speed
Maximum Speed	70 cm/s (2.5 kph), 16-Bit
Hoist Details
Lifting Capacity	15Kg (33 Lbs)
Cable Length	9m
Cable Diameter	7mm (~ 1/4 inches)
Synchronization	<6mm Error
Load Monitoring	Slack Prevention & Overload Prevention
User Limit	Customizable E-Stop
Safety	Physical Brake & Electronic Brake
Control and Programming
DMX channels	4 (Winch Movement) + 8 Universe for Pixels
Control modes	Art-Net/sACN, RDM, Manual
Power Specifications
Winch	400VA, 90-240VAC, 50/60Hz
Node & Pixel PSU (internal)	150VA, 90-240VAC, 50/60Hz
4-Pin Bypass (user supplied power)	24V-240V / 6A Max

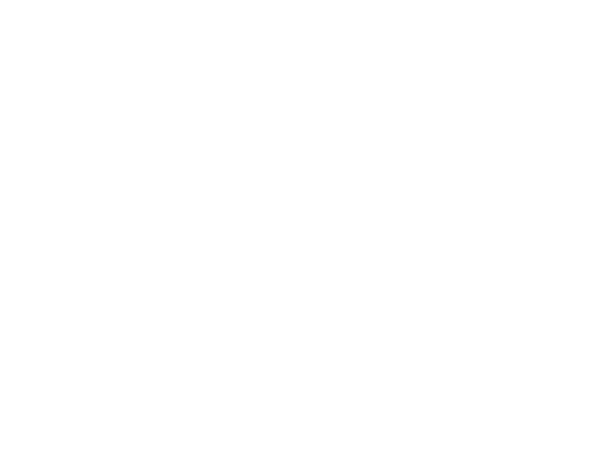

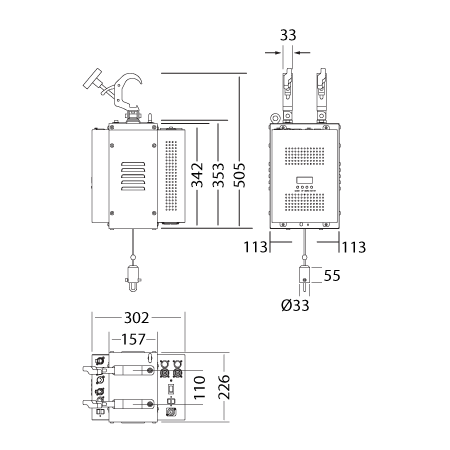

Physical Dimensions
Depth	302mm
Width	231mm
Height	497mm
Weight	13.4 kg (30 lbs)
Construction and Build
Housing colors	Black
IP Rating	IP20
Display & Control	4-Digit 7-Segment display + 4 push-buttons
Connections
Data in/out	Locking EtherCON
Data Alternate	RJ45
Main Power in/out	Seetronic trueCON IP65
Accessory Power in	4-Pin GX-16
Other
Included Accessories	Omega Bracket & Aluminum Clamp (2)
	Safety Cable
	Power & Signal Cable
Warranty	2-year warranty on parts and labor

No downloads available for this product yet.
