Lift Series

WINCH 5L

The WINCH 5L is a 5kg hoist for live stage, permanent installation, and public art projects. It features 30m (98.4ft) of lift cable with pass-thru power, data, and a 100W 8-universe Pixel Node. The extended cable length should satisfy the vertical space requirements of most venues. Position can be indexed with slow to quick movement, and when used in multiples connected to a DMX lighting console, an endless range of kinetic visual effects are possible.

Key Features

5 Kg Vertical Loads

Network DMX Controlled for High-Precision Positioning

Adjustable Speeds up to 2.5 kph (70 cm/s)

30m Lifting Height, 16-Bit Resolution

Power & Pixel Data Pass-Thru

Numerous protection systems for single and multiple-winch systems

SKU: WINCH-5L-30M Category: Lift Series Brand: LumiOS

Request a Quote → Download Spec Sheet ↓

WINCH 5L can be directly connected to lighting consoles via network DMX (ArtNet, sACN), enabling fast integration into live production environments. It is ideally suited for lighter LED light balls, light tubes, floating props, dynamic decorations, and similar applications.

WINCH 5L also features a host of protection features for safe operation of a single winch or a system of multiple winches working together. LumiOS provides software for set-up and monitoring of multi-winch systems.

Some of our protection systems include:

- Cable Slack Protection: Auto stop when underload is detected
- Cable Spooling Protection: Auto stop when mis-spooling is detected
- Cable Overload Protection: Auto stop when load limit is exceeded
- Teamwork Protection: All-motor stop for one unit failure in multi-linked winch system

Movement Speed
Maximum Speed	70 cm/s (2.5 kph), 16-Bit
Hoist Details
Lifting Capacity	5Kg (11 Lbs)
Cable Length	30m
Cable Diameter	3.6mm (~ 1/8 inches)
Synchronization	<6mm Error
Load Monitoring	Slack Prevention & Overload Prevention
User Limit	Customizable E-Stop
Safety	Physical Brake & Electronic Brake
Control and Programming
DMX channels	4 (Winch Movement) + 8 Universe for Pixels
Control modes	Art-Net/sACN, RDM, Manual
Power Specifications
Winch	700VA, 90-240VAC, 50/60Hz
Node & Pixel PSU (internal)	150VA, 90-240VAC, 50/60Hz
4-Pin Bypass Power (user supplied power)	24V-240V / 6A Max

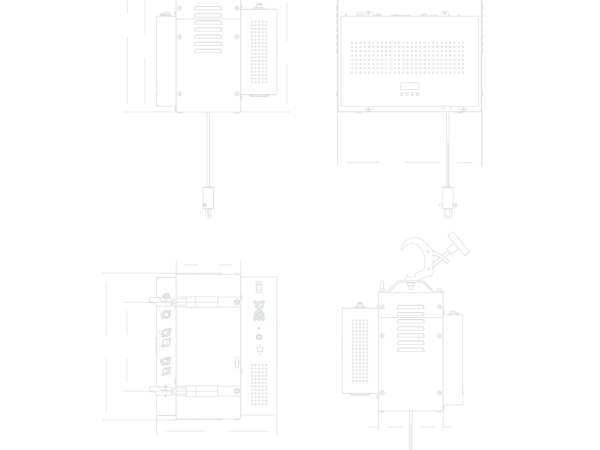

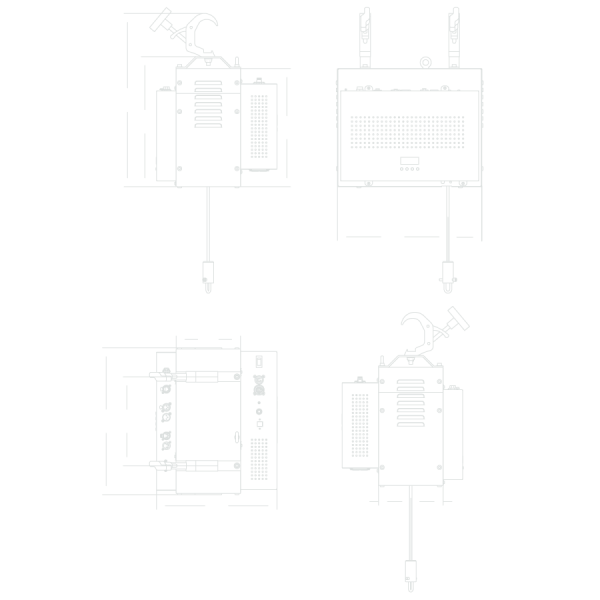

Physical Dimensions
Depth	340mm
Width	402mm
Height	487mm
Weight	18.5 kg (41 lbs)
Construction and Build
Housing colors	Black
IP Rating	IP20
Display & Control	4-Digit 7-Segment display + 4 push-buttons
Connections
Data in/out	Locking EtherCON
Data Alternate	RJ45
Main Power in/out	Seetronic trueCON IP65
Accessory Power in	4-Pin GX-16
Other
Included Accessories	Omega Bracket & Aluminum Clamp (2)
	Safety Cable
	Power & Signal Cable
Warranty	2-year warranty on parts and labor

No downloads available for this product yet.

📋 Request a Spec Sheet
