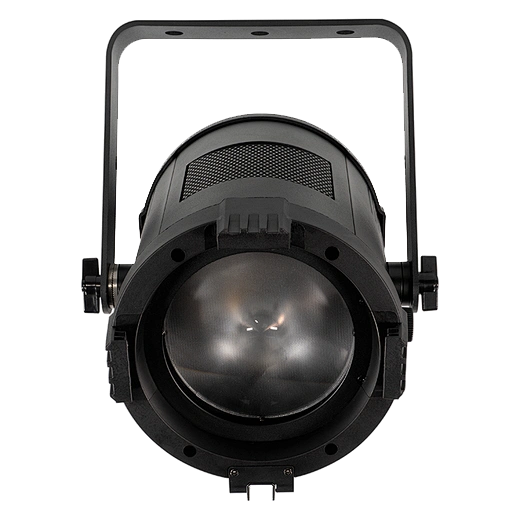

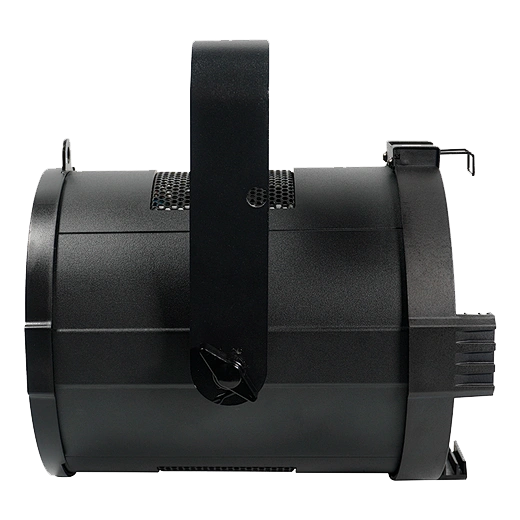

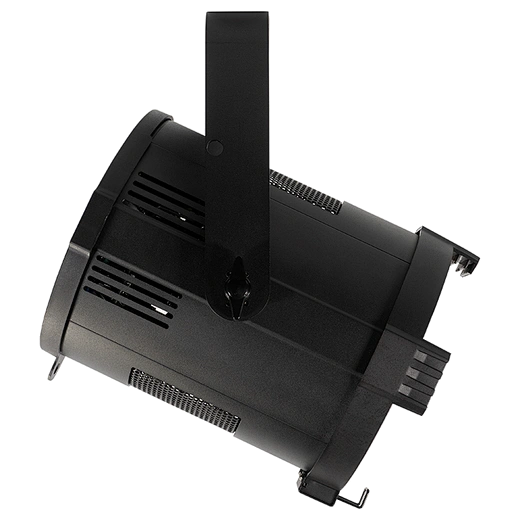

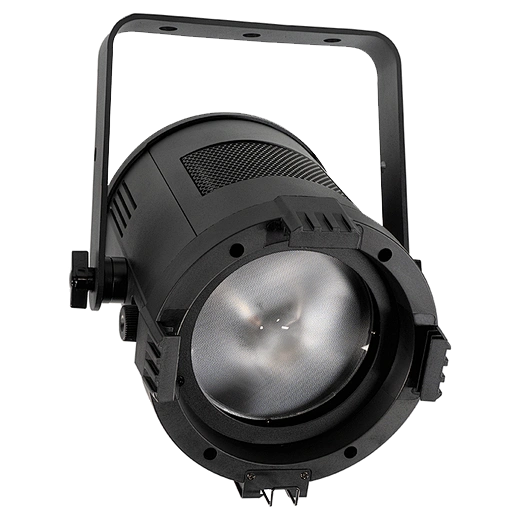

FRESNEL 200T
Fresnel

FRESNEL 200T

FRESNEL 200T is a premium 200W tunable white LED Fresnel designed for demanding professional lighting applications. Featuring an adjustable color temperature range of 2700K–6000K, outstanding color accuracy with CRI ≥95 and TLCI ≥98, and full DMX/RDM compatibility, it delivers the performance and flexibility required for a wide range of applications including broadcast, theatre, studio, stage, museum, and exhibition lighting.

Key Features
200W warm white + 200W cool white
Tunable 2700-6500°K colour temperature
CRI≥95, R9≥95, TLCI 97
25°-65° Manual Zoom
Smooth 0-100% Dimming, Flicker Free & Strobe Capable
Rotary, Key & DMX control of dimmer

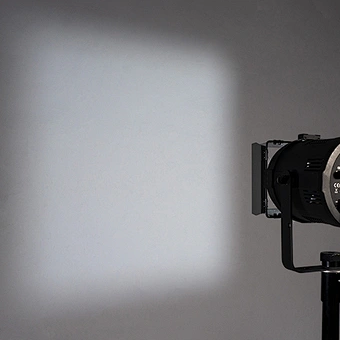

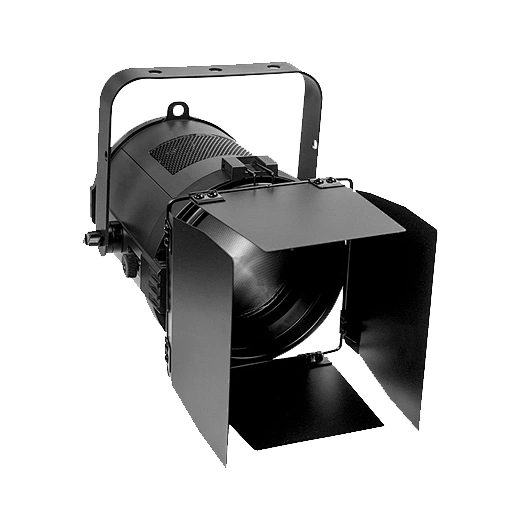

4-leaf rotatable barndoor included
Durable Metal Construction

SKU: FRESNEL 200T Category:

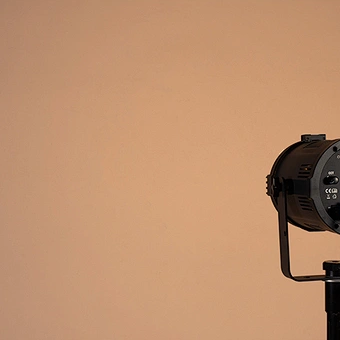

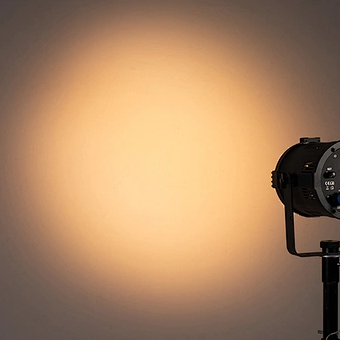

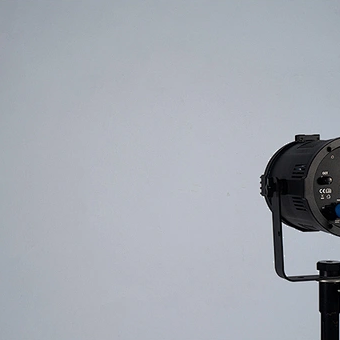

FRESNEL 200T features a 25°–65° manual zoom that delivers the classic optical performance that has made Fresnel fixtures the industry standard for decades. From a tight, punchy spot to a broad, even wash, the FRESNEL 200T produces a clean, uniform field with smooth falloff, natural wrap, and beautifully controlled shadow transitions. The result is a refined, flattering quality of light that shapes subjects with depth and dimension while offering the precision and versatility lighting professionals expect. Housed in a lightweight yet rugged metal chassis, the FRESNEL 200T is built to withstand the demands of daily production.



Applications

  • Studio Production
  • Theatres
  • Lecture Halls
  • Corporate Video
  • Educational Facilities
  • Museums and Galleries
  • Houses of Worship
  • Live Event Production
Control and Programming
DMX Channel Modes 1/2/3/5
Control Modes DMX, RDM, Rotary
Optics
Light Source 200W WW + 200W CW COB LED
Color Temperature 2700°-6500°K
Zoom Range 25° - 65°

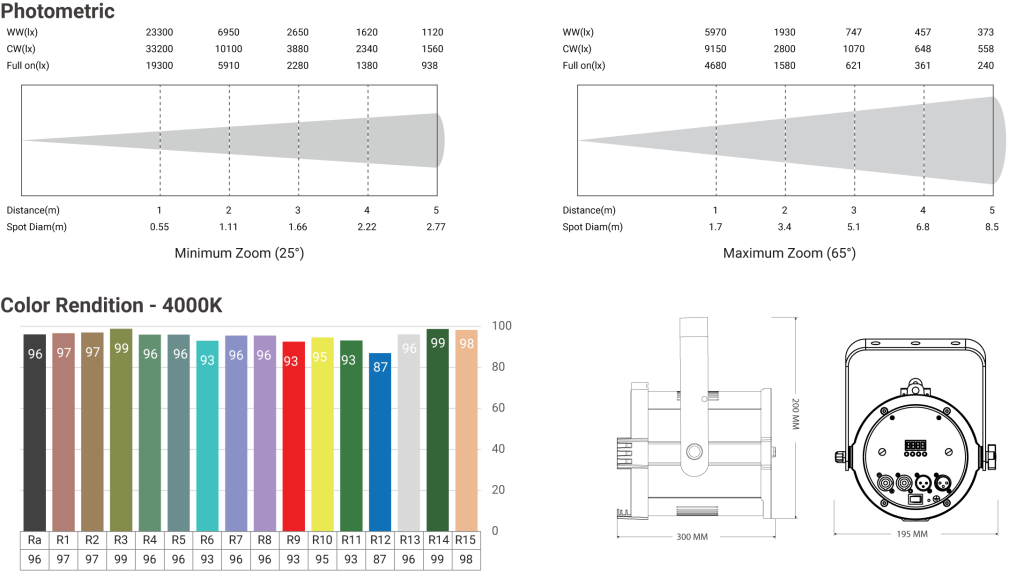

Benchmarks CRI≥95, R9≥95, TLCI 97

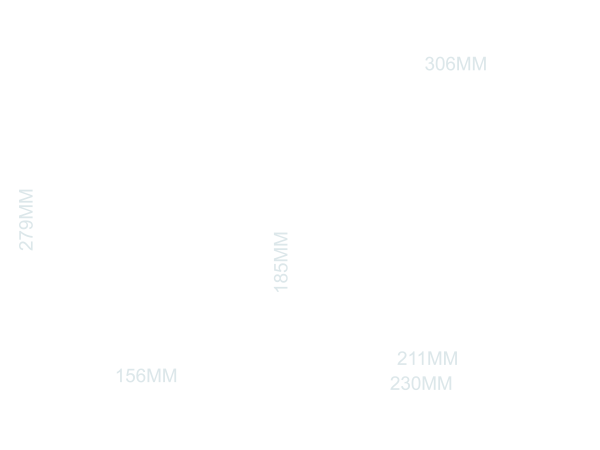

Physical Dimensions
Dimensions (L x W x H) 300 x 200 x 195mm
Weight 4.5 kg (9.9 Lbs) incl. Barn Door
Power Requirements
Peak Power Consumption 220VA
Voltage AC 100-240V, 50/60Hz
Maximum Power Linking 8 Units
Connections

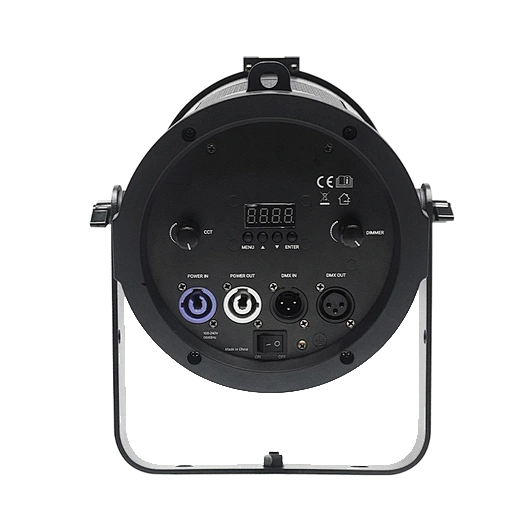

Data In/Out 3-pin XLR M/F
Power In/Out Seetronic Powercon
Construction
Available Colors Black
Body Material Aluminum
Display & Control Numeric LED Display and selector buttons
IP Rating IP20
Other
Accessories Edison to PowerCON cable
Barn Door

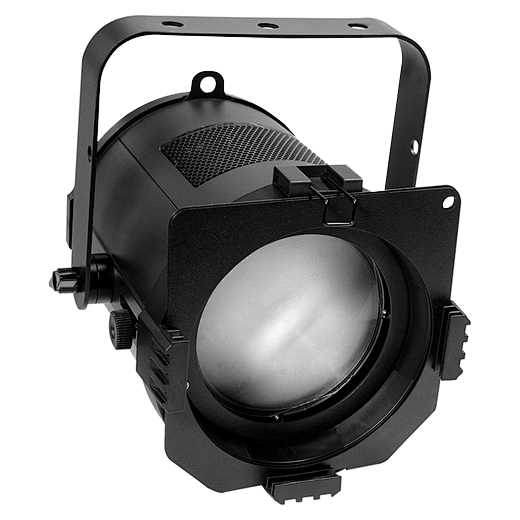

Gel Frame
Safety Cable
Warranty 2 year limited warranty (parts & labour)
  • Studio Production
  • Theatres
  • Lecture Halls
  • Corporate Video
  • Educational Facilities
  • Museums and Galleries
  • Houses of Worship
  • Live Event Production
