FRESNEL 350Z 6C
Fresnel

FRESNEL 350Z 6C

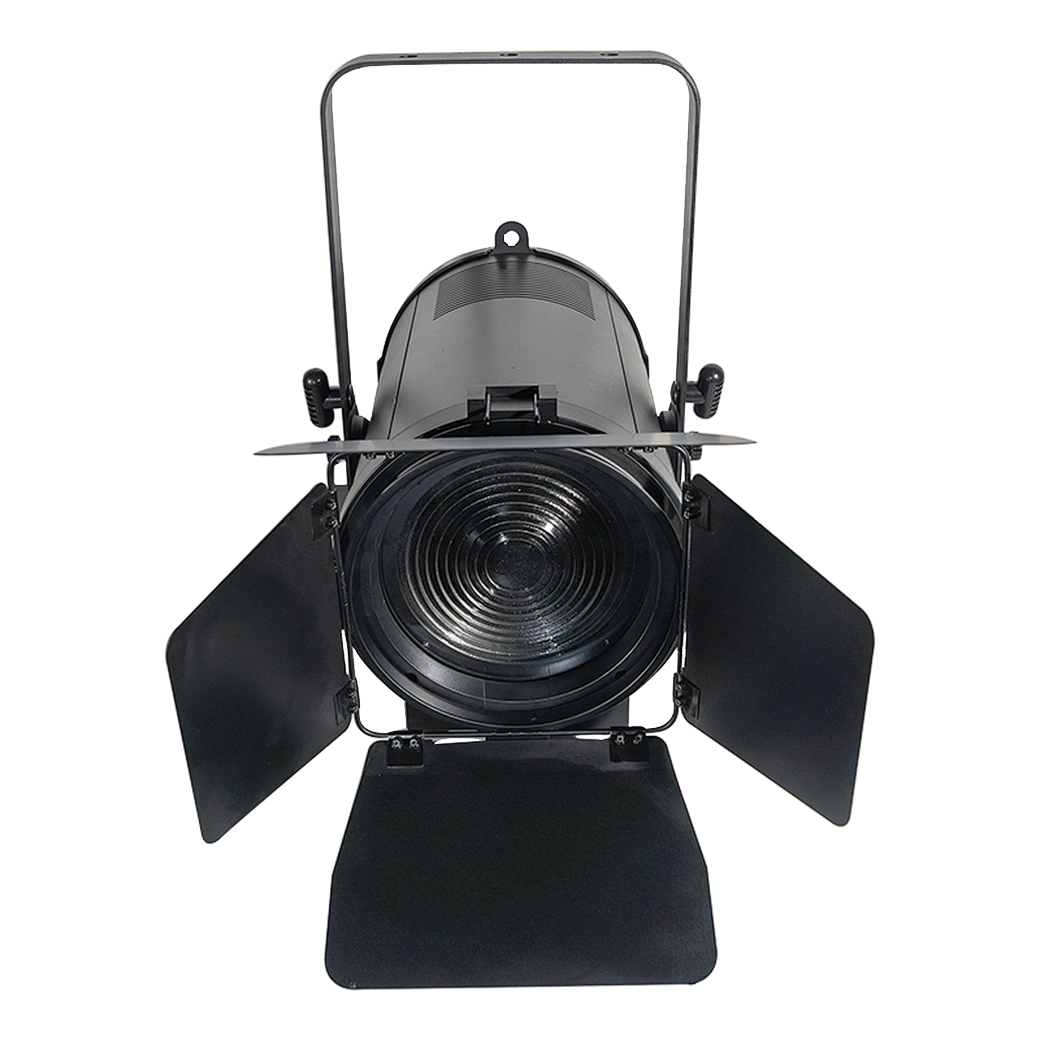

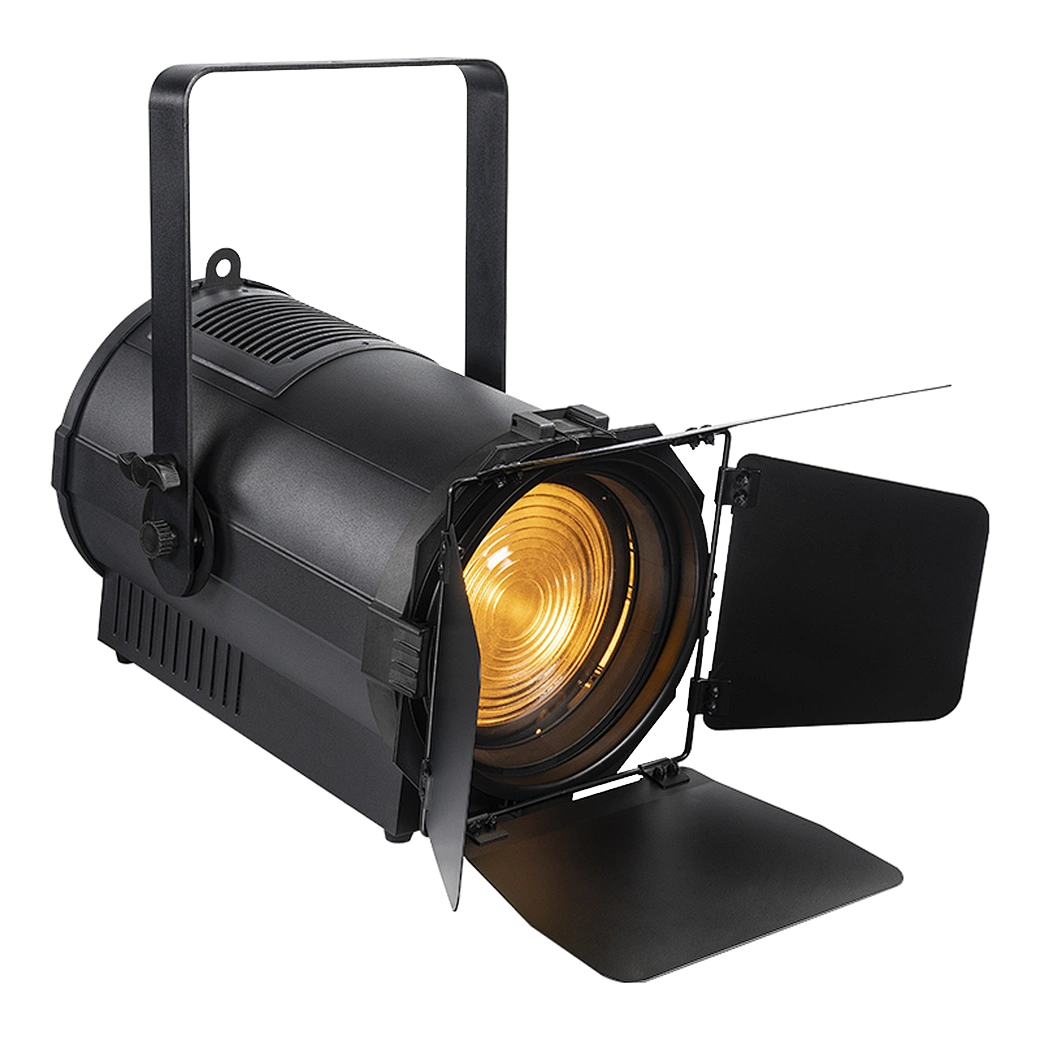

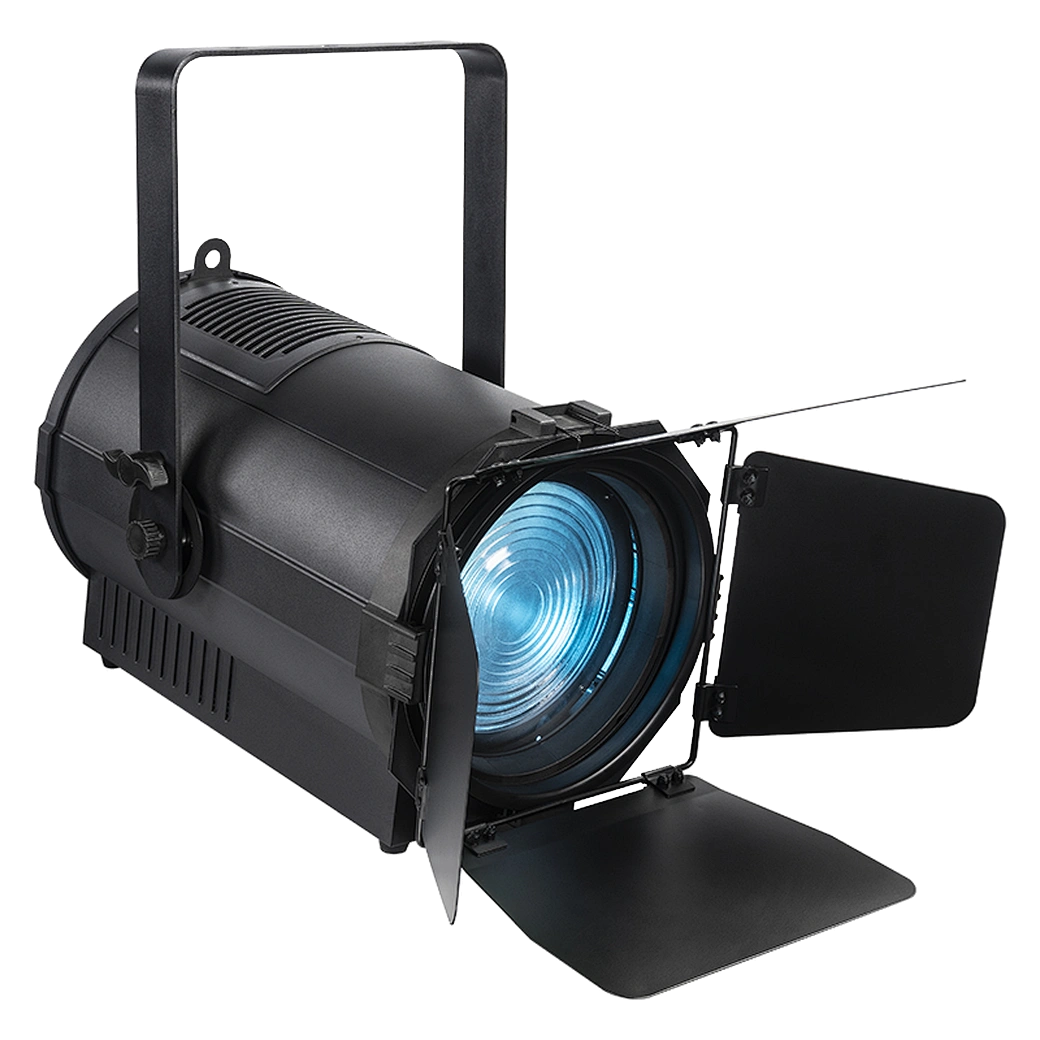

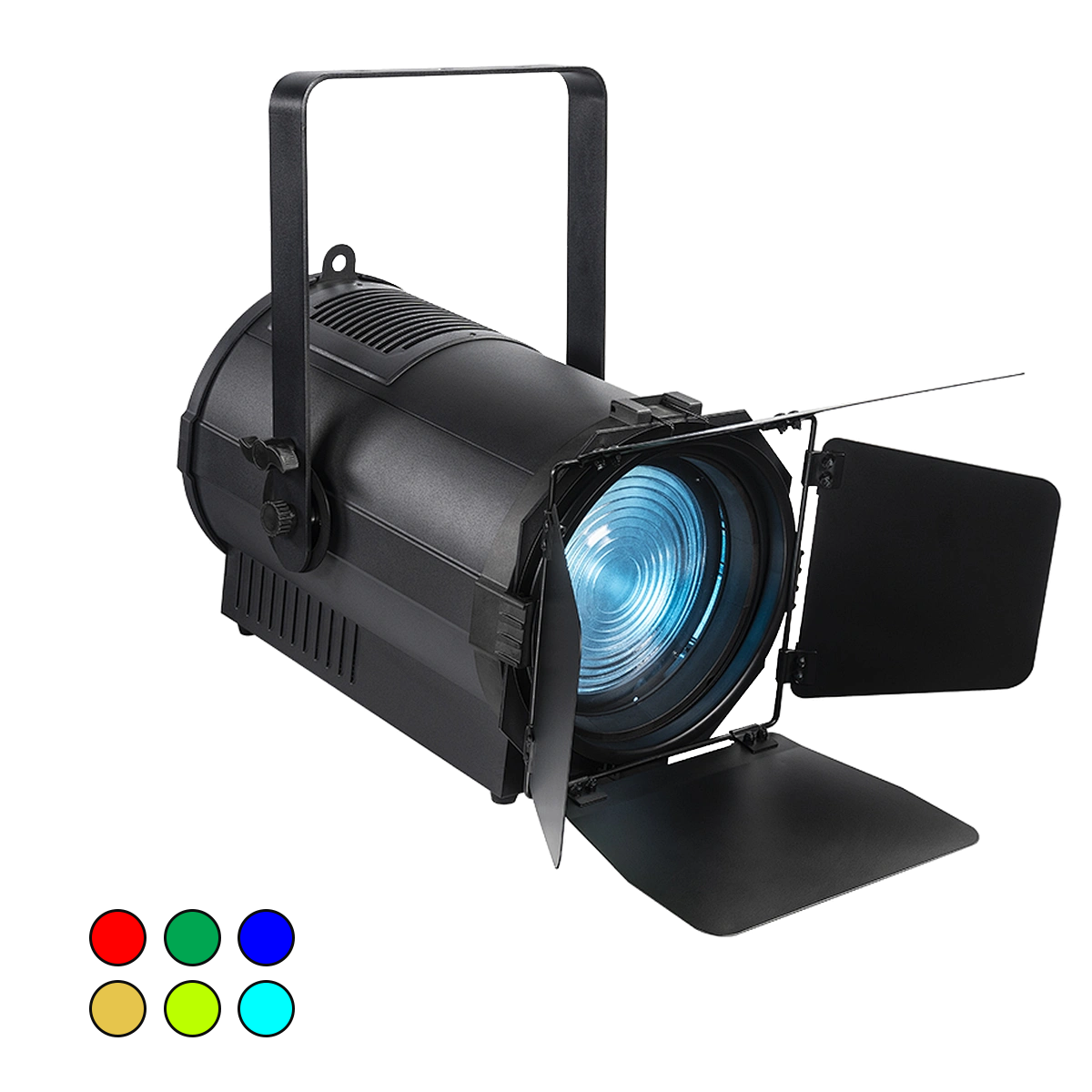

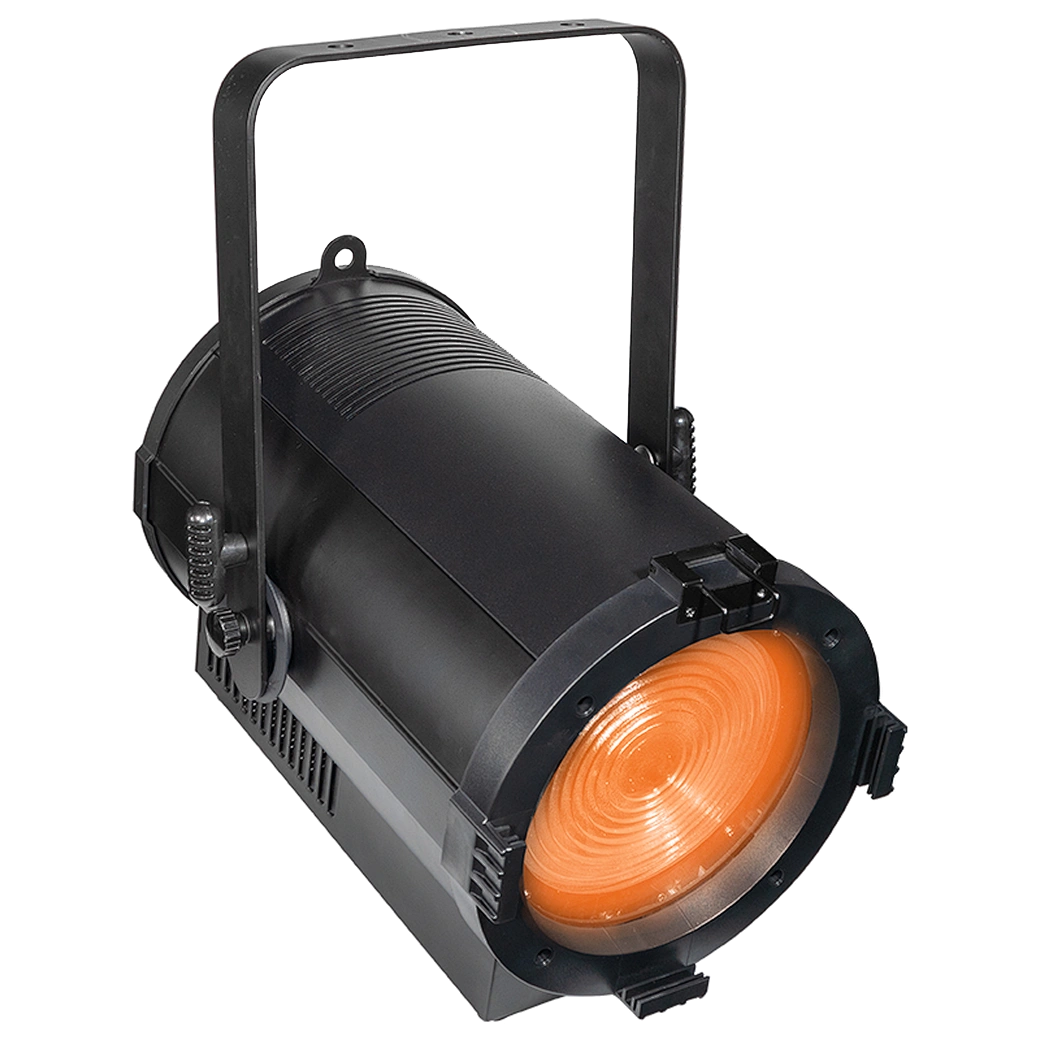

FRESNEL 350Z 6C is a flagship 6-color 350W full-spectrum LED Fresnel engineered for productions that demand powerful output, advanced color control, and uncompromising optical performance. Powered by an advanced 6-color RGBALC (Red, Green, Blue, Amber, Lime, Cyan) light engine, it delivers an expansive color palette and an ultra-wide 2200K–10,000K tunable color temperature range, giving lighting designers the flexibility to create everything from warm practicals and candlelight to cool daylight and stylized color effects—all from a single fixture. Fully DMX/RDM compliant, the FRESNEL 350Z 6C integrates seamlessly into professional lighting systems for precise remote control and programming.
Key Features
350W RGBALC LED Fresnel with Motorized Zoom
65W each color (Red + Green + Blue + Amber + Lime + Cyan)
Full Spectrum Color Mixing
High CRI of 85
8°-60° Motorized Zoom via DMX
Smooth 16bit 0-100% Dimming via DMX
Selectable Dimmer Curves
Video flicker free & Strobe capable
Rotary, Key & DMX control of dimmer
Intelligent temperature control
Durable Metal Construction

SKU: FRESNEL 350Z-6C Category:

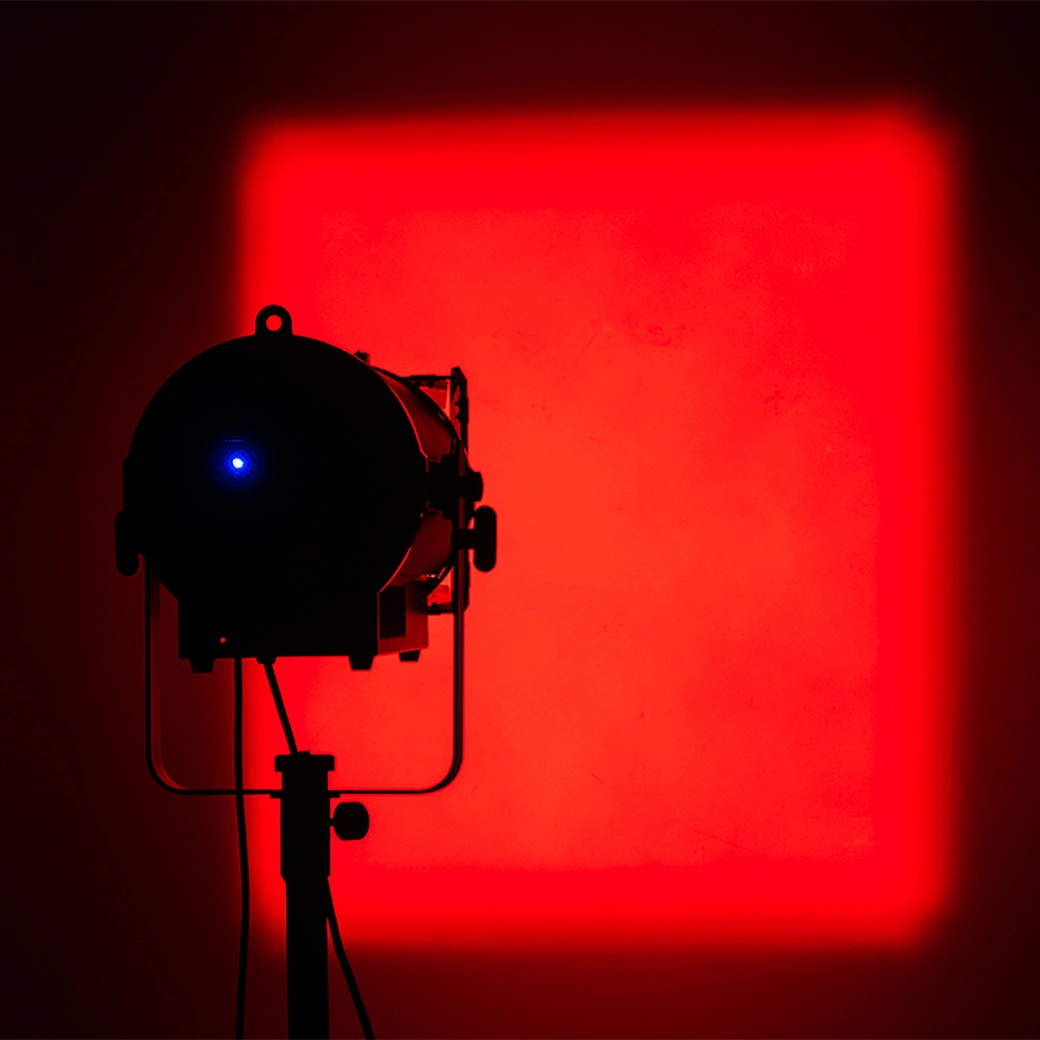

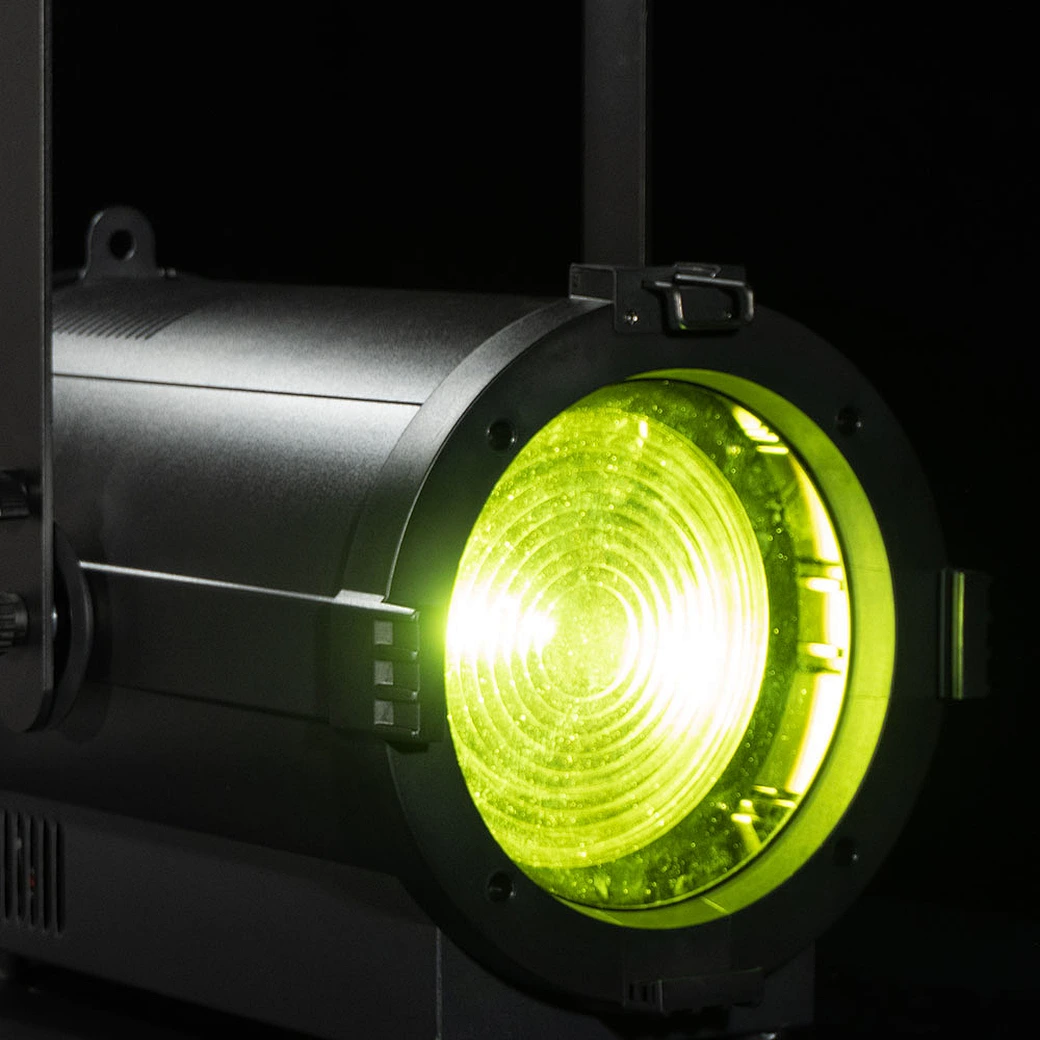

FRESNEL 350Z 6C also features a DMX-controlled 8°–60° motorized zoom that provides exceptional beam-shaping versatility, allowing seamless remote adjustment from a tight, high-intensity spot to a broad, even wash. Combined with the renowned optical performance of a true Fresnel lens, it delivers a clean, uniform field, smooth falloff, natural wrap, and beautifully controlled shadow transitions that bring depth, texture, and a refined cinematic quality to every scene. Built into a lightweight yet rugged metal chassis, the FRESNEL 350Z 6C is an ideal solution for theatres, film and television production, broadcast studios, houses of worship, museums, and live event applications where superior beam quality, creative flexibility, and powerful output are essential.



Applications

  • Studio Production
  • Theatres
  • Lecture Halls
  • Corporate Video
  • Educational Facilities
  • Museums and Galleries
  • Houses of Worship
  • Live Event Production
Control and Programming
DMX Channel Modes 2/8/13
Control Modes DMX, RDM, Auto, Manual
Optics
Light Source 65W Red/65W Green/65W Blue/65W Amber/65W Lime/65W Cyan
Color Temperature 2,200°-10,000°K
Zoom Range 8° - 60°
Thermal
Main Cooling Heat Sink (silent convection)
Operating Temperature Range -5°C to 45°C

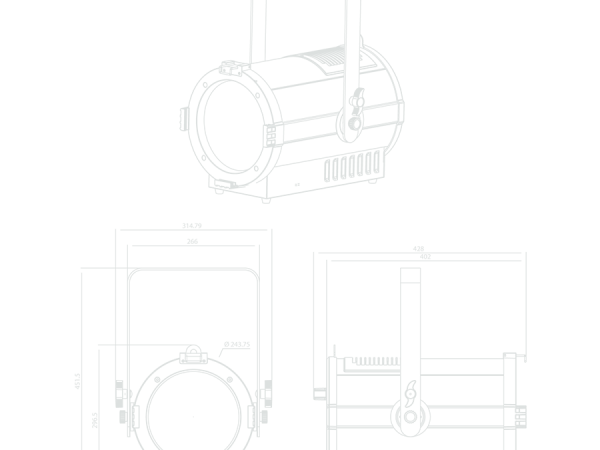

Physical Dimensions
Dimensions (L x W x H) 460 x 320 x 440 mm
Weight 11 kg (24.2 Lbs) incl. Barn Door
Power Requirements
Peak Power Consumption 480VA
Voltage AC 100-240V, 50/60Hz
Maximum Power Linking 4 Units

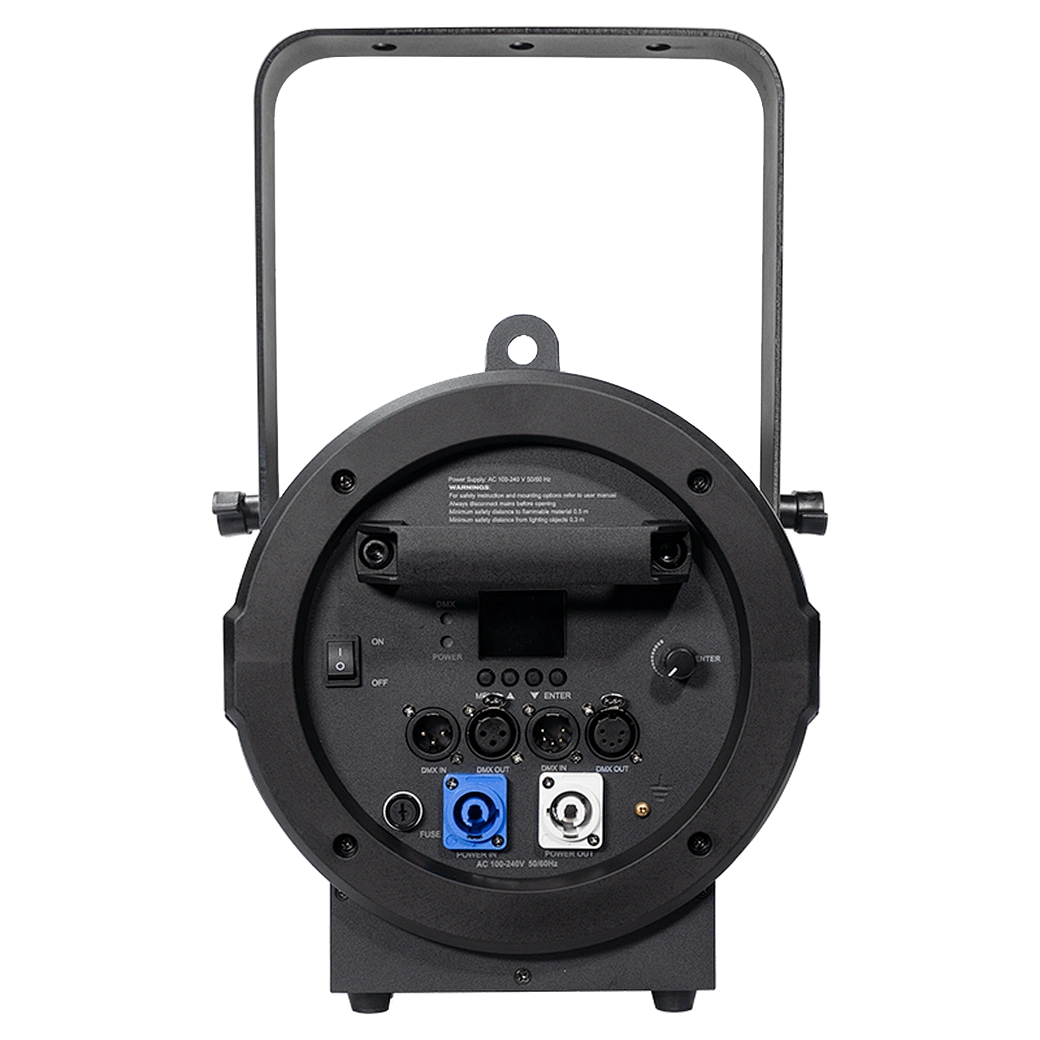

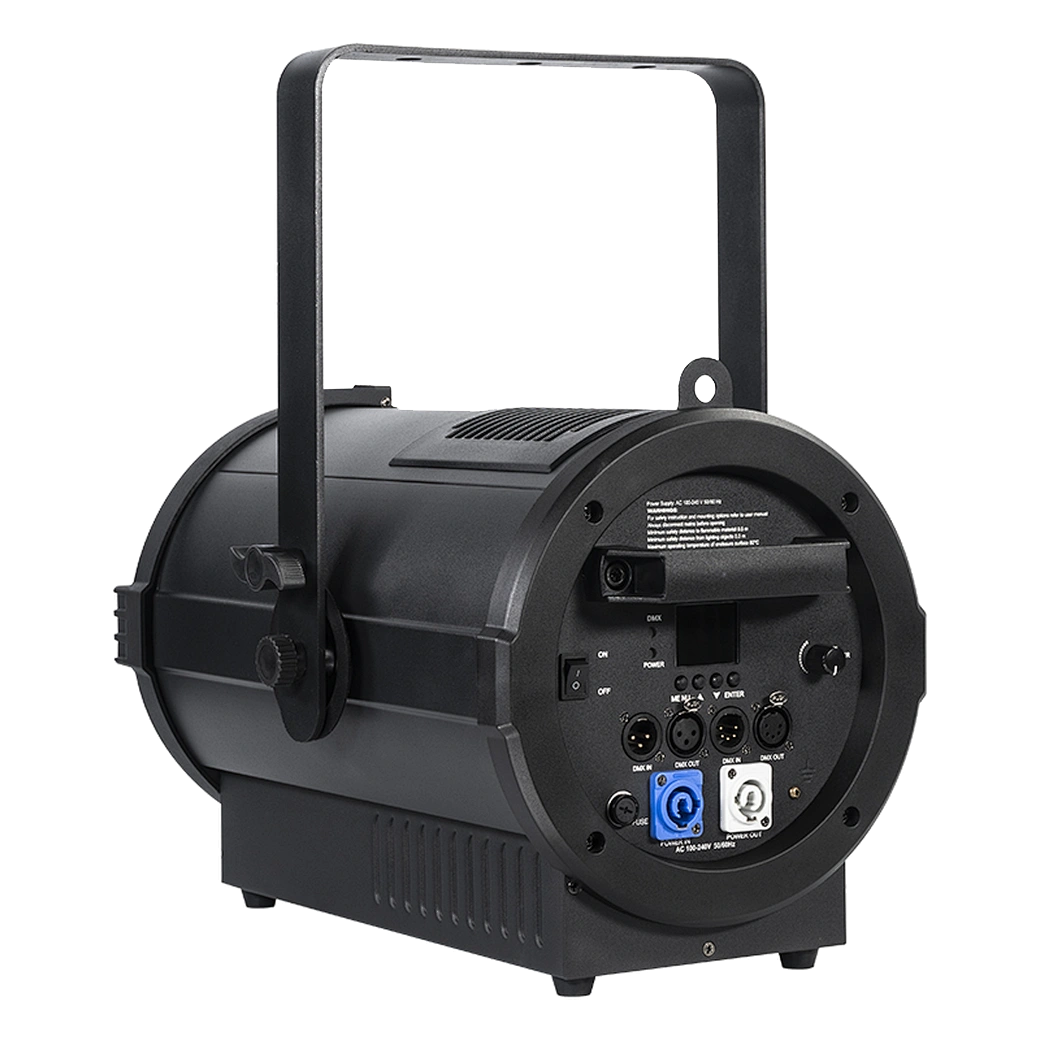

Connections
Data In/Out 3-pin & 5-pin XLR M/F
Power In/Out Seetronic Powercon
Construction
Available Colors Black
Body Material Aluminum
Display & Control Numeric LED Display and selector buttons
IP Rating IP20
Other
Accessories Edison to PowerCON cable
Barn Door
Gel Frame
Safety Cable
Warranty 2 year limited warranty (parts & labour)
  • Studio Production
  • Theatres
  • Lecture Halls
  • Corporate Video
  • Educational Facilities
  • Museums and Galleries
  • Houses of Worship
  • Live Event Production

No downloads available for this product yet.
