FRESNEL 300Z T

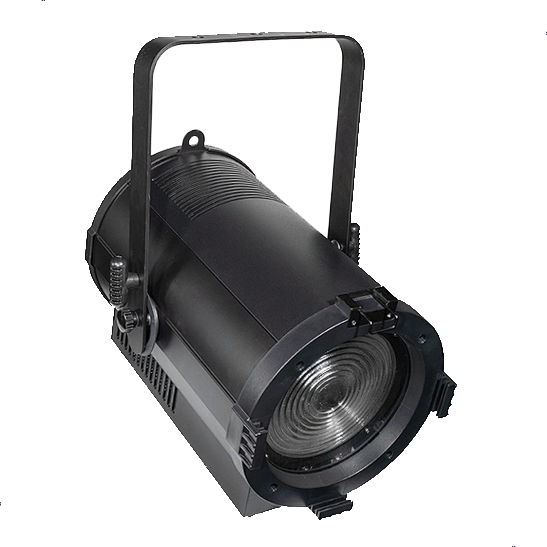

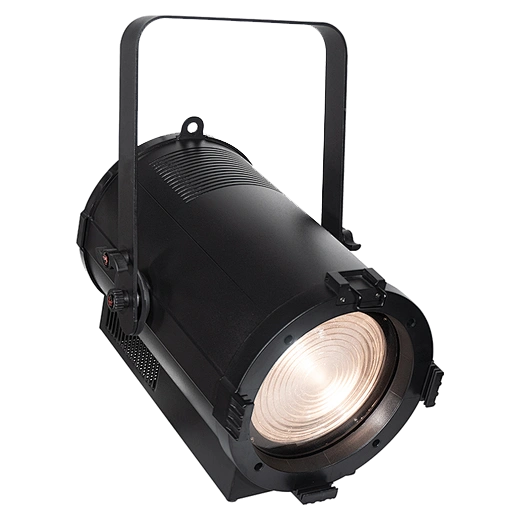

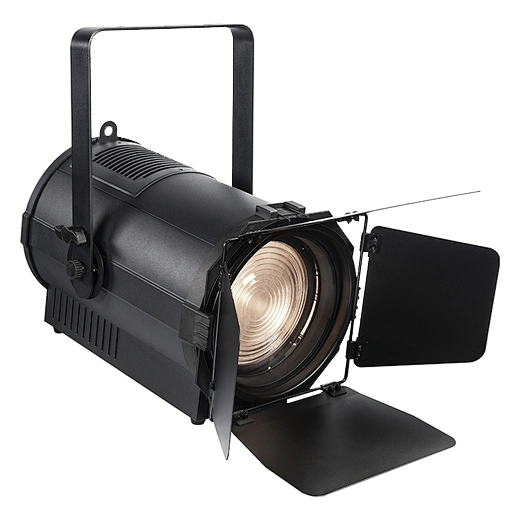

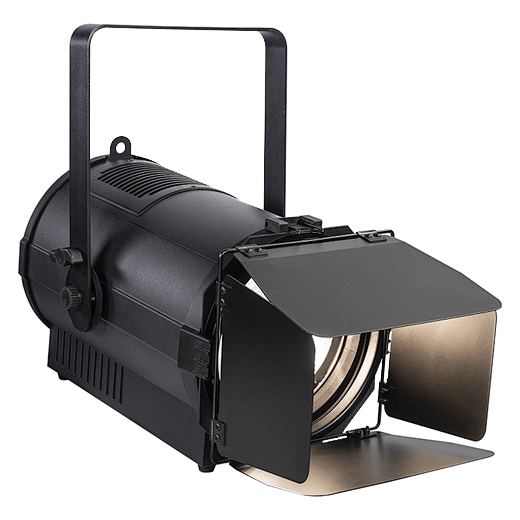

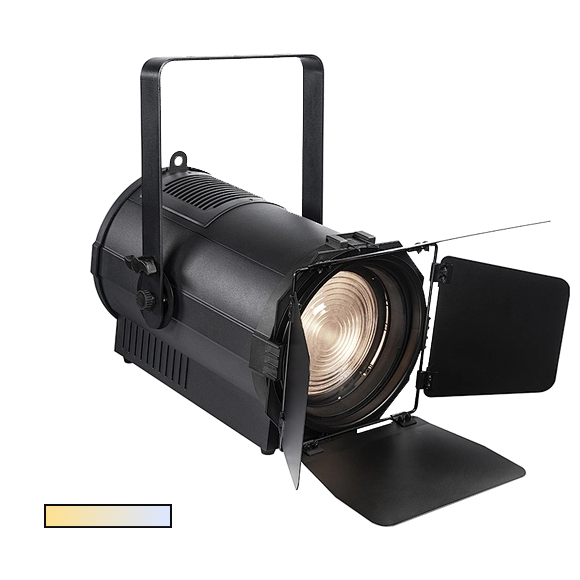

The FRESNEL 300Z T is a powerful 300W Tunable-White LED Fresnel with an 8-60° motorized zoom and output equivalent to a 2KW tungsten. Color rendition is exceptional with an average CRI ≥98, and tunable white output is in the 2800°-6500°K. Fresnel 300Z-T is DMX/RDM compliant and features a host of many professional features. Ideal for studio, theatre, church, stage wash, and exhibition lighting.
Specifications and Features:
Key Features:
-
-
- 300W warm white + 300W cool white LED
- 2 KW Tungsten Equivalent
- 2800° – 6500°K Color Temperature range
- Average CRI 98, TLCI 98
- 8°-60° Motorized Zoom via DMX
- Smooth 16bit 0-100% Dimming via DMX
- Selectable Dimmer Curves
- Video flicker free & Strobe capable
- Rotary, Key & DMX/RDM control of dimmer and zoom
- Silent Operation for Studio and Theatre use
- Durable Metal Construction
-
Technical Specifications:
Control and Programming:
-
-
- DMX Channel Modes: 3/6
- Control Modes: DMX, RDM, Auto, Manual
- Dimmer frequency: 1.2 – 24.0 kHz
-

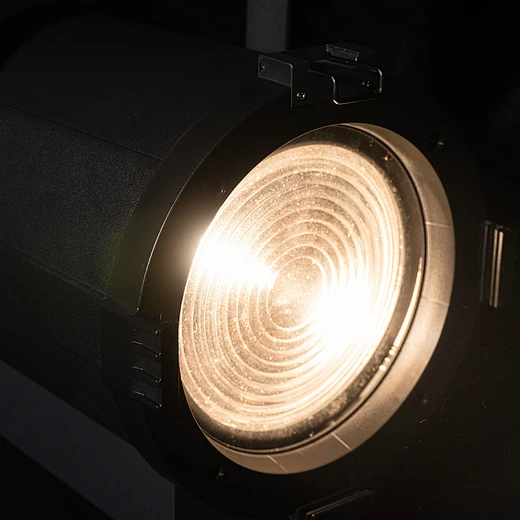

Optics:
-
-
- Light Source: 300W WW + 300W CW LEDs
- Color Temperature: 2800°-6500°K
- Zoom Range: 8° – 60° motorized
-

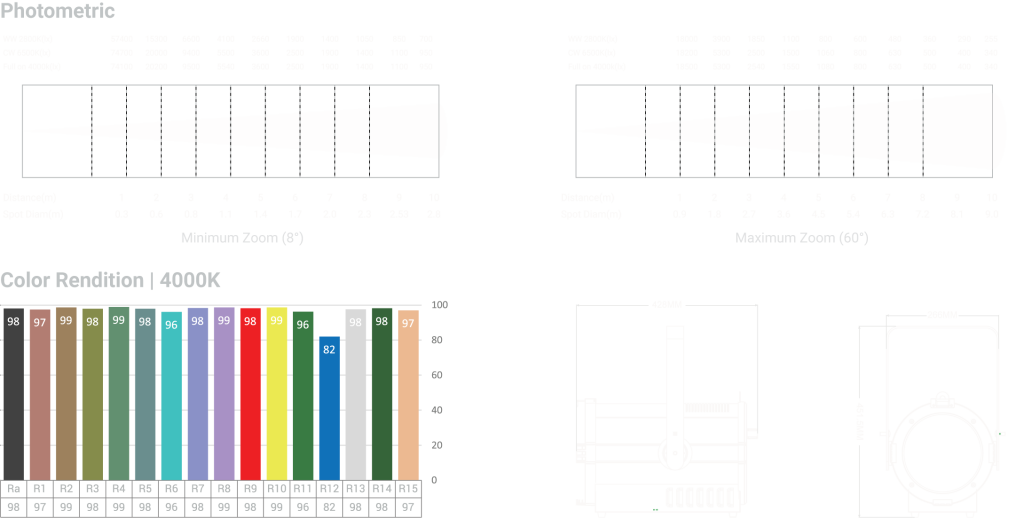

Photometric:
-
-
- CRI ≥97
- CQS ≥94
- TM30 Rf ≥91
- TM30 Rg ≥100
- TKCU ≥98
-
Thermal:
-
-
- Heat Sink + Intelligent Fan (silent & low-noise operation)
- Operating Temperature Range: -5°C to 45°C
-

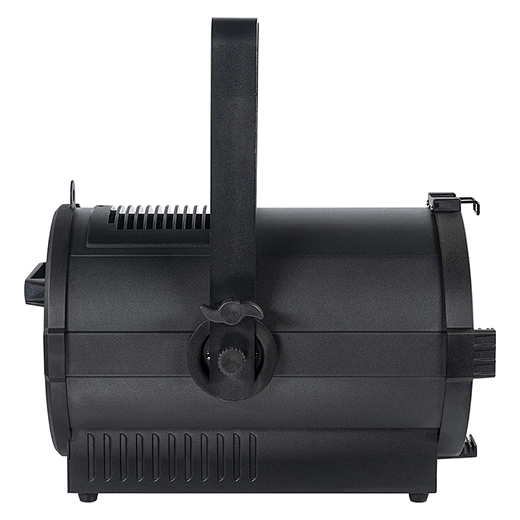

Physical Dimensions:
-
-
- Dimensions (L x W x H): 460 x 320 x 440 mm
- Weight: 11 kg (24.2 Lbs) incl. Barn Door
-
Power Requirements:
-
-
- Peak Power Consumption: 650VA
- Voltage: AC 100-240V, 50/60Hz
- Maximum Power Linking: 4 Units
-

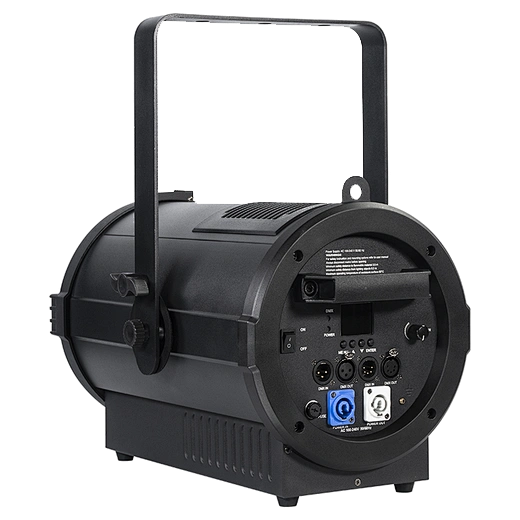

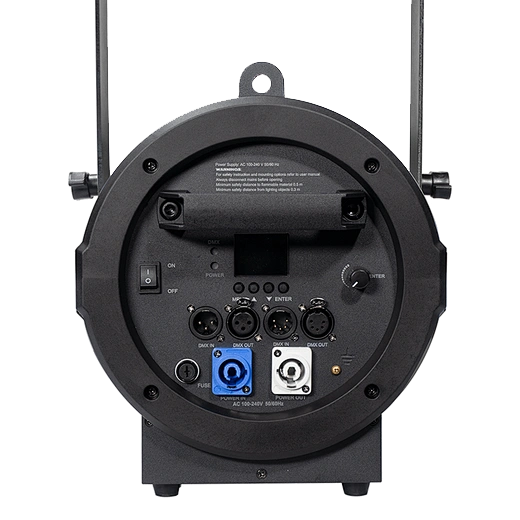

Connections:
-
-
- Data In/Out: 3-pin & 5-pin XLR M/F
- Power In/Out: Seetronic Powercon
-
Construction:
-
-
- Available Colors: Black
- Body Material: Aluminum
- Display: Numeric LED Display
- IP Rating: IP20
-
Accessories:
-
-
- Edison to PowerCON cable

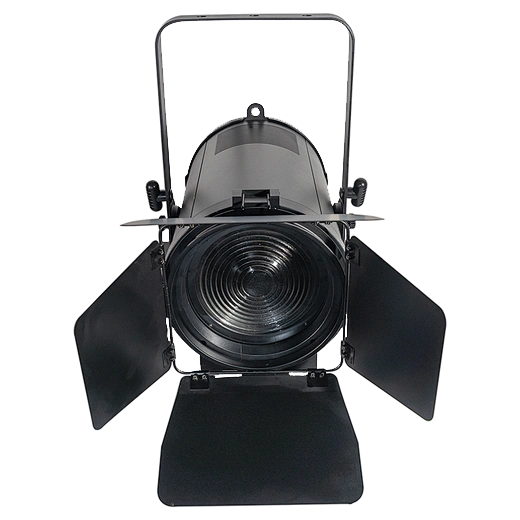

- Barn Door
- Gel Frame
- Safety Cable
-
Warranty:
-
-
- 2 year limited warranty (parts & labour)
-
