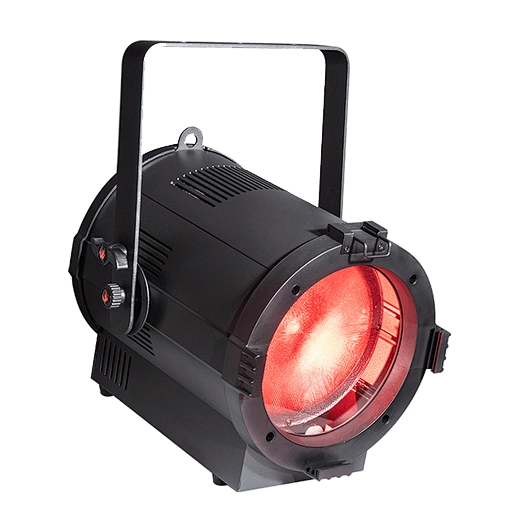

FRESNEL 200Z FS
Fresnel

FRESNEL 200Z FS

The FRESNEL 200Z FS is a premium 200W full-spectrum LED Fresnel engineered for productions that demand exceptional color control, versatile beam shaping, and uncompromising optical performance. Its advanced RGB+Lime 4-color light engine delivers a rich, extended color gamut and an expansive 3000K–8000K color temperature range, producing vibrant saturated colors and beautifully balanced whites with outstanding consistency. Fully DMX/RDM compliant, it integrates seamlessly into professional lighting systems for precise remote control.
Key Features
200W RGBL LED Fresnel with Motorized Zoom
60W Red + 80W Green + 80W Blue + 80W Lime
Full Spectrum Color Mixing
15°-60° Motorized Zoom via DMX
Smooth 16bit 0-100% Dimming via DMX
Selectable Dimmer Curves
Video flicker free & Strobe capable
Rotary, Key & DMX control of dimmer
Intelligent Fan, Silent Operation
Durable Metal Construction

SKU: FRESNEL 200Z-FS Category:

The FRESNEL 200Z FS also features a DMX-controlled 15°–60° motorized zoom, allowing lighting designers to remotely transition from a tight, high-intensity spot to a broad, even wash without leaving the console. Combined with the signature optical performance of a Fresnel lens, it delivers a clean, uniform field, smooth falloff, natural wrap, and beautifully controlled shadow transitions that enhance scenery, performers, and architectural elements. Housed in a lightweight yet rugged metal chassis, the FRESNEL 200Z FS is an ideal solution for theatres, houses of worship, live events, television studios, and exhibition environments where creative flexibility and superior light quality are essential.



Applications

  • Studio Production
  • Theatres
  • Lecture Halls
  • Corporate Video
  • Educational Facilities
  • Museums and Galleries
  • Houses of Worship
  • Live Event Production
Control and Programming
DMX Channel Modes 1/3/4/5/6/12
Control Modes DMX, RDM, Auto, Manual
Optics
Light Source 60W Red + 80W Green + 80W Blue + 80W Lime
Color Temperature 3000°-8000°K
Zoom Range 15° - 60°
Thermal
Main Cooling Heat Sink (silent convection)
Operating Temperature Range -5°C to 45°C
Physical Dimensions
Dimensions (L x W x H) 315 x 296 x 330mm
Weight 8 kg (17.6 Lbs) incl. Barn Door
Power Requirements
Peak Power Consumption 350VA
Voltage AC 100-240V, 50/60Hz
Maximum Power Linking 8 Units

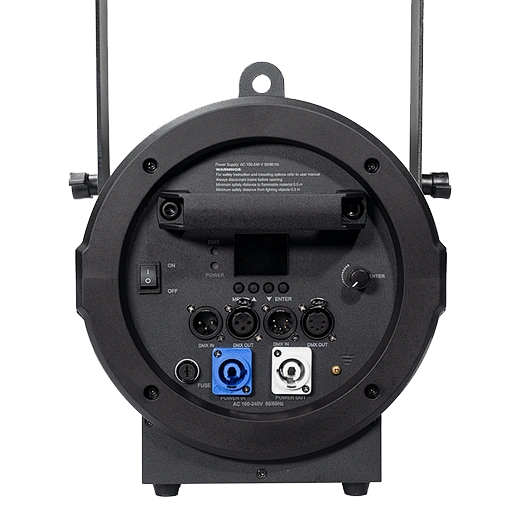

Connections
Data In/Out 3-pin XLR M/F
Power In/Out Seetronic Powercon
Construction
Available Colors Black
Body Material Aluminum
Display & Control Numeric LED Display and selector buttons
IP Rating IP20
Other
Accessories Edison to PowerCON cable
Barn Door
Gel Frame
Safety Cable
Warranty 2 year limited warranty (parts & labour)
