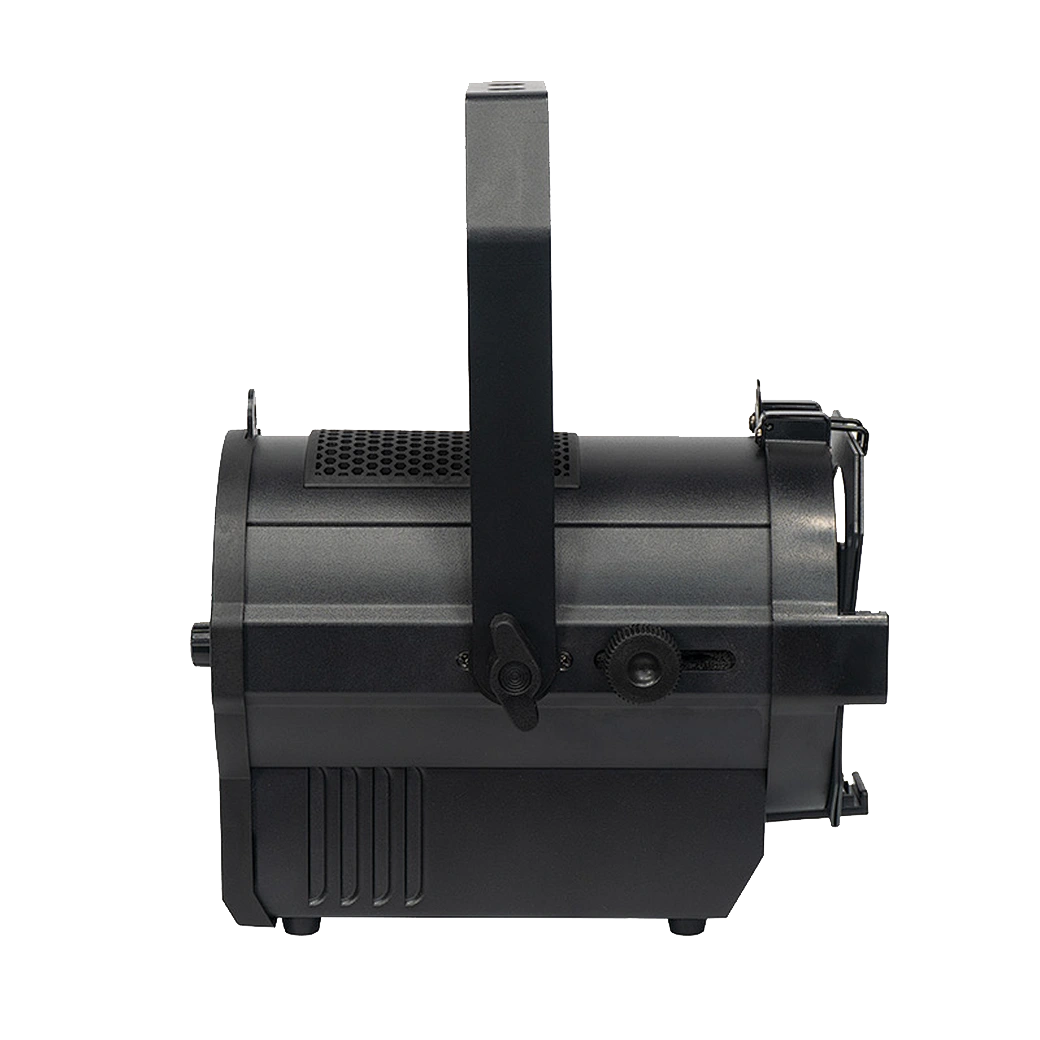

FRESNEL 50T
Fresnel

FRESNEL 50T

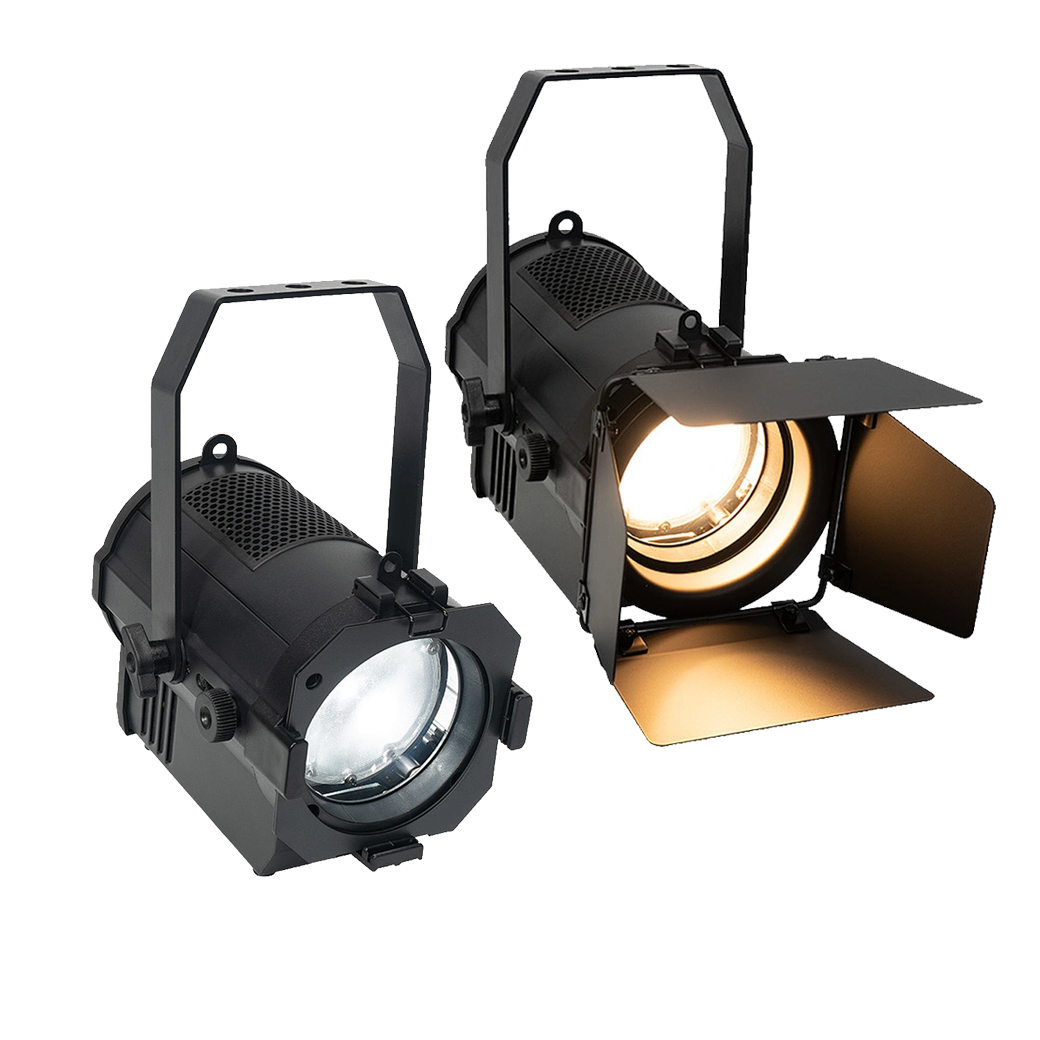

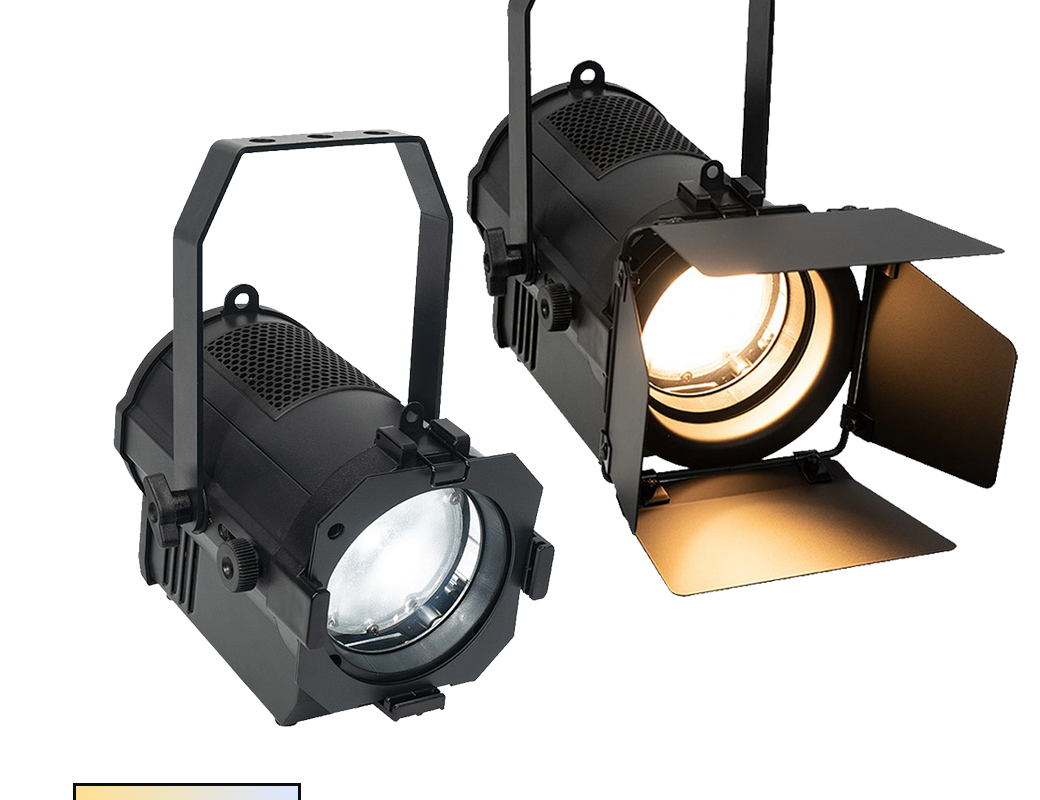

FRESNEL 50T is a compact, professional 50W LED Fresnel engineered for applications where performance, portability, and precise light control are essential. Featuring a tunable white color temperature range of 2700K to 6500K and a smooth 25°-80° manual zoom, it delivers exceptional flexibility for both key and accent lighting.
Key Features
50W warm white + 50W cool white
Tunable 2700-6500°K colour temperature
CRI≥95, R9≥90, TLCI 98, CQS 96
25°-80° Manual Zoom
Smooth 0-100% Dimming, Flicker Free & Strobe Capable
Rotary, Key & DMX control of dimmer

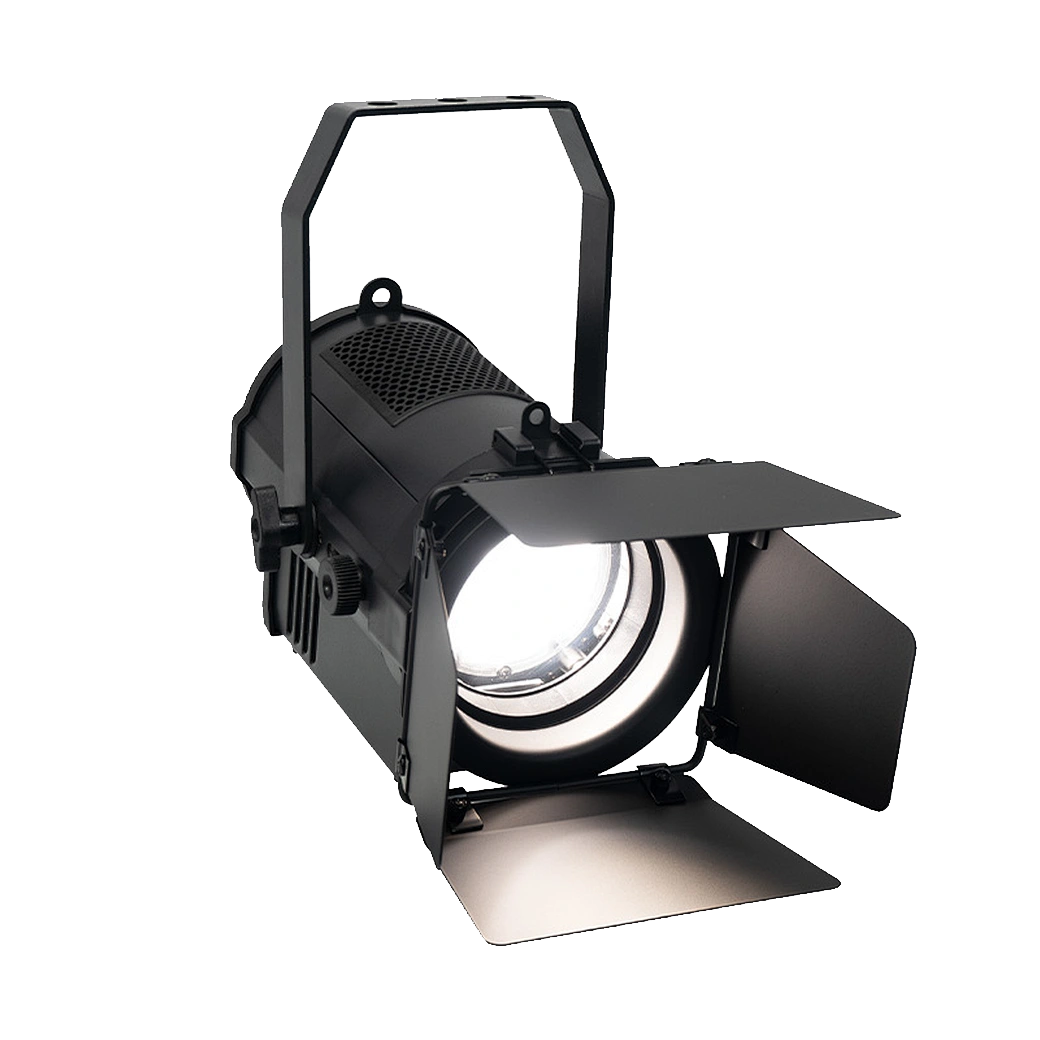

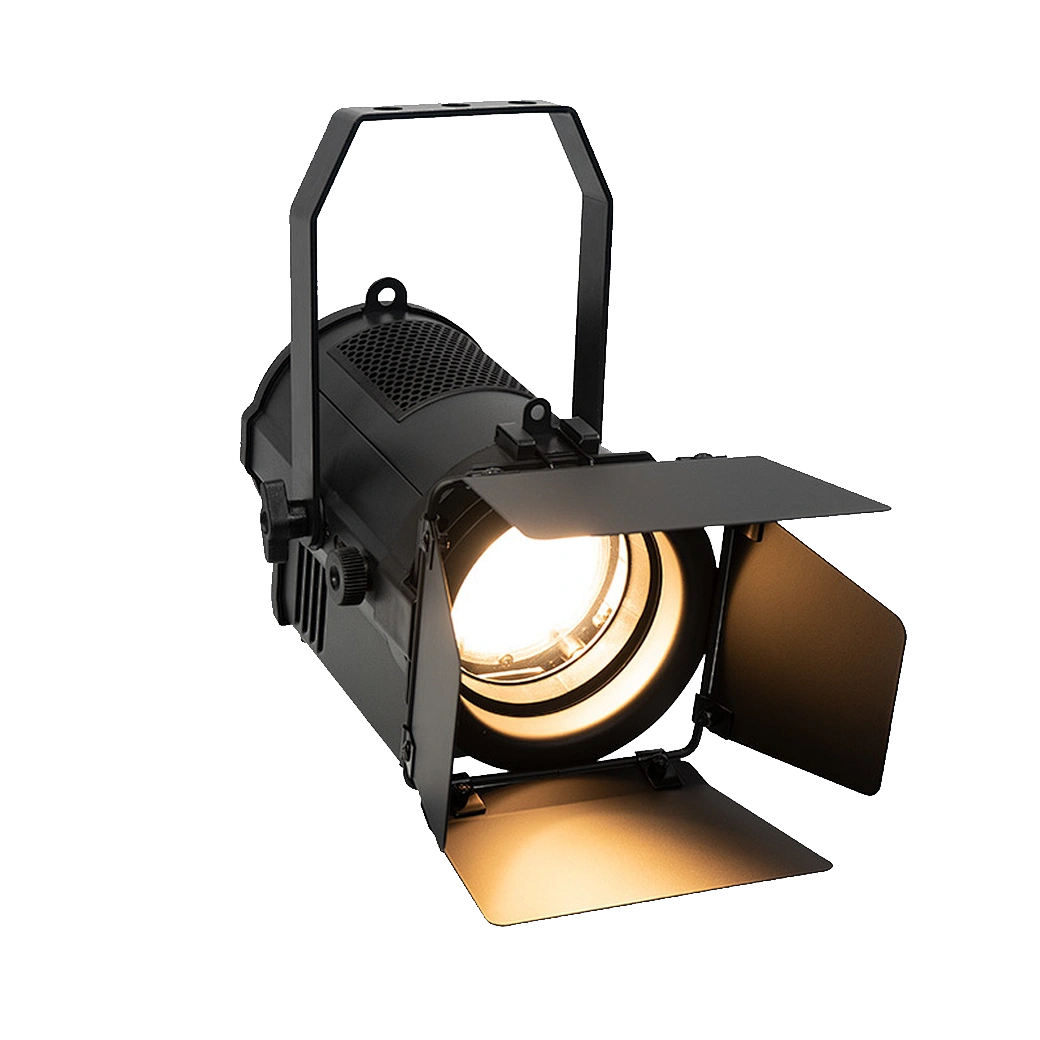

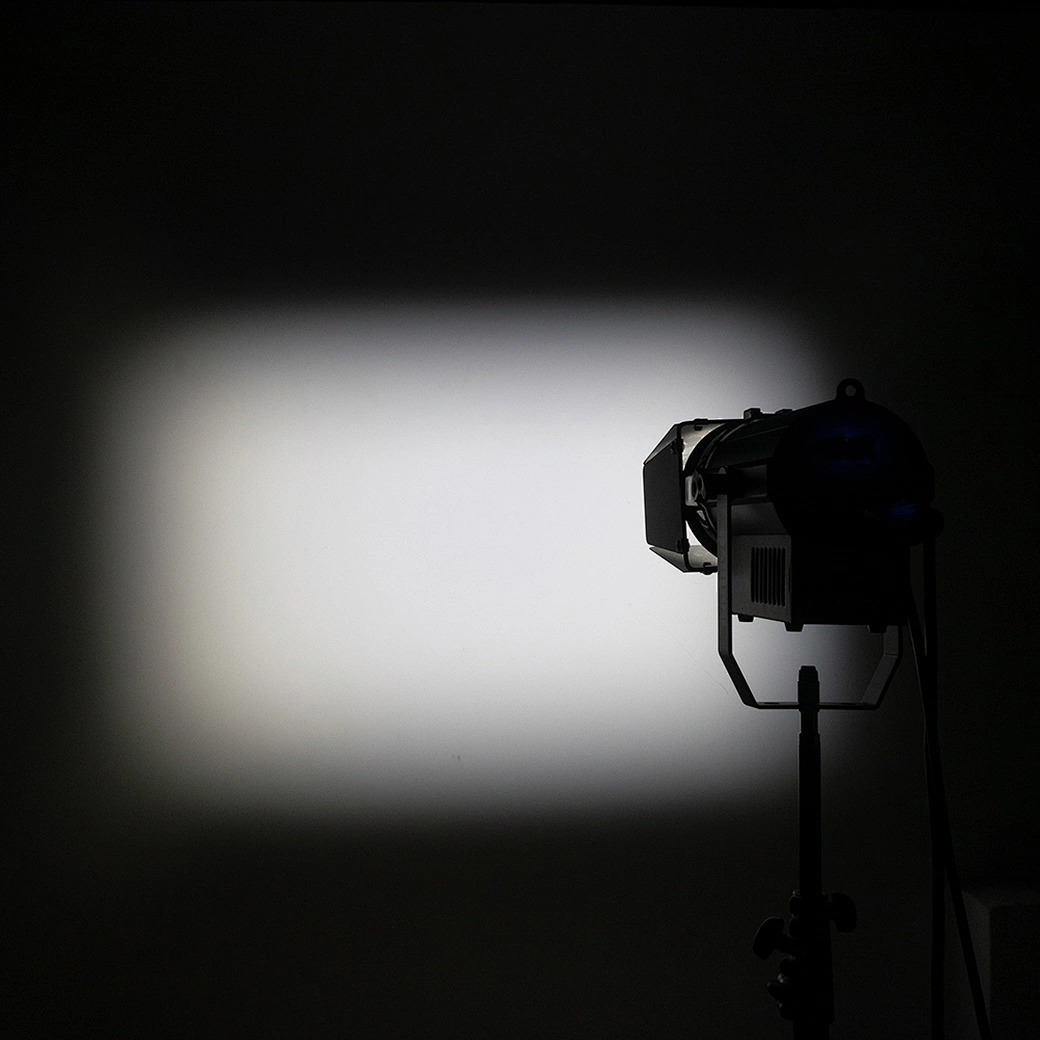

4-leaf rotatable barndoor included
Durable Metal Construction

SKU: FRESNEL 50T Category:

Its compact-class Fresnel lens provides the classic soft-edged, controllable beam associated with larger theatrical fixtures while maintaining a lightweight footprint that’s ideal for space-constrained environments. The smaller form factor makes the FRESNEL 50T easy to transport, quick to rig, and well suited for ceiling grids, mobile production kits, and temporary installations where weight and size matter.

With a CRI of ≥95 and TLCI of ≥98, the FRESNEL 50T produces outstanding color accuracy for cameras and the human eye, ensuring natural-looking skin tones and faithful color reproduction. Built with a durable all-metal housing and supporting DMX/RDM control, it integrates seamlessly into professional lighting systems while providing reliable performance in demanding production environments.

Ideal for broadcast and news studios, remote and fly-pack productions, podcast and streaming studios, corporate video, educational facilities, museums, galleries, exhibitions, houses of worship, conference rooms, and small event venues, the FRESNEL 50T offers professional Fresnel performance in a compact, versatile fixture that excels wherever high-quality, controllable lighting is required.



Applications

  • Broadcast and News Studios
  • Remote and Flypack Productions
  • Podcast and Streaming Studios
  • Corporate Video
  • Educational Facilities
  • Museums and Galleries
  • Trade Shows and Exhibitions
  • Houses of Worship
  • Conference Rooms
  • Small Event Venues
Control and Programming
DMX Channel Modes 1/2/3/5
Control Modes DMX, RDM, Rotary

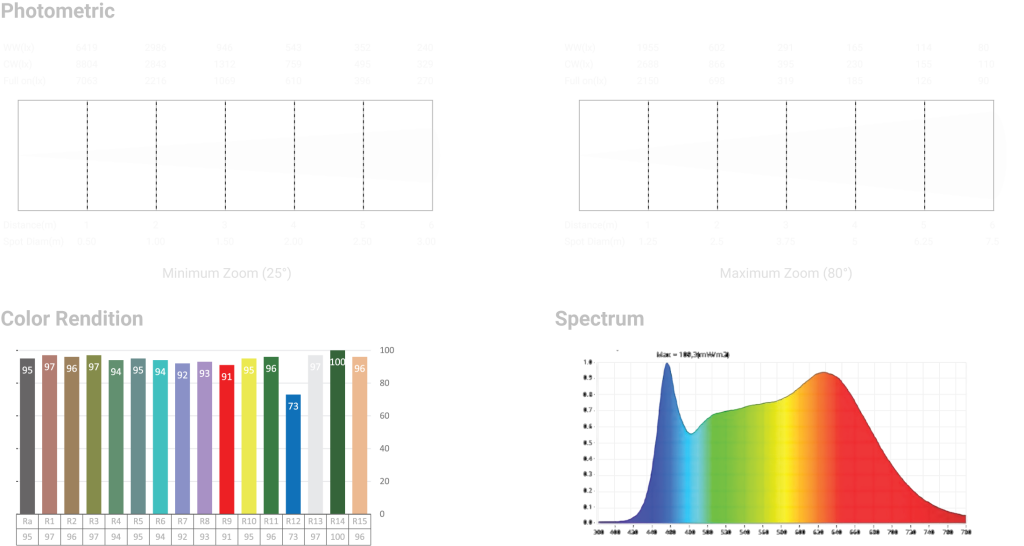

Optics
Light Source 50W WW + 50W CW LED
Color Temperature 2700°-6500°K
Zoom Range 25° - 80°
LED Lifetime 50,000 Hours
Benchmarks CRI≥95, R9≥90, TLCI 98, CQS 96

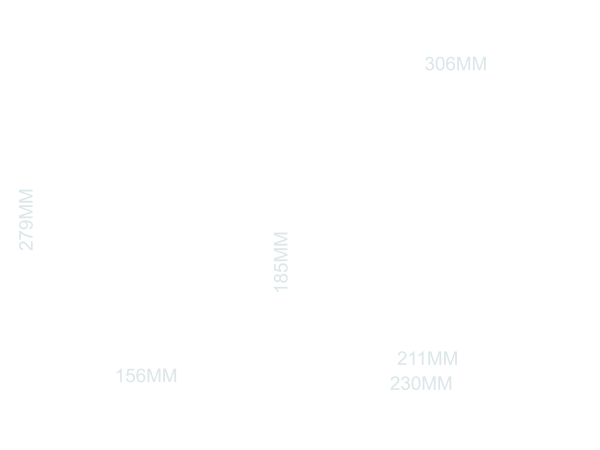

Physical Dimensions
Dimensions (L x W x H) 230 x 156 x 279mm
Weight 2.2 kg (4.8 Lbs)
Power Requirements
Peak Power Consumption 120VA
Voltage AC 100-240V, 50/60Hz
Maximum Power Linking 8 Units

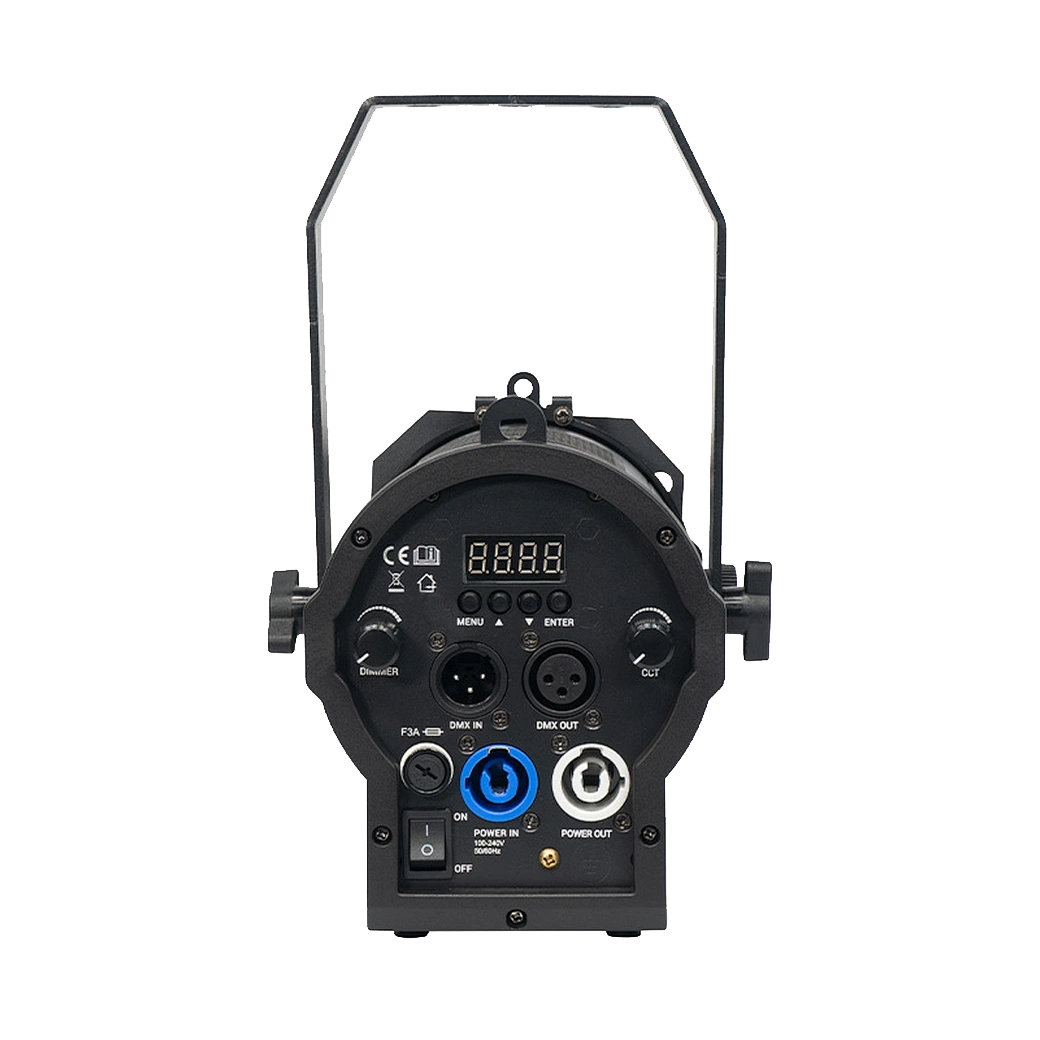

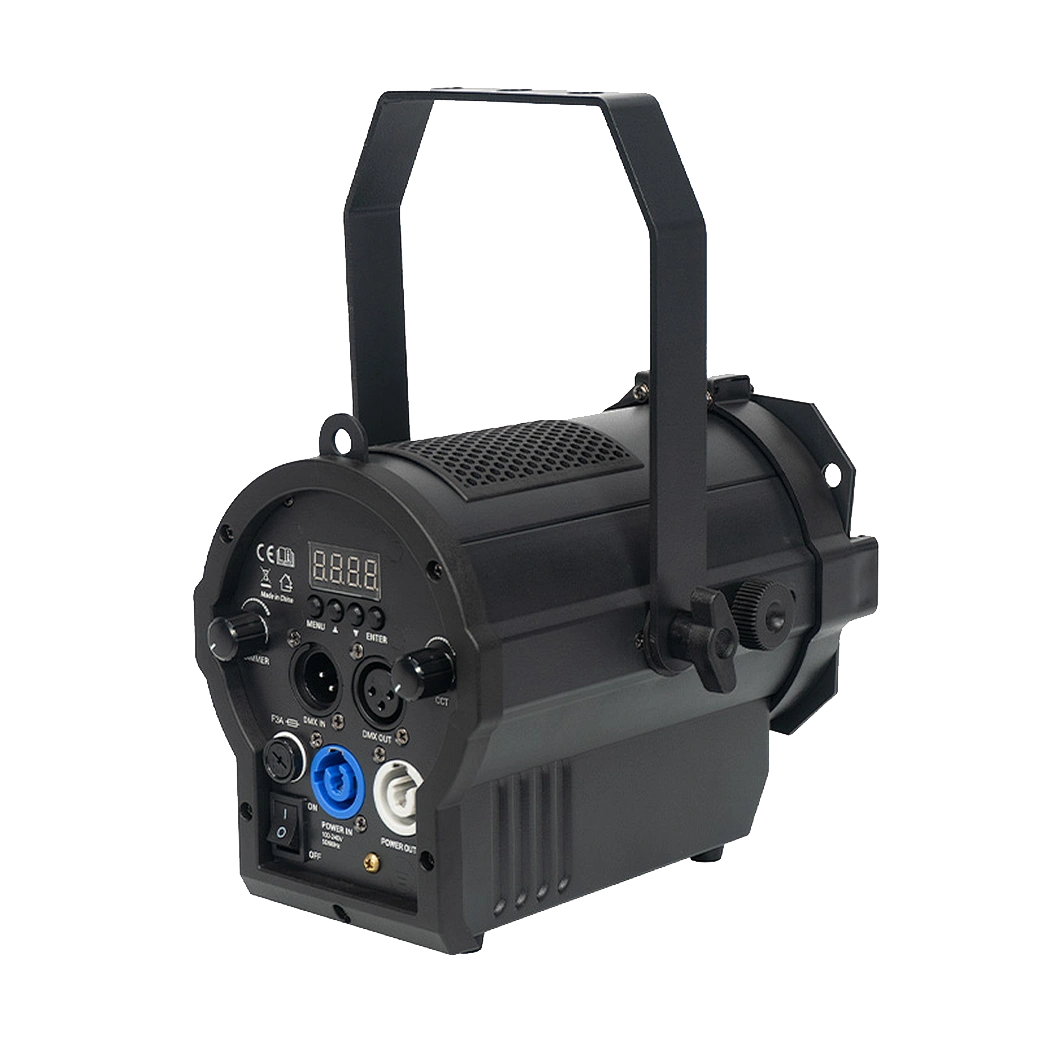

Connections
Data In/Out 3-pin XLR M/F
Power In/Out Seetronic Powercon
Construction
Available Colors Black
Body Material Aluminum
Display & Control Numeric LED Display and selector buttons
IP Rating IP20
Other
Accessories Edison to PowerCON cable
Barn Door
Gel Frame
Safety Cable
Warranty 2 year limited warranty (parts & labour)
  • Broadcast and News Studios
  • Remote and Flypack Productions
  • Podcast and Streaming Studios
  • Corporate Video
  • Educational Facilities
  • Museums and Galleries
  • Trade Shows and Exhibitions
  • Houses of Worship
  • Conference Rooms
  • Small Event Venues

No downloads available for this product yet.
