Battery / Outdoor IP65 / Static Wash

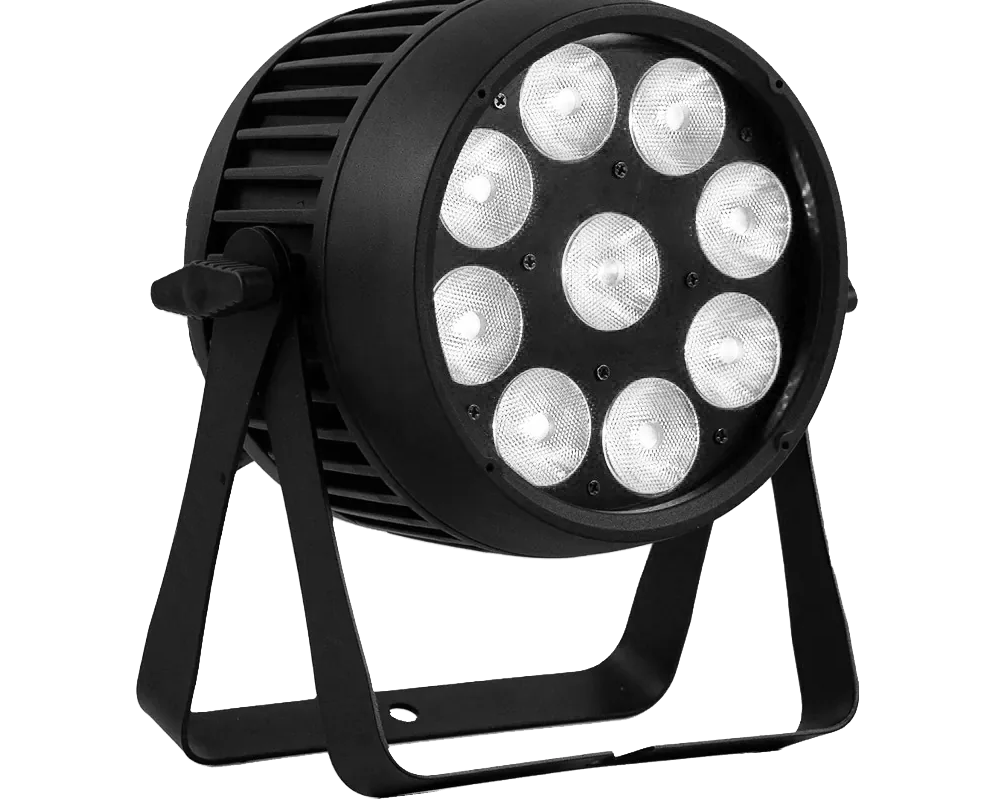

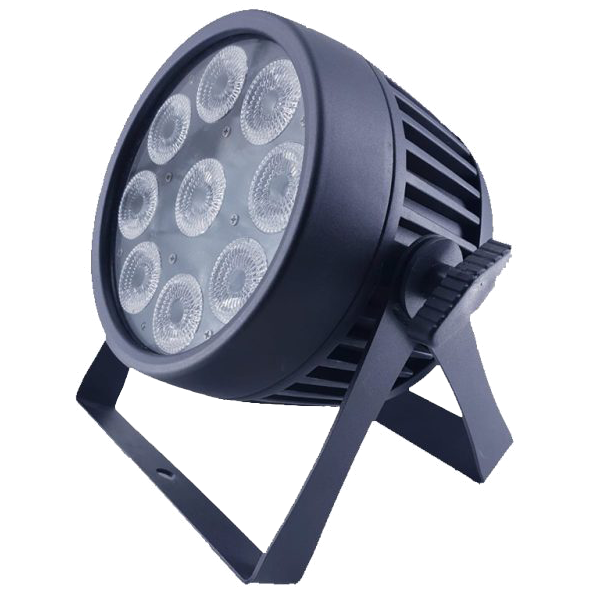

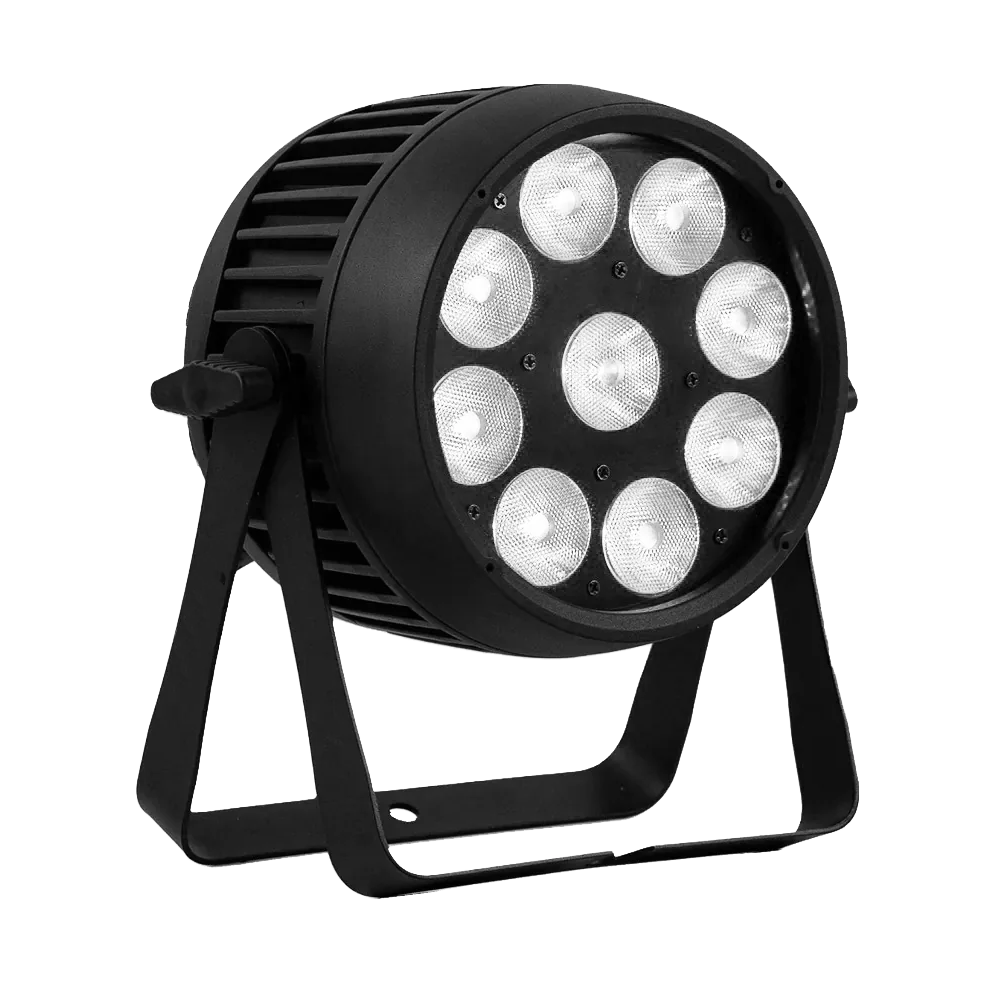

HPAR 90 R2

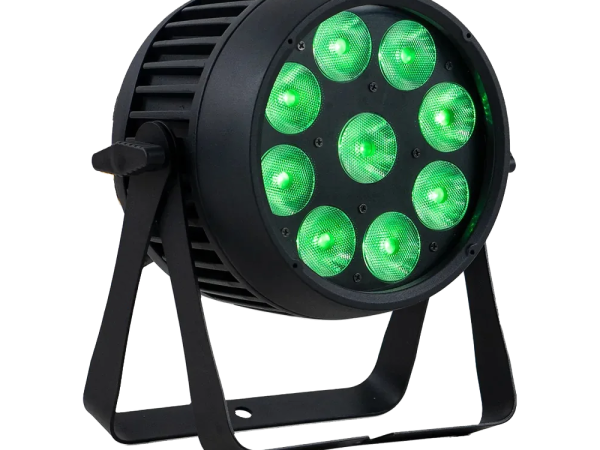

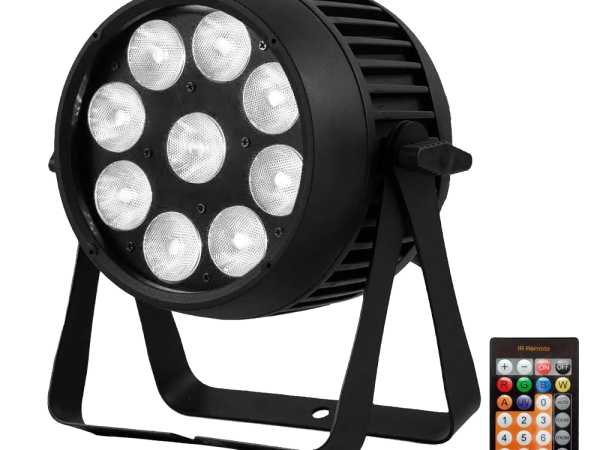

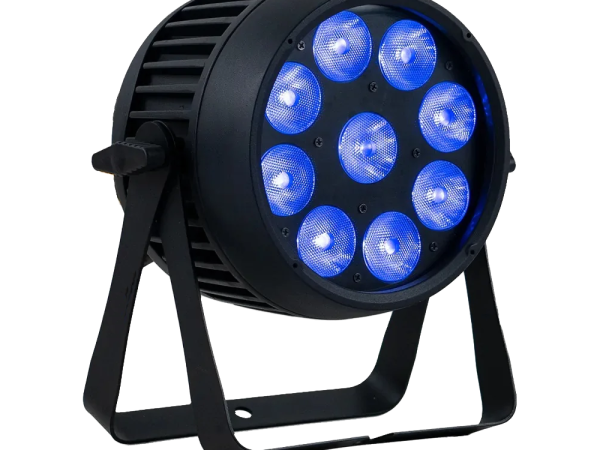

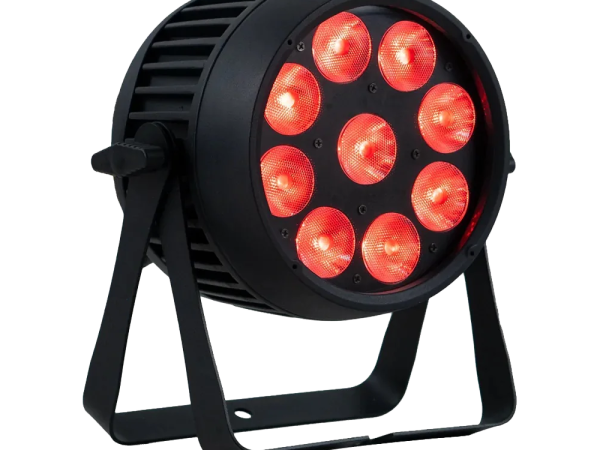

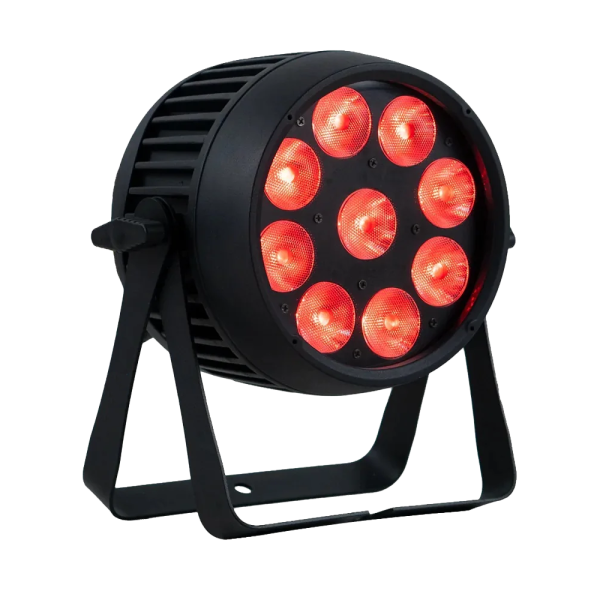

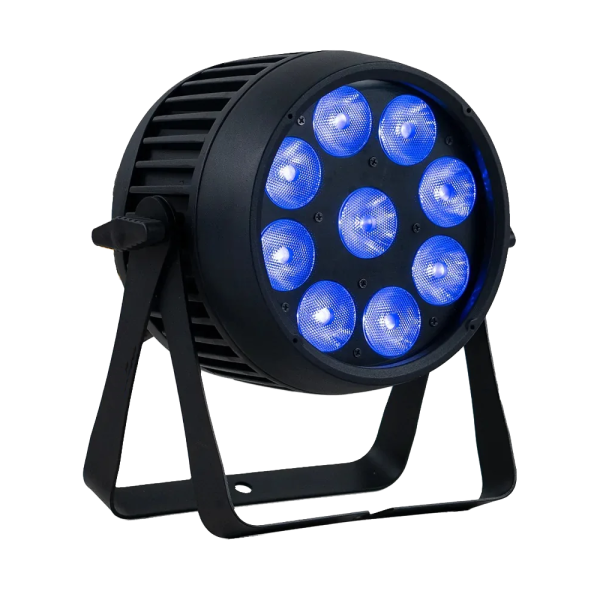

HPAR 90 R2 is a hybrid-battery-powered IP65-rated LED PAR fixture designed to deliver exceptional flexibility for professional indoor and outdoor lighting applications. Equipped with 9 × 10W RGBW 4-in-1 LEDs, it produces vibrant color mixing, excellent output, and smooth dimming in a compact, rugged form factor.

Key Features

RGBW Color Mixing

Weather Resistant IP65 Outdoor Rated Fixture

Wireless DMX

Up to 12 hours use per charge

3 Power modes (Eco, Medium, High)

Durable Construction: strong die-cast aluminum with superior heat dissipation

Convection Cooled for silent operation

Flicker Free for TV and video recording applications

SKU: HPAR90 R2 Categories: Battery, Outdoor IP65, Static Wash

Request a Quote → Download Spec Sheet ↓

Engineered for maximum deployment freedom, the HPAR 90 R2 eliminates the need for external power or data cabling, making it ideal for temporary events, architectural uplighting, weddings, corporate functions, and locations where rapid installation is essential. For permanent installations or extended operation, the fixture can also be AC mains powered and controlled with wired connections.

Featuring integrated Wireless DMX, an extended battery life of up to 12 hours per charge, and selectable Eco, Medium, and High power modes, the HPAR 90 R2 offers the versatility to balance runtime and performance for any application. Its durable IP65-rated housing ensures reliable operation in demanding indoor and outdoor environments, providing a dependable solution for event professionals, production companies, and architectural lighting designers.

Applications

Stage and Theatrical Lighting
Live Event Productions
Corporate events and conferences
Houses of Worship
Museums and Galleries
Hotel and Hospitality Venues
Retail and Showroom Lighting
Exhibition and Trade Shows
Nightclubs and Entertainment Venues

Control and Programming
DMX Channel Modes	5/9

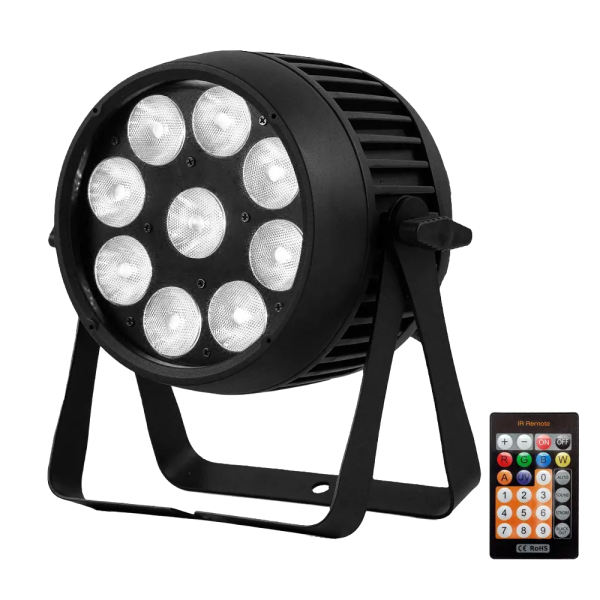

Control Modes	DMX, W-DMX, IR, Auto, Master/Slave
Optics
Beam Angle	25°
Light Source	9 x 12W RGBW LEDs
Physical Dimensions

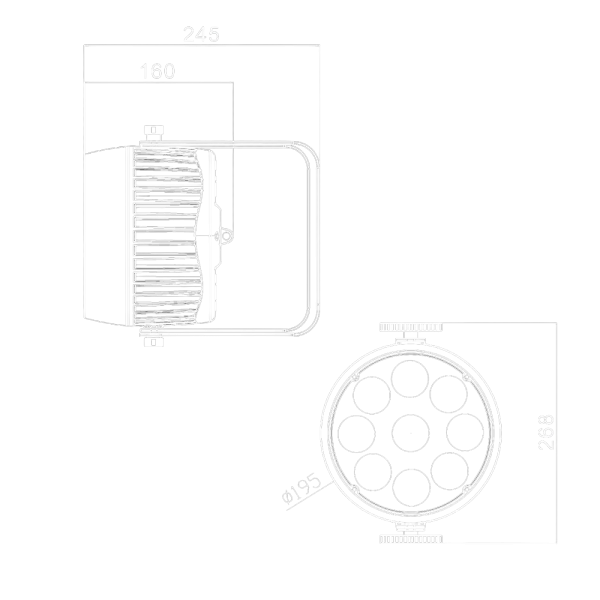

Dimensions (L x W x H)	210 x 127 x 127 mm (8.3 x 5.0 x 5.0 in)
Weight	5 kg (11 Lbs)
Power Requirements
Peak Power Consumption	100VA
Voltage	AC 100-240V, 50/60Hz

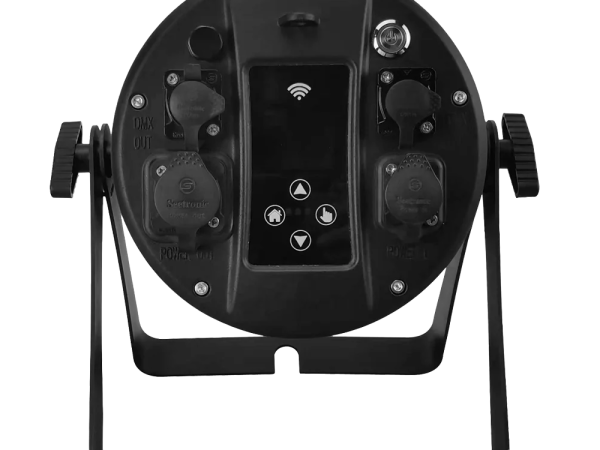

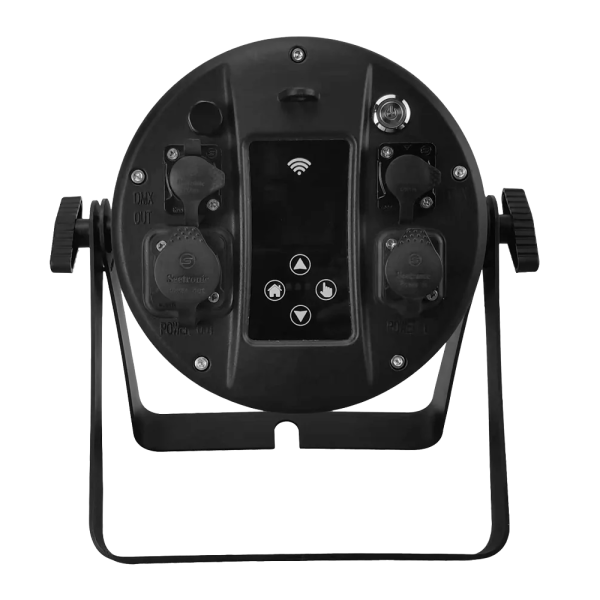

Connections
Data	5-pin waterproof XLR Seetronic (In/Out)
Power	Truecon® Seetronic IP65 (In/Out)
Wireless	W-DMX
Construction
Available Colors	Black
Display	Graphic OLED Display
IP Rating	IP65
Accessories
6-Way charging case with exterior Truecon connection
Edison to SEETRONIC Truecon Female Wire Adapter
SEETRONIC Truecon male to female jumper
Other
Warranty	3 year limited warranty (parts & labor)

Stage and Theatrical Lighting
Live Event Productions
Corporate events and conferences
Houses of Worship
Museums and Galleries
Hotel and Hospitality Venues
Retail and Showroom Lighting
Exhibition and Trade Shows
Nightclubs and Entertainment Venues
