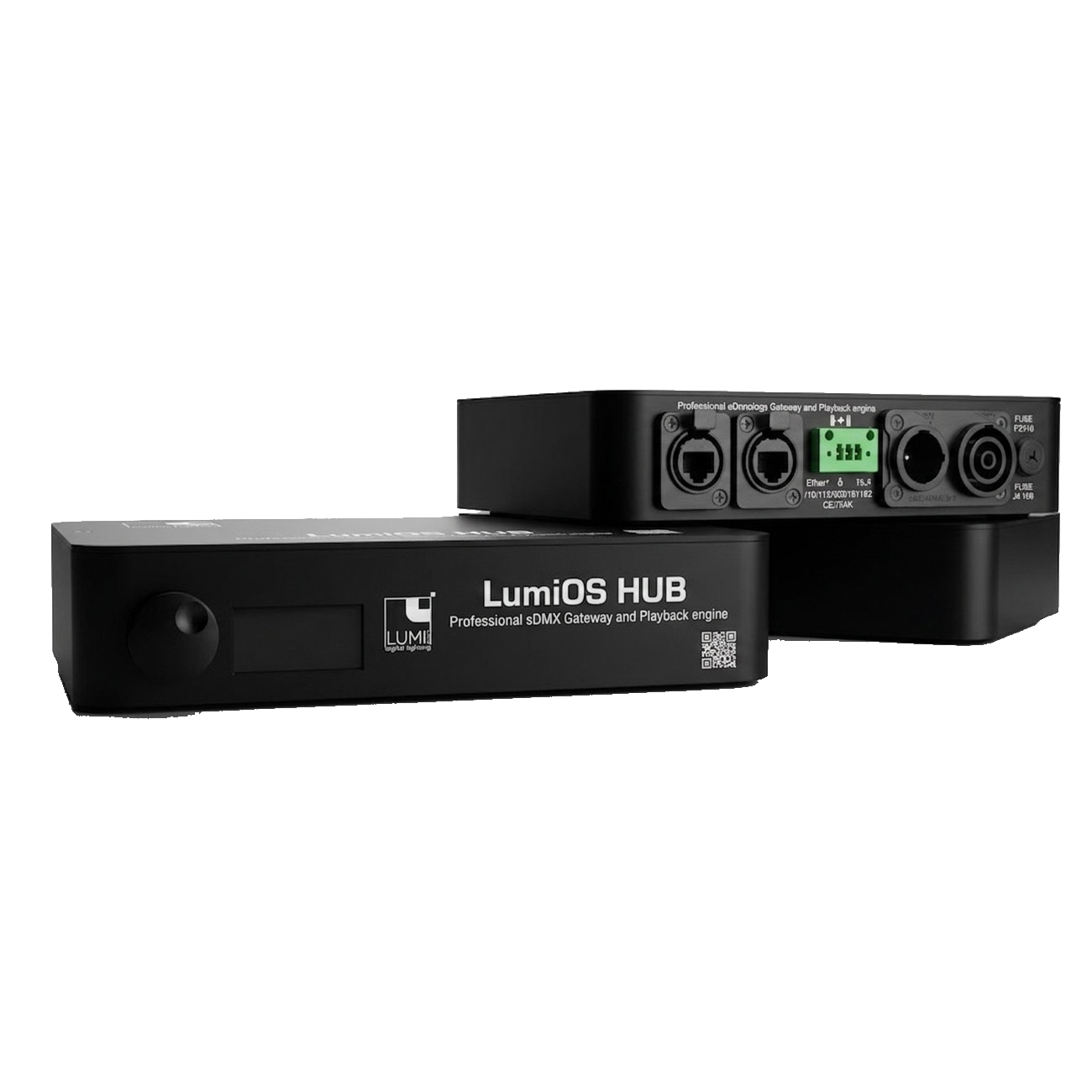

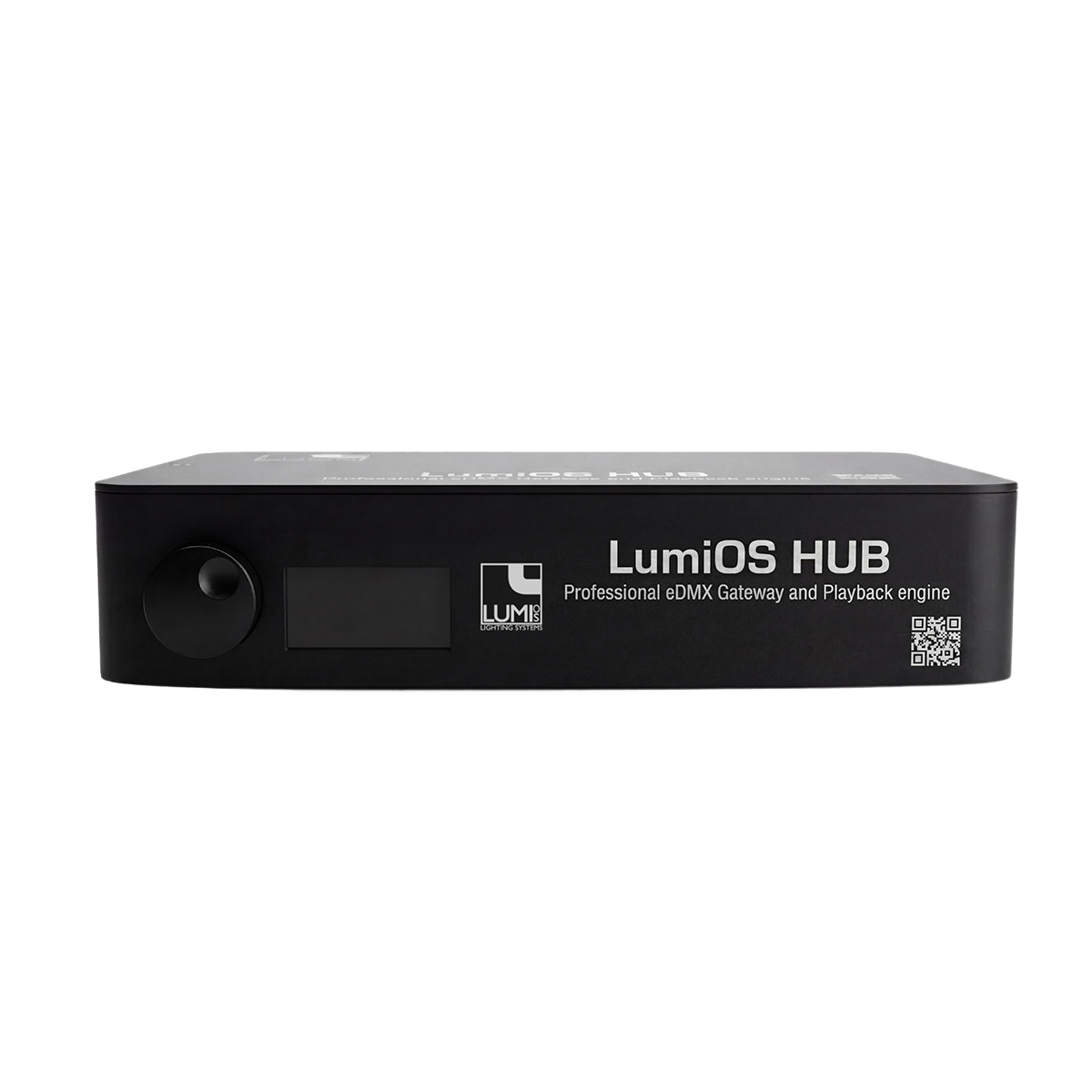

HUB

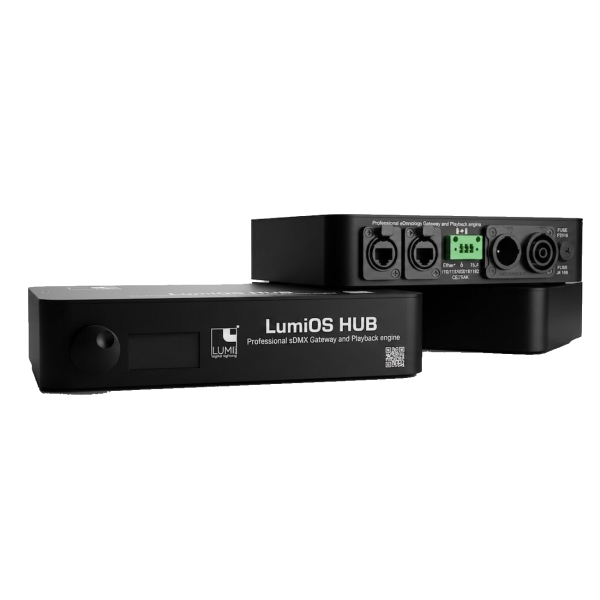

The HUB is a flexible show recorder and playback controller that combines networking and data management with system control, triggering and other user interface options. Engineered with a rugged, all-metal housing suitable for mobile and installation applications, the HUB is well suited for touring, theatre, architectural, and AV installation projects.
The HUB is suited for system monitoring or as the central controller in AV installation applications. Installation friendly opportunities are possible with both rackmount and surface-mount options.
Setup and control systems using our intuitive web GUI, web API, or front panel controls. Additionally, remote system control is possible with compatible network connected devices, including wireless devices using our LumiOS App for iOS and Android when available WiFi is present. Record, edit, and playback scenes and presets with ease, and use HUB to trigger external automation tasks.

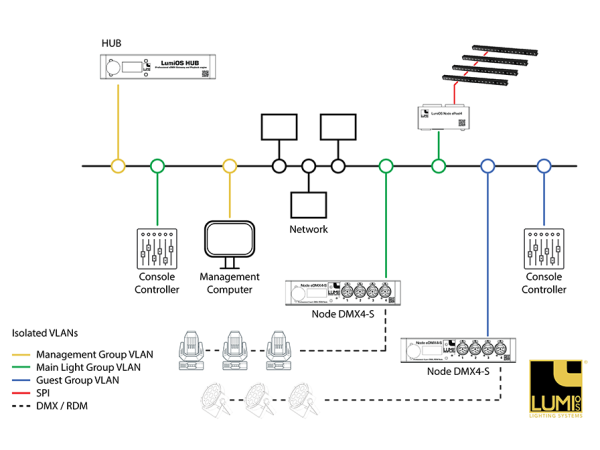

Create VLANs and isolate guests or groups of users to maintain and control network integrity.
HUB allows advanced management of backups, profiles, data merging, VLANs, and more, such as HTP, LTP, input triggers, softpatch, and rerouting. The HUB is also equipped to transmit our proprietary AURA wireless pixel protocol to LumiOS AURA wireless Pixel transceivers.
Specifications and Features:
Key Features:
- Art-Net / sACN / RDM Ethernet Protocols
- Web GUI and Documented API
- Available APP for iOS & Android Operating Systems
- AURA Wireless Pixel Protocol
- Record, Playback, Recall, Schedule, Merge Data, and Automate
- Dual Trigger Inputs, VLANs, Softpatch, HTP, LTP, and more…

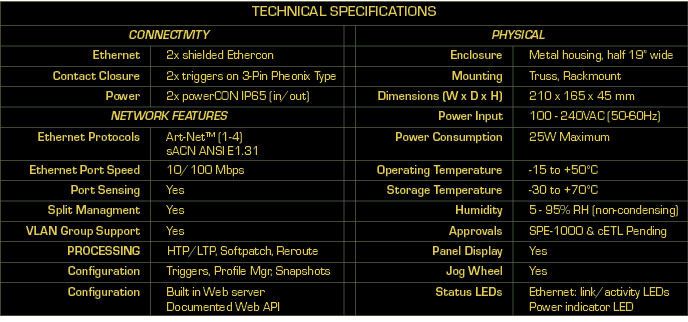

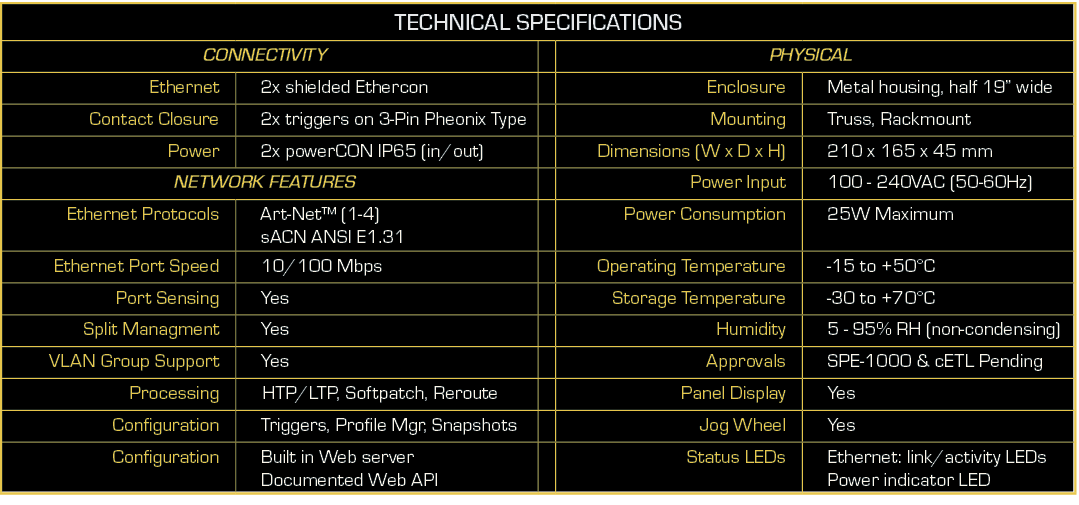

Technical Specifications:
Warranty:
- 2-year warranty on parts and labor
Related products
-

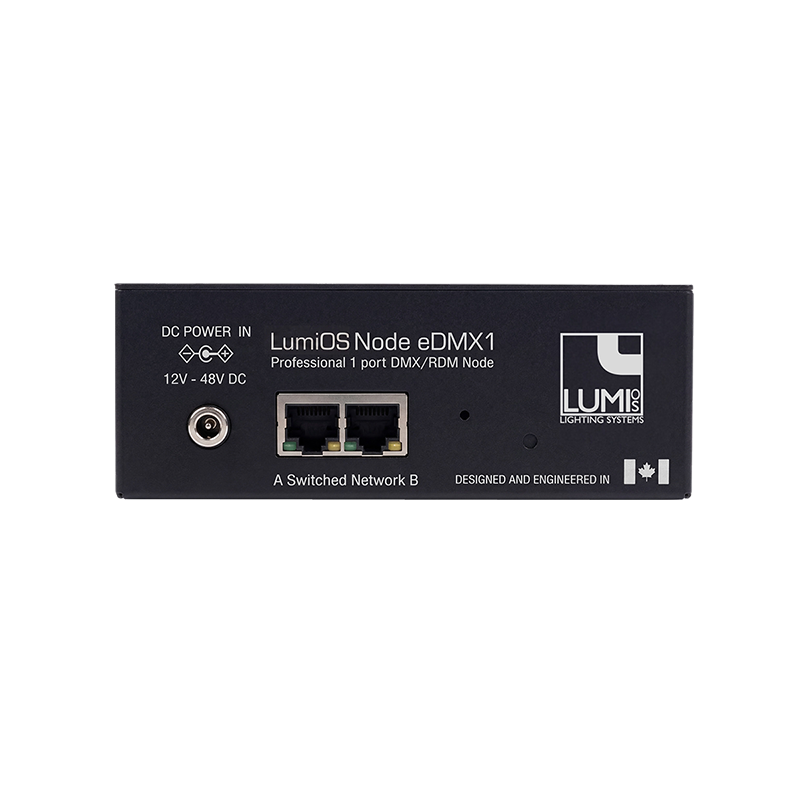

Node eDMX1
The Node eDMX1 is a compact single universe network to DMX converter. Like the larger eDMX4 it’s also engineered to process, merge, reroute and trigger events beyond the physical DMX port limit. Metal construction, truss/DIN/rack mounting, external triggers, a web GUI, web API and other connectivity make it suitable for various mobile, theatre, and scalable AV installation projects.
-

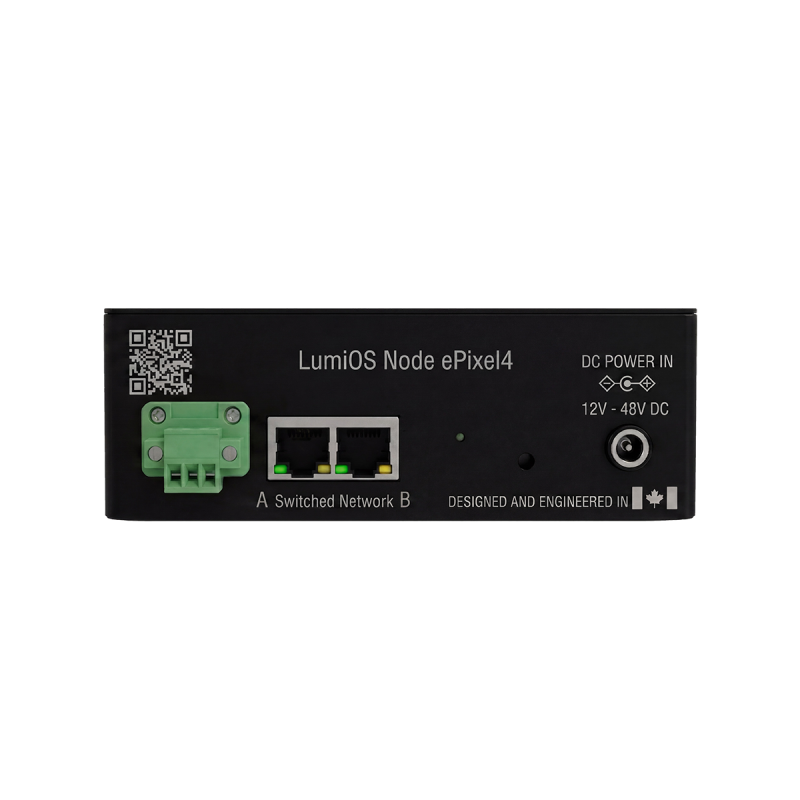

Node ePIXEL4
Node ePIXEL4 is a high-performance, quad-output eDMX-to-LED pixel converter engineered for the most demanding applications. The ePIXEL4 can transmit up to 32 universes @ 4096 RGBW pixels with exceptional stability and precision. Featuring 1024 pixels per port, using our LumiOS proprietary Variable Frame Rate Architecture™, an incredible refresh rate up to 120Hz is possible. Built for robustness the all-metal chassis makes it an ideal solution for mobile entertainment, and commercial/architectural installation environments.
-

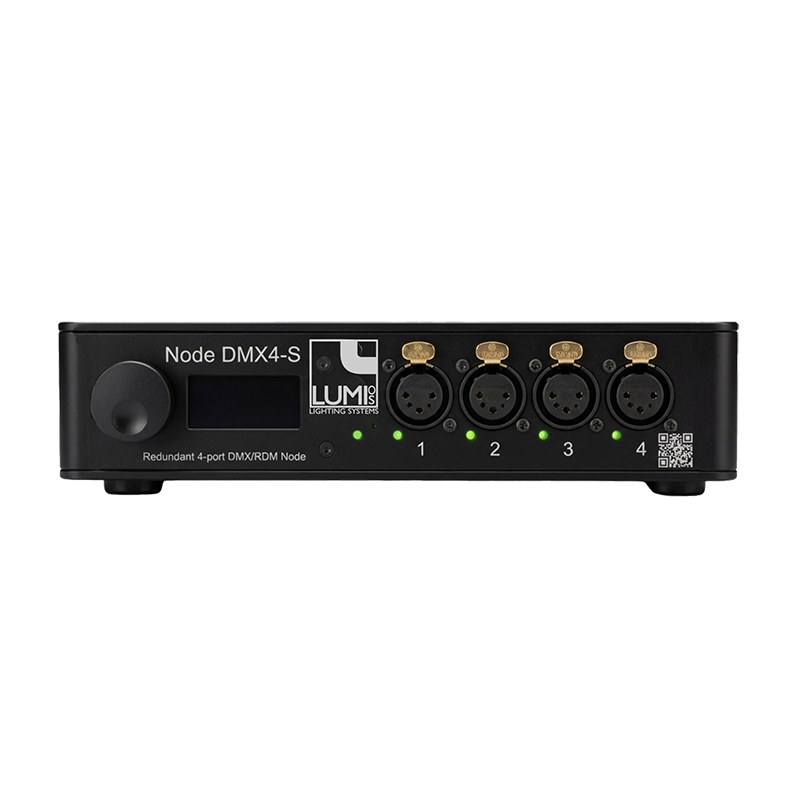

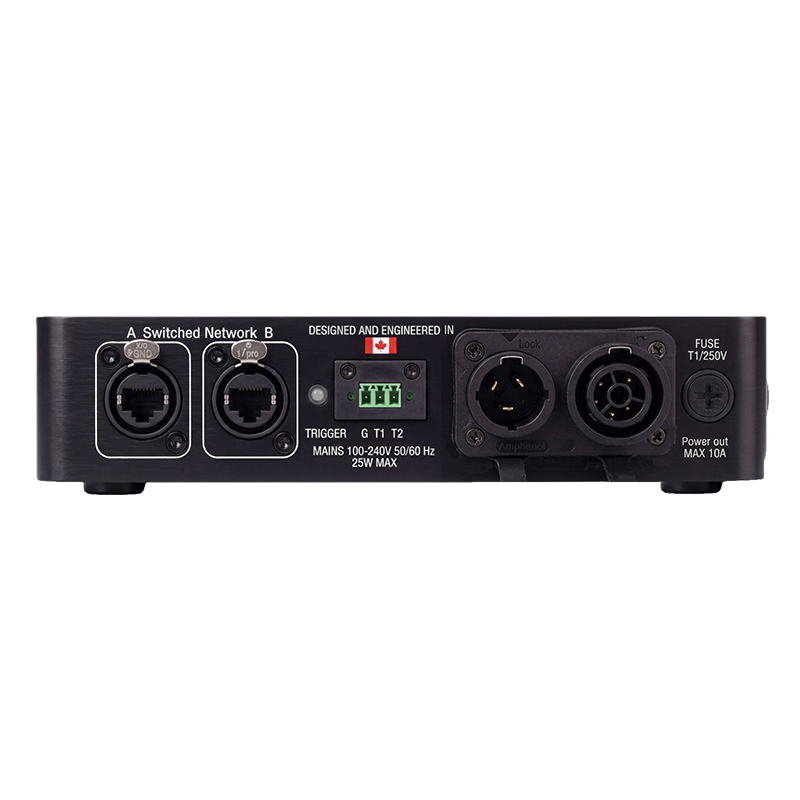

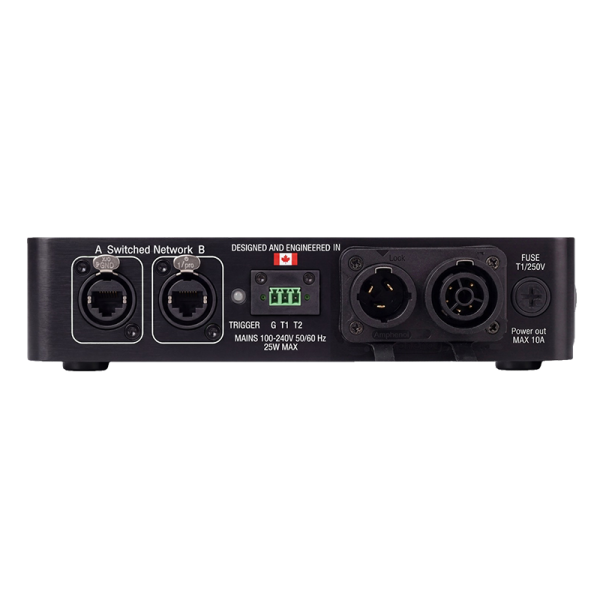

Node eDMX4-S
