NODE eDMX1

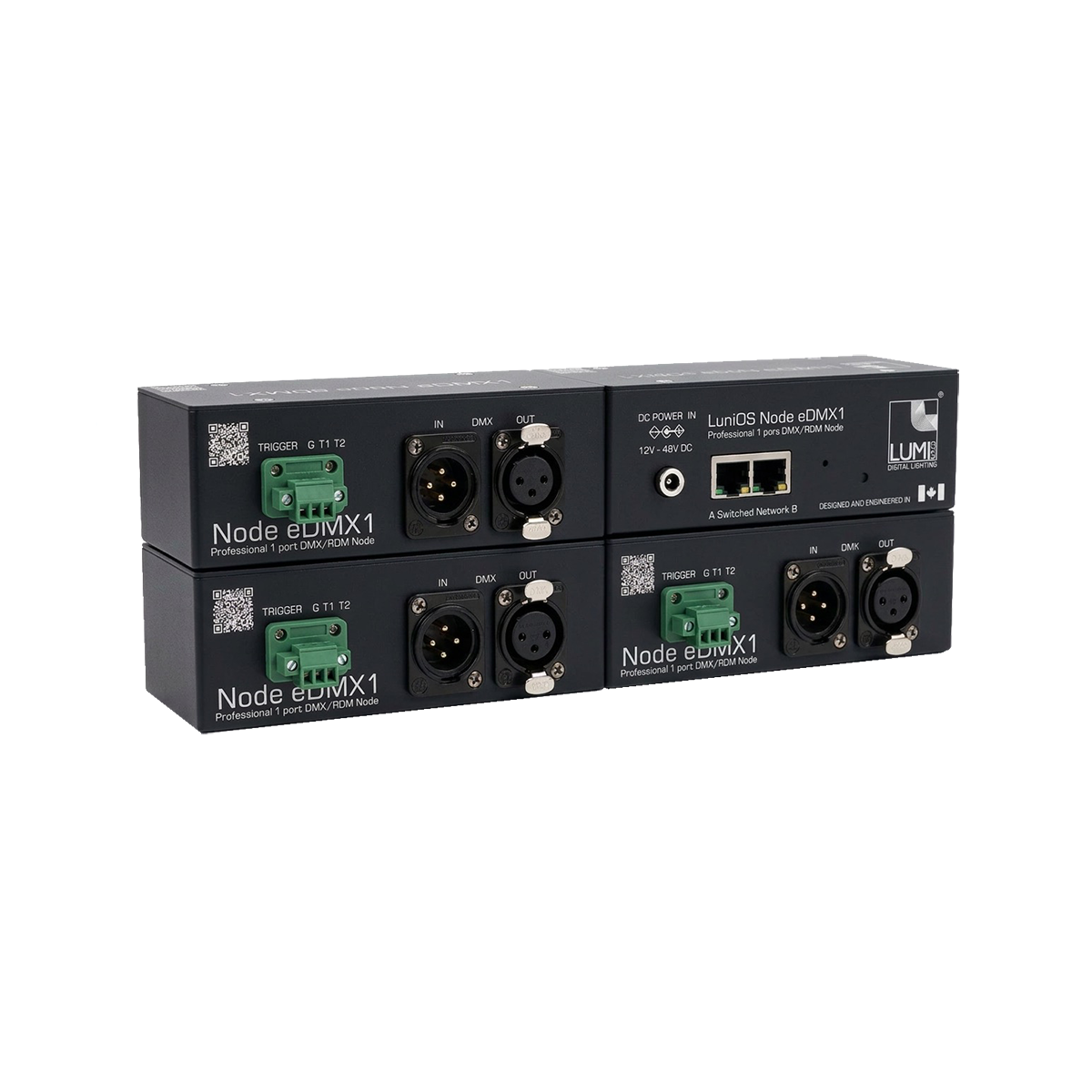

NODE eDMX1 is a compact single universe network to DMX converter. Like the larger eDMX4 it's also engineered to process, merge, reroute and trigger events beyond the physical DMX port limit. Metal construction, truss/DIN/rack mounting, external triggers, a web GUI, web API and other connectivity make it suitable for various mobile, theatre, and scalable AV installation projects.

Key Features

Art-Net / sACN / RDM Ethernet Protocols

Web GUI, Advanced Networking, and documented web API

Truss mounting, DIN mounting, or rack mounting options

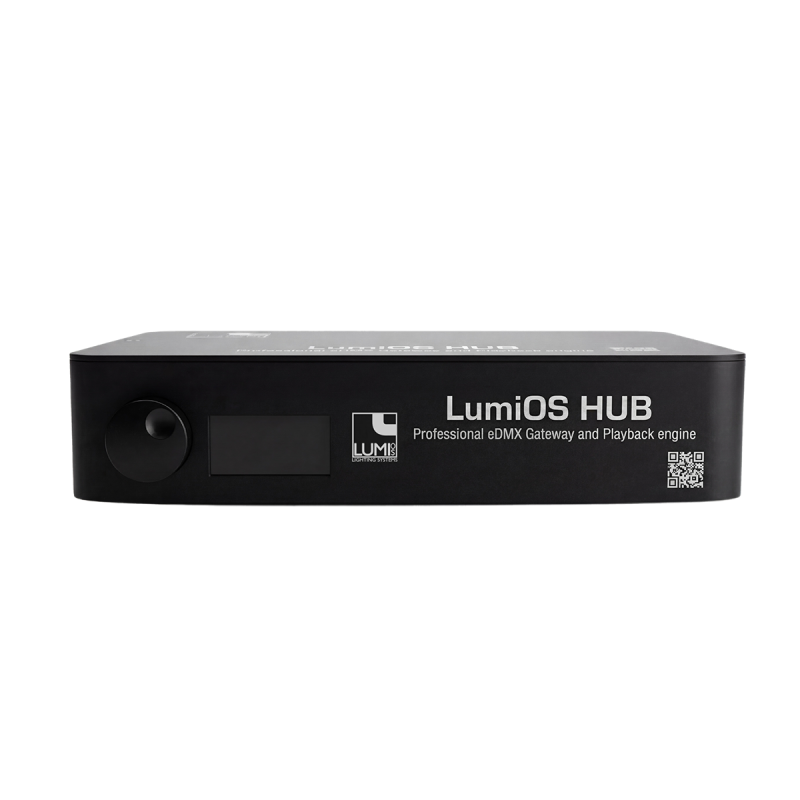

System monitoring with optional LumiOS HUB

SKU: Node eDMX1 Category: Control & Data

Request a Quote → Download Spec Sheet ↓

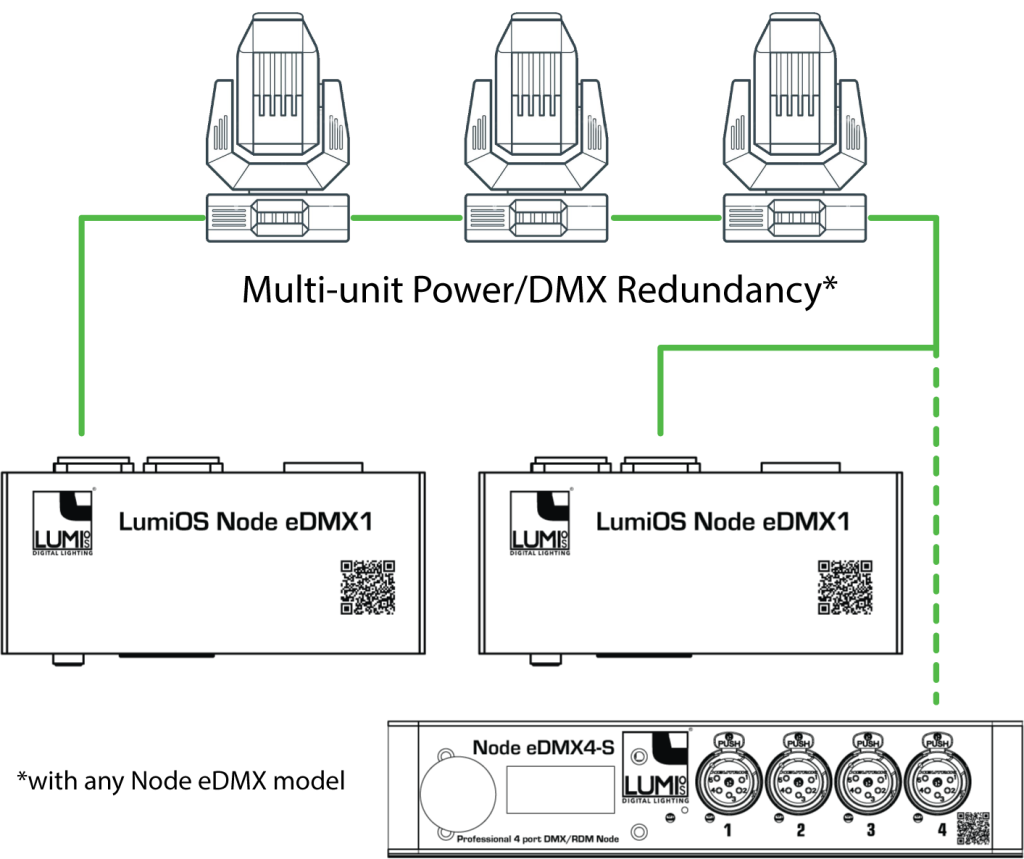

Compatible with industry-standard protocols like Art-Net, sACN, RDM, and featuring dual Ethercon ports plus two 5-pin DMX ports (male/female), it delivers versatile connectivity in an extremely compact 1/3 rack form factor. The DMX port is galvanically isolated and can be individually configured as either an input or output. Redundant backup looping is possible with multiple eDMX units.

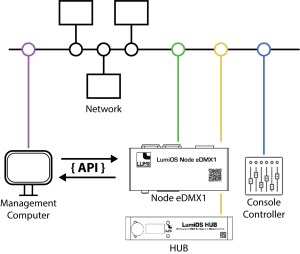

Control includes a web GUI interface, web API, VLANs, dual trigger ports, and onboard processing for HTP, LTP, softpatch, reroute, backup profiles, redundancy, and much more. System wide monitoring and extra features are available when using the optional LumiOS HUB.

Applications

Live Events
Concert Touring
Theatre Systems
Studio Installations
AV Installations

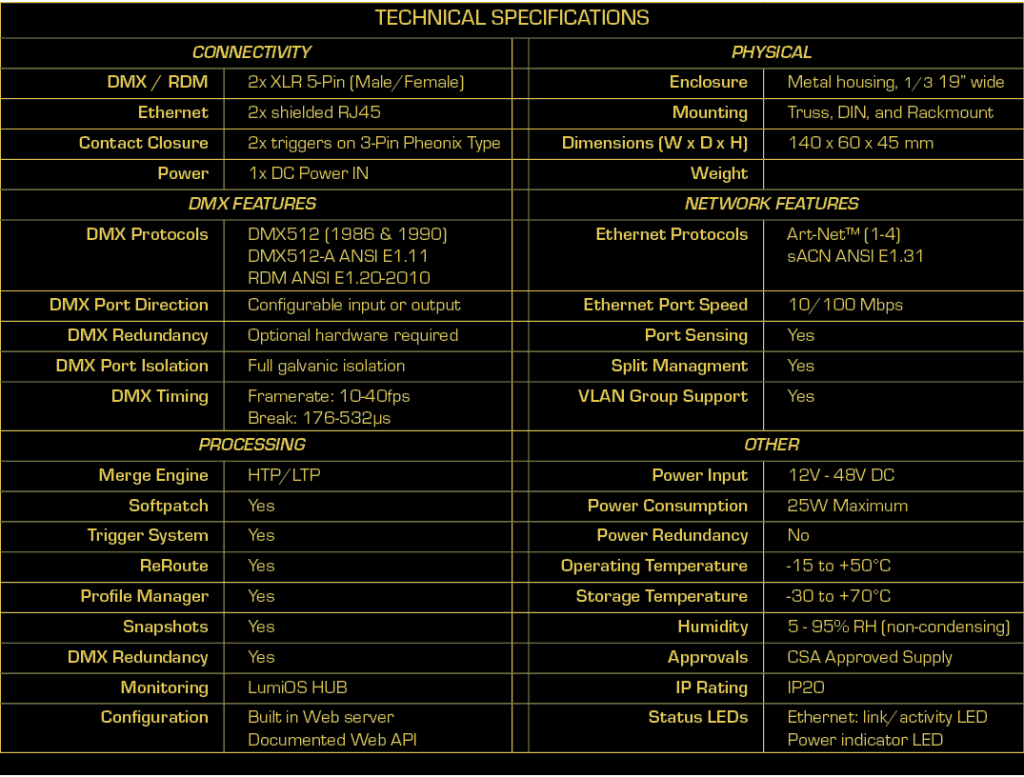

Connectivity

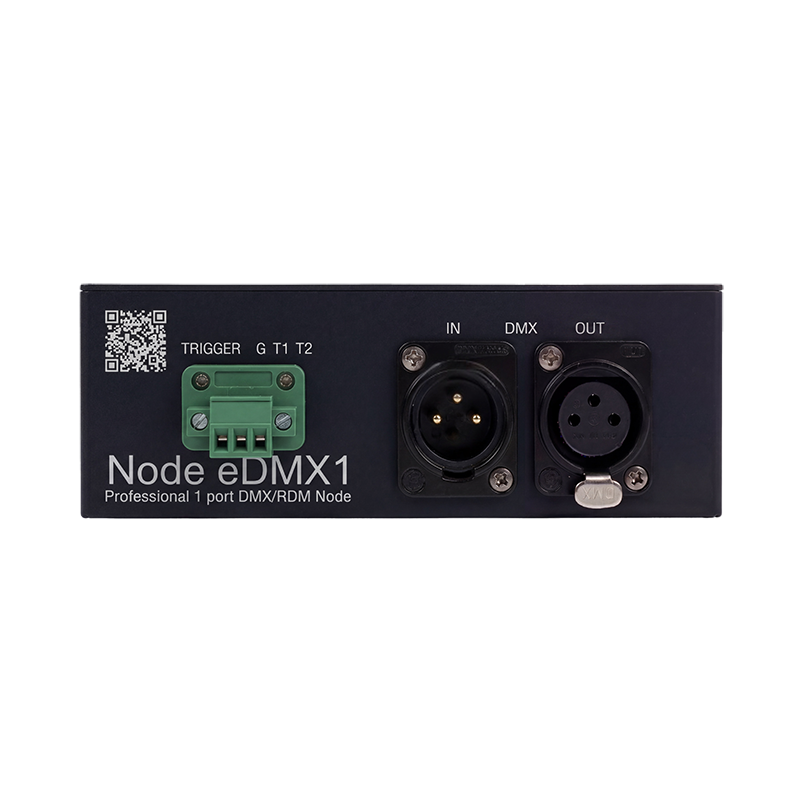

DMX / RDM	2x XLR 5-Pin (Male/Female)
Ethernet	2x shielded RJ45
Contact Closure	2x triggers on 3-Pin Pheonix Type
Power	1x DC Power IN
Network Features
Ethernet Protocols	Art-Net™ (1-4)
	sACN ANSI E1.31
Ethernet Port Speed	10/100 Mbps
Port Sensing	Yes
Split Management	Yes
VLAN Group Support	Yes
DMX Features
DMX Protocols	DMX512 (1986 & 1990)
	DMX512-A ANSI E1.11
	RDM ANSI E1.20-2010
DMX Port Direction	Configurable input or output
DMX Redundancy	Yes, Optional hardware required
DMX Port Isolation	Full galvanic isolation
DMX Timing	Framerate 10-40fps
	Break 176-532µs
Processing
Merge Engine	HTP/LTP
Softpatch	Yes
Trigger System	Yes
ReRoute	Yes
Profile Manager	Yes
Snapshots	Yes
DMX Redundancy	Yes
Monitoring	LumiOS HUB
Configuration	Built in Web server
	Documented Web API
Physical
Status LEDs	Ethernet, Link/Activity LED
	Power Indicator LED
Enclosure	Metal Housing, 1/3-wide 19” format
Mounting	Truss, DIN, and Rackmount

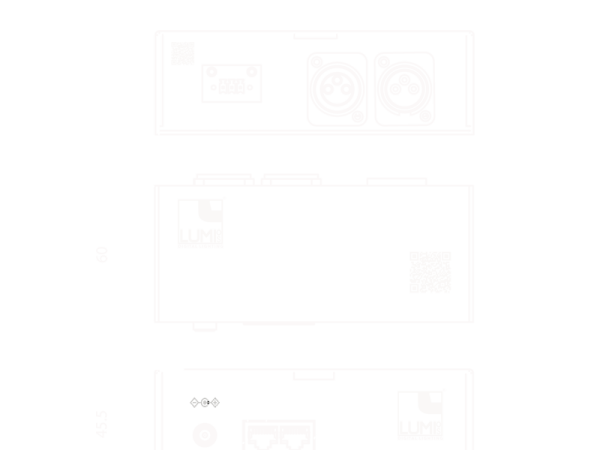

Dimensions (W x D x H)	140 x 60 x 45 mm
Weight	tbd
Power Requirements
Power Input	12V - 48V DC
Power Consumption	25W Maximum
Power Redundancy	No
Environmental
IP Rating	IP20
Operating Temperature	-15 to +50°C
Storage Temperature	-30 to +70°C
Humidity	5 - 95% RH (non-condensing)
Other
Approvals	CSA Approved External Supply
Warranty	2-year Limited Warranty (parts & labor)

Live Events
Concert Touring
Theatre Systems
Studio Installations
AV Installations

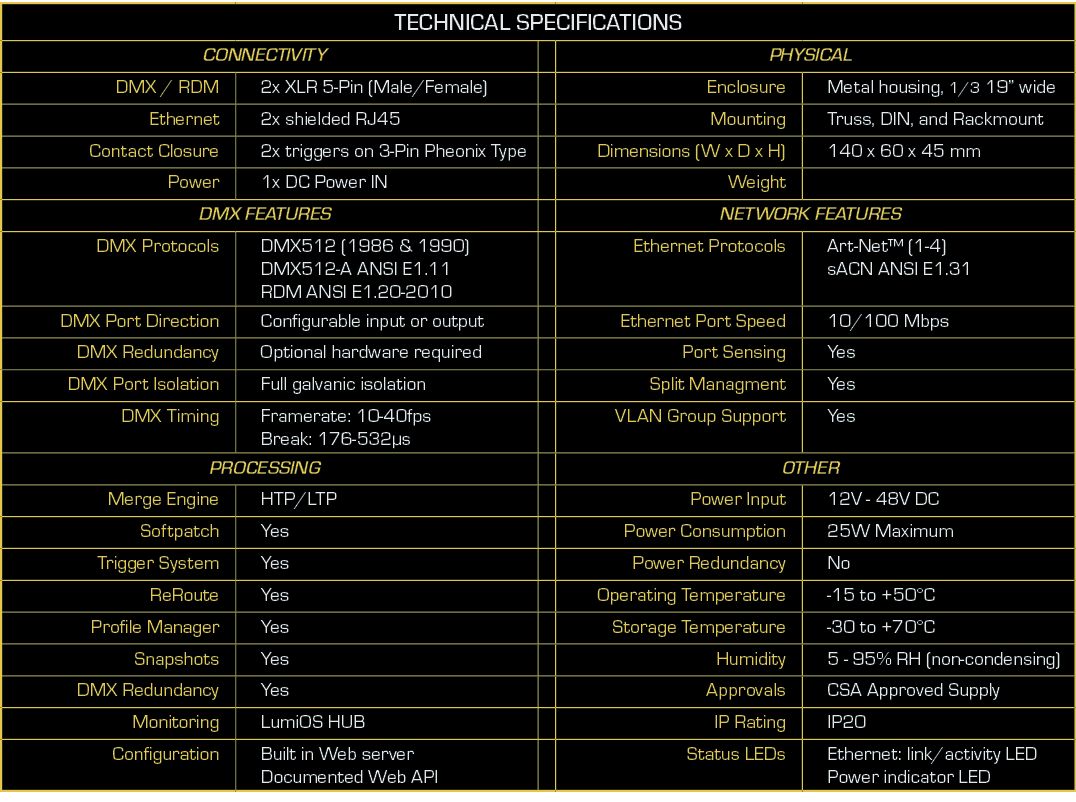

📁 LumiOS NODE eDMX1 Cutsheet ↓
