NODE ePIXEL4

NODE ePIXEL4 is a high-performance, 4-port eDMX-to Pixel Converter engineered for the most demanding applications. The ePIXEL4 can transmit up to 32 universes @ 4096 RGBW pixels with exceptional stability and precision. Featuring 1024 pixels per port, using our LumiOS proprietary Variable Frame Rate Architecture™, an incredible refresh rate up to 120Hz is possible. Built for robustness the all-metal chassis makes it an ideal solution for mobile entertainment, and commercial/architectural installation environments.

Key Features

32 Universes of SPI Pixel Data via Art-Net and sACN ethernet protocols

Variable Frame Rate Architecture™ for refresh rates up to 120 Hz

Advanced networking, web GUI, and web API

Rugged all-metal chassis for demanding applications

Truss mounting, DIN mounting, or rack mounting options

System monitoring with optional LumiOS HUB

Dual Trigger, VLANs, HTP, LTP, softpatch, merge, and more...

SKU: Node ePIXEL4 Categories: Control & Data, Pixel Control

Request a Quote → Download Spec Sheet ↓

Optimized for rapid deployment, the ePIXEL4 supports truss mounting, rack mounting, and DIN rail mounting. It’s compatible with industry-standard network protocols and with the most popular used SPI LED strip types. In addition to RGBW mode, the ePIXEL4 can drive 5,440 3-colour RGB pixels at 1360 pixels per port. Built for robustness the all-metal chassis makes it an ideal solution for mobile entertainment, and commercial/architectural installation environments.

An integrated localhost web interface provides a streamlined user experience, enabling effortless configuration and the creation of dynamic gradient effects via the built-in FX engine. Standalone operation is fully supported, with automatic playback on power-up eliminating the need for external controls. Quick and easy user deployed updates are possible, as well as custom applications updates.

Designed with installers in mind, we include easy network daisy-chaining for scalable setups, protocol configuration, and versatile mounting solutions. Altogether, it delivers a sophisticated and dependable LED pixel control system tailored for small to large-scale complex projects. System monitoring and extra features are possible when using the optional LumiOS HUB.

Warranty:

2-year warranty on parts and labor

Applications

Architectural Lighting
Decorative Lighting
Entertainment Venues
Hospitality & Transportation
Advertising and Art Projects

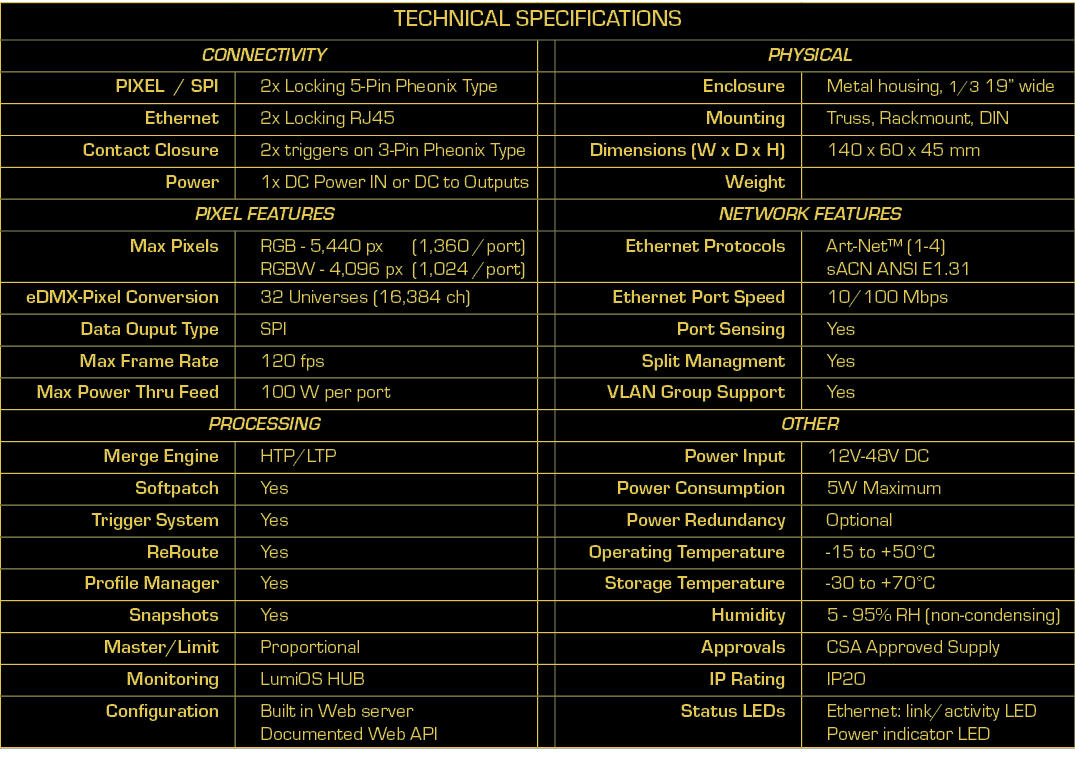

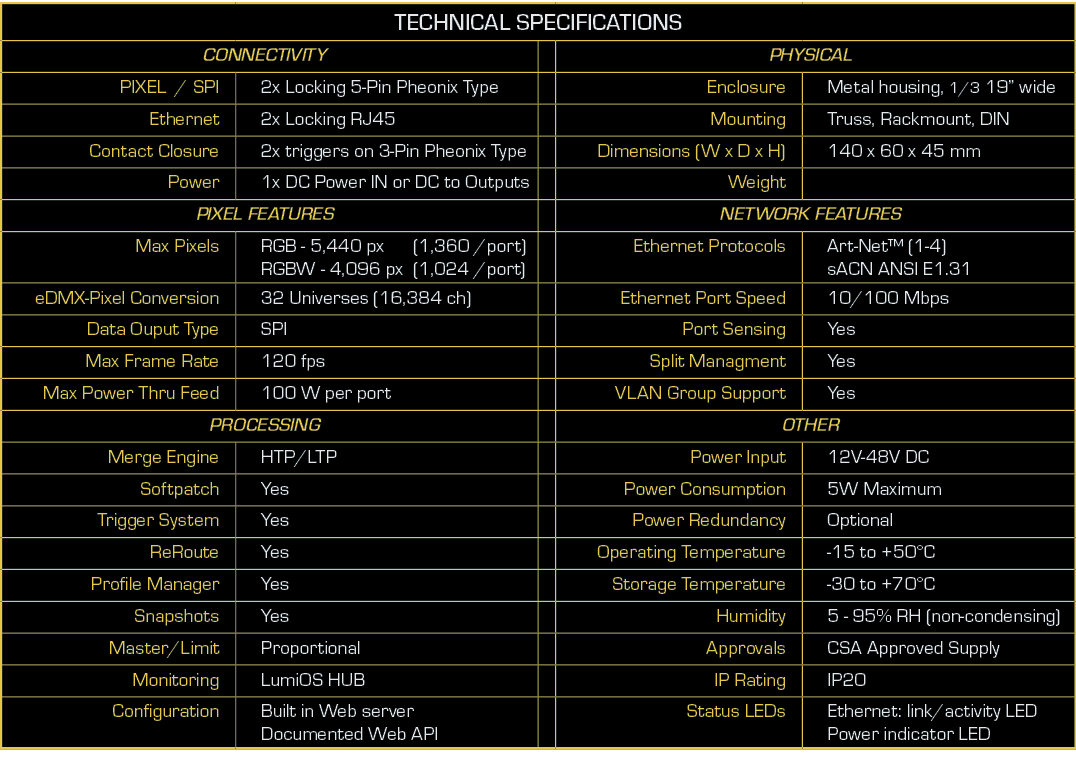

Connectivity
PIXEL / SPI	2x Locking 5-Pin Pheonix Type

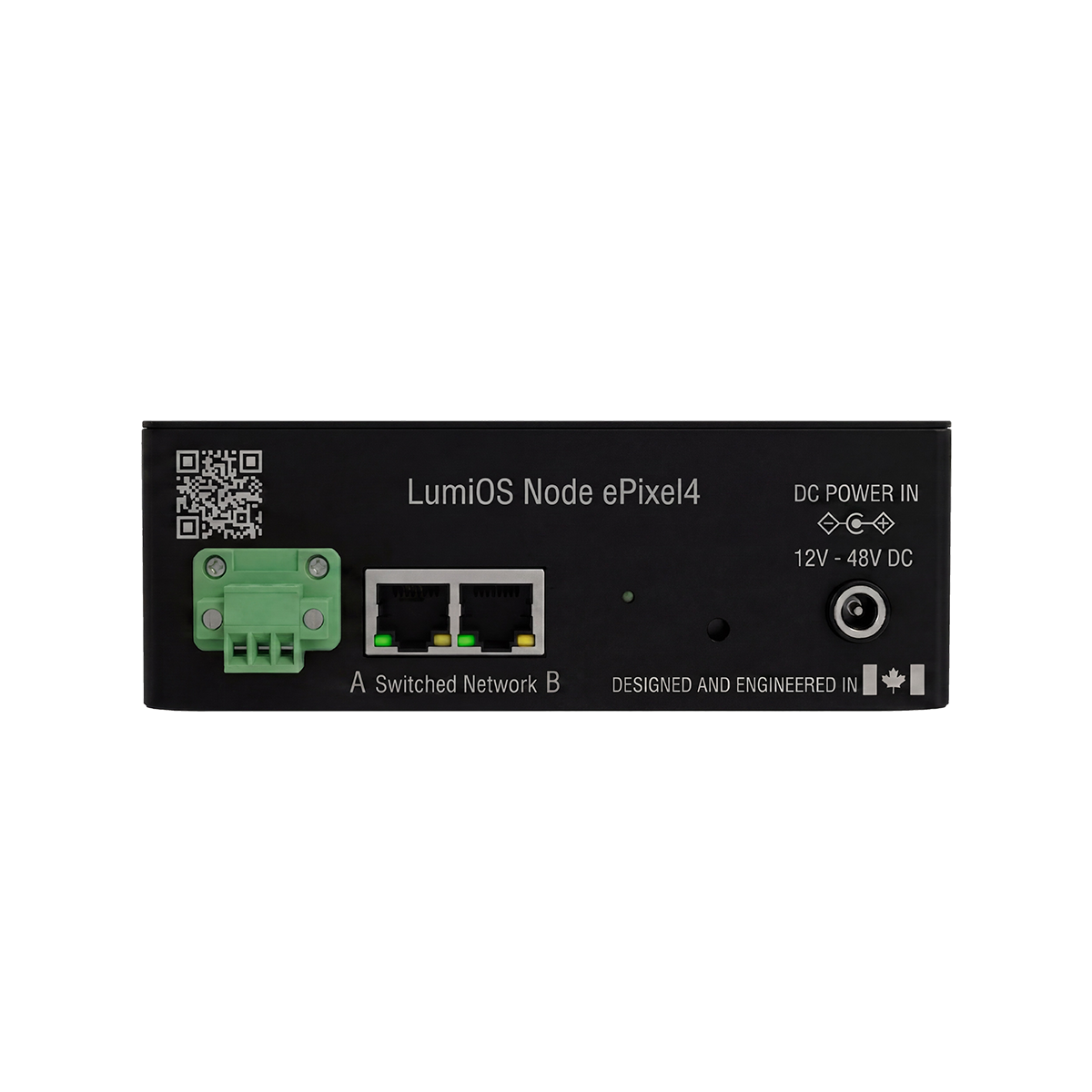

Ethernet	2x Locking RJ45
Contact Closure	2x triggers on 3-Pin Pheonix Type
Power	1x DC Power IN or DC to Outputs
Network Features
Ethernet Protocols	Art-Net™ (1-4)
	sACN ANSI E1.31
Ethernet Port Speed	10/100 Mbps
Port Sensing	Yes
Split Management	Yes
VLAN Group Support	Yes
Pixel Features
Maximum Pixels	RGB - 5,440 px (1,360 /port)
	RGBW - 4,096 px (1,024 /port)
eDMX-Pixel Conversion	32 Universes (16,384 ch)
Data Ouput Type	SPI (various protocols)
Max Frame Rate	120 fps
Max Power Thru Feed	100 W per port
Processing
Merge Engine	HTP/LTP
Softpatch	Yes
Trigger System	Yes
ReRoute	Yes
Profile Manager	Yes
Snapshots	Yes
Master/Limit	Proportional
Monitoring	LumiOS HUB
	LumiOS Array™ Software
Configuration	Built in Web server
	Documented Web API
Physical
Status LEDs	Ethernet, Link/Activity LED
	Power indicator LED
Enclosure	Metal Housing, 1/3-wide 19” format
Mounting	Truss, Rackmount, DIN Rail

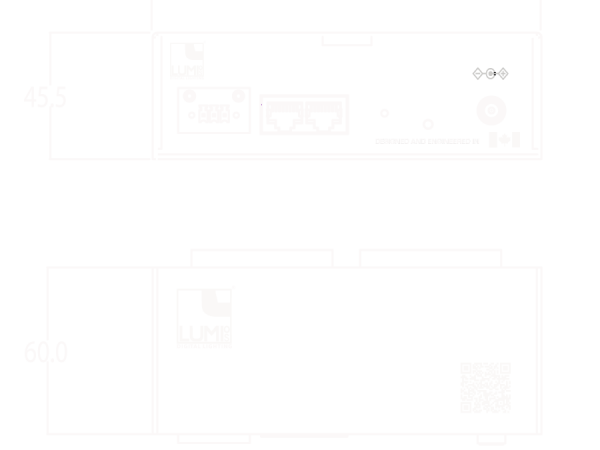

Dimensions (W x D x H)	140 x 60 x 45 mm
Weight	tbd
Power Requirements
Power Input	12V-48V DC
Power Consumption	5W Maximum
Power Redundancy	Optional
Environmental
IP Rating	IP20
Operating Temperature	-15 to +50°C
Storage Temperature	-30 to +70°C
Humidity	5 - 95% RH (non-condensing)
Other
Approvals	CSA Approved External Supply
Warranty	2-year Limited Warranty (parts & labor)

Architectural Lighting
Decorative Lighting
Entertainment Venues
Hospitality & Transportation
Advertising and Art Projects

📁 LumiOS NODE PIXEL4 Cutsheet ↓
