NODE eDMX4-S

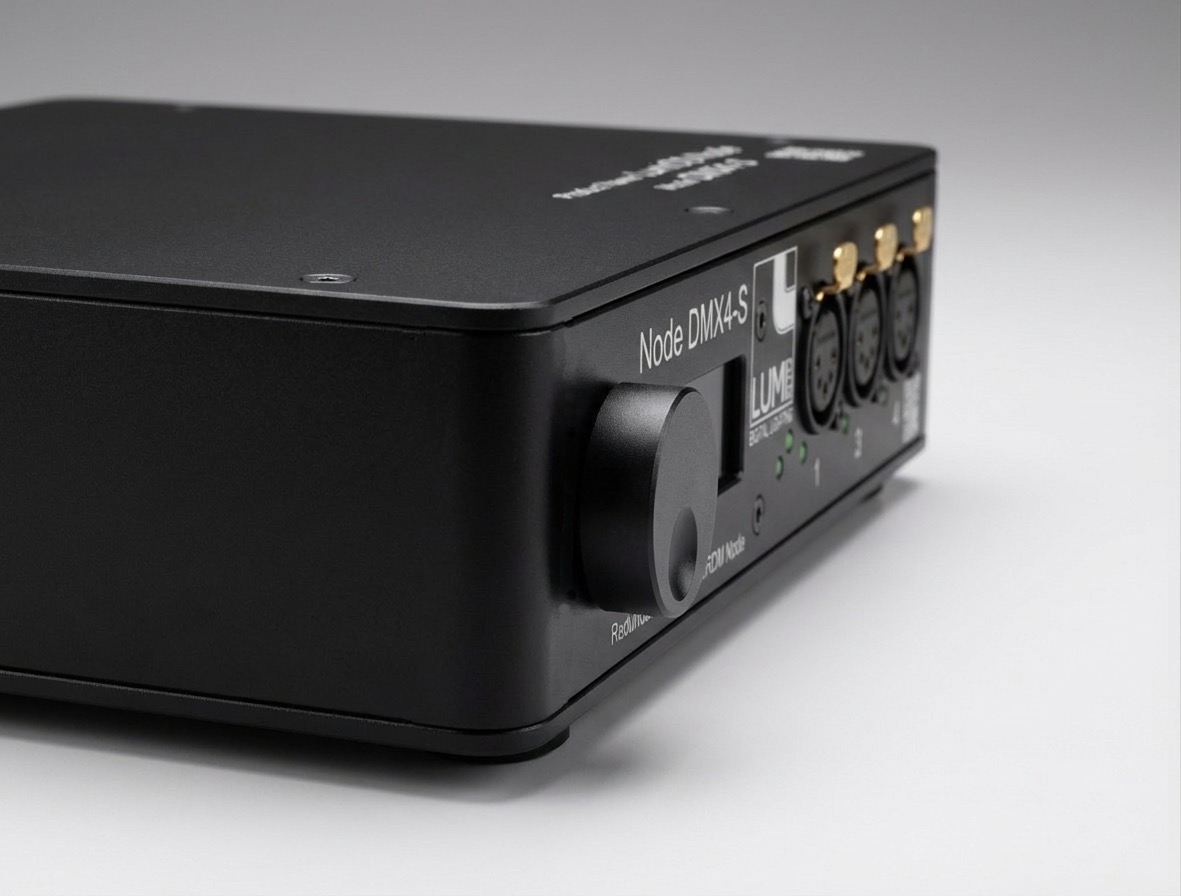

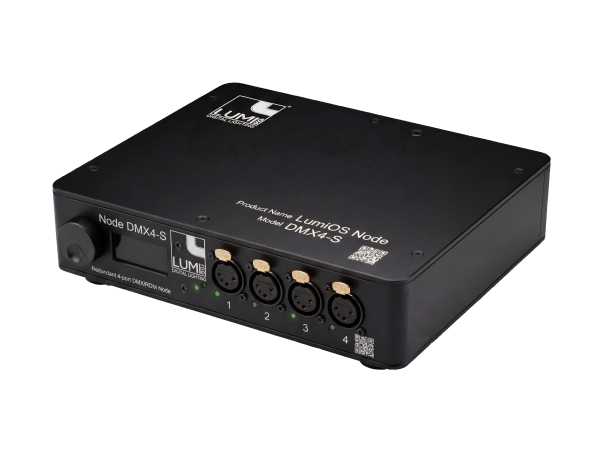

NODE eDMX4-S is more than a simple network to DMX converter. It's engineered to process, merge, reroute and trigger events beyond the physical DMX port limit. Metal construction, truss or rack mounting, redundant DMX/Power options, external triggers, a web GUI, web API and other connectivity mean make it suitable for touring, theatre, and scalable AV installation projects.

Key Features

Art-Net / sACN / RDM Ethernet Protocols

Web GUI, Documented API, and Screen/Jog user controls

Rugged all-metal chassis for most demanding applications

Truss mounting or rack mounting options

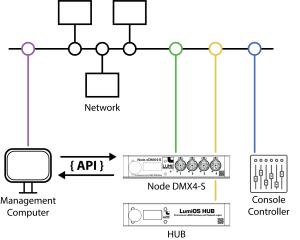

System monitoring with optional LumiOS HUB

Dual Trigger, VLANs, HTP, LTP, softpatch, merge, and more...

SKU: Node eDMX4-S Category: Control & Data

Request a Quote → Download Spec Sheet ↓

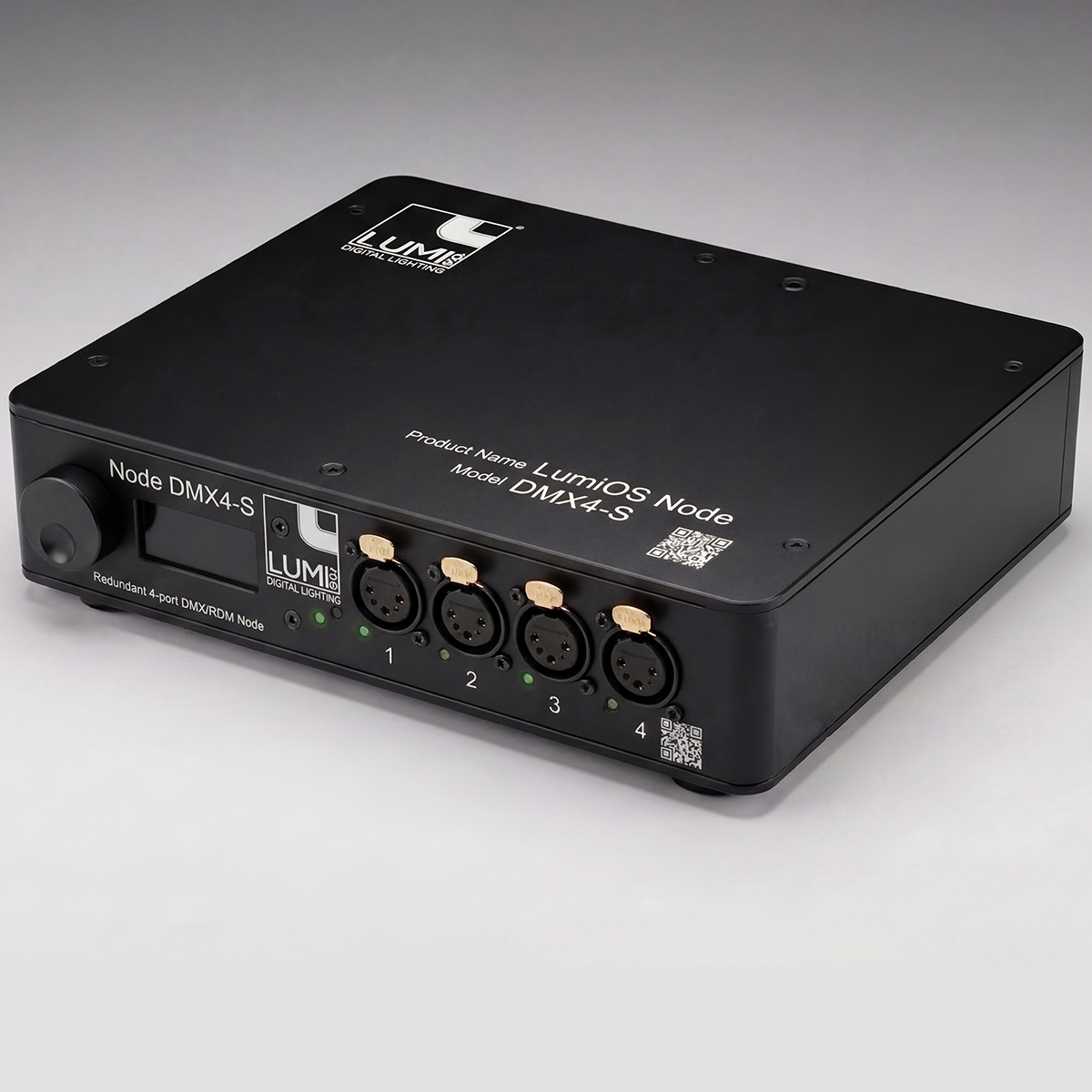

Compatible with industry-standard protocols like Art-Net, sACN, RDM, and featuring dual Ethercon ports plus four 5-pin DMX ports, it delivers versatile connectivity in a very compact half-rack form factor. Each DMX port is galvanically isolated and can be individually configured as either an input or output. Redundant backup looping is possible.

Control includes a web GUI interface, web API, VLANs, dual trigger ports, and onboard processing for merging, HTP, LTP, softpatch, reroute, backup profiles, redundancy, and much more. System wide monitoring and extra features are available when using the optional LumiOS HUB.

Applications

Live Events
Concert Touring
Theatre Systems
Studio Installations
AV Installations

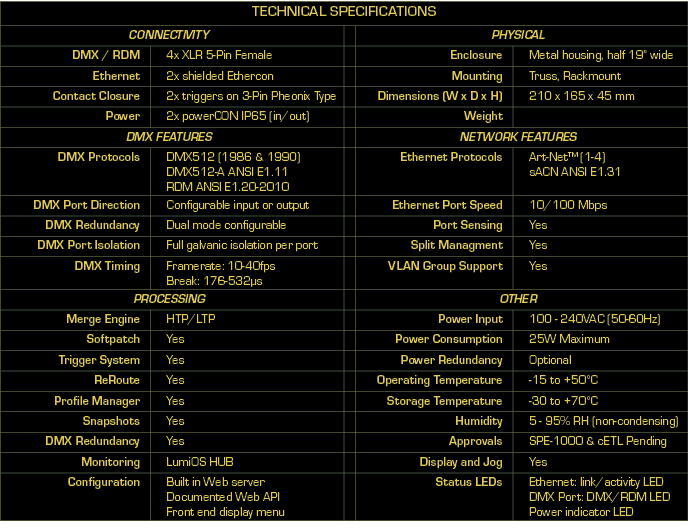

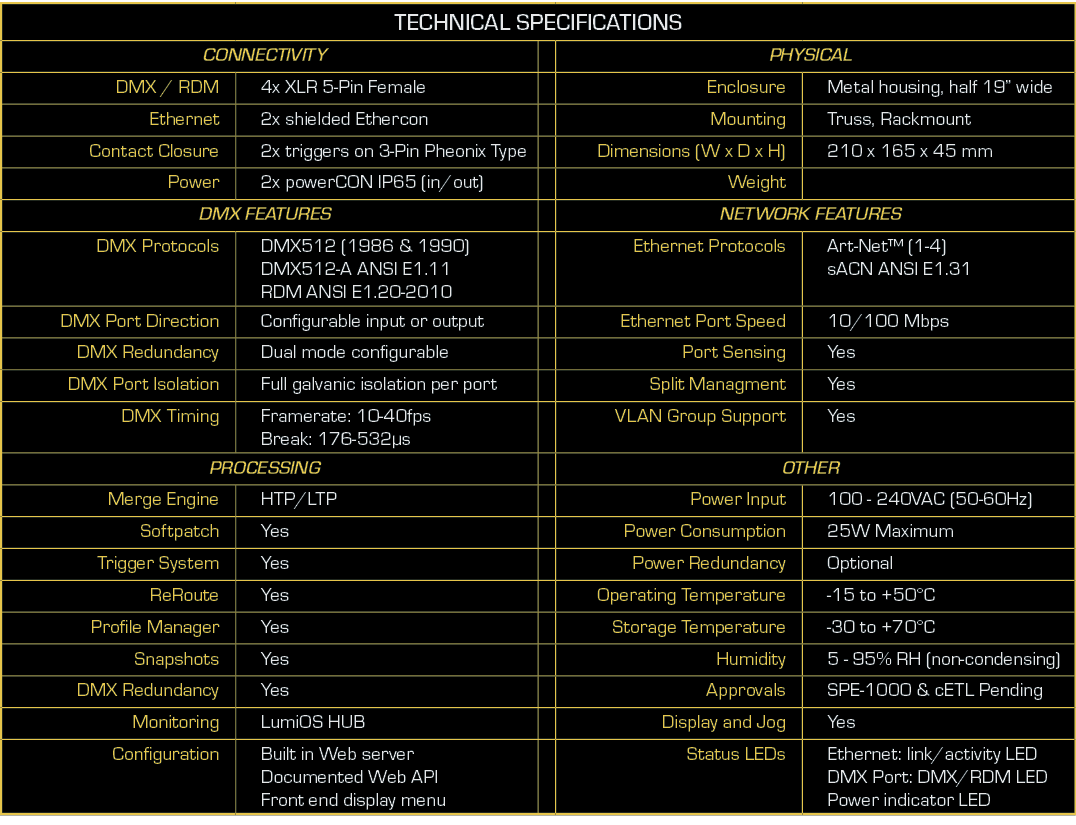

Connectivity

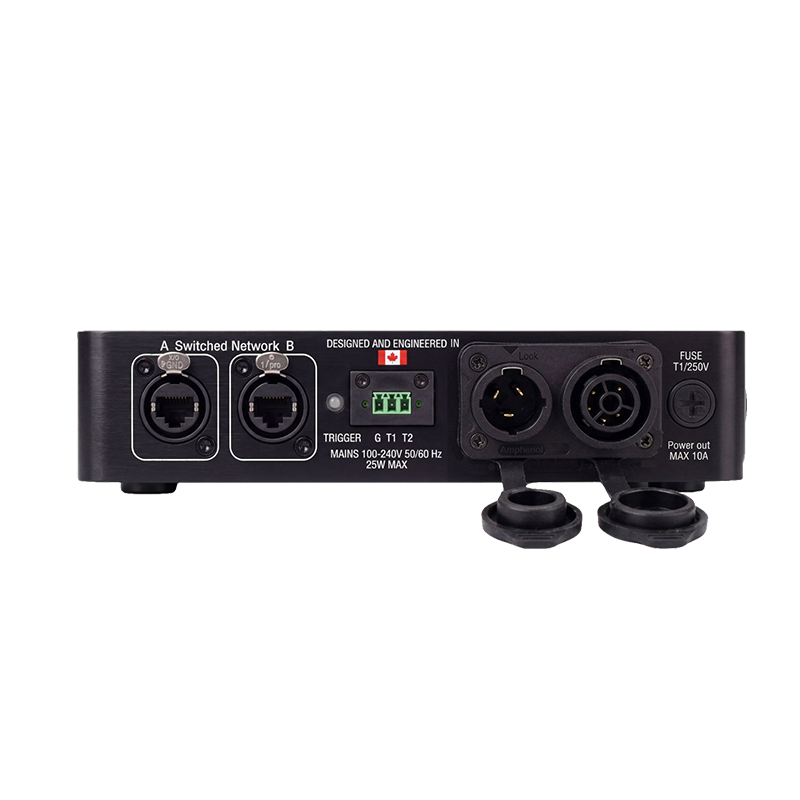

DMX / RDM	4x XLR 5-Pin Female
Ethernet	2x shielded Ethercon
Contact Closure	2x triggers on 3-Pin Pheonix Type
Power	2x powerCON IP65 (in/out)
Network Features
Ethernet Protocols	Art-Net™ (1-4)
	sACN ANSI E1.31
Ethernet Port Speed	10/100 Mbps
Port Sensing	Yes
Split Management	Yes
VLAN Group Support	Yes
DMX Features
DMX Protocols	DMX512 (1986 & 1990)
	DMX512-A ANSI E1.11
	RDM ANSI E1.20-2010
DMX Port Direction	Configurable input or output

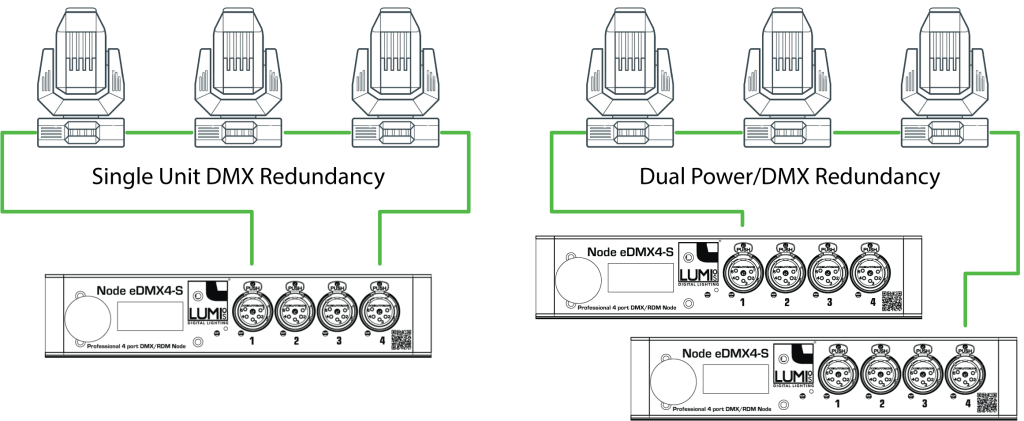

DMX Redundancy	Dual mode configurable
DMX Port Isolation	Full galvanic isolation per port
DMX Timing	Framerate 10-40fps
	Break 176-532µs
Processing
Merge Engine	HTP/LTP
Softpatch	Yes
Trigger System	Yes
ReRoute	Yes
Profile Manager	Yes
Snapshots	Yes
DMX Redundancy	Yes
Monitoring	LumiOS HUB
	LumiOS Array™ Software
Configuration	Built in Web server
	Documented Web API
	Front end display menu/jog wheel
Physical
Display and Jog	Yes
Status LEDs	Ethernet, Link/Activity LED
	DMX Port, DMX/RDM LED
	Power indicator LED
Enclosure	Metal Housing, half-wide 19” format
Mounting	Truss, Rackmount

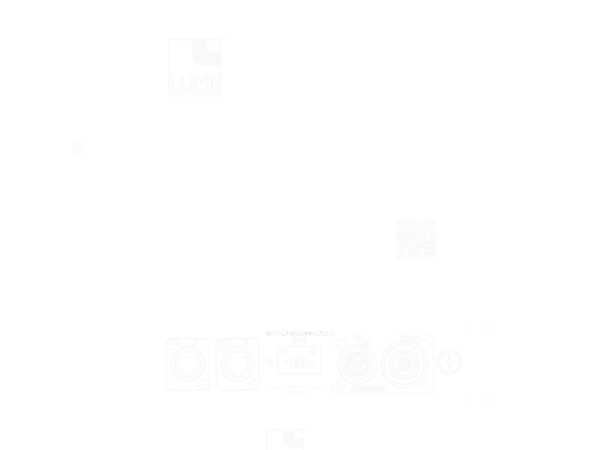

Dimensions (W x D x H)	210 x 165 x 45 mm
Weight	tbd
Power Requirements
Power Input	100 - 240VAC (50-60Hz)
Power Consumption	25W Maximum
Power Redundancy	Optional
Environmental
IP Rating	IP20
Operating Temperature	-15 to +50°C
Storage Temperature	-30 to +70°C
Humidity	5 - 95% RH (non-condensing)
Other
Approvals	SPE-1000 & ETL Pending
Warranty	2-year Limited Warranty (parts & labor)
